OSS获得阿里云服务端签名——服务端签名后直传

你的名字 2021-07-24 12:48 700阅读 0赞

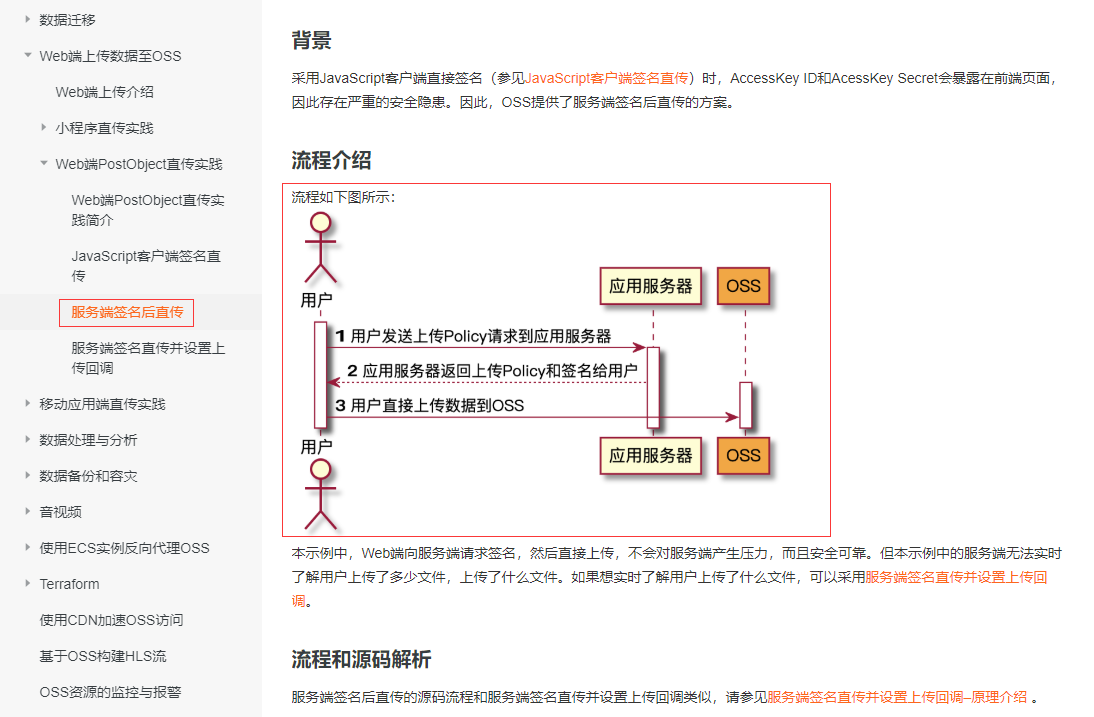

一 任务

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2NoZW5ncWl1bWluZw_size_16_color_FFFFFF_t_70

完成上图的第1步和第2步。

二 参考

https://help.aliyun.com/document_detail/31926.html?spm=a2c4g.11186623.6.1711.4d777815zWYCD0

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2NoZW5ncWl1bWluZw_size_16_color_FFFFFF_t_70 1

三 创建第三方服务微服务

1 配置依赖

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  3.          xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  4.     <modelVersion>4.0.0</modelVersion>
  5.     <parent>
  6.         <groupId>org.springframework.boot</groupId>
  7.         <artifactId>spring-boot-starter-parent</artifactId>
  8.         <version>2.2.1.RELEASE</version>
  9.         <relativePath/> <!-- lookup parent from repository -->
  10.     </parent>
  11.     <groupId>com.atguigu.gulimall</groupId>
  12.     <artifactId>gulimall-third-party</artifactId>
  13.     <version>0.0.1-SNAPSHOT</version>
  14.     <name>gulimall-third-party</name>
  15.     <description>第三方服务</description>
  16.     <properties>
  17.         <java.version>1.8</java.version>
  18.         <!--        <spring-cloud.version>Hoxton.RC1</spring-cloud.version>-->
  19.         <spring-cloud.version>Greenwich.SR3</spring-cloud.version>
  20.     </properties>
  21.     <dependencies>
  22.         <!-- 依赖公共服务-->
  23.         <dependency>
  24.             <groupId>com.atguigu.gulimall</groupId>
  25.             <artifactId>gulimall-common</artifactId>
  26.             <version>0.0.1-SNAPSHOT</version>
  27.             <exclusions>
  28.                 <!-- 排除mybatis-plus -->
  29.                 <exclusion>
  30.                     <groupId>com.baomidou</groupId>
  31.                     <artifactId>mybatis-plus-boot-starter</artifactId>
  32.                 </exclusion>
  33.             </exclusions>
  34.         </dependency>
  35.         <dependency>
  36.             <groupId>org.springframework.boot</groupId>
  37.             <artifactId>spring-boot-starter-web</artifactId>
  38.         </dependency>
  39.         <dependency>
  40.             <groupId>org.springframework.cloud</groupId>
  41.             <artifactId>spring-cloud-starter-openfeign</artifactId>
  42.         </dependency>
  43.         <!-- SpringCloud Alibaba-OSS 进行文件上传-->
  44.         <dependency>
  45.             <groupId>com.alibaba.cloud</groupId>
  46.             <artifactId>spring-cloud-starter-alicloud-oss</artifactId>
  47.         </dependency>
  48.         <dependency>
  49.             <groupId>org.springframework.boot</groupId>
  50.             <artifactId>spring-boot-starter-test</artifactId>
  51.             <scope>test</scope>
  52.             <exclusions>
  53.                 <exclusion>
  54.                     <groupId>org.junit.vintage</groupId>
  55.                     <artifactId>junit-vintage-engine</artifactId>
  56.                 </exclusion>
  57.             </exclusions>
  58.         </dependency>
  59.     </dependencies>
  60.     <dependencyManagement>
  61.         <dependencies>
  62.             <!-- SpringCloud的依赖管理 -->
  63.             <dependency>
  64.                 <groupId>org.springframework.cloud</groupId>
  65.                 <artifactId>spring-cloud-dependencies</artifactId>
  66.                 <version>${spring-cloud.version}</version>
  67.                 <type>pom</type>
  68.                 <scope>import</scope>
  69.             </dependency>
  70.             <!-- SpringCloud Alibaba的依赖管理-->
  71.             <dependency>
  72.                 <groupId>com.alibaba.cloud</groupId>
  73.                 <artifactId>spring-cloud-alibaba-dependencies</artifactId>
  74.                 <version>2.1.0.RELEASE</version>
  75.                 <type>pom</type>
  76.                 <scope>import</scope>
  77.             </dependency>
  78.         </dependencies>
  79.     </dependencyManagement>
  80.     <build>
  81.         <plugins>
  82.             <plugin>
  83.                 <groupId>org.springframework.boot</groupId>
  84.                 <artifactId>spring-boot-maven-plugin</artifactId>
  85.             </plugin>
  86.         </plugins>
  87.     </build>
  88.     <repositories>
  89.         <repository>
  90.             <id>spring-milestones</id>
  91.             <name>Spring Milestones</name>
  92.             <url>https://repo.spring.io/milestone</url>
  93.         </repository>
  94.     </repositories>
  95. </project>

2 配置bootstrap.properties

  1. # 配置服务名
  2. spring.application.name=gulimall-third-party
  3. # 配置中心信息
  4. spring.cloud.nacos.config.server-addr=127.0.0.1:8848
  5. spring.cloud.nacos.config.namespace=7a4b5a41-ed40-4f37-9482-354e0002a783
  7. # 配置oss相关配置
  8. spring.cloud.nacos.config.ext-config[0].data-id=oss.yml
  9. spring.cloud.nacos.config.ext-config[0].group=DEFAULT_GROUP
  10. spring.cloud.nacos.config.ext-config[0].refresh=true

3 配置application.properties

  1. spring:
  2.   cloud:
  3.     nacos:
  4.       discovery:
  5.         server-addr: 127.0.0.1:8848
  6.     alicloud:
  7.       access-key: XXXXXXXXXXX
  8.       secret-key: XlKSpUcIILsdjYWuZXrRRwVbX4XlQ5
  9.       oss:
  10.         endpoint: oss-cn-chengdu.aliyuncs.com
  11.         bucket: gulimall-cakin
  12.   application:
  13.     name: gulimall-third-party
  14. server:
  15.   port: 30000

4 配置服务注册和发现

  1. // 开启服务注册发现
  2. @EnableDiscoveryClient
  3. @SpringBootApplication
  4. public class GulimallThirdPartyApplication {
  5.     public static void main(String[] args) {
  6.         SpringApplication.run(GulimallThirdPartyApplication.class, args);
  7.     }
  8. }

5 控制器

  1. package com.atguigu.gulimall.thirdparty.controller;
  3. import com.aliyun.oss.OSS;
  4. import com.aliyun.oss.common.utils.BinaryUtil;
  5. import com.aliyun.oss.model.MatchMode;
  6. import com.aliyun.oss.model.PolicyConditions;
  7. import com.atguigu.common.utils.R;
  8. import org.springframework.beans.factory.annotation.Autowired;
  9. import org.springframework.beans.factory.annotation.Value;
  10. import org.springframework.web.bind.annotation.RequestMapping;
  11. import org.springframework.web.bind.annotation.RestController;
  13. import java.text.SimpleDateFormat;
  14. import java.util.Date;
  15. import java.util.LinkedHashMap;
  16. import java.util.Map;
  18. /**
  19.  * @className: OssController
  20.  * @description: 对象存储控制器
  21.  * @date: 2020/10/29
  22.  * @author: cakin
  23.  */
  24. @RestController
  25. public class OssController {
  26.     @Autowired
  27.     OSS ossClient;
  28.     /**
  29.      * 端点
  30.      */
  31.     @Value("${spring.cloud.alicloud.oss.endpoint}")
  32.     private String endpoint;
  33.     /**
  34.      * bucket
  35.      */
  36.     @Value("${spring.cloud.alicloud.oss.bucket}")
  37.     private String bucket;
  38.     /**
  39.      * access-key
  40.      */
  41.     @Value("${spring.cloud.alicloud.access-key}")
  42.     private String accessId;
  44.     /**
  45.      * 功能描述：获得上传policy和签名
  46.      *
  47.      * @author cakin
  48.      * @date 2020/10/29
  49.      * @return R 签名数据
  50.      */
  51.     @RequestMapping("/oss/policy")
  52.     public R policy() {
  53.         String host = "https://" + bucket + "." + endpoint; // host的格式为 https:// + bucketname + endpoint
  54.         // callbackUrl为 上传回调服务器的URL，请将下面的IP和Port配置为您自己的真实信息。
  55.         // String callbackUrl = "http://88.88.88.88:8888";
  56.         String format = new SimpleDateFormat("yyyy-MM-dd").format(new Date());
  57.         String dir = format + "/"; // 用户上传文件时指定的前缀。
  59.         Map<String, String> respMap = null;
  60.         try {
  61.             long expireTime = 30;
  62.             long expireEndTime = System.currentTimeMillis() + expireTime * 1000;
  63.             // 30 s 超时
  64.             Date expiration = new Date(expireEndTime);
  65.             PolicyConditions policyConds = new PolicyConditions();
  66.             policyConds.addConditionItem(PolicyConditions.COND_CONTENT_LENGTH_RANGE, 0, 1048576000);
  67.             policyConds.addConditionItem(MatchMode.StartWith, PolicyConditions.COND_KEY, dir);
  69.             String postPolicy = ossClient.generatePostPolicy(expiration, policyConds);
  70.             byte[] binaryData = postPolicy.getBytes("utf-8");
  71.             String encodedPolicy = BinaryUtil.toBase64String(binaryData);
  72.             String postSignature = ossClient.calculatePostSignature(postPolicy);
  73.             respMap = new LinkedHashMap<String, String>();
  74.             // access-key
  75.             respMap.put("accessid", accessId);
  76.             // 策略
  77.             respMap.put("policy", encodedPolicy);
  78.             // 策略签名
  79.             respMap.put("signature", postSignature);
  80.             // 用户上传文件时指定的前缀
  81.             respMap.put("dir", dir);
  82.             // 主机
  83.             respMap.put("host", host);
  84.             // 过期时间
  85.             respMap.put("expire", String.valueOf(expireEndTime / 1000));
  86.             // respMap.put("expire", formatISO8601Date(expiration));
  87.         } catch (Exception e) {
  88.             // Assert.fail(e.getMessage());
  89.             System.out.println(e.getMessage());
  90.         }
  91.         return R.ok().put("data", respMap);
  92.     }
  93. }

四 测试

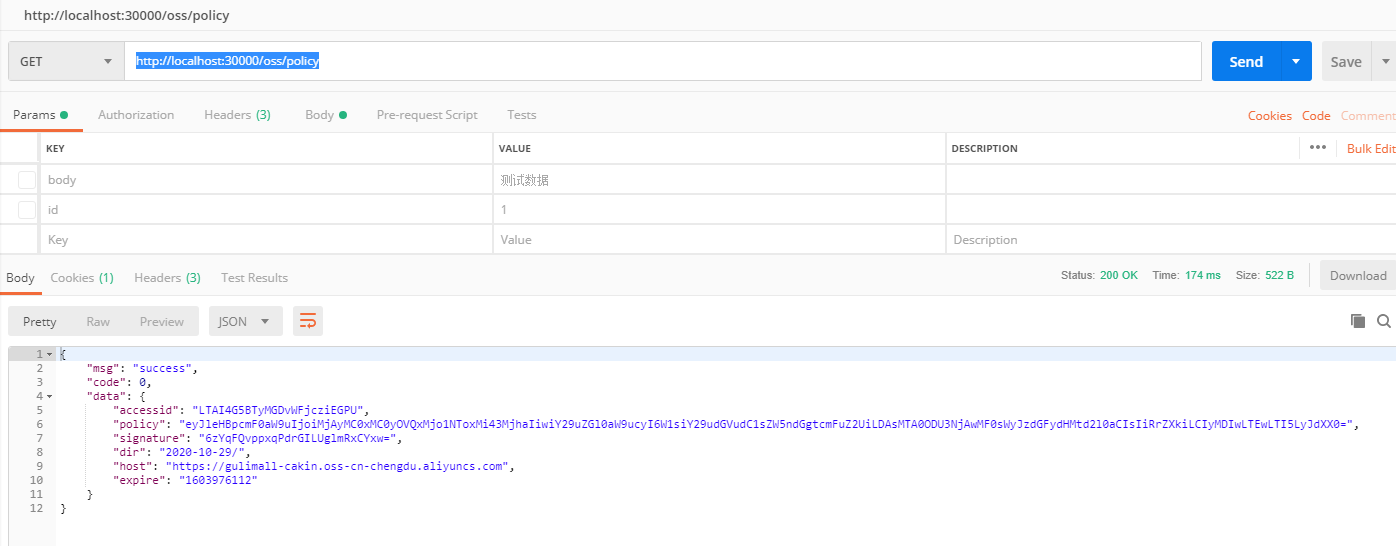

1 postman测试结果

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2NoZW5ncWl1bWluZw_size_16_color_FFFFFF_t_70 2

五 通过网关测试

1 网关配置

  1. - id: third_party_route
  2.   uri: lb://gulimall-third-party
  3.   predicates:
  4.     - Path=/api/thirdparty/**
  5.   filters:
  6.     - RewritePath=/api/thirdparty/(?<segment>.*),/$\{segment}

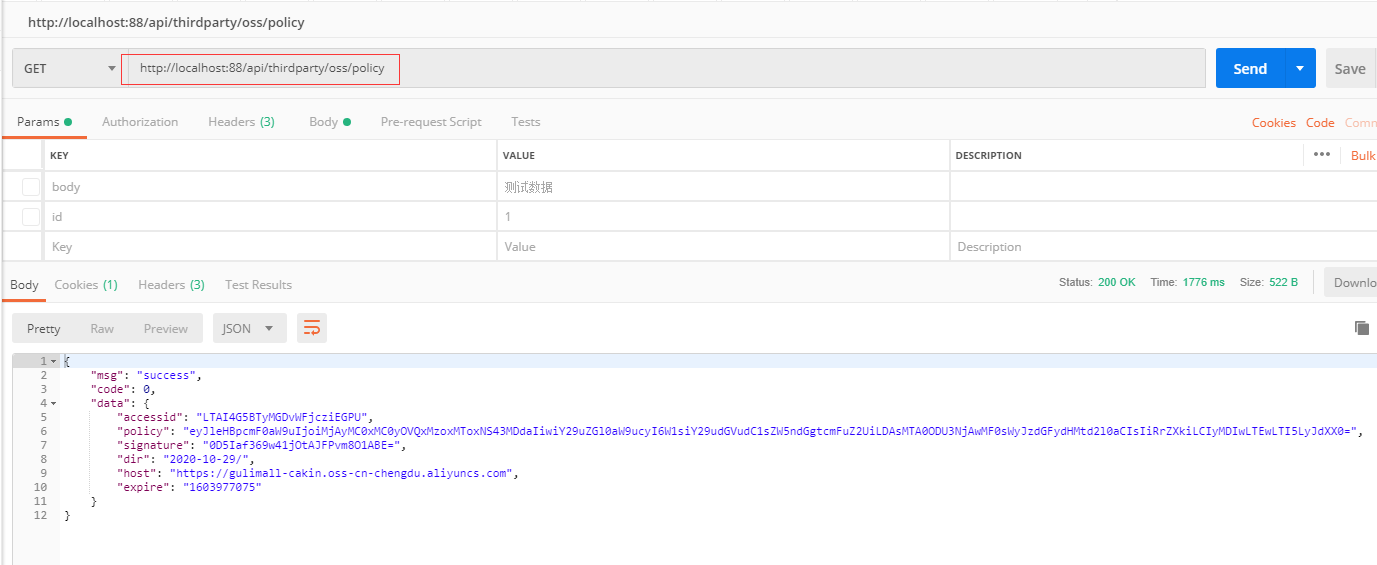

2 测试

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2NoZW5ncWl1bWluZw_size_16_color_FFFFFF_t_70 3
