mybatis源码学习笔记

￡神魔★判官ぃ 2021-09-24 15:42 362阅读 0赞

1.读取配置文件mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
    <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
    <configuration>

        <properties resource="jdbc.properties"></properties>
        <typeAliases>
            <package  name="com.xqc.model" />
        </typeAliases>
        <environments default="development">
            <environment id="development">
                <transactionManager type="JDBC" />

                <dataSource type="POOLED">
                    <property name="driver" value="${jdbc.driverClass}" />
                    <property name="url" value="${jdbc.url}" />
                    <property name="username" value="${jdbc.username}" />
                    <property name="password" value="${jdbc.password}" />
                </dataSource>
            </environment>
        </environments>

        <mappers>
            <mapper resource="mapper/EoStockMapper.xml" />
        </mappers>

    </configuration>

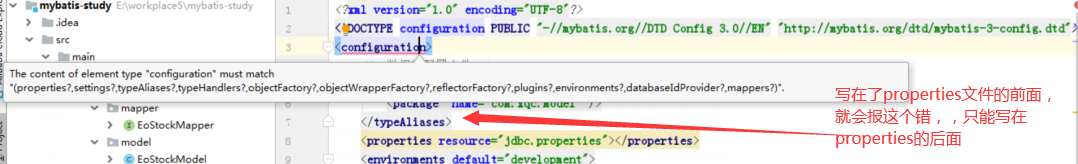

注意配置文件的属性顺序，不然会报错，typeAliases要写在properties猴儿面，不然会报错，例如这样写

![20200905222059717.png][]
![202009052218498.png][]读取mybatis-config.xml的方法

InputStream is = Resources.getResourceAsStream("mybatis-config.xml");

2.创建SqlSessionFactory，最为关键的步骤

SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

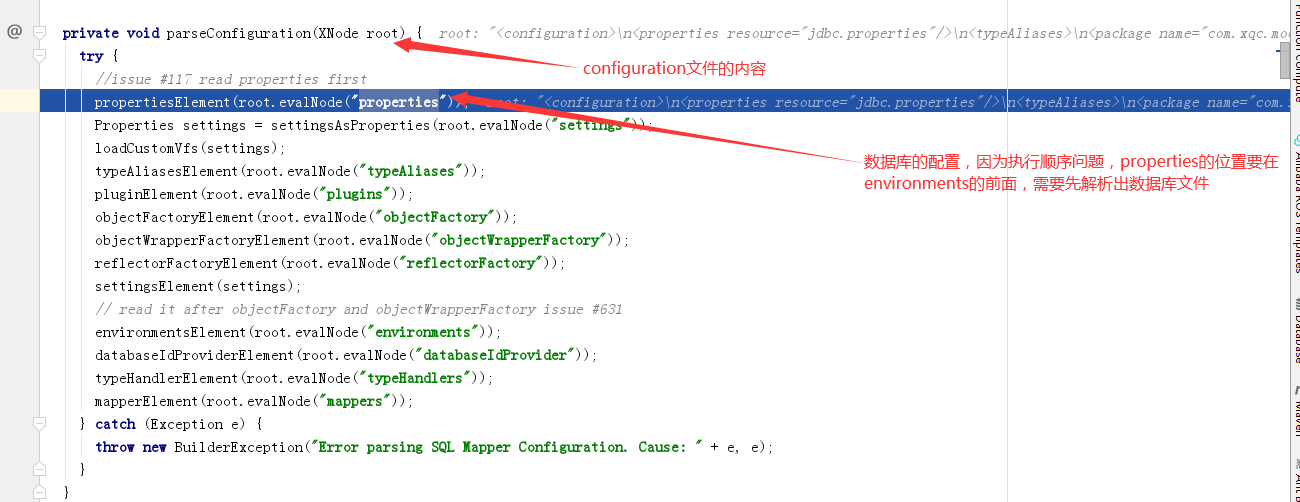

**SqlSessionFactory的解析过程，解析**configuration的属性，
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70][]

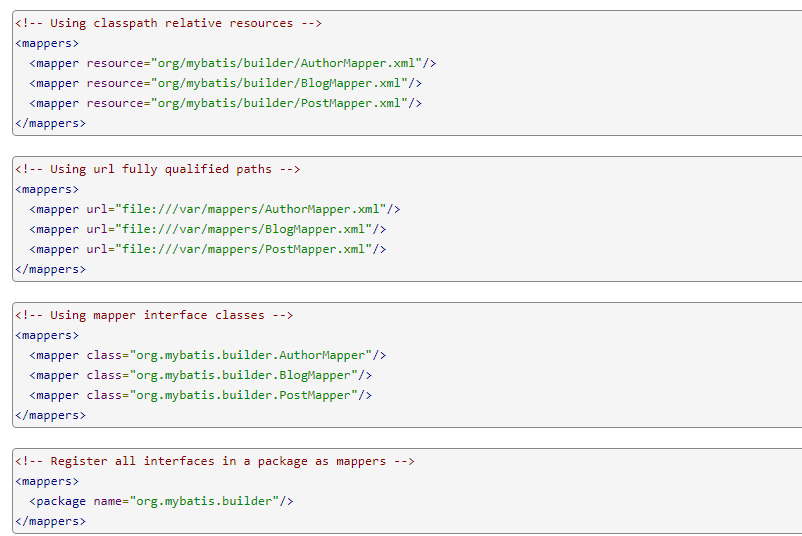

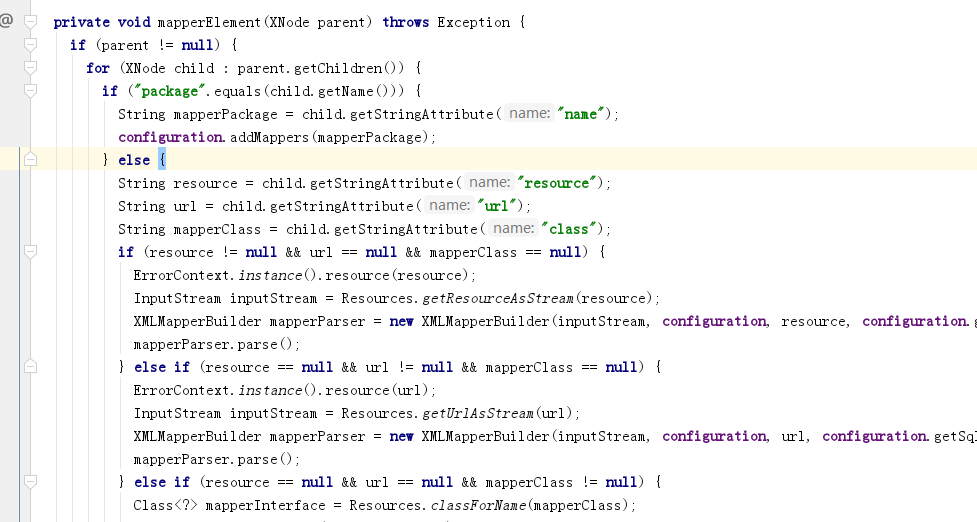

mybatis解析mappers文件的几种方式，官网上有4种，resource、url、class、package
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 1][]

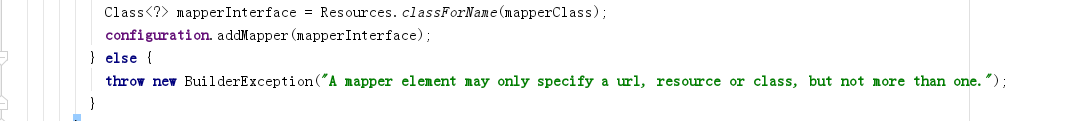

其中**package**优先级最高。接着是resource、url、class
![20200905230651388.png][]
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 2][]

![20200905230824136.png][]
3.打开SqlSession

SqlSession sqlSession = sqlSessionFactory.openSession();

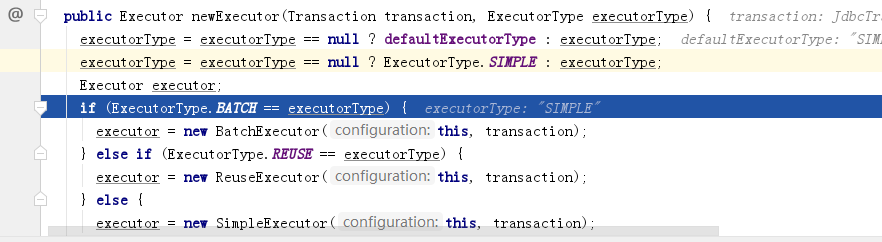

mybatis的三种执行器，默认是SIMPLE
![2020090523390227.png][]
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 3][]

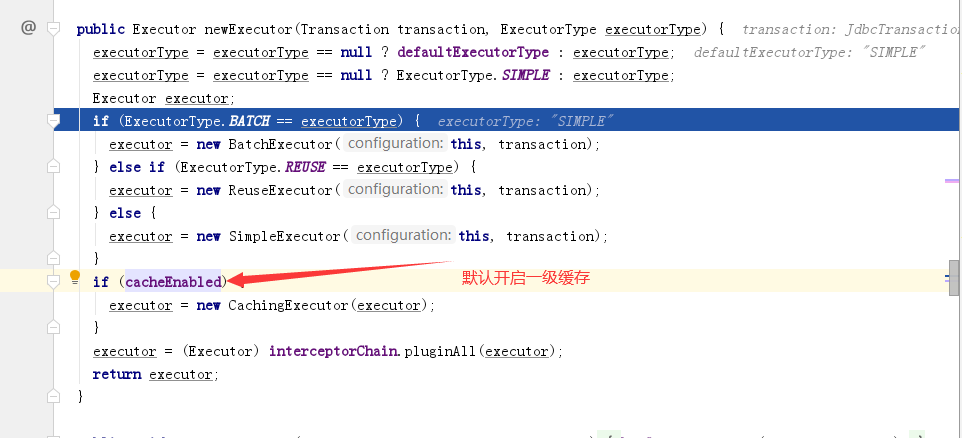

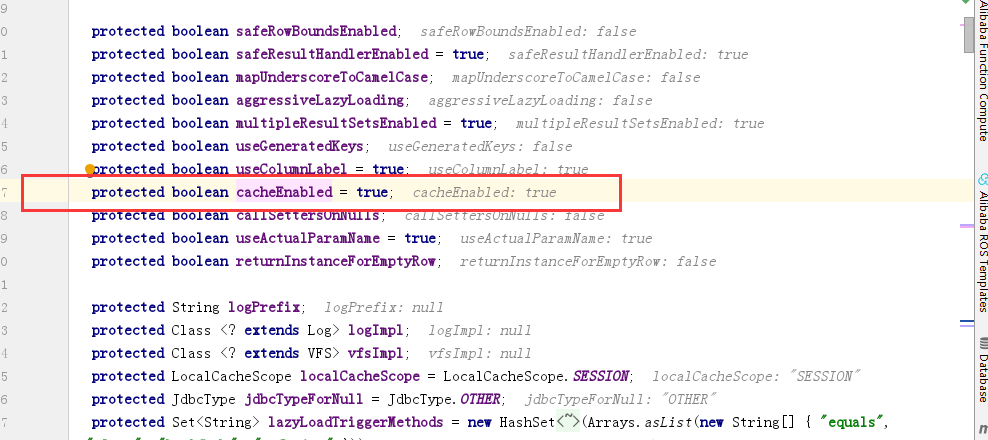

mybatis的一级缓存默认是开启的
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 4][]
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 5][]

4.执行SQL

EoStockMapper eoStockMapper = sqlSession.getMapper(EoStockMapper.class);

EoStockMapper接口文件

public interface EoStockMapper {
        List<EoStockModel> selectList();
    }

EoStockMapper接口对应的xml文件

<?xml version="1.0" encoding="UTF-8" ?>
    <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
    <mapper namespace="com.xqc.mapper.EoStockMapper" >

        <select id="selectList" resultType="EoStockModel"  useCache="false" flushCache="true">
            select
            *
            from eo_stock
        </select>

    </mapper>

为什么只写接口和xml就能实现查询返回结果呢？核心精髓就是jdk的动态代理

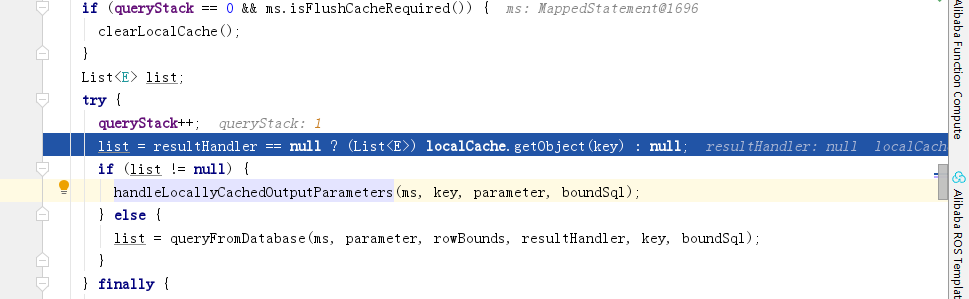

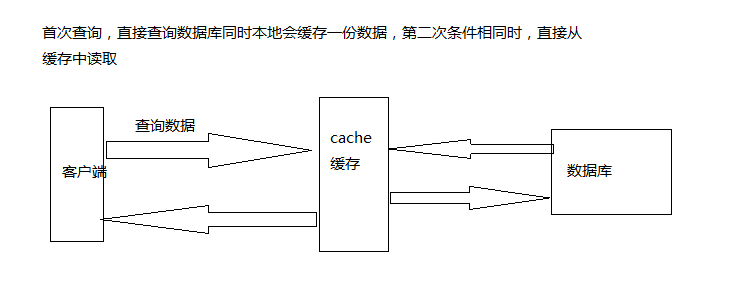

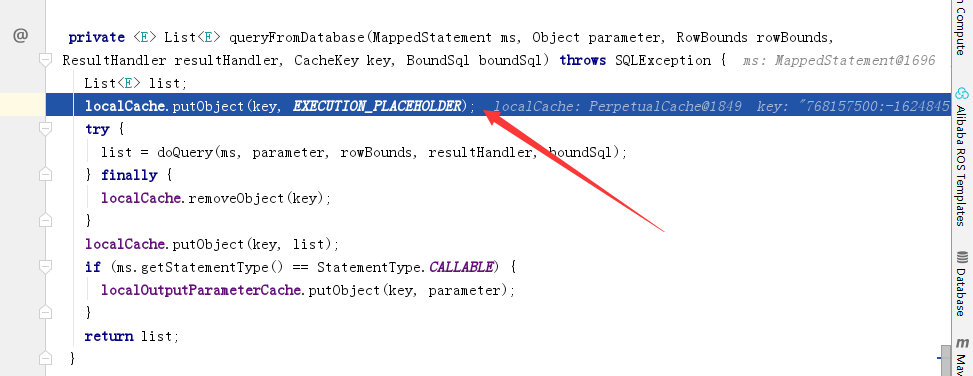

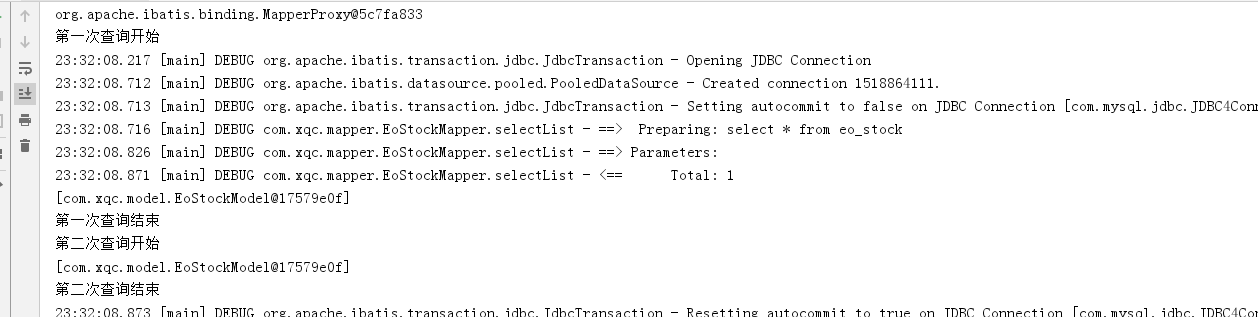

连续查询两次，第二次没有查询数据库，**（同一个SqlSession ，不同的SqlSession对象都是相互隔离的）**
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 6][]
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 7][]
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 8][]
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 9][]

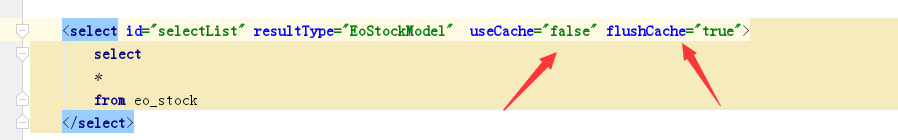

关闭一级缓存的方法：sql映射文件的配置
![20200905235533926.png][]

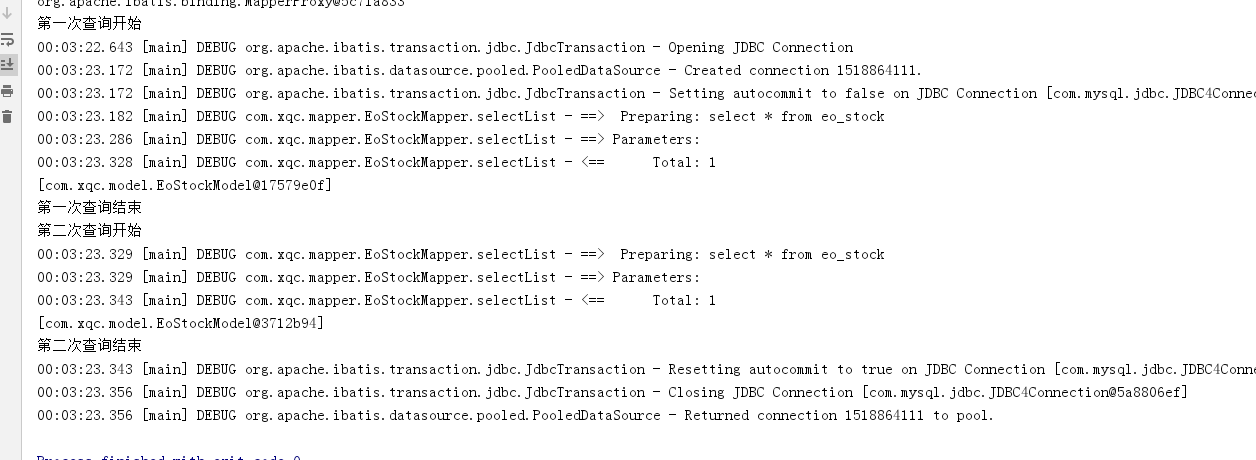

可以看到两次都查询了数据库
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 10][]

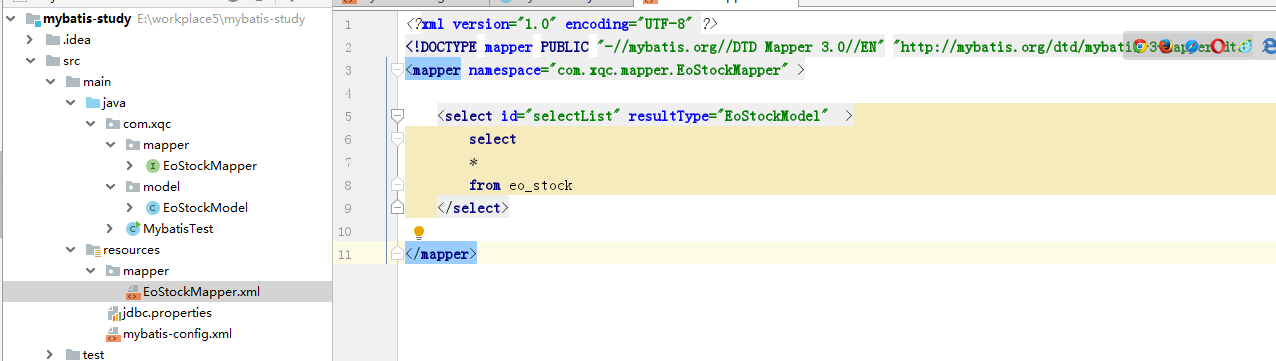

EoStockMapper.xml
![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RoajE5OTE4MQ_size_16_color_FFFFFF_t_70 11][]

5.关闭SqlSession

sqlSession.close();
