QT入门笔记--创建对话框

水深无声 2021-12-24 02:33 239阅读 0赞

**创建对话框的基本步骤：**

**＊创建并初始化子窗口部件**

**＊把子窗口部件放到布局中**

**＊设置Tab键顺序（本文省略了此步骤）**

**＊建立信号-槽之间的连接**

**＊实现对话框中的自定义槽**

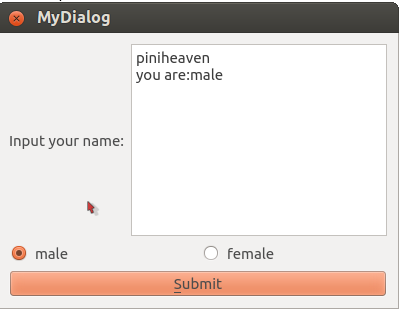

**本文所创建的对话框如下：**

**![Center][]**

**MyDialog.h**

**\#ifndef MYDIALOG\_H
\#define MYDIALOG\_H
\#include<QDialog>
\#include<QLabel>
\#include<QTextEdit>
\#include<QPushButton>
\#include<QHBoxLayout>
\#include<QVBoxLayout>
\#include<QRadioButton>
class QCheckBox;
class QLabel;
class QTextEdit;
class QPushButton;

class MyDialog:public QDialog
\{
Q\_OBJECT
public:
MyDialog(QWidget \*parent = 0);
signals:
void submit();
private slots:
void result();
private:
QLabel \*lbl;
QTextEdit \*txt\_name;
QRadioButton \*rbtn\_male;
QRadioButton \*rbtn\_female;
QPushButton \*btn\_submit;


\};

\#endif // MYDIALOG\_H






MyDialog.cpp

\#include"MyDialog.h"

MyDialog::MyDialog(QWidget \*parent):QDialog(parent)
\{
lbl = new QLabel(tr("Input your name:"));
txt\_name = new QTextEdit;
rbtn\_male = new QRadioButton("male");
rbtn\_female = new QRadioButton("female");
btn\_submit = new QPushButton("&Submit");
QHBoxLayout \*top =new QHBoxLayout;
QHBoxLayout \*middle =new QHBoxLayout;
QHBoxLayout \*bottom =new QHBoxLayout;
top->addWidget(lbl);
top->addWidget(txt\_name);
middle->addWidget(rbtn\_male);
middle->addWidget(rbtn\_female);
bottom->addWidget(btn\_submit);
QVBoxLayout \*frm=new QVBoxLayout;
frm->addLayout(top);
frm->addLayout(middle);
frm->addLayout(bottom);
setLayout(frm);

 connect(btn\_submit,SIGNAL(clicked()),this,SLOT(result()));


\}


void MyDialog::result()
\{
emit submit();


if(rbtn\_male->isChecked())
\{


txt\_name->append("you are:male");
\}
else
\{


txt\_name->append("you are:female");
\}
\}






main.cpp


\#include"MyDialog.h"
\#include <QApplication>


int main(int argc, char \*argv\[\])
\{
QApplication myapp(argc, argv);
MyDialog \*md = new MyDialog;
md->show();

return myapp.exec();
\}**
