Flink原理实战每日一篇01
序言：会了激励自己，现有时间的同时，努力坚持写博客，加深对flink的理解以及帮助有需要的朋友。
第一天水不水一天呢………….要不分享点学习视频吧，需要的留评论，网盘分享。
1，亲自动手画一画Flink的基础架构图
2，创建项目。具体过程省略，pom依赖摆上来：
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>com.coder</groupId><artifactId>flink-wxgz</artifactId><version>0.0.1-SNAPSHOT</version></parent><artifactId>flink-wxgz-core</artifactId><version>0.0.1-SNAPSHOT</version><name>flink-wxgz-core</name><properties><java.version>1.8</java.version><flink.version>1.6.2</flink.version><scala.version>2.11.12</scala.version><scala.binary.version>2.11</scala.binary.version></properties><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-elasticsearch</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-redis</artifactId></dependency><dependency><groupId>org.springframework.kafka</groupId><artifactId>spring-kafka</artifactId></dependency><!--flink--><dependency><groupId>org.apache.flink</groupId><artifactId>flink-core</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-java</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-scala_2.11</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-streaming-java_2.11</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-streaming-scala_2.11</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-clients_2.11</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-table_2.11</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-cep-scala_2.11</artifactId><version>${flink.version}</version></dependency><!--flink to HDFS --><dependency><groupId>org.apache.flink</groupId><artifactId>flink-connector-filesystem_2.11</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-connector-wikiedits_2.11</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-connector-kafka-0.10_${scala.binary.version}</artifactId><version>${flink.version}</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>1.2.47</version></dependency><!--redis --><dependency><groupId>redis.clients</groupId><artifactId>jedis</artifactId><version>2.9.0</version></dependency><dependency><groupId>org.apache.bahir</groupId><artifactId>flink-connector-redis_2.11</artifactId><version>1.0</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-connector-rabbitmq_2.11</artifactId><version>1.8.0</version></dependency><!-- https://mvnrepository.com/artifact/com.rabbitmq/rabbitmq-client --><dependency><groupId>com.rabbitmq</groupId><artifactId>rabbitmq-client</artifactId><version>1.3.0</version></dependency><dependency><groupId>com.alibaba.rocketmq</groupId><artifactId>rocketmq-client</artifactId><version>3.2.6</version></dependency><!--定时器--><dependency><groupId>org.quartz-scheduler</groupId><artifactId>quartz</artifactId><version>2.2.1</version></dependency><dependency><groupId>org.quartz-scheduler</groupId><artifactId>quartz-jobs</artifactId><version>2.2.1</version></dependency><dependency><groupId>org.apache.hbase</groupId><artifactId>hbase-client</artifactId><version>1.2.3</version></dependency><dependency><groupId>org.apache.hadoop</groupId><artifactId>hadoop-common</artifactId><version>2.7.5</version></dependency><dependency><groupId>org.apache.hadoop</groupId><artifactId>hadoop-hdfs</artifactId><version>2.7.5</version></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>5.1.40</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-jdbc</artifactId><version>${flink.version}</version></dependency><!--谷歌引擎表达式--><dependency><groupId>com.googlecode.aviator</groupId><artifactId>aviator</artifactId><version>3.0.1</version></dependency><!--JSON依赖包--><dependency><groupId>org.json</groupId><artifactId>json</artifactId><version>20160810</version></dependency><!-- 解决报错问题 --><dependency><groupId>commons-io</groupId><artifactId>commons-io</artifactId><version>2.5</version></dependency><!--flink_hive依赖--><dependency><groupId>org.apache.flink</groupId><artifactId>flink-hadoop-fs</artifactId><version>1.6.2</version></dependency><dependency><groupId>com.jolbox</groupId><artifactId>bonecp</artifactId><version>0.8.0.RELEASE</version></dependency><dependency><groupId>com.twitter</groupId><artifactId>parquet-hive-bundle</artifactId><version>1.6.0</version></dependency><dependency><groupId>org.apache.hive</groupId><artifactId>hive-exec</artifactId><version>2.1.0</version></dependency><dependency><groupId>org.apache.hive</groupId><artifactId>hive-metastore</artifactId><version>2.1.0</version></dependency><dependency><groupId>org.apache.hive</groupId><artifactId>hive-cli</artifactId><version>2.1.0</version></dependency><dependency><groupId>org.apache.hive</groupId><artifactId>hive-common</artifactId><version>2.1.0</version></dependency><dependency><groupId>org.apache.hive</groupId><artifactId>hive-service</artifactId><version>2.1.0</version></dependency><dependency><groupId>org.apache.hive</groupId><artifactId>hive-shims</artifactId><version>2.1.0</version></dependency><dependency><groupId>org.apache.hive.hcatalog</groupId><artifactId>hive-hcatalog-core</artifactId><version>2.1.0</version></dependency><dependency><groupId>org.apache.thrift</groupId><artifactId>libfb303</artifactId><version>0.9.3</version><type>pom</type></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-hadoop-compatibility_2.11</artifactId><version>1.6.2</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-shaded-hadoop2</artifactId><version>1.6.2</version></dependency></dependencies><build><plugins><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>3.1</version><configuration><source>1.8</source><target>1.8</target></configuration></plugin></plugins></build></project>

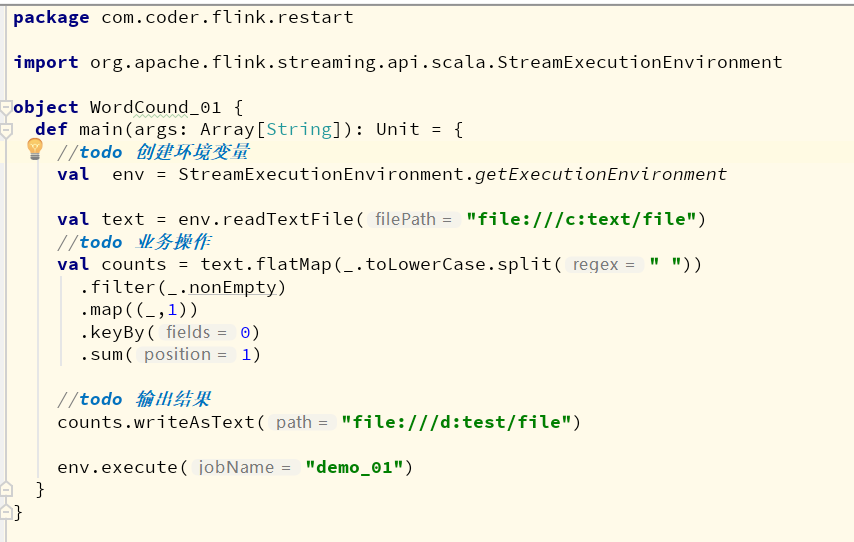

3，Flink程序结构，先写一个简单的实时流 wordCount，刚开始入门难免不是很懂，先写个几遍练练手。
4，Flink的数据类型

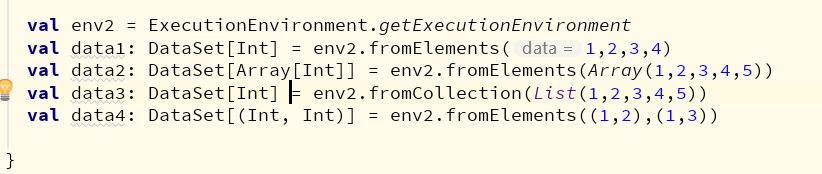

1）原生的 自己就能搞定，自己写测试，使用 基本就这几种了：
2）jave Tuple类型
val data5: DataSet[(Int, Int)] = env2.fromElements(new Tuple2(1,2),new Tuple2(1,3))

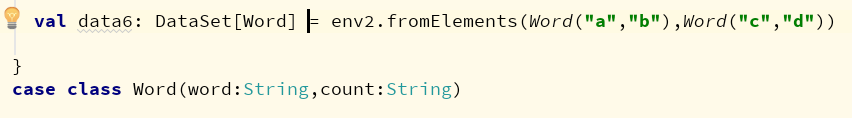

3）scala Case class类型

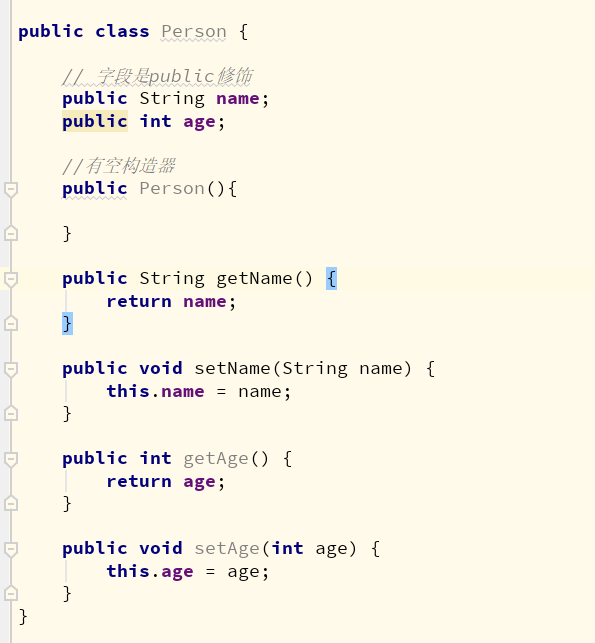

4）POJOs类型 要满足几个条件
定义好之后使用：
val data7: DataStream[Person] = env.fromElements(new Person("a",1),new Person("c",2))data7.keyBy("name")
5，注意，在们执行scala 任务代码的时候，会报错 could not find implicit value for…..
这是因为隐式转换的原因，我们一定要在各个代码注意了，需要：
import org.apache.flink.api.scala._
或者
import org.apache.flink.streaming.api.scala._
6，Flink代码指定（开启）序列化
//todo 开启Avro序列化方式env.getConfig.enableForceAvro()//todo 开启Kryo序列化env.getConfig.enableForceKryo()//todo 如果Kryo 不能序列化POJOs 需要添加env.getConfig.addDefaultKryoSerializer(classOf[?] type,Class<? extends Serializer<?>> serializerClass)
