# 1. MessagePack 概述 #

MessagePack是一个高效的二进制序列化框架，像JSON一样支持不同语言间的数据交换，速度更快，序列化之后的码流更小。

MessagePacke优点

>  *  编解码高效，性能高
>  *  序列化后的码流小
>  *  支持跨语言

## 1.1 MessagePack Java API 介绍 ##

<dependencies>
      ...
      <dependency>
        <groupId>org.msgpack</groupId>
        <artifactId>msgpack</artifactId>
        <version>${ msgpack.version}</version>
      </dependency>
      ...
    </dependencies>

## 1.2 API 官方示例： ##

import java.io.IOException;
    import java.util.ArrayList;
    import java.util.List;

    import org.msgpack.MessagePack;
    import org.msgpack.template.Templates;

    public class TestMessagePack {

        public static void main(String[] args) {
            // Create serialize objects
            List<String> src=new ArrayList<String>();
            src.add("msgpack");
            src.add("kumofs");
            src.add("viver");
            MessagePack msgpack=new MessagePack();
            // Serialize
            byte[] raw;
            try {
                raw = msgpack.write(src);
                // Deserialize directly using a template
                List<String> dst1 = msgpack.read(raw,Templates.tList(Templates.TString));
                System.out.println(dst1.get(0));
                System.out.println(dst1.get(1));
                System.out.println(dst1.get(2));
            } catch (IOException e) {
                e.printStackTrace();
            }
        }

    }

# 2. Netty 编码器和解码器开发 #

## 2.1 Netty编码器 ##

import org.msgpack.MessagePack;

    import io.netty.buffer.ByteBuf;
    import io.netty.channel.ChannelHandlerContext;
    import io.netty.handler.codec.MessageToByteEncoder;

    public class MsgpackEncoder extends MessageToByteEncoder<Object> {

        @Override
        protected void encode(ChannelHandlerContext arg0, Object arg1, ByteBuf arg2) throws Exception {
            MessagePack msgpack=new MessagePack();
            byte[] raw=msgpack.write(arg1);
            arg2.writeBytes(raw);
        }
    }

Netty编码继承MessageToByteEncoder，它负责将Object类型的POJO对象编码成byte数组，然后写入到ByteBuffer中。

## 2.2 Netty解码器 ##

import java.util.List;

    import org.msgpack.MessagePack;

    import io.netty.buffer.ByteBuf;
    import io.netty.channel.ChannelHandlerContext;
    import io.netty.handler.codec.MessageToMessageDecoder;

    public class MsgPackDecoder extends MessageToMessageDecoder<ByteBuf> {

        @Override
        protected void decode(ChannelHandlerContext arg0, ByteBuf arg1, List<Object> arg2) throws Exception {
            final byte[] array;
            final int length=arg1.readableBytes();
            array=new byte[length];
            arg1.getBytes(arg1.readerIndex(), array,0,length);
            MessagePack msgpack=new MessagePack();
            arg2.add(msgpack.read(array));
        }

    }

Netty解码继承MessageToMessageDecoder，他负责将ByteBuffer类型的数据解码成Object对象。首先从数据报arg1中获取需要解码的byte数组，然后调用MessagePacke的read方法将其反序列化为Object对象，将解码的对象加入到解码列表arg2中，这样就完成了MessagePack解码工作。

# 3. 利用LengthFieldBasedFrameDecoder解决TCP粘包/拆包 #

对于TCP粘包 拆包问题来说，最常用的在消息头中新增报文长度字段，然后利用该字段进行半包的编解码。下面我们就利用Netty提供的LengthFieldBasedFrameDecoder和LengthFieldPrepender结合新开发的Netty编解码器来实现对TCP粘包/拆包的支持。

EventLoopGroup group=new NioEventLoopGroup();
            try{
                Bootstrap b = new Bootstrap();
                b.group(group).channel(NioSocketChannel.class)
                .option(ChannelOption.TCP_NODELAY, true)
                .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 3000)
                .handler(new ChannelInitializer<SocketChannel>(){
                    @Override
                    protected void initChannel(SocketChannel ch) throws Exception {
                        //LengthFieldBasedFrameDecoder用于处理半包消息
                        //这样后面的MsgpackDecoder接收的永远是整包消息
                        ch.pipeline().addLast("frameDecoder",new LengthFieldBasedFrameDecoder(65535,0,2,0,2));
                        ch.pipeline().addLast("msgpack decoder",new MsgPackDecoder());
                        //在ByteBuf之前增加2个字节的消息长度字段
                        ch.pipeline().addLast("frameEncoder",new LengthFieldPrepender(2));
                        ch.pipeline().addLast("msgpack encoder",new MsgpackEncoder());
                        ch.pipeline().addLast(new EchoClientHandler(sendNumber));
                    }

                });
                ChannelFuture f= b.connect(host,port).sync();
                f.channel().closeFuture().sync();
            }

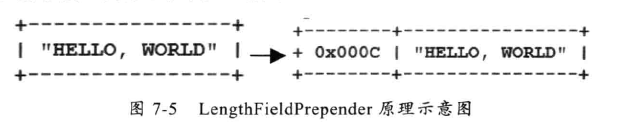

在MessagePack编码器之前增加LengthFieldPrepender，它将在ByteBuffer之前增加2个字节的消息长度字段，其原理如下：
![在这里插入图片描述][20190522093236546.png]

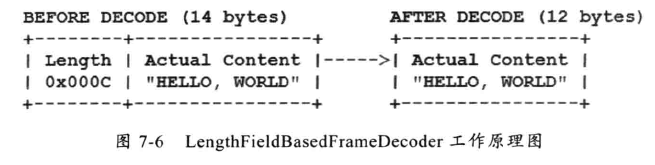

在MessagePack解码器之前增加LengthFieldBasedFrameDecoder，用于处理半包消息，这样后面的MsgpackDecoder接受到的永远是整包消息。它的工作原理如下：
![在这里插入图片描述][20190522093245209.png]

LengthFieldBasedFrameDecoder构造函数参数列表如下：

* @param maxFrameLength
         *        the maximum length of the frame.  If the length of the frame is
         *        greater than this value, { @link TooLongFrameException} will be
         *        thrown.
         * @param lengthFieldOffset
         *        the offset of the length field
         * @param lengthFieldLength
         *        the length of the length field
         * @param lengthAdjustment
         *        the compensation value to add to the value of the length field
         * @param initialBytesToStrip
         *        the number of first bytes to strip out from the decoded frame
