系统环境：

操作系统：RedHat EL5

Oracle： Oracle 10gR2

对于Oracle 数据库的升级，一般需要长时间shutdown database ；升级的时间会因为数据库业务和数据库数据量的不同，停库时间不同；从而给生产带来不必要的损失，但通过Oracle 的逻辑DG可以实现数据库的滚动升级，大大缩短了业务的停用时间（只需要DG的切换时间），对于7X24小时的业务环境来说非常合适。

本案例的思想是：先在逻辑备库上执行升级，升级完成后，备库switchover 成主库，然后主库switchover 备库，再进行升级，所需要的业务停顿时间，只是DG的切换时间。

一、升级前准备

1）将物理DG升级到逻辑DG:（见我博客另外文章）

http://tiany.blog.51cto.com/513694/1384698

Oracle DataGuard 之—Physical DG转换Logical DG

二、备库升级

1）备库升级（本案例以CPU update为例）

http://tiany.blog.51cto.com/513694/846066

Oracle 10g 升级（10.2.0.1升级到10.2.0.4）

三、主备库Switchover

注意：对于升级完成的备库，以下参数不能修改（全部升级完成后再修改）

升级后的版本：

SQL> select * from v$version;

BANNER

-———————————————————————————————-

Oracle Database 10g Enterprise Edition Release 10.2.0.4.0 - Prod

PL/SQL Release 10.2.0.4.0 - Production

CORE 10.2.0.4.0 Production

TNS for Linux: Version 10.2.0.4.0 - Production

NLSRTL Version 10.2.0.4.0 - Production

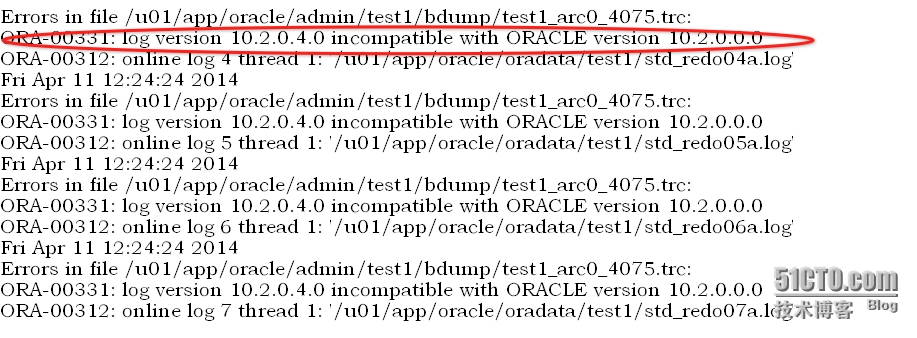

如果修改后，在做switchover时会出现以下错误：

switchover 前准备：

查看主备库是否同步：

主库：

14:38:08 SYS@ test1>select count(*) from scott.emp1;

COUNT(*)

-————-

Elapsed: 00:00:00.00

14:38:13 SYS@ test1>alter system switch logfile;

System altered.

Elapsed: 00:00:05.03

14:38:22 SYS@ test1>select name,database_role,protection_mode,switchover_status from v$database;

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

TEST1 PRIMARY MAXIMUM PERFORMANCE TO STANDBY

Elapsed: 00:00:00.13

14:40:27 SYS@ test1>

备库：

SQL> alter database start logical standby apply immediate;

Database altered.

SQL> show parameter comp

NAME TYPE VALUE

-—————————————————- —————- ———————————————

compatible string 10.2.0

nls_comp string

plsql_compiler_flags string INTERPRETED, NON_DEBUG

plsql_v2_compatibility boolean FALSE

SQL> select count(*) from scott.emp1;

COUNT(*)

-————-

SQL> /

COUNT(*)

-————-

SQL> select name,database_role,protection_mode,switchover_status from v$database;

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

SHDB LOGICAL STANDBY MAXIMUM PERFORMANCE NOT ALLOWED

备库切换前准备：

SQL> alter database prepare to switchover to primary;

Database altered.

SQL> select name,database_role,protection_mode,switchover_status from v$database;

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

SHDB LOGICAL STANDBY MAXIMUM PERFORMANCE PREPARING SWITCHOVER

SQL>

主库切换前准备：

14:40:27 SYS@ test1>alter database prepare to switchover to logical standby;

Database altered.

Elapsed: 00:00:00.04

（注： alter database prepare to switchover cancel；终止切换准备）

14:42:06 SYS@ test1>select name,database_role,protection_mode,switchover_status from v$database;

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

TEST1 PRIMARY MAXIMUM PERFORMANCE PREPARING SWITCHOVER

Elapsed: 00:00:00.00

在备库做prepare switchover 后，主库状态：

14:42:11 SYS@ test1>/

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

TEST1 PRIMARY MAXIMUM PERFORMANCE TO LOGICAL STANDBY

Elapsed: 00:00:00.01

14:43:38 SYS@ test1>

主库切换：

14:43:38 SYS@ test1>alter database commit to switchover to logical standby;

Database altered.

Elapsed: 00:00:31.50

14:45:01 SYS@ test1>

14:45:01 SYS@ test1>select name,database_role,protection_mode,switchover_status from v$database;

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

TEST1 LOGICAL STANDBY MAXIMUM PERFORMANCE NOT ALLOWED

切换过程主库告警日志：

ALTER DATABASE COMMIT TO SWITCHOVER TO LOGICAL STANDBY (test1)

Tue Apr 15 14:44:30 2014

LOGSTDBY: Ensuring no active hot backups.

LOGSTDBY: Disabling job queue processes.

LOGSTDBY: Enabling database guard to prevent new transactions.

Tue Apr 15 14:44:30 2014

Waiting for transactions in flight at scn 0x0000.0004ebee to complete

LNS1 started with pid=16, OS id=3161

Tue Apr 15 14:44:37 2014

Thread 1 advanced to log sequence 69

Current log# 3 seq# 69 mem# 0: /u01/app/oracle/oradata/test1/redo03a.log

Tue Apr 15 14:44:37 2014

ARCH: LGWR is actively archiving destination LOG_ARCHIVE_DEST_2

ARCH: Standby redo logfile selected for thread 1 sequence 68 for destination LOG_ARCHIVE_DEST_2

Tue Apr 15 14:44:37 2014

LOGSTDBY: Waiting for pending archivals to dest [2].

Tue Apr 15 14:44:37 2014

LNS: Standby redo logfile selected for thread 1 sequence 69 for destination LOG_ARCHIVE_DEST_2

LNS1 started with pid=16, OS id=3163

Tue Apr 15 14:44:43 2014

ARCH: LGWR is actively archiving destination LOG_ARCHIVE_DEST_2

Tue Apr 15 14:44:43 2014

Thread 1 advanced to log sequence 70

Current log# 1 seq# 70 mem# 0: /u01/app/oracle/oradata/test1/redo01a.log

Tue Apr 15 14:44:43 2014

ARCH: Standby redo logfile selected for thread 1 sequence 69 for destination LOG_ARCHIVE_DEST_2

LOGSTDBY: Verifying receipt of EOR logfile on log archive destination [2].

Tue Apr 15 14:44:43 2014

LOGSTDBY: Verified EOR logfile archival to dest [2].

Tue Apr 15 14:44:44 2014

LNS: Standby redo logfile selected for thread 1 sequence 70 for destination LOG_ARCHIVE_DEST_2

Tue Apr 15 14:44:55 2014

Thread 1 cannot allocate new log, sequence 71

Checkpoint not complete

Current log# 1 seq# 70 mem# 0: /u01/app/oracle/oradata/test1/redo01a.log

LNS1 started with pid=16, OS id=3166

Tue Apr 15 14:45:01 2014

Shutting down archive processes

Tue Apr 15 14:45:01 2014

Thread 1 advanced to log sequence 71

Current log# 2 seq# 71 mem# 0: /u01/app/oracle/oradata/test1/redo02a.log

Tue Apr 15 14:45:01 2014

LOGSTDBY: Switchover complete (test1)

Tue Apr 15 14:45:01 2014

Completed: alter database commit to switchover to logical standby

Tue Apr 15 14:45:02 2014

LNS: Standby redo logfile selected for thread 1 sequence 71 for destination LOG_ARCHIVE_DEST_2

Tue Apr 15 14:45:06 2014

ARCH shutting down

ARC3: Archival stopped

备库切换过程告警日志：

RFS[1]: Possible network disconnect with primary database

Tue Apr 15 14:44:37 2014

Redo Shipping Client Connected as PUBLIC

-- Connected User is Valid

RFS[4]: Assigned to RFS process 3189

RFS[4]: Identified database type as ‘logical standby’

Tue Apr 15 14:44:37 2014

RFS LogMiner: Client enabled and ready for notification

RFS[4]: Successfully opened standby log 5: ‘/u01/app/oracle/oradata/sh/std_redo05a.log’

Tue Apr 15 14:44:37 2014

RFS LogMiner: Client enabled and ready for notification

Tue Apr 15 14:44:37 2014

LOGMINER: Archived logfile found, transition to mining logfile: /u01/arch_sh1arch_1_68_797856158.log

Tue Apr 15 14:44:37 2014

RFS LogMiner: Registered logfile [/u01/arch_sh1arch_1_68_797856158.log] to LogMiner session id [21]

Tue Apr 15 14:44:37 2014

Redo Shipping Client Connected as PUBLIC

-- Connected User is Valid

RFS[5]: Assigned to RFS process 3191

RFS[5]: Identified database type as ‘logical standby’

Tue Apr 15 14:44:37 2014

RFS LogMiner: Client enabled and ready for notification

RFS[5]: Successfully opened standby log 4: ‘/u01/app/oracle/oradata/sh/std_redo04a.log’

RFS[5]: Possible network disconnect with primary database

Tue Apr 15 14:44:37 2014

LOGMINER: End mining logfile: /u01/arch_sh1arch_1_68_797856158.log

Tue Apr 15 14:44:37 2014

LOGMINER: Log Auto Delete - deleting: /u01/arch_sh1arch_1_67_797856158.log

Deleted file /u01/arch_sh1arch_1_67_797856158.log

Tue Apr 15 14:44:43 2014

Redo Shipping Client Connected as PUBLIC

-- Connected User is Valid

RFS[6]: Assigned to RFS process 3193

RFS[6]: Identified database type as ‘logical standby’

Tue Apr 15 14:44:43 2014

RFS LogMiner: Client enabled and ready for notification

RFS[6]: Successfully opened standby log 4: ‘/u01/app/oracle/oradata/sh/std_redo04a.log’

Tue Apr 15 14:44:43 2014

RFS LogMiner: Client enabled and ready for notification

Tue Apr 15 14:44:43 2014

LOGMINER: Begin mining logfile for session 21 thread 1 sequence 69, /u01/app/oracle/oradata/sh/std_redo04a.log

Tue Apr 15 14:44:43 2014

LOGMINER: End mining logfile: /u01/app/oracle/oradata/sh/std_redo04a.log

Tue Apr 15 14:44:43 2014

RFS LogMiner: Registered logfile [/u01/arch_sh1arch_1_69_797856158.log] to LogMiner session id [21]

Tue Apr 15 14:44:43 2014

LOGSTDBY: Shutdown acknowledged

LOGSTDBY Analyzer process P003 pid=27 OS id=3153 stopped

LOGSTDBY Apply process P004 pid=28 OS id=3155 stopped

LOGSTDBY Apply process P005 pid=29 OS id=3157 stopped

LOGSTDBY Apply process P006 pid=30 OS id=3159 stopped

LOGSTDBY Apply process P007 pid=31 OS id=3161 stopped

LOGSTDBY Apply process P008 pid=32 OS id=3163 stopped

Tue Apr 15 14:44:44 2014

LOGMINER: Log Auto Delete - deleting: /u01/arch_sh1arch_1_68_797856158.log

Deleted file /u01/arch_sh1arch_1_68_797856158.log

Tue Apr 15 14:44:44 2014

LOGSTDBY status: ORA-16257: Switchover initiated stop apply successfully completed

Tue Apr 15 14:44:44 2014

Redo Shipping Client Connected as PUBLIC

-- Connected User is Valid

RFS[7]: Assigned to RFS process 3195

RFS[7]: Identified database type as ‘logical standby’

Primary database is in MAXIMUM PERFORMANCE mode

Tue Apr 15 14:44:44 2014

RFS LogMiner: Client enabled and ready for notification

Primary database is in MAXIMUM PERFORMANCE mode

RFS[7]: Successfully opened standby log 4: ‘/u01/app/oracle/oradata/sh/std_redo04a.log’

RFS[7]: Possible network disconnect with primary database

Redo Shipping Client Connected as PUBLIC

-- Connected User is Valid

RFS[8]: Assigned to RFS process 3197

RFS[8]: Identified database type as ‘logical standby’

Primary database is in MAXIMUM PERFORMANCE mode

Tue Apr 15 14:45:02 2014

RFS LogMiner: Client enabled and ready for notification

Primary database is in MAXIMUM PERFORMANCE mode

RFS[8]: Successfully opened standby log 5: ‘/u01/app/oracle/oradata/sh/std_redo05a.log’

主库切换完成后，备库状态：

SQL> select name,database_role,protection_mode,switchover_status from v$database;

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

SHDB LOGICAL STANDBY MAXIMUM PERFORMANCE PREPARING SWITCHOVER

SQL> /

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

SHDB LOGICAL STANDBY MAXIMUM PERFORMANCE TO PRIMARY

SQL>

备库切换：

SQL> alter database commit to switchover to primary;

Database altered.

SQL> select name,database_role,protection_mode,switchover_status from v$database;

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

SHDB PRIMARY MAXIMUM PERFORMANCE SESSIONS ACTIVE

SQL>

备库切换过程告警日志：

ALTER DATABASE SWITCHOVER TO PRIMARY (sh)

Tue Apr 15 14:48:31 2014

RFS LogMiner: Client enabled and ready for notification

Tue Apr 15 14:48:31 2014

LOGMINER: WARNING: registered partial log file /u01/arch_sh1arch_1_70_797856158.log

Tue Apr 15 14:48:31 2014

RFS LogMiner: Registered logfile [/u01/arch_sh1arch_1_70_797856158.log] to LogMiner session id [21]

LOGSTDBY Event: Starting SCN of new stream from seeded lockdown [0x0000.00071f8b]

LOGSTDBY Event: Successful close of the current log stream:

LOGSTDBY Event: primary: [1174898526]

LOGSTDBY Event: first scn: [0x0000.00046d38]

LOGSTDBY Event: end scn: [0x0000.0004ebf8]

LOGSTDBY Event: processed scn: [0x0000.0004ebf9]

LNS1 started with pid=20, OS id=3209

Tue Apr 15 14:48:34 2014

ARCH: LGWR is scheduled to archive destination LOG_ARCHIVE_DEST_2 after log switch

Tue Apr 15 14:48:34 2014

ARC0: STARTING ARCH PROCESSES

Tue Apr 15 14:48:34 2014

Thread 1 advanced to log sequence 30 (LGWR switch)

Current log# 3 seq# 30 mem# 0: /u01/app/oracle/oradata/sh/redo03a.log

Tue Apr 15 14:48:34 2014

ARC3: Archival started

ARC0: STARTING ARCH PROCESSES COMPLETE

ARC3 started with pid=20, OS id=3211

Tue Apr 15 14:49:24 2014

ARCH: Standby redo logfile selected for thread 1 sequence 29 for destination LOG_ARCHIVE_DEST_2

Completed: alter database commit to switchover to primary

Tue Apr 15 14:49:28 2014

Starting background process CJQ0

CJQ0 started with pid=23, OS id=3215

主库日志：

RFS[4]: Assigned to RFS process 3177

RFS[4]: Identified database type as ‘logical standby’

Tue Apr 15 14:48:34 2014

RFS LogMiner: Client enabled and ready for notification

Tue Apr 15 14:49:24 2014

RFS[4]: Successfully opened standby log 4: ‘/u01/app/oracle/oradata/test1/std_redo04a.log’

Tue Apr 15 14:49:25 2014

RFS LogMiner: Client enabled and ready for notification

Tue Apr 15 14:49:29 2014

RFS LogMiner: Registered logfile [/disk1/arch_test1/arch_1_29_844857742.log] to LogMiner session id [21]

四、switchover 成功后，升级原主库：

原主库：

14:47:27 SYS@ test1>select name,database_role,protection_mode,switchover_status from v$database;

NAME DATABASE_ROLE PROTECTION_MODE SWITCHOVER_STATUS

-———— ———————— —————————— ——————————

TEST1 LOGICAL STANDBY MAXIMUM PERFORMANCE NOT ALLOWED

Elapsed: 00:00:00.00

数据库版本：

14:54:26 SYS@ test1>select * from v$version;

BANNER

-———————————————————————————————-

Oracle Database 10g Enterprise Edition Release 10.2.0.1.0 - Prod

PL/SQL Release 10.2.0.1.0 - Production

CORE 10.2.0.1.0 Production

TNS for Linux: Version 10.2.0.1.0 - Production

NLSRTL Version 10.2.0.1.0 - Production

原备库数据库版本：

SQL> select * from v$version;

BANNER

-———————————————————————————————-

Oracle Database 10g Enterprise Edition Release 10.2.0.4.0 - Prod

PL/SQL Release 10.2.0.4.0 - Production

CORE 10.2.0.4.0 Production

TNS for Linux: Version 10.2.0.4.0 - Production

NLSRTL Version 10.2.0.4.0 - Production

@原主库的升级，本案例就不在重复讲述，切换成功后，滚动升级应该到此已成功！

本文转自客居天涯 51CTO博客，原文链接：http://blog.51cto.com/tiany/1395830，如需转载请自行联系原作者

Oracle DG之--通过Oracle 逻辑DG 实现数据库滚动升级

发表评论取消回复

还没有评论，来说两句吧...

相关阅读

相关 dg和ogg的区别--oracle数据库

相关 oracle dg主从切换

相关 Oracle Study之--Oracle DG备份之归档日志管理

相关 Oracle DG failover 后恢复

相关 oracle DG主备切换

相关 ORACLE之搭建DG（ADG方式）

相关 ORACLE之搭建DG（RMAN Duplicate方式）

相关 Oracle DG 之--DG Broker 配置基本概念

相关 oracle物理DG 参考文章

相关 Oracle DG之--通过Oracle 逻辑DG 实现数据库滚动升级

随便看看

S4 HANA BP 相关表及其对应BP业务操作（一般视图、公司视图、采购视图、销售分销视图）

Java入门第98课——使用format方法格式化日期

Java入门第99课——使用parse方法时将字符串解析为日期

08- JavaScript 作用域

Java入门第100课——Calendar的getInstance方法

CLion IDE 来调试 JVM 源码

教程文章

热评文章

1江湖小白之一起学Python （二）爬取数据的保存

2Java Shiro：简化身份验证和授权的安全框架

3Java中try()catch{}的使用方法

4Swagger注解-@ApiModel 和 @ApiModelProperty

5windows下强制杀死tomcat进程

6uni-app 条形码(一维码)/二维码生成实现

标签列表
