搭建SSM全流程框架过程

待我称王封你为后i 2022-03-02 01:08 516阅读 0赞

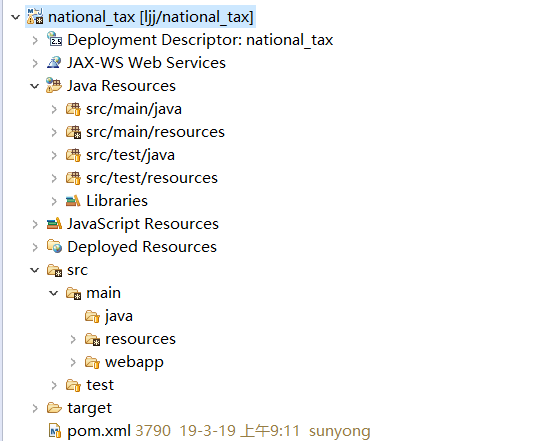

第一步：创建Maven在这里插入图片描述

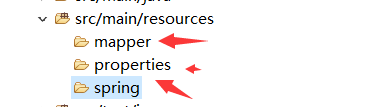

配置：src/main/resources包下 新建三个文件夹

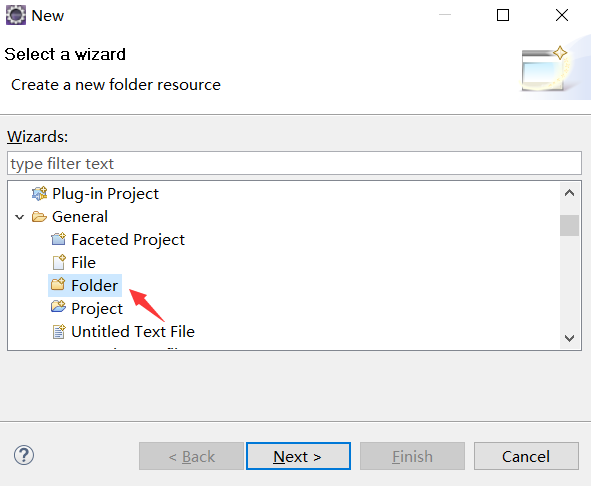

点击src/main/resources —右键——new——other——General——-Folder
在这里插入图片描述
在这里插入图片描述

mapper 主要放xml文件 属于bean的实现类 写SQL
dao.properties 数据库的信息

  1. dataSource.url=jdbc:mysql://localhost:3306/dzbq2?useUnicode=true&characterEncoding=utf8
  2. dataSource.username=root
  3. dataSource.password=

logback.properties 日记Log4J
或者log4j.xml 二选一
logback.properties配置如下

  1. log.base=d:/logs/
  2. log.level=DEBUG
  3. log.appender.ref=stdout

log4j.xml 配置如下

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">
  3. <log4j:configuration xmlns:log4j='http://jakarta.apache.org/log4j/'>
  5.     <!--ConsoleAppender：输出到控制台-->
  6.     <appender name="STDOUT" class="org.apache.log4j.ConsoleAppender">
  7.         <!--<param name="encoding" value="UTF-8"/>-->
  8.         <layout class="org.apache.log4j.PatternLayout">
  9.             <param name="ConversionPattern" value="%d [%t] %p - %m%n"/>
  10.         </layout>
  11.         <filter class="org.apache.log4j.varia.LevelRangeFilter">
  12.             <!-- 设置日志输出的最小级别 -->
  13.             <param name="levelMin" value="DEBUG"/>
  14.             <!-- 设置日志输出的最大级别 -->
  15.             <param name="levelMax" value="FATAL"/>
  16.             <!-- 设置日志输出的xxx，默认是false -->
  17.             <param name="AcceptOnMatch" value="true"/>
  18.         </filter>
  19.     </appender>
  21.     <!--输出到日志文件-->
  22.     <appender name="PROJECT" class="org.apache.log4j.DailyRollingFileAppender">
  23.         <!-- 设置日志信息输出文件全路径名 -->
  24.         <param name="file" value="${catalina.home}/logs/ceshi/info.log"/>
  25.         <!--日志文件编码-->
  26.         <param name="encoding" value="UTF-8"/>
  27.         <!--此日志文件级别-->
  28.         <param name="threshold" value="info"/>
  29.         <!-- 设置是否在重新启动服务时，在原有日志的基础添加新日志 -->
  30.         <param name="Append" value="true"/>
  31.         <!-- 设置保存备份回滚日志的最大个数 -->
  32.         <param name="MaxBackupIndex" value="10"/>
  33.         <!-- 设置当日志文件达到此阈值的时候自动回滚，单位可以是KB，MB，GB，默认单位是KB -->
  34.         <param name="MaxFileSize" value="50MB"/>
  35.         <!-- 设置日志输出的样式 -->
  36.         <layout class="org.apache.log4j.PatternLayout">
  37.             <param name="ConversionPattern" value="%d [%X{requestURIWithQueryString}] %-5p %c{2} - %m%n"/>
  38.         </layout>
  39.     </appender>
  41.     <appender name="PROJECT-ERROR" class="org.apache.log4j.DailyRollingFileAppender">
  42.         <param name="file" value="${catalina.home}/logs/ceshi/error.log"/>
  43.         <param name="append" value="true"/>
  44.         <param name="encoding" value="UTF-8"/>
  45.         <param name="threshold" value="error"/>
  46.         <param name="MaxBackupIndex" value="10"/>
  47.         <param name="MaxFileSize" value="50MB"/>
  48.         <layout class="org.apache.log4j.PatternLayout">
  49.             <param name="ConversionPattern" value="%d [%X{requestURIWithQueryString}] %-5p %c{2} - %m%n"/>
  50.         </layout>
  51.     </appender>
  53.     <!--开发测试使用debug级别-->
  54.     <appender name="PROJECT-DEBUG" class="org.apache.log4j.DailyRollingFileAppender">
  55.         <param name="file" value="${catalina.home}/logs/ceshi/debug.log"/>
  56.         <param name="append" value="false"/>
  57.         <param name="encoding" value="UTF-8"/>
  58.         <param name="threshold" value="debug"/>
  59.         <param name="MaxBackupIndex" value="10"/>
  60.         <param name="MaxFileSize" value="50MB"/>
  61.         <layout class="org.apache.log4j.PatternLayout">
  62.             <param name="ConversionPattern" value="%d [%X{requestURIWithQueryString}] %-5p %c{2} - %m%n"/>
  63.         </layout>
  64.     </appender>
  66.     <!--总的日志级别-->
  67.     <root>
  68.         <level value="DEBUG"/>
  69.         <appender-ref ref="PROJECT"/>
  70.         <appender-ref ref="PROJECT-DEBUG"/>
  71.         <appender-ref ref="PROJECT-ERROR"/>
  72.         <appender-ref ref="STDOUT"/>
  73.     </root>
  74. </log4j:configuration>

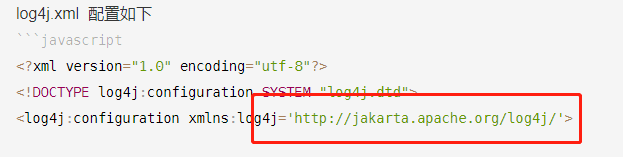

PS 复制下图的地址时会报错URI未注册(设置|语言和框架|模式和dtd)在这里插入图片描述
解决方法：

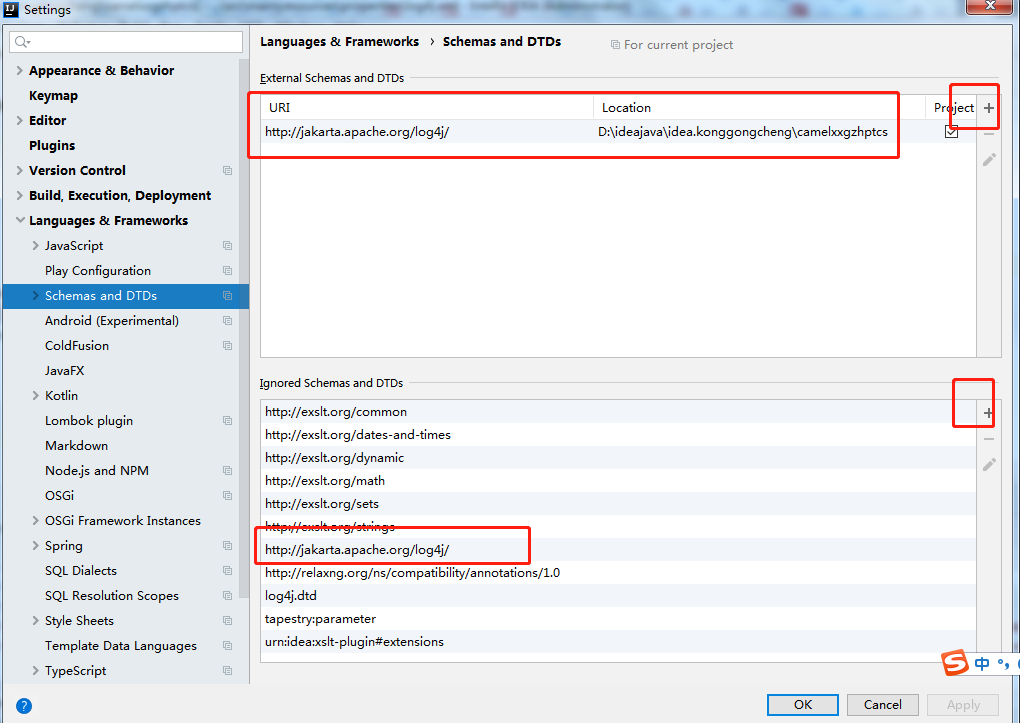

File - Settings - schemas and DtDs
在这里插入图片描述

点击加号 把路径考进去
更多免费教学文章请关注这里
system.properties 图片服务器tomcat引用地址

  1. adImage.savePath=D:/apache-tomcat-7.0.86-windows-x64/apache-tomcat-7.0.86/wtpwebapps/upload/ad/

在src/main/resources包下新建两个文件夹
mapper和spring

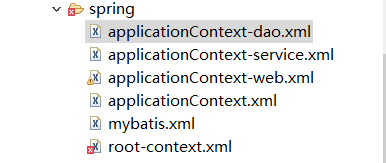

spring文件夹包括

在这里插入图片描述
applicationContext-dao.xml 底层与数据库连接 基于mybatis 连接数据池，简化JDBC代码 持久层框架

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <beans
  3.     xmlns="http://www.springframework.org/schema/beans"
  4.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  5.     xmlns:context="http://www.springframework.org/schema/context"
  6.     xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
  7.     http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
  8.     <!-- 配置数据源 -->
  9.     <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource" destroy-method="close">
  10.         <property name="driverClass" value="com.mysql.jdbc.Driver"></property>
  11.         <property name="jdbcUrl" value="${dataSource.url}"></property>
  12.         <property name="user" value="${dataSource.username}"></property>
  13.         <property name="password" value="${dataSource.password}"></property>
  14.         <!-- 每60秒检查所有连接池中的空闲连接。Default: 0 -->
  15.         <property name="idleConnectionTestPeriod" value="60" />
  16.         <!-- 初始化时获取三个连接，取值应在minPoolSize与maxPoolSize之间。Default: 3 -->
  17.         <property name="initialPoolSize" value="5" />
  18.         <!-- 最大空闲时间,60秒内未使用则连接被丢弃。若为0则永不丢弃。Default: 0 -->
  19.         <property name="maxIdleTime" value="60" />
  20.         <!-- 连接池中保留的最大连接数。Default: 15 -->
  21.         <property name="maxPoolSize" value="10" />
  22.         <!-- 连接池中保留的最小连接数。 -->
  23.         <property name="minPoolSize" value="5" />
  24.         <!-- JDBC的标准参数，用以控制数据源内加载的PreparedStatements数量。但由于预缓存的statements
  25.           属于单个connection而不是整个连接池。所以设置这个参数需要考虑到多方面的因素。
  26.           如果maxStatements与maxStatementsPerConnection均为0，则缓存被关闭。Default: 0-->
  27.           <property name="maxStatements" value="100" />
  28.         <!-- maxStatementsPerConnection定义了连接池内单个连接所拥有的最大缓存statements数。Default: 0  -->
  29.         <property name="maxStatementsPerConnection" value="3" />
  30.         <!-- 定义所有连接测试都执行的测试语句。在使用连接测试的情况下这个显著提高测试速度。注意：
  31.           测试的表必须在初始数据源的时候就存在。Default: null -->
  32.           <property name="preferredTestQuery" value="select 1" />
  33.         <!-- 定义在从数据库获取新连接失败后重复尝试的次数。Default: 30-->
  34.         <property name="acquireRetryAttempts" value="3" />
  35.         <!-- 两次连接中间隔时间，单位毫秒。Default: 1000 -->
  36.         <property name="acquireRetryDelay" value="1000" />
  37.         <!-- 当连接池用完时客户端调用getConnection()后等待获取新连接的时间，超时后将抛出
  38.           SQLException,如设为0则无限期等待。单位毫秒。Default: 0 -->
  39.           <property name="checkoutTimeout" value="30000" />
  40.     </bean>
  43.     <!-- 配置sqlSessionFactory 扫描保存sql语句的xml文件-->
  44.     <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
  45.         <!-- 注入数据源 -->
  46.         <property name="dataSource" ref="dataSource"/>
  47.         <!-- 扫描mybatis核心配置文件 对应拦截器分页功能-->
  48.         <property name="configLocation" value="classpath:spring/mybatis.xml"/>
  49.         <!-- 扫描java bean，自动使用别名 -->
  50.         <property name="typeAliasesPackage" value="com.camel.bean"/>
  51.         <!-- 扫描mybatis的SQL配置文件(映射文件) -->
  52.         <property name="mapperLocations" value="classpath:mapper/*.xml"/>
  53.     </bean>
  55.     <!-- 扫描Dao接口包 -->
  56.     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
  57.         <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
  58.         <property name="basePackage" value="com.camel.dao.bean"/>
  59.     </bean>
  60. </beans>

修改：

  1. <property name="typeAliasesPackage" value="com.camel.bean"/>
  2. <property name="basePackage" value="com.camel.dao.bean"/>

其中

name的值 为配置数据源中的ID

  1. <!-- 扫描mybatis核心配置文件 对应拦截器分页功能-->
  2. <property name="configLocation" value="classpath:spring/mybatis.xml"/>

找到spring包下mybatis.xml文件

  1. <!-- 扫描mybatis的SQL配置文件(映射文件) -->
  2.         <property name="mapperLocations" value="classpath:mapper/*.xml"/>

找到mapper包下所有的.xml文件进行解析

  1. <!-- 扫描Dao接口包 -->
  2.     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
  3.         <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
  4.         <property name="basePackage" value="com.camel.dao.bean"/>
  5.     </bean>

关联dao层的文件

  1. <?xml version="1.0" encoding="UTF-8" ?>
  2. <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  3. "http://mybatis.org/dtd/mybatis-3-config.dtd">
  4. <configuration>
  5.     <plugins>
  6.         <plugin interceptor="com.camel.dao.interceptor.PageInterceptor"></plugin>
  7.     </plugins>
  8. </configuration>

修改

  1. <plugin interceptor="com.camel.dao.interceptor.PageInterceptor"></plugin>

applicationContext-service.xml

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <beans
  3.     xmlns="http://www.springframework.org/schema/beans"
  4.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  5.     xmlns:context="http://www.springframework.org/schema/context"
  6.     xmlns:tx="http://www.springframework.org/schema/tx"
  7.     xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
  8.     http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
  9.     http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">
  10.     <!-- 扫描service包 -->
  11.     <context:component-scan base-package="com.camel.service" />
  12.     <!-- 配置事务管理器 -->
  13.     <bean id="transactionManager"  class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
  14.         <property name="dataSource" ref="dataSource"/>
  15.     </bean>
  16.     <!-- 事务采用全注解方式 -->
  17.     <tx:annotation-driven transaction-manager="transactionManager"/>
  18. </beans>

修改：

  1. <context:component-scan base-package="com.camel.service" />
  2. applicationContext-web.xml
  4. <?xml version="1.0" encoding="UTF-8"?>
  5. <beans
  6.     xmlns="http://www.springframework.org/schema/beans"
  7.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  8.     xmlns:context="http://www.springframework.org/schema/context"
  9.     xmlns:mvc="http://www.springframework.org/schema/mvc"
  10.     xmlns:task="http://www.springframework.org/schema/task"
  11.     xsi:schemaLocation="http://www.springframework.org/schema/beans
  12.     http://www.springframework.org/schema/beans/spring-beans.xsd
  13.     http://www.springframework.org/schema/context
  14.     http://www.springframework.org/schema/context/spring-context.xsd
  15.     http://www.springframework.org/schema/task
  16.     http://www.springframework.org/schema/task/spring-task.xsd
  17.     http://www.springframework.org/schema/mvc
  18.     http://www.springframework.org/schema/mvc/spring-mvc.xsd">
  19.     <!-- 配置包扫描 -->
  21.     <!-- 自动扫描的包名 -->
  22.     <context:component-scan base-package="com.camel.controller.*"/>
  23.     <!-- 配置springmvc特有的驱动 -->
  25.     <!-- 开启注解映射的支持 -->
  26.     <mvc:annotation-driven/>
  27.     <!-- 配置视图解析器 -->
  28.     <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
  29.         <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
  30.             <!-- 配置前缀 -->
  31.         <property name="prefix" value="/WEB-INF/jsp"/>
  32.             <!-- 配置后缀 -->
  33.         <property name="suffix" value=".jsp"></property>
  34.     </bean>
  36.     <mvc:resources mapping="/css/**" location="/css/"/>
  37.     <mvc:resources mapping="/images/**" location="/images/"/>
  38.     <mvc:resources mapping="/js/**" location="/js/"/>
  39.     <!-- 配置json注解 -->
  40.     <bean id="annotationMethodHandlerAdapter" class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter">
  41.     <property name="messageConverters">
  42.         <list>
  43.     <bean id="stringHttpMessageConverter" class="org.springframework.http.converter.StringHttpMessageConverter">
  44.         <property name="supportedMediaTypes">
  45.         <list>
  46.         <value>text/html;charset=utf-8</value>
  47.         </list>
  48.         </property>
  49.         </bean>
  50.          <bean id="mappingJackson2HttpMessageConverter" class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
  51.          <property name="supportedMediaTypes">
  52.          <list>
  53.     <value>text/plain;charset=utf-8</value>
  54.     <value>application/json;charset=utf-8</value>
  55.          </list>
  56.          </property>
  57.          </bean>
  58.        </list>
  59.     </property>
  60.     </bean>
  62.     <!-- 数据校验 -->
  63.     <!-- 任务调度 -->
  66.     <!-- 允许对静态资源文件的访问 -->
  67.      <mvc:default-servlet-handler/>
  68.     <!--配置静态资源映射,防止静态资源被拦截  -->
  69.     <!-- <mvc:interceptors>
  70.         <mvc:interceptor>
  71.             拦截哪些请求，因为以后的菜单很多，所以要使用一些通配符
  72.             <mvc:mapping path="/**"/>
  73.             排除哪些请求不要拦截,只要是登录的CONTROLLER都不拦截
  74.             <mvc:exclude-mapping path="/login/**"/>
  75.             <mvc:exclude-mapping path="/login/validate"/>
  76.             <mvc:exclude-mapping path="/css/**"/>
  77.             <mvc:exclude-mapping path="/js/**"/>
  78.             <mvc:exclude-mapping path="/images/**"/>
  79.             <mvc:exclude-mapping path="/api/**"/>
  80.             <bean class="com.xianzhi.controller.interceptor.SessionInterceptor"></bean>
  81.         </mvc:interceptor>
  82.     </mvc:interceptors> -->
  86. </beans>

修改：

  1. <context:component-scan base-package="com.camel.controller.*"/>

applicationContext.xml

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <beans
  3.     xmlns="http://www.springframework.org/schema/beans"
  4.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  5.     xmlns:context="http://www.springframework.org/schema/context"
  6.     xsi:schemaLocation="http://www.springframework.org/schema/beans
  7.     http://www.springframework.org/schema/beans/spring-beans.xsd
  8.     http://www.springframework.org/schema/context
  9.     http://www.springframework.org/schema/context/spring-context.xsd">
  10. <!-- properties包下加载属性文件 -->
  11.     <context:property-placeholder location="classpath:properties/*.properties"/>
  12.     <import resource="applicationContext-*.xml"/>
  13.     <!-- 配置数据源 -->
  15.     <!-- 扫描保存sql语句xml文件 -->
  17.     <!-- 扫描dao层中的java接口类 -->
  18. </beans>
  20. 修改：<import resource="applicationContext-*.xml"/>

root-context.xml

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <beans
  3.     xmlns="http://www.springframework.org/schema/beans"
  4.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  5.     xmlns:context="http://www.springframework.org/schema/context"
  6.     xmlns:mvc="http://www.springframework.org/schema/mvc"
  7.     xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
  8.     http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
  9.     http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">
  12.     <!-- 配置文件上传解析器 -->
  13.     <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
  14.          <!-- 指定所上传文件的总大小不能超过20M。注意maxUploadSize属性的限制不是针对单个文件，而是所有文件的容量之和 -->
  15.          <property name="maxUploadSize" value="20000000"/>
  16.          <property name="defaultEncoding" value="utf-8"></property>
  17.     </bean>
  18. </beans>

配置依赖库 pom.xml

  1. <?xml version="1.0" encoding="UTF-8"?>
  3. <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4.   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  5.   <modelVersion>4.0.0</modelVersion>
  7.   <groupId>camel.xxgzhpt.cs</groupId>
  8.   <artifactId>camel.xxgzhpt.cs</artifactId>
  9.   <version>1.0-SNAPSHOT</version>
  10.   <packaging>war</packaging>
  12.   <name>camel.xxgzhpt.cs Maven Webapp</name>
  13.   <!-- FIXME change it to the project's website -->
  14.   <url>http://www.example.com</url>
  16.   <properties>
  17.     <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  18.     <maven.compiler.source>1.7</maven.compiler.source>
  19.     <maven.compiler.target>1.7</maven.compiler.target>
  21.     <!-- spring版本号 -->
  22.     <spring.version>4.0.0.RELEASE</spring.version>
  23.     <!-- mybatis版本号 -->
  24.     <mybatis.version>3.4.1</mybatis.version>
  25.     <!-- mybatis/spring版本号 -->
  26.     <mybatis.spring.version>1.3.1</mybatis.spring.version>
  27.     <!-- log4j日志文件管理包版本 -->
  28.     <slf4j.version>1.7.7</slf4j.version>
  29.     <log4j.version>1.2.17</log4j.version>
  30.   </properties>
  32.   <dependencies>
  33.     <dependency>
  34.       <groupId>junit</groupId>
  35.       <artifactId>junit</artifactId>
  36.       <version>4.11</version>
  37.       <!-- 表示开发的时候引入，发布的时候不会加载此包 -->
  38.       <scope>test</scope>
  39.     </dependency>
  41.     <!-- spring核心包 -->
  42.     <dependency>
  43.       <groupId>org.springframework</groupId>
  44.       <artifactId>spring-core</artifactId>
  45.       <version>${ spring.version}</version>
  46.     </dependency>
  48.     <dependency>
  49.       <groupId>org.springframework</groupId>
  50.       <artifactId>spring-web</artifactId>
  51.       <version>${ spring.version}</version>
  52.     </dependency>
  53.     <dependency>
  54.       <groupId>org.springframework</groupId>
  55.       <artifactId>spring-oxm</artifactId>
  56.       <version>${ spring.version}</version>
  57.     </dependency>
  58.     <dependency>
  59.       <groupId>org.springframework</groupId>
  60.       <artifactId>spring-tx</artifactId>
  61.       <version>${ spring.version}</version>
  62.     </dependency>
  64.     <dependency>
  65.       <groupId>org.springframework</groupId>
  66.       <artifactId>spring-jdbc</artifactId>
  67.       <version>${ spring.version}</version>
  68.     </dependency>
  70.     <dependency>
  71.       <groupId>org.springframework</groupId>
  72.       <artifactId>spring-webmvc</artifactId>
  73.       <version>${ spring.version}</version>
  74.     </dependency>
  75.     <dependency>
  76.       <groupId>org.springframework</groupId>
  77.       <artifactId>spring-aop</artifactId>
  78.       <version>${ spring.version}</version>
  79.     </dependency>
  81.     <dependency>
  82.       <groupId>org.springframework</groupId>
  83.       <artifactId>spring-context-support</artifactId>
  84.       <version>${ spring.version}</version>
  85.     </dependency>
  87.     <dependency>
  88.       <groupId>org.springframework</groupId>
  89.       <artifactId>spring-test</artifactId>
  90.       <version>${ spring.version}</version>
  91.     </dependency>
  93.     <!-- mybatis核心包 -->
  94.     <dependency>
  95.       <groupId>org.mybatis</groupId>
  96.       <artifactId>mybatis</artifactId>
  97.       <version>${ mybatis.version}</version>
  98.     </dependency>
  100.     <!-- mybatis/spring包 -->
  101.     <dependency>
  102.       <groupId>org.mybatis</groupId>
  103.       <artifactId>mybatis-spring</artifactId>
  104.       <version>${ mybatis.spring.version}</version>
  105.     </dependency>
  107.     <!-- 导入Mysql数据库链接jar包 -->
  108.     <dependency>
  109.       <groupId>mysql</groupId>
  110.       <artifactId>mysql-connector-java</artifactId>
  111.       <version>5.1.6</version>
  112.     </dependency>
  114.     <!-- 导入dbcp的jar包，用来在applicationContext.xml中配置数据库 -->
  115.     <dependency>
  116.       <groupId>commons-dbcp</groupId>
  117.       <artifactId>commons-dbcp</artifactId>
  118.       <version>1.4</version>
  119.       <!--<scope>runtime</scope>-->
  120.     </dependency>
  122.     <!-- 日志文件管理包 -->
  123.     <!-- log start -->
  124.     <dependency>
  125.       <groupId>log4j</groupId>
  126.       <artifactId>log4j</artifactId>
  127.       <version>${ log4j.version}</version>
  128.     </dependency>
  130.     <!-- 上传组件包 -->
  131.     <dependency>
  132.       <groupId>commons-fileupload</groupId>
  133.       <artifactId>commons-fileupload</artifactId>
  134.       <version>1.3.1</version>
  135.     </dependency>
  136.     <dependency>
  137.       <groupId>commons-io</groupId>
  138.       <artifactId>commons-io</artifactId>
  139.       <version>2.4</version>
  140.     </dependency>
  141.     <dependency>
  142.       <groupId>commons-codec</groupId>
  143.       <artifactId>commons-codec</artifactId>
  144.       <version>1.9</version>
  145.     </dependency>
  147.     <!-- mybatis分页插件依赖 -->
  148.     <dependency>
  149.       <groupId>com.github.pagehelper</groupId>
  150.       <artifactId>pagehelper</artifactId>
  151.       <version>4.0.0</version>
  152.     </dependency>
  154.     <!--前后端分离解决跨域的jar包-->
  155.     <dependency>
  156.       <groupId>com.thetransactioncompany</groupId>
  157.       <artifactId>cors-filter</artifactId>
  158.       <version>2.6</version>
  159.     </dependency>
  161.     <!--Springmvc的AOP配合shiro实现权限管理-->
  162.     <dependency>
  163.       <groupId>org.aspectj</groupId>
  164.       <artifactId>aspectjrt</artifactId>
  165.       <version>1.6.11</version>
  166.     </dependency>
  167.     <dependency>
  168.       <groupId>org.aspectj</groupId>
  169.       <artifactId>aspectjweaver</artifactId>
  170.       <version>1.7.3</version>
  171.     </dependency>
  173.     <!-- c3p0 数据库连接池 -->
  174.     <dependency>
  175.       <groupId>com.mchange</groupId>
  176.       <artifactId>c3p0</artifactId>
  177.       <version>0.9.5.2</version>
  178.     </dependency>
  179.     <!--json的jar包-->
  180.     <dependency>
  181.       <groupId>org.codehaus.jackson</groupId>
  182.       <artifactId>jackson-mapper-asl</artifactId>
  183.       <version>1.9.12</version>
  184.     </dependency>
  185.     <dependency>
  186.       <groupId>javax.servlet</groupId>
  187.       <artifactId>servlet-api</artifactId>
  188.       <version>2.5</version>
  189.     </dependency>
  190.     <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
  191.     <dependency>
  192.       <groupId>javax.servlet</groupId>
  193.       <artifactId>javax.servlet-api</artifactId>
  194.       <version>4.0.1</version>
  195.       <scope>provided</scope>
  196.     </dependency>
  197.     <!-- https://mvnrepository.com/artifact/javax.servlet/jstl -->
  198.     <!-- jsp 标签库-->
  199.     <dependency>
  200.       <groupId>javax.servlet</groupId>
  201.       <artifactId>jstl</artifactId>
  202.       <version>1.2</version>
  203.     </dependency>
  204.     <!-- 日期时间工具-->
  205.     <dependency>
  206.       <groupId>joda-time</groupId>
  207.       <artifactId>joda-time</artifactId>
  208.       <version>2.3</version>
  209.     </dependency>
  210.     <!-- java对象和json相互转化-->
  211.     <dependency>
  212.       <groupId>com.fasterxml.jackson.core</groupId>
  213.       <artifactId>jackson-core</artifactId>
  214.       <version>2.3.3</version>
  215.     </dependency>
  216.     <dependency>
  217.       <groupId>com.fasterxml.jackson.core</groupId>
  218.       <artifactId>jackson-databind</artifactId>
  219.       <version>2.3.3</version>
  220.     </dependency>
  221.     <!-- 接口的日志包-->
  222.     <dependency>
  223.       <groupId>org.slf4j</groupId>
  224.       <artifactId>slf4j-api</artifactId>
  225.       <version>1.7.21</version>
  226.     </dependency>
  227.     <dependency>
  228.       <groupId>ch.qos.logback</groupId>
  229.       <artifactId>logback-classic</artifactId>
  230.       <version>1.1.7</version>
  231.     </dependency>
  233.     <dependency>
  234.       <groupId>ch.qos.logback</groupId>
  235.       <artifactId>logback-core</artifactId>
  236.       <version>1.1.7</version>
  237.     </dependency>
  238.   </dependencies>
  240.   <build>
  241.     <finalName>camel.xxgzhpt.cs</finalName>
  242.     <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
  243.       <plugins>
  244.         <plugin>
  245.           <artifactId>maven-clean-plugin</artifactId>
  246.           <version>3.1.0</version>
  247.         </plugin>
  248.         <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
  249.         <plugin>
  250.           <artifactId>maven-resources-plugin</artifactId>
  251.           <version>3.0.2</version>
  252.         </plugin>
  253.         <plugin>
  254.           <artifactId>maven-compiler-plugin</artifactId>
  255.           <version>3.8.0</version>
  256.         </plugin>
  257.         <plugin>
  258.           <artifactId>maven-surefire-plugin</artifactId>
  259.           <version>2.22.1</version>
  260.         </plugin>
  261.         <plugin>
  262.           <artifactId>maven-war-plugin</artifactId>
  263.           <version>3.2.2</version>
  264.         </plugin>
  265.         <plugin>
  266.           <artifactId>maven-install-plugin</artifactId>
  267.           <version>2.5.2</version>
  268.         </plugin>
  269.         <plugin>
  270.           <artifactId>maven-deploy-plugin</artifactId>
  271.           <version>2.8.2</version>
  272.         </plugin>
  273.         <!--mybatis-generator插件，主要用于mybatis自动生成dao，model，mapping-->
  274.         <!-- 血泪史 下载mybatis plugs idea直接闪退-->
  275.         <plugin>
  276.           <groupId>org.mybatis.generator</groupId>
  277.           <artifactId>mybatis-generator-maven-plugin</artifactId>
  278.           <version>1.3.2</version>
  279.           <configuration>
  280.             <verbose>true</verbose>
  281.             <overwrite>true</overwrite>
  282.           </configuration>
  283.         </plugin>
  284.       </plugins>
  285.     </pluginManagement>
  286.   </build>
  287. </project>

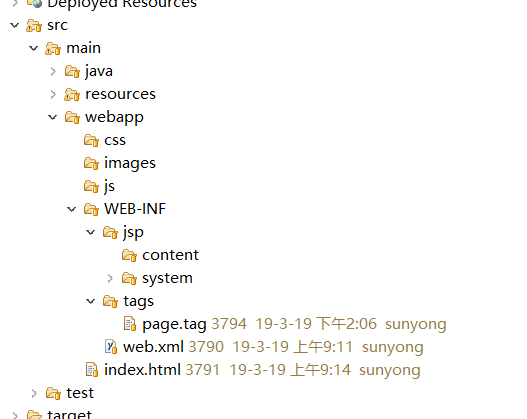

在src–main—webapp—创建一个文件夹—专门放css js images

WEB-INF中放静态页面 jsp 和tags 自定义标签

在这里插入图片描述

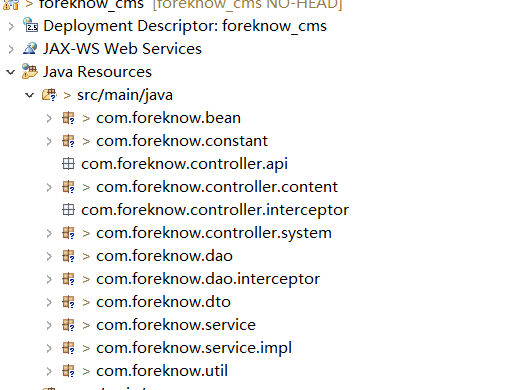

在src/main/java 中创建包
在这里插入图片描述

发表评论

表情：
评论列表 （有 0 条评论，516人围观）

还没有评论，来说两句吧...

相关阅读

    相关 搭建SSM项目框架全过程及思考

    1.前言 　之前都是在现有框架下进行写代码或者总是看一些别人的架构，总会眼高手低。于是打算自己完整的走一遍流程，同时把所遇到的问题，思考的问题记下来，供大家参考。由于是工

    朱雀朱雀/ 0 赞/ 374 阅读

    相关 SSM框架搭建

     自己配置了一个SSM框架，打算做个小网站，这里把SSM的配置流程详细的写了出来，方便很少接触这个框架的朋友使用，文中各个资源均免费提供！（后续读写分离：[https://bl

    秒速五厘米秒速五厘米/ 0 赞/ 544 阅读

    相关 SSM搭建过程

    SSM 一、一个完整的过程       第一步：发起请求到前端控制器(DispatcherServlet)       第二步：前端控制器请求HandlerMappi

    小鱼儿小鱼儿/ 0 赞/ 541 阅读
