Spring4+SpringMVC4+hibernate4整合

源码下载//github.com/rj2017211811/springmvc-hibernate

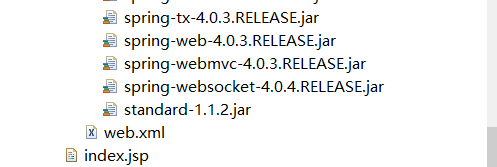

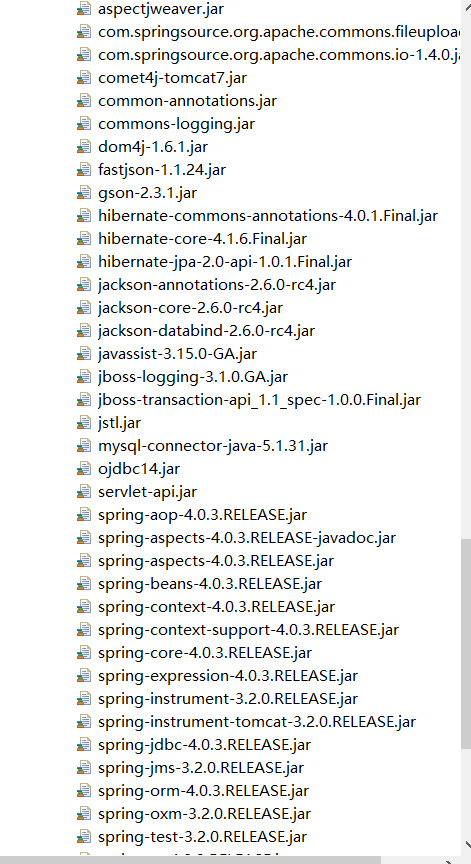

1.项目的目录和jar包



2.web.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:beans.xml</param-value>
</context-param>
<listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<servlet>
    <servlet-name>action</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
        <!-- 把springmvc的配置文件放在类路径下，配置文件默认是放在/WEB-INF/下的 -->
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-mvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
    <servlet-name>action</servlet-name>
    <url-pattern>/</url-pattern>
</servlet-mapping>
  <display-name>springmvcdb</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>
</web-app>

3.spring-mvc.xml文件:配置spring-mvc

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
                http://www.springframework.org/schema/mvc
                http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd
                http://www.springframework.org/schema/context
                http://www.springframework.org/schema/context/spring-context-4.2.xsd">
    <!-- 自动扫描 -->
    <context:component-scan
        base-package="per.czt.springmvc.web.controller,test" />
    <!-- 注解驱动 -->
    <mvc:annotation-driven />
    <!-- 资源管理 -->
    <mvc:resources location="/resources/"
        mapping="/resources/**"></mvc:resources>
    <mvc:resources location="/upload/" mapping="/upload/**"></mvc:resources>
    <!-- 上传文件解析器 -->
    <!-- 设置上传文件最大值 1M=1*1024*1024(B)=1048576 bytes -->
     <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <property name="defaultEncoding" value="utf-8"></property>
        <property name="maxUploadSize" value="10485760000"></property>
        <property name="maxInMemorySize" value="40960"></property>
    </bean>
    <!-- 内部资源视图解析器 prefix+logicName+suffix /WEB-INF/jsps+index+.jsp -->
    <bean id="internalResourceViewResolver"
        class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- 前缀 -->
        <property name="prefix" value="/WEB-INF/jsps/" />
        <!-- 后缀 -->
        <property name="suffix" value=".jsp" />
    </bean>
</beans>

4.beans.xml文件:配置hibernate

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:p="http://www.springframework.org/schema/p"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:jaxws="http://cxf.apache.org/jaxws"
    xsi:schemaLocation="http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd">
        <context:component-scan base-package="per.czt.springmvc.dao,per.czt.springmvc.service" />
        <!-- 开启注释处理器 -->
        <context:annotation-config />
        <!-- 配置数据源 -->
    <!-- 配置数据源 -->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource" >
        <property name="driverClassName" value="com.mysql.jdbc.Driver"></property>
        <property name="url" value="jdbc:mysql://localhost:3306/springmvcdb?useSSL=false&serverTimezone=UTC&characterEncoding=utf-8"></property>
        <property name="username" value="root"></property>
     <property name="password" value="123456"></property>
 </bean>
    <!-- 开启文件上  -->
    <bean id="sessionFactory"
        class="org.springframework.orm.hibernate4.LocalSessionFactoryBean">
        <property name="dataSource"><ref bean="dataSource" /></property>
        <!-- 扫描实体（pojo） -->
        <property name="namingStrategy">
        <bean class="org.hibernate.cfg.ImprovedNamingStrategy"></bean>
        </property>
        <property name="hibernateProperties">
            <props>
            <!-- <prop key="hibernate.show_sql">org.hibernate.dialect.MySQLInnoDBDialect</prop> -->
            <prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
            <prop key="hibernate.show_sql">true</prop>
            <!--  <prop key="hibernate.format_sql">true</prop>-->
            <!--  <prop key="hibernate.hbm2ddl.auto">update</prop>-->
            </props>
        </property>
        <!-- 自动扫描实体包 -->
        <property name="mappingDirectoryLocations">
            <list>
                <value>classpath:per/czt/springmvc/domain</value>
            </list>
        </property>
    </bean>
    <bean id="personDao" class="per.czt.springmvc.dao.PersonDaoImpl">
        <property name="sessionFactory" ref="sessionFactory" />
    </bean>
    <!-- 事务管理器 -->
    <bean id="transactionManager"
        class="org.springframework.orm.hibernate4.HibernateTransactionManager">
        <property name="sessionFactory" ref="sessionFactory" />
    </bean>
    <tx:advice id="transactionAdvice" transaction-manager="transactionManager">
        <!-- spring事物管理 -->
        <tx:attributes>
            <tx:method name="add*" />
            <tx:method name="save*" />
            <tx:method name="Save*" />
            <tx:method name="update*" />
            <tx:method name="modify*" />
            <tx:method name="edit*" />
            <tx:method name="delete*" />
            <tx:method name="remove*" />
            <tx:method name="change*" />
            <tx:method name="repair" />
            <tx:method name="deleteAndRepair" />
            <tx:method name="login*" />
            <tx:method name="get*" propagation="SUPPORTS" />
            <tx:method name="find*" propagation="SUPPORTS" />
            <tx:method name="load*" propagation="SUPPORTS" />
            <tx:method name="search*" propagation="SUPPORTS" />
            <tx:method name="datagrid*" propagation="SUPPORTS" />
            <tx:method name="*" propagation="SUPPORTS" />
            <!-- 为hibernate添加事物管理 -->
            <tx:method name="get*" propagation="REQUIRED" />
            <tx:method name="update*" propagation="REQUIRED"/>
            <tx:method name="up*" propagation="REQUIRED" />
            <tx:method name="delete*" propagation="REQUIRED"/>
            <tx:method name="count*" propagation="REQUIRED" read-only="true" />
            <tx:method name="find*" propagation="REQUIRED" read-only="true" />
            <tx:method name="list*" propagation="REQUIRED" read-only="true" />
            <tx:method name="*" propagation="REQUIRED" />
        </tx:attributes>
    </tx:advice>
    <!-- 切入点 -->
    <aop:config proxy-target-class="true">
        <aop:pointcut id="transactionPointcut" expression="execution(* per.czt.springmvc.service.*.*(..))" />
        <aop:advisor pointcut-ref="transactionPointcut"
            advice-ref="transactionAdvice" />
    </aop:config>
    <!-- 注解方式配置事物 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>
    <!-- <tx:annotation-driven transaction-manager="transactionManager1"/> -->
</beans>

5.person对象和Person.hbm.xml文件(pojo对象与数据库中的表一一对应)
Person.class

package per.czt.springmvc.domain;
public class Person {
    private Integer id;
    private String name;
    private Integer age;
    public Integer getId() {
        return id;
    }
    public void setId(Integer id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public Integer getAge() {
        return age;
    }
    public void setAge(Integer age) {
        this.age = age;
    }
}

Person.hbm.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- 映射文件需要dtd指定格式 -->
<!DOCTYPE hibernate-mapping PUBLIC
    "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
    "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
<hibernate-mapping package="per.czt.springmvc.domain">
    <class name="Person" lazy="true" table="person">
        <id name="id" column="id" type="java.lang.Integer">
            <generator class="identity"></generator>
        </id>
        <property name="name" type="java.lang.String">
            <column name="name" />
        </property>
        <property name="age" type="java.lang.Integer">
            <column name="age" />
        </property>
    </class>
</hibernate-mapping>

6.dao层：定义一个接口，然后实现接口，获取sessionFactory(在bean.xml配置bean)实现对数据库的操作
PersonDao

package per.czt.springmvc.dao;
import java.util.List;
import per.czt.springmvc.domain.Person;
public interface PersonDao {
    public List<Person> listAll(String hql);
    public Person getById(Integer id);
    public void saveOrUpdate(Person p);
    public void deleteById(Integer id);
}

PersonDaoImpl

package per.czt.springmvc.dao;
import java.util.List;
import javax.annotation.Resource;
import org.hibernate.SessionFactory;
import org.springframework.stereotype.Repository;
import org.springframework.transaction.annotation.Transactional;
import per.czt.springmvc.domain.Person;
@Repository("personDao")
public class PersonDaoImpl  implements PersonDao {
    private SessionFactory sessionFactory;
    public SessionFactory getSessionFactory() {
        return sessionFactory;
    }
    public void setSessionFactory(SessionFactory sessionFactory) {
        this.sessionFactory = sessionFactory;
    }
    @Override
    public List<Person> listAll(String hql) {
        System.out.println("sessionFactory:"+sessionFactory);
        System.out.println("hql:"+hql);
        System.out.println(" sessionFactory.getCurrentSession():"+ sessionFactory.getCurrentSession());
        List<Person> personList=(List<Person>) sessionFactory.getCurrentSession().createQuery(hql).list();
        System.out.println("personList:"+personList.size());
        return personList;
    }
    @Override
    public Person getById(Integer id) {
        return (Person)sessionFactory.getCurrentSession().get(Person.class, id);
    }
    @Override
    public void saveOrUpdate(Person p) {
        sessionFactory.getCurrentSession().saveOrUpdate(p);
    }
    @Override
    public void deleteById(Integer id) {
        sessionFactory.getCurrentSession().delete(this.getById(id));
    }
}

7.servic层:对dao层的结果处理，这里也是接口调用
PersonService

package per.czt.springmvc.service;
import java.util.List;
import per.czt.springmvc.domain.Person;
public interface PersonService {
    public List<Person> listAll(String hql);
    public Person getById(Integer id);
    public void saveOrUpdate(Person p);
    public void deleteById(Integer id);
}

PersonServiceImpl

package per.czt.springmvc.service;
import java.util.List;
import javax.annotation.Resource;
import org.springframework.stereotype.Service;
import per.czt.springmvc.dao.PersonDao;
import per.czt.springmvc.dao.PersonDaoImpl;
import per.czt.springmvc.domain.Person;
@Service("personService")
public class PersonServiceImpl implements PersonService {
    @Resource(name="personDao")
    private PersonDao personDao;
    public PersonDao getPersonDao() {
        return personDao;
    }
    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }
    @Override
    public List<Person> listAll(String hql) {
        System.out.println("personDao:"+personDao);
        return personDao.listAll(hql);
    }
    @Override
    public Person getById(Integer id) {
        // TODO Auto-generated method stub
        return personDao.getById(id);
    }
    @Override
    public void saveOrUpdate(Person p) {
        personDao.saveOrUpdate(p);
    }
    @Override
    public void deleteById(Integer id) {
        personDao.deleteById(id);
    }
}

8.controller层:调用service，并且将结果显示到view层，即jsp页面
PersonController

package per.czt.springmvc.web.controller;
import java.util.List;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import per.czt.springmvc.domain.Person;
import per.czt.springmvc.service.PersonService;
@Controller
@RequestMapping("/person")
public class PersonController {
    private PersonService personService;
    @RequestMapping("/listAll")
    public String listAll(Model model)
    {
        ApplicationContext ac=new ClassPathXmlApplicationContext("beans.xml");
        personService=(PersonService) ac.getBean("personService");
        System.out.println("personService1:"+personService);
        System.out.println("personService:"+personService);
        List<Person> personList=personService.listAll("from Person");
        System.out.println("personList.size()"+personList);
        model.addAttribute(personList);
        return "person/personList";
    }
}

9.view层:显示controller层返回的结果
person.jsp(在WEB-INF/person下)

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
    <table>
        <tbody>
            <tr>
                <th>id</th>
                <th>name</th>
                <th>age</th>
            </tr>
            <c:forEach items="${personList }" var="person">
                <tr>
                    <td>${person.id }</td>
                    <td>${person.name }</td>
                    <td>${person.age }</td>
                </tr>
            </c:forEach>
        </tbody>
    </table>
</body>
</html>

index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
    <a href="${pageContext.request.contextPath }/person/listAll.action">显示列表</a>
</body>
</html>

10.在index.jsp点击显示列表，即可显示所有person了
