If you're interested in more of this type of content, check out the [Servers for Hackers eBook][]!

As some point you'll likely find yourself writing a script which needs to run all the time - a "long running script". These are scripts that shouldn't fail if there's an error, or ones that should restart when the system reboots.

To accomplish this, we need something to watch these scripts. Such tools are process watchers. They watch processes and restart them if they fail, and ensure they start on system boot.

## The Script ##

What might such a script be? Well, most things we install already have mechanisms in place for process watching. For example, Upstart or Systemd. These are tools used by many systems to watch over important processes. When we install PHP5-FPM, Apache and Nginx with our package managers, they often integrate with such systems so that they are much less likely to fail without notice.

However, we might find that we need some simpler solutions. For example, I often make use of a NodeJS script to listen to web hooks (often from Github) and take actions based on them. NodeJS can handle HTTP requests and take action on them all in the same process, making it a good fit for a small, quick one-off service for listening to web hooks.

These smaller scripts might not merit working through Upstart and Systemd (although the two are worth learning about).

Here's an example script - we'll make a quick service in Node. This NodeJS script will live at `/srv/http.js`:

All this service does is take a web request and print out a message. It's not useful in reality, but good for our purposes. We just want a service to run and monitor.

Note that the service prints out two environmental variables: "SECRET\_PASSPHRASE" and "SECRET\_TWO". We'll see how we can pass these into a watched process.

## Supervisord ##

Supervisord is a simple and popular choice for process monitoring. Let's check out the package on Ubuntu:

$ apt-cache show supervisor
    Package: supervisor
    Priority: extra
    Section: universe/admin
    Installed-Size: 1485
    Maintainer: Ubuntu Developers <ubuntu-devel-discuss@lists.ubuntu.com>
    Original-Maintainer: Qijiang Fan <fqj1994@gmail.com>
    Architecture: all
    Version: 3.0b2-1 Depends: python, python-meld3, python-pkg-resources (>= 0.6c7) Filename: pool/universe/s/supervisor/supervisor_3.0b2-1_all.deb Size: 313972 MD5sum: 1e5ee03933451a0f4fc9ff391404f292 SHA1: d9dc47366e99e77b6577a9a82abd538c4982c58e SHA256: f83f89a439cc8de5f2a545edbf20506695e4b477c579a5824c063fbaf94127c1 Description: A system for controlling process state Description-md5: b18ffbeaa3a697e8ccaee9cc104ec380 Homepage: http://supervisord.org/ Bugs: https://bugs.launchpad.net/ubuntu/+filebug Origin: Ubuntu

We can see that we'll get version 3.0b2. That latest is version 3.1, but 3.0b2 is good enough. We can get a newer version by installing manually or by using Python's Pip, but then we'd lose out on making sure all the dependencies are met, along with the Upstart setup so that Supervisord works as a service and starts on system boot.

> If there's an alternative Ubuntu PPA to get the latest version, I'm unaware of it.

### Installation ###

To install Supervisord, we can simply run the following:

sudo apt-get install -y supervisor

Installing it as a package gives us the ability to treat it as a service:

sudo service supervisor start

### Configuration ###

Configuration for Supervisord is found in `/etc/supervisor`. If we look at the configuration file`/etc/supervisord/supervisord.conf`, we'll see at the following at the bottom:

[include]
    files = /etc/supervisor/conf.d/*.conf

So, any files found in `/etc/supervisor/conf.d` and ending in `.conf` will be included. This is where we can add configurations for our services.

Now we need to tell Supervisord how to run and monitor our Node script. What we'll do is create a configuration that tells Supervisord how to start and monitor the Node script.

Let's create a configuration for it called `webhooks.conf`. This file will be created at `/etc/supervisor/conf.d/webhooks.conf`:

[program:nodehook]
    command=/usr/bin/node /srv/http.js
    directory=/srv autostart=true autorestart=true startretries=3 stderr_logfile=/var/log/webhook/nodehook.err.log stdout_logfile=/var/log/webhook/nodehook.out.log user=www-data environment=SECRET_PASSPHRASE='this is secret',SECRET_TWO='another secret'

As usual, we'll cover the options set here:

*  `[program:nodehook]` \- Define the program to monitor. We'll call it "nodehook".
 *  `command` \- This is the command to run that kicks off the monitored process. We use "node" and run the "http.js" file. If you needed to pass any command line arguments or other data, you could do so here.
 *  `directory` \- Set a directory for Supervisord to "cd" into for before running the process, useful for cases where the process assumes a directory structure relative to the location of the executed script.
 *  `autostart` \- Setting this "true" means the process will start when Supervisord starts (essentially on system boot).
 *  `autorestart` \- If this is "true", the program will be restarted if it exits unexpectedly.
 *  `startretries` \- The number of retries to do before the process is considered "failed"
 *  `stderr_logfile` \- The file to write any errors output.
 *  `stdout_logfile` \- The file to write any regular output.
 *  `user` \- The user the process is run as.
 *  `environment` \- Environment variables to pass to the process.

Note that we've specified some log files to be created inside of the `/var/log/webhook` directory. Supervisord won't create a directory for logs if they do not exist; We need to create them before running Supervisord:

sudo mkdir /var/log/webhook

### Controlling Processes ###

Now that we've configured Supervisord to monitor our Node process, we can read the configuration in and then reload Supervisord, using the `supervisorctl` tool:

supervisorctl reread
    supervisorctl update

Our Node process should be running now. We can check this by simply running `supervisorctl`:

$ supervisorctl
    nodehook               RUNNING    pid 444, uptime 0:02:45

We can double check this with the `ps` command:

$ ps aux | grep node
    www-data   444  0.0  2.0 659620 10520 ? Sl 00:57 0:00 /usr/bin/node /srv/http.js

It's running! If we check our localhost at port 9000, we'll see the output written out by the NodeJS script, including the environment variables. The environmental variables are useful if we need to pass information or credentials to our script.

> If your process is not running, try explicitly telling Supervisord to start process "nodehook" via `supervisorctl start nodehook`

There's other things we can do with `supervisorctl` as well. Enter the controlling tool using `supervisorctl`:

$ supervisorctl
    nodehook     RUNNING    pid 444, uptime 0:15:42

We can try some more commands:

Get a menu of available commands:

supervisor> help
    # Available commands output here

Let's stop the process:

supervisor> stop nodehook
    nodehook: stopped

Then we can start it back up

supervisor> start nodehook
    nodehook: started

We can use <ctrl+c> or type "exit" to get out of the supervisorctl tool.

These commands can also be run directly:

$ supervisorctl stop nodebook
    $ supervisorctl start nodebook

### Web Interface ###

We can configure a web interface which comes with Supervisord. This lets us see a list of all processes being monitored, as well as take action on them (restarting, stopping, clearing logs and checking output).

Inside of `/etc/supervisord.conf`, add this:

[inet_http_server]
    port = 9001
    username = user # Basic auth username password = pass # Basic auth password

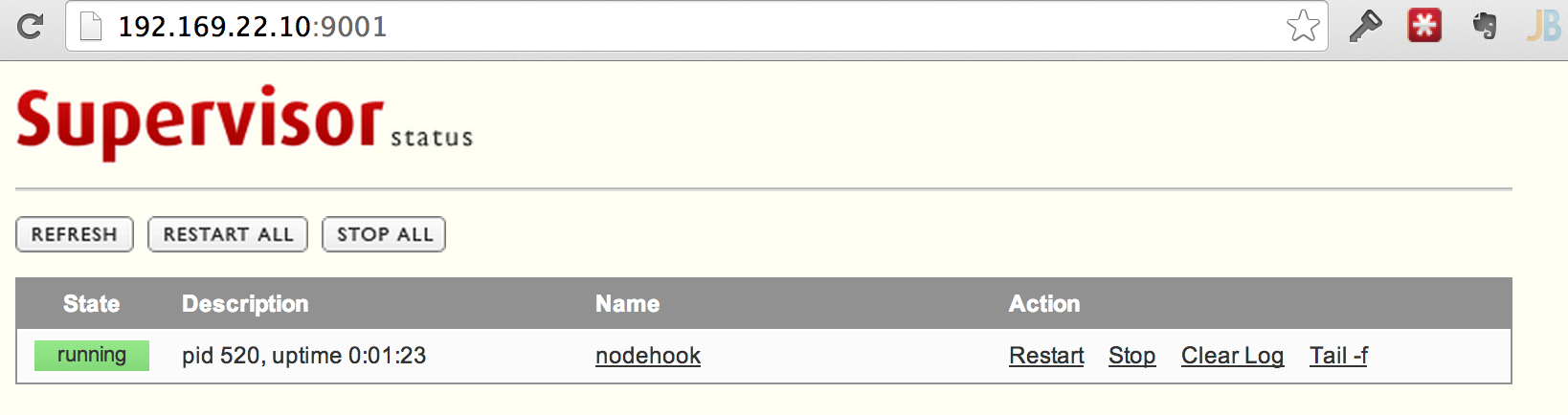

If we access our server in a web browser at port 9001, we'll see the web interface:

![supervisord.png][]

Clicking into the process name ("nodehook" in this case) will show the logs for that process.
