springboot连接redis单机

系统管理员 2022-04-15 05:46 303阅读 0赞

### 1.创建maven工程，添加依赖，pom文件内容如下 ###

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
      <modelVersion>4.0.0</modelVersion>

      <groupId>com.szcatic</groupId>
      <artifactId>springboot</artifactId>
      <version>0.0.1-SNAPSHOT</version>
      <packaging>war</packaging>

      <name>springboot</name>
      <url>http://maven.apache.org</url>

      	<parent>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-parent</artifactId>
            <version>2.1.0.RELEASE</version>
        </parent>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-web</artifactId>
            </dependency>
            <dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>

    		<dependency>
    		    <groupId>org.junit.jupiter</groupId>
    		    <artifactId>junit-jupiter-engine</artifactId>
    		    <scope>test</scope>
    		</dependency>
    		<dependency>
    		    <groupId>org.junit.platform</groupId>
    		    <artifactId>junit-platform-runner</artifactId>
    		    <scope>test</scope>
    		</dependency>

    		<dependency>
    		    <groupId>org.springframework.boot</groupId>
    		    <artifactId>spring-boot-starter-jdbc</artifactId>
    		</dependency>

    		<dependency>
    		    <groupId>mysql</groupId>
    		    <artifactId>mysql-connector-java</artifactId>
    		</dependency>

    		<dependency>
    		    <groupId>org.springframework.boot</groupId>
    		    <artifactId>spring-boot-starter-data-redis</artifactId>
    		</dependency>

    		<dependency>
    		    <groupId>redis.clients</groupId>
    		    <artifactId>jedis</artifactId>
    		</dependency>
        </dependencies>
        <properties>
            <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
            <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
            <java.version>1.8</java.version>

        	<start-class>com.szcatic.Application</start-class>
        </properties>
        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <configuration>
    	                <source>1.8</source>
    	                <target>1.8</target>
    	            </configuration>
                </plugin>
            </plugins>
        </build>
    </project>

### 2.在文件application.properties中添加redis连接池配置 ###

# redis连接池配置
    # Redis数据库索引（默认为0）
    spring.redis.database=0
    # Redis服务器地址
    spring.redis.host=127.0.0.1
    # Redis服务器连接端口
    spring.redis.port=6379
    # Redis服务器连接密码（默认为空）
    spring.redis.password=
    # 连接池最大连接数（使用负值表示没有限制）
    spring.redis.pool.max-active=20
    # 连接池最大阻塞等待时间（使用负值表示没有限制）
    spring.redis.pool.max-wait=-1
    # 连接池中的最大空闲连接
    spring.redis.pool.max-idle=20
    # 连接池中的最小空闲连接
    spring.redis.pool.min-idle=0
    # 连接超时时间（毫秒）
    spring.redis.timeout=60000

### 3.自定义配置类RedisConfig.java ###

package com.szcatic.configuration;

    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.context.annotation.Bean;
    import org.springframework.data.redis.connection.RedisStandaloneConfiguration;
    import org.springframework.data.redis.connection.jedis.JedisClientConfiguration;
    import org.springframework.data.redis.connection.jedis.JedisConnectionFactory;
    import org.springframework.data.redis.core.RedisTemplate;
    import org.springframework.data.redis.serializer.StringRedisSerializer;
    import org.springframework.stereotype.Component;

    import redis.clients.jedis.JedisPoolConfig;

    @Component
    public class RedisConfig {

        @Value("${spring.redis.database}")
        private int database;

        @Value("${spring.redis.host}")
        private String host;

        @Value("${spring.redis.port}")
        private int port;

        @Value("${spring.redis.timeout}")
        private int timeout;

        @Value("${spring.redis.pool.max-idle}")
        private int maxIdle;

        @Value("${spring.redis.pool.min-idle}")
        private int minIdle;

        @Value("${spring.redis.pool.max-active}")
        private int maxActive;

        @Value("${spring.redis.pool.max-wait}")
        private long maxWait;

    	private JedisConnectionFactory jedisConnectionFactory() {
    		return new JedisConnectionFactory(redisStandaloneConfiguration(), clientConfiguration());
    	}

    	private RedisStandaloneConfiguration redisStandaloneConfiguration() {
    		RedisStandaloneConfiguration redisStandaloneConfiguration = new RedisStandaloneConfiguration(host, port);
    		redisStandaloneConfiguration.setDatabase(database);
    		return redisStandaloneConfiguration;
    	}

    	private JedisPoolConfig poolConfig() {
    		JedisPoolConfig config = new JedisPoolConfig();
            config.setMaxIdle(maxIdle);
            config.setMinIdle(minIdle);
            config.setMaxTotal(maxActive);
            config.setMaxWaitMillis(maxWait);
            return config;
    	}

    	private JedisClientConfiguration clientConfiguration() {
    	    JedisClientConfiguration jedisClientConfiguration = JedisClientConfiguration.builder()
    	    		.usePooling()
    	            .poolConfig(poolConfig())
    	            .build();
    	    return jedisClientConfiguration;
    	}

    	@Bean
    	public RedisTemplate<String, Object> redisTemplate() {
    		RedisTemplate<String, Object> template = new RedisTemplate<>();
    		template.setConnectionFactory(jedisConnectionFactory());
    		template.setKeySerializer(new StringRedisSerializer());
    		template.setHashKeySerializer(new StringRedisSerializer());
    		template.setHashValueSerializer(new StringRedisSerializer());
    		template.setValueSerializer(new StringRedisSerializer());
    		return template;
    	}

    }

### 4.创建测试类RedisConfigTest.java ###

package com.szcatic.test;

    import java.util.List;

    import org.junit.jupiter.api.Test;
    import org.junit.jupiter.api.extension.ExtendWith;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.boot.test.context.SpringBootTest;
    import org.springframework.context.annotation.Configuration;
    import org.springframework.data.redis.core.RedisTemplate;
    import org.springframework.test.context.junit.jupiter.SpringExtension;

    import com.szcatic.Application;

    @Configuration
    @ExtendWith(SpringExtension.class)
    @SpringBootTest(classes = Application.class)
    public class RedisConfigTest {

    	@Autowired
    	RedisTemplate<String, Object> redisTemplate;

    	@Test
    	void testOpsForHash() {
    		redisTemplate.opsForHash().put("hashValue","map1","map1-1");
    		redisTemplate.opsForHash().put("hashValue","map2","map2-2");
    		List<Object> hashList = redisTemplate.opsForHash().values("hashValue");
    		System.out.println("hashList======" + hashList);
    	}
    }

### 5.启动redis单机服务，执行测试方法testOpsForHash，控制台输出结果如下 ###

14:31:20.919 [main] DEBUG org.springframework.test.context.BootstrapUtils - Instantiating CacheAwareContextLoaderDelegate from class [org.springframework.test.context.cache.DefaultCacheAwareContextLoaderDelegate]
    14:31:20.940 [main] DEBUG org.springframework.test.context.BootstrapUtils - Instantiating BootstrapContext using constructor [public org.springframework.test.context.support.DefaultBootstrapContext(java.lang.Class,org.springframework.test.context.CacheAwareContextLoaderDelegate)]
    14:31:20.964 [main] DEBUG org.springframework.test.context.BootstrapUtils - Instantiating TestContextBootstrapper for test class [com.szcatic.test.RedisConfigTest] from class [org.springframework.boot.test.context.SpringBootTestContextBootstrapper]
    14:31:20.975 [main] INFO org.springframework.boot.test.context.SpringBootTestContextBootstrapper - Neither @ContextConfiguration nor @ContextHierarchy found for test class [com.szcatic.test.RedisConfigTest], using SpringBootContextLoader
    14:31:20.990 [main] DEBUG org.springframework.test.context.support.AbstractContextLoader - Did not detect default resource location for test class [com.szcatic.test.RedisConfigTest]: class path resource [com/szcatic/test/RedisConfigTest-context.xml] does not exist
    14:31:20.990 [main] DEBUG org.springframework.test.context.support.AbstractContextLoader - Did not detect default resource location for test class [com.szcatic.test.RedisConfigTest]: class path resource [com/szcatic/test/RedisConfigTestContext.groovy] does not exist
    14:31:20.990 [main] INFO org.springframework.test.context.support.AbstractContextLoader - Could not detect default resource locations for test class [com.szcatic.test.RedisConfigTest]: no resource found for suffixes {-context.xml, Context.groovy}.
    14:31:21.047 [main] DEBUG org.springframework.test.context.support.ActiveProfilesUtils - Could not find an 'annotation declaring class' for annotation type [org.springframework.test.context.ActiveProfiles] and class [com.szcatic.test.RedisConfigTest]
    14:31:21.164 [main] DEBUG org.springframework.boot.test.context.SpringBootTestContextBootstrapper - @TestExecutionListeners is not present for class [com.szcatic.test.RedisConfigTest]: using defaults.
    14:31:21.165 [main] INFO org.springframework.boot.test.context.SpringBootTestContextBootstrapper - Loaded default TestExecutionListener class names from location [META-INF/spring.factories]: [org.springframework.boot.test.mock.mockito.MockitoTestExecutionListener, org.springframework.boot.test.mock.mockito.ResetMocksTestExecutionListener, org.springframework.boot.test.autoconfigure.restdocs.RestDocsTestExecutionListener, org.springframework.boot.test.autoconfigure.web.client.MockRestServiceServerResetTestExecutionListener, org.springframework.boot.test.autoconfigure.web.servlet.MockMvcPrintOnlyOnFailureTestExecutionListener, org.springframework.boot.test.autoconfigure.web.servlet.WebDriverTestExecutionListener, org.springframework.test.context.web.ServletTestExecutionListener, org.springframework.test.context.support.DirtiesContextBeforeModesTestExecutionListener, org.springframework.test.context.support.DependencyInjectionTestExecutionListener, org.springframework.test.context.support.DirtiesContextTestExecutionListener, org.springframework.test.context.transaction.TransactionalTestExecutionListener, org.springframework.test.context.jdbc.SqlScriptsTestExecutionListener]
    14:31:21.193 [main] INFO org.springframework.boot.test.context.SpringBootTestContextBootstrapper - Using TestExecutionListeners: [org.springframework.test.context.web.ServletTestExecutionListener@60015ef5, org.springframework.test.context.support.DirtiesContextBeforeModesTestExecutionListener@2f54a33d, org.springframework.boot.test.mock.mockito.MockitoTestExecutionListener@1018bde2, org.springframework.boot.test.autoconfigure.SpringBootDependencyInjectionTestExecutionListener@65b3f4a4, org.springframework.test.context.support.DirtiesContextTestExecutionListener@f2ff811, org.springframework.test.context.transaction.TransactionalTestExecutionListener@568ff82, org.springframework.test.context.jdbc.SqlScriptsTestExecutionListener@50caa560, org.springframework.boot.test.mock.mockito.ResetMocksTestExecutionListener@2a266d09, org.springframework.boot.test.autoconfigure.restdocs.RestDocsTestExecutionListener@5ab9e72c, org.springframework.boot.test.autoconfigure.web.client.MockRestServiceServerResetTestExecutionListener@186f8716, org.springframework.boot.test.autoconfigure.web.servlet.MockMvcPrintOnlyOnFailureTestExecutionListener@1d8bd0de, org.springframework.boot.test.autoconfigure.web.servlet.WebDriverTestExecutionListener@45ca843]
    14:31:21.197 [main] DEBUG org.springframework.test.context.support.AbstractDirtiesContextTestExecutionListener - Before test class: context [DefaultTestContext@87a85e1 testClass = RedisConfigTest, testInstance = [null], testMethod = [null], testException = [null], mergedContextConfiguration = [WebMergedContextConfiguration@671a5887 testClass = RedisConfigTest, locations = '{}', classes = '{class com.szcatic.Application, class com.szcatic.Application}', contextInitializerClasses = '[]', activeProfiles = '{}', propertySourceLocations = '{}', propertySourceProperties = '{org.springframework.boot.test.context.SpringBootTestContextBootstrapper=true}', contextCustomizers = set[org.springframework.boot.test.context.filter.ExcludeFilterContextCustomizer@7692d9cc, org.springframework.boot.test.json.DuplicateJsonObjectContextCustomizerFactory$DuplicateJsonObjectContextCustomizer@43ee72e6, org.springframework.boot.test.mock.mockito.MockitoContextCustomizer@0, org.springframework.boot.test.web.client.TestRestTemplateContextCustomizer@79efed2d, org.springframework.boot.test.autoconfigure.properties.PropertyMappingContextCustomizer@0, org.springframework.boot.test.autoconfigure.web.servlet.WebDriverContextCustomizerFactory$Customizer@3c9d0b9d], resourceBasePath = 'src/main/webapp', contextLoader = 'org.springframework.boot.test.context.SpringBootContextLoader', parent = [null]], attributes = map['org.springframework.test.context.web.ServletTestExecutionListener.activateListener' -> true]], class annotated with @DirtiesContext [false] with mode [null].
    14:31:21.225 [main] DEBUG org.springframework.test.context.support.TestPropertySourceUtils - Adding inlined properties to environment: {spring.jmx.enabled=false, org.springframework.boot.test.context.SpringBootTestContextBootstrapper=true, server.port=-1}

      .   ____          _            __ _ _
     /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
    ( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
     \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
      '  |____| .__|_| |_|_| |_\__, | / / / /
     =========|_|==============|___/=/_/_/_/
     :: Spring Boot ::        (v2.1.0.RELEASE)

    2018-11-22 14:31:21.625  INFO 12244 --- [           main] com.szcatic.test.RedisConfigTest         : Starting RedisConfigTest on zsx with PID 12244 (started by admin in F:\workspace4.7\springboot)
    2018-11-22 14:31:21.627  INFO 12244 --- [           main] com.szcatic.test.RedisConfigTest         : No active profile set, falling back to default profiles: default
    2018-11-22 14:31:23.549  INFO 12244 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Multiple Spring Data modules found, entering strict repository configuration mode!
    2018-11-22 14:31:23.568  INFO 12244 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data repositories in DEFAULT mode.
    2018-11-22 14:31:23.650  INFO 12244 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 40ms. Found 0 repository interfaces.
    2018-11-22 14:31:24.312  INFO 12244 --- [           main] trationDelegate$BeanPostProcessorChecker : Bean 'org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration' of type [org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration$$EnhancerBySpringCGLIB$$efc69acd] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
    2018-11-22 14:31:26.464  INFO 12244 --- [           main] o.s.s.concurrent.ThreadPoolTaskExecutor  : Initializing ExecutorService 'applicationTaskExecutor'
    2018-11-22 14:31:28.324  INFO 12244 --- [           main] com.szcatic.test.RedisConfigTest         : Started RedisConfigTest in 7.089 seconds (JVM running for 8.248)
    hashList======[map1-1, map2-2]
    2018-11-22 14:31:29.494  INFO 12244 --- [       Thread-3] o.s.s.concurrent.ThreadPoolTaskExecutor  : Shutting down ExecutorService 'applicationTaskExecutor'

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3pzeDE4MjczMTE3MDAz_size_16_color_FFFFFF_t_70][]** 从以上结果可以看出，操作redis数据库成功**

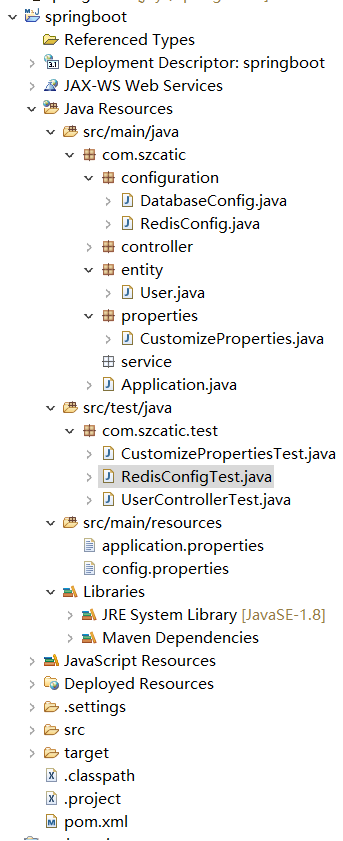

### 6.项目目录结构 ###

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3pzeDE4MjczMTE3MDAz_size_16_color_FFFFFF_t_70 1][]
