RHCS集群套件——ISCSI/SCSI实现存储共享、CLVM/GFS2集群文件系统部署

约定不等于承诺〃 2022-04-24 12:48 310阅读 0赞

此次环境还是基于上篇博客：[RHCS集群套件——Luci/Ricci实现Web高可用集群][RHCS_Luci_Ricci_Web]

### 一、搭建环境 ###

三台redht6.5的虚拟机。

> server1 配置luci集群管理界面，用来配置和管理集群。
> server1、server2 集群节点，配置ricci。
> server3 配置共享存储

### 二、搭建步骤 ###

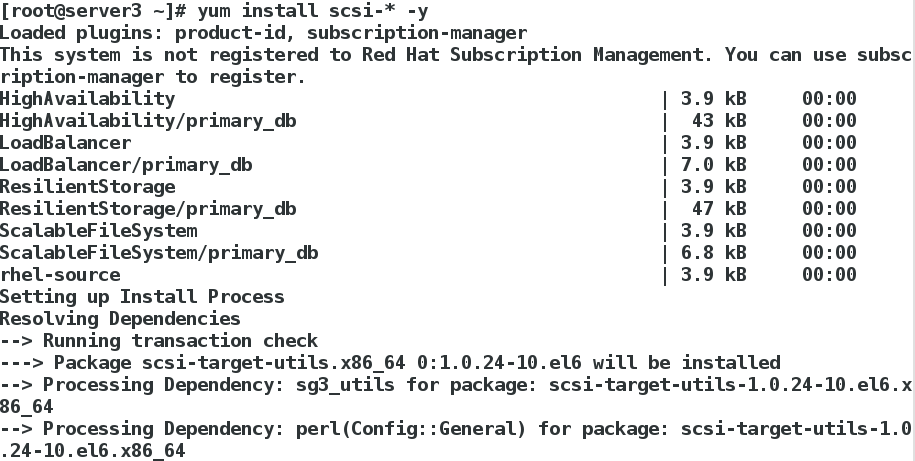

1、server3上安装共享存储所需要的软件（高级yum源）

yum install scsi-* -y

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70]

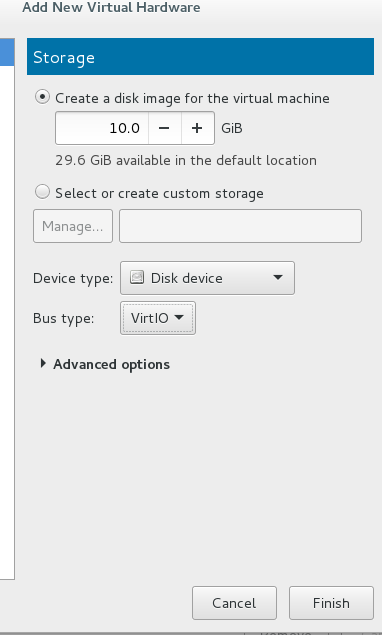

server3添加一块新的硬盘设备，用于共享
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 1]

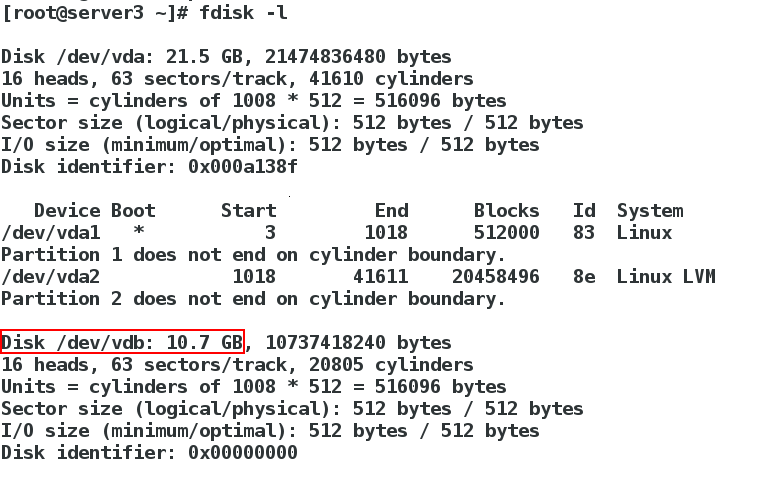

fdisk -l

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 2]

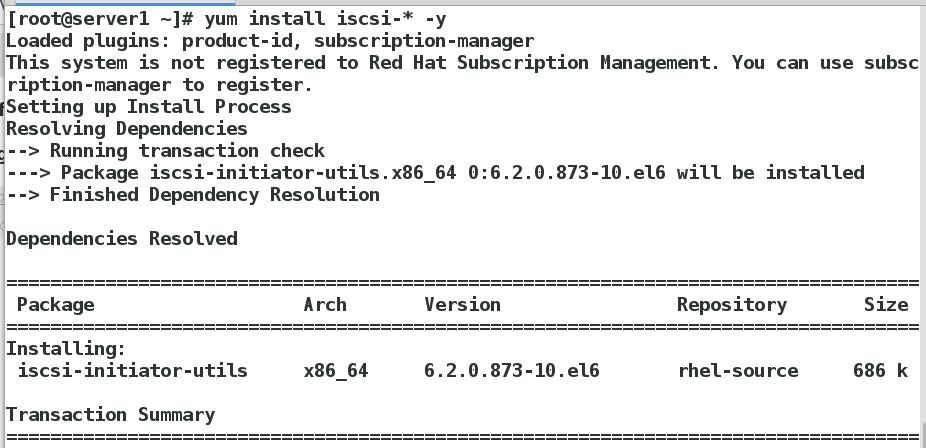

2、在server1、server2上安装客户端iscsi

yum install iscsi-* -y

server1
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 3]

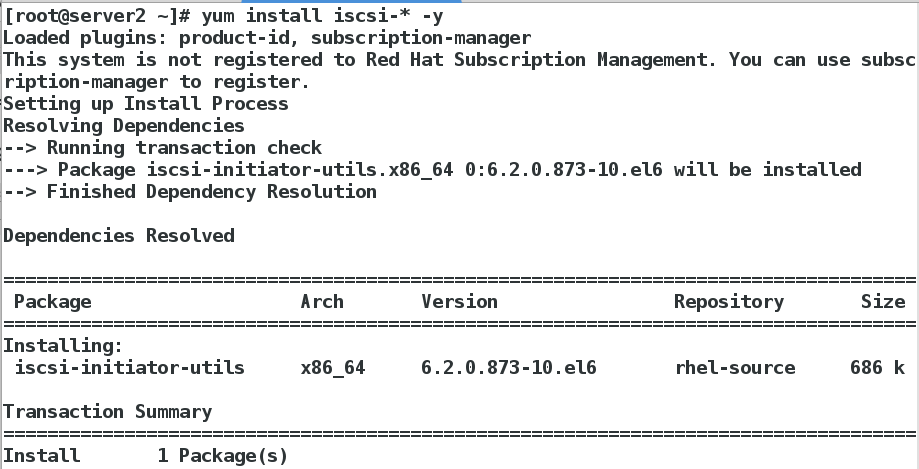

server2
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 4]
3、在server3上配置共享策略，开启服务，查看

vim /etc/tgt/targets.conf

    <target iqn.2019-04.com.example:server.target1>
        backing-store /dev/vdb		#确定共享的磁盘
    </target>

![在这里插入图片描述][20190425113729149.png]

/etc/init.d/tgtd start	#启动服务

![在这里插入图片描述][20190425113826556.png]

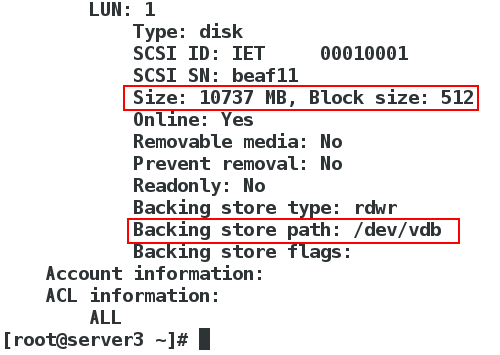

tgt-admin -s

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 5]

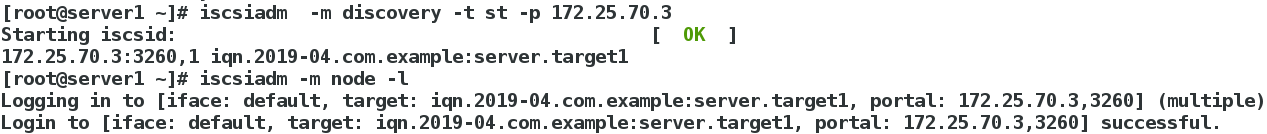

4、在server1、server2上查看并激活共享的存储

iscsiadm -m discovery -t st -p 172.25.70.3		#查看共享存储
    iscsiadm -m node -l			#激活共享存储

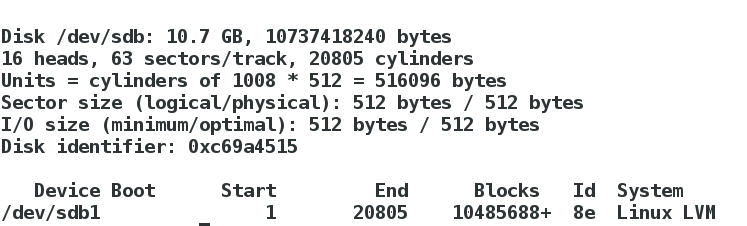

    fdisk -l

server1
![在这里插入图片描述][20190425122945793.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 6]

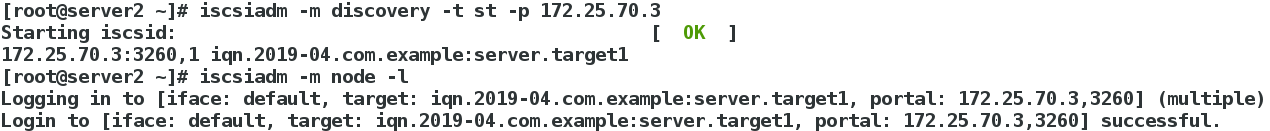

server2
![在这里插入图片描述][20190425123118854.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 7]
5、在server1、server2上下载mysql

[root@server1 ~]# yum install mysql-server -y
    [root@server2 ~]# yum install mysql-server -y

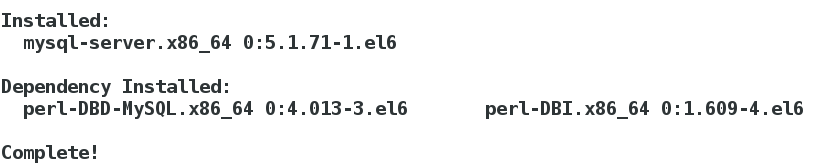

server1
![在这里插入图片描述][20190425123534258.png]

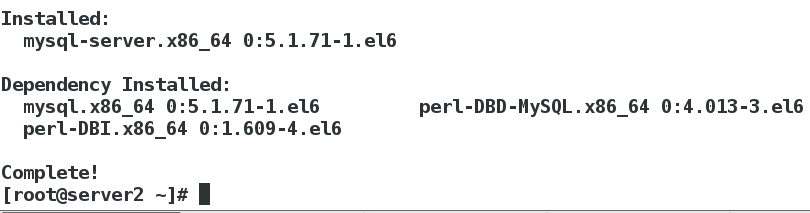

server2
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 8]

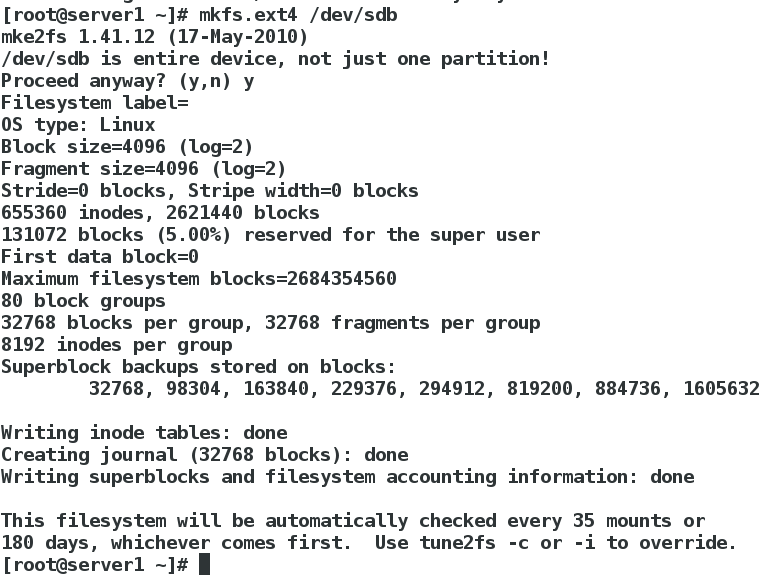

6、格式化共享设备（只在一台设备上操作）

[root@server1 ~]# mkfs.ext4 /dev/sdb

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 9]

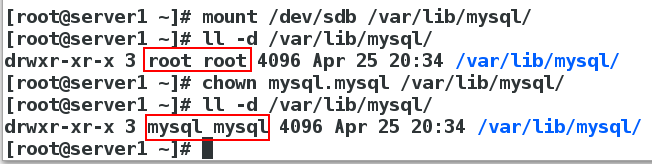

7、在server1、server2上更改mysql目录的权限

server1:

[root@server1 ~]# mount /dev/sdb /var/lib/mysql/
    [root@server1 ~]# ll -d /var/lib/mysql/
    drwxr-xr-x 3 root root 4096 Apr 22 14:20 /var/lib/mysql/
    [root@server1 ~]# chown mysql.mysql /var/lib/mysql/
    [root@server1 ~]# ll -d /var/lib/mysql/
    drwxr-xr-x 3 mysql mysql 4096 Apr 22 14:20 /var/lib/mysql/
    [root@server1 ~]#

server1
![在这里插入图片描述][20190425123917679.png]
server2
![在这里插入图片描述][20190425123925654.png]

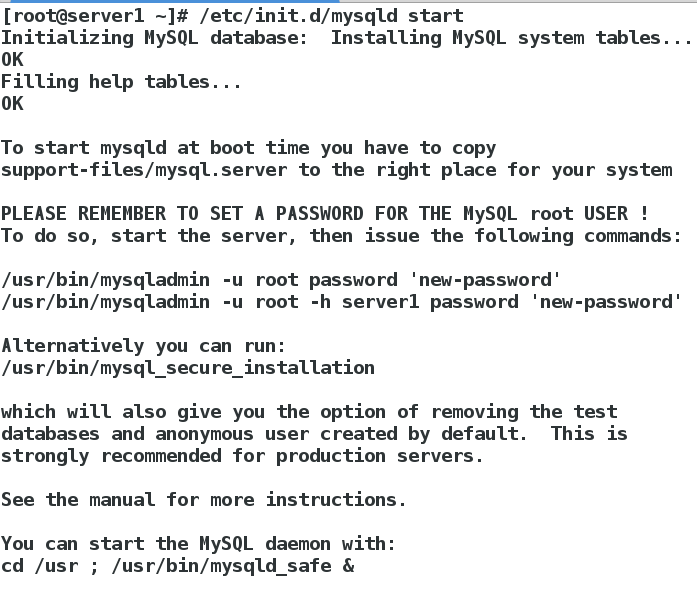

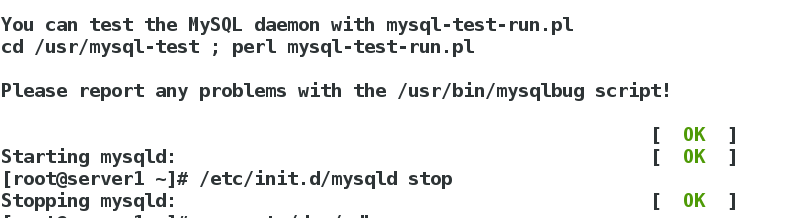

8、检测服务能否正常开启

[root@server1 ~]# /etc/init.d/mysqld start
    [root@server1 ~]# /etc/init.d/mysqld stop
    [root@server1 ~]# umount /dev/sdb

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 10]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 11]
9、将apache的单线程关掉，并且把apache服务组资源停掉

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 12]

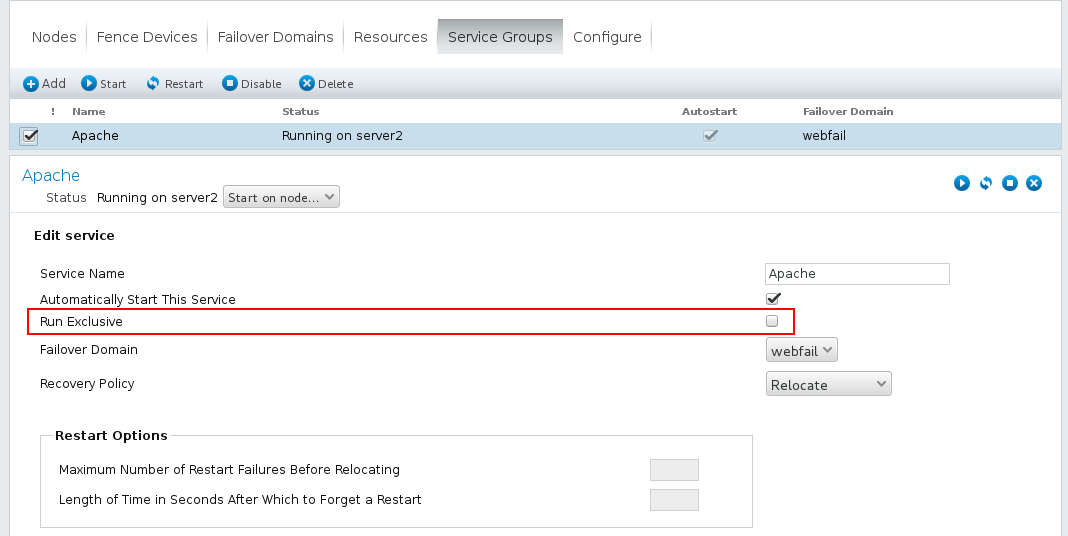

将Run Exclusive的勾去掉，并且重新submit。
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 13]

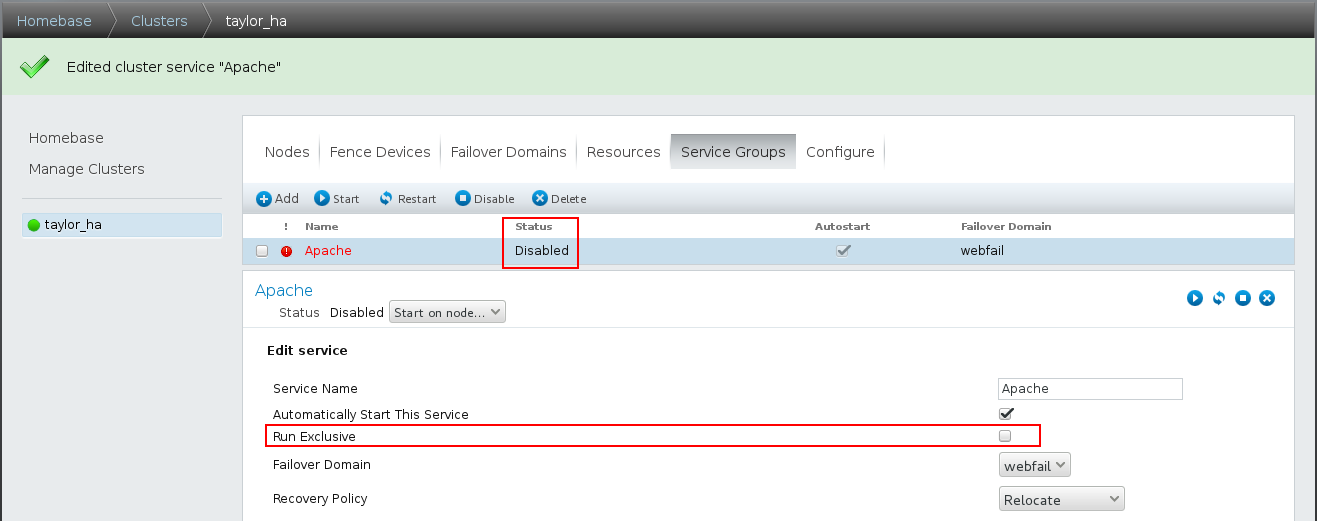

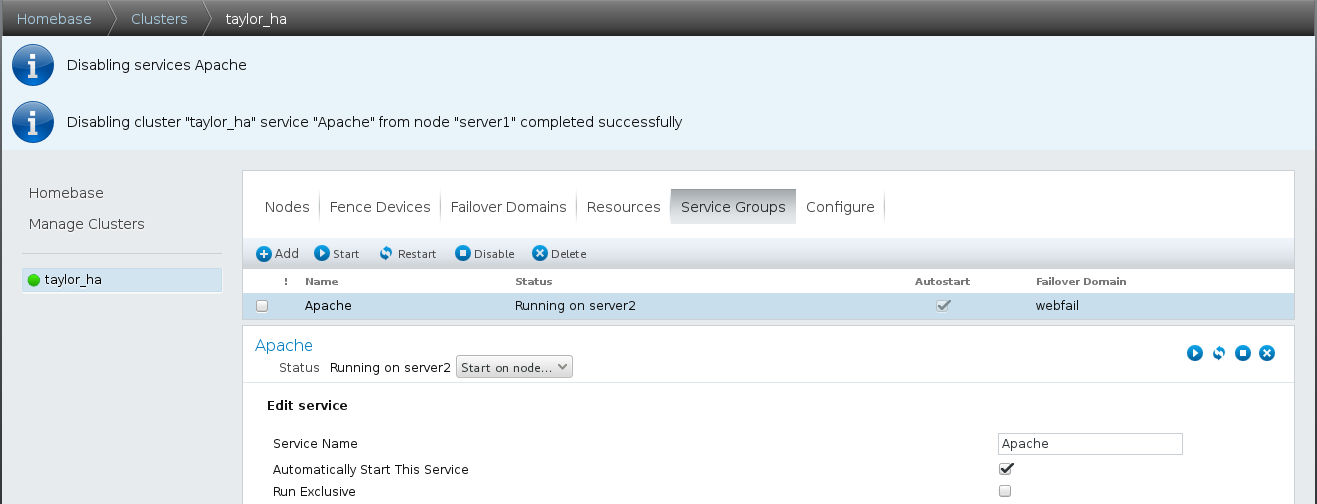

Disabled service Apache
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 14]
也可以用命令：

clusvcadm -d Apache

10、浏览器配置（先ip后挂载再httpd服务）

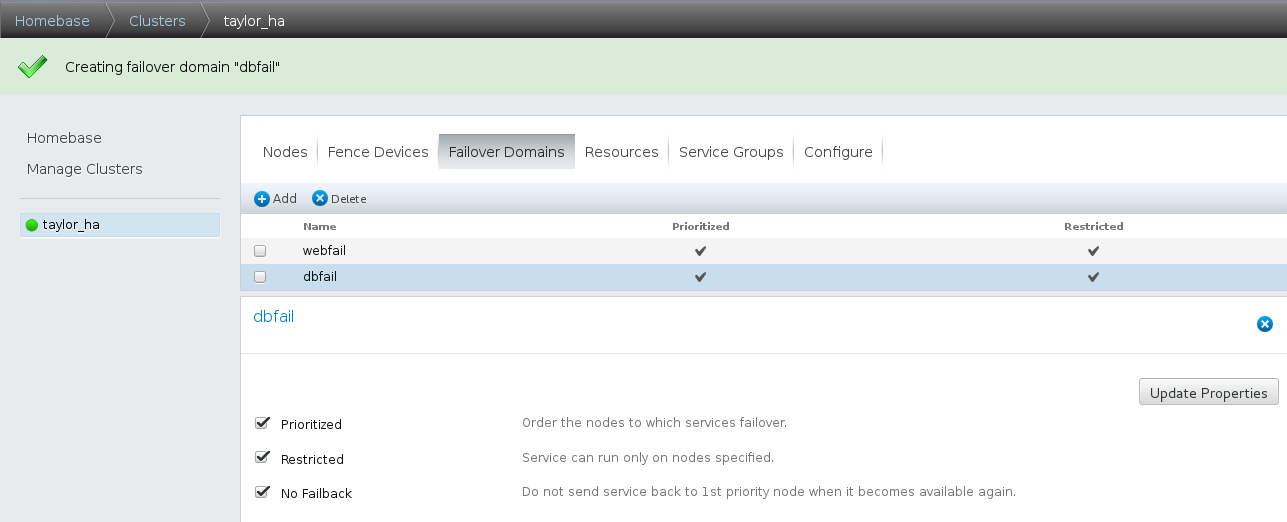

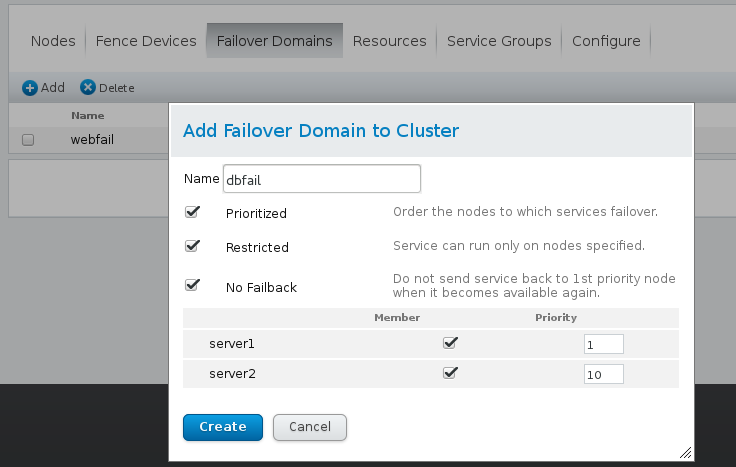

1、在Failover Domains中添加dbfail
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 15]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 16]

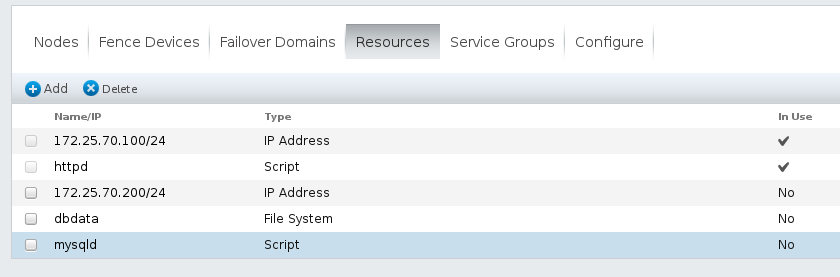

2、在Resources中添加IP Address,File System,Script资源。

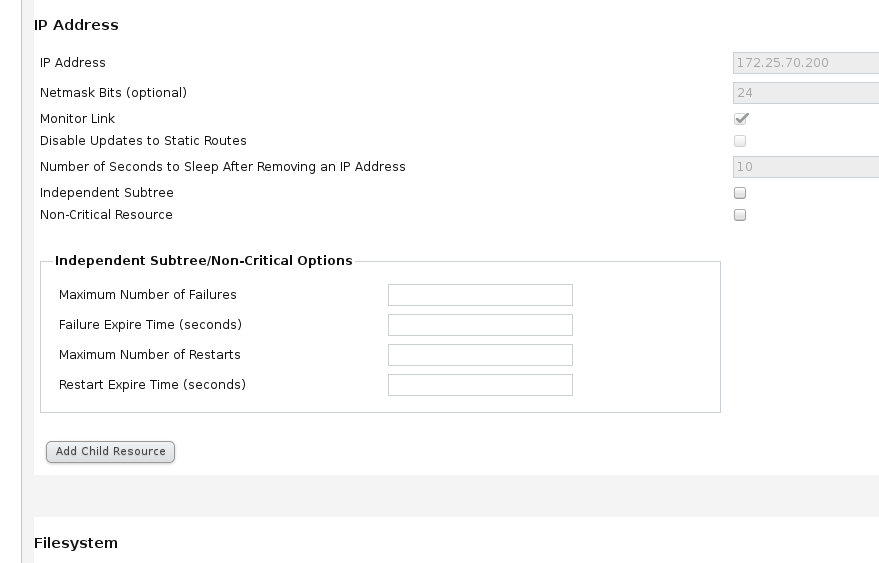

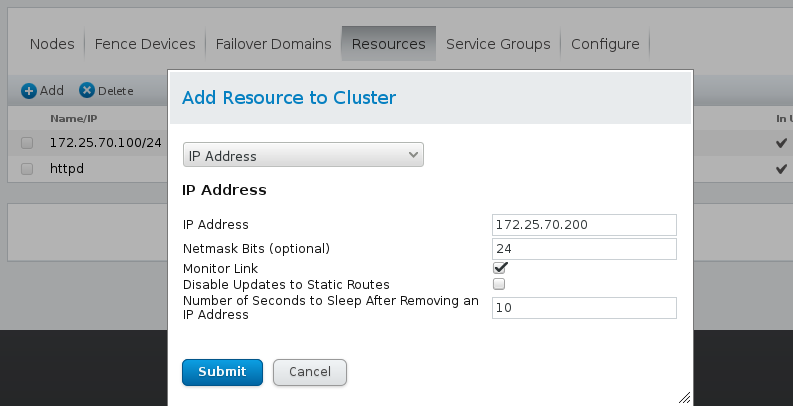

IP Address

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 17]

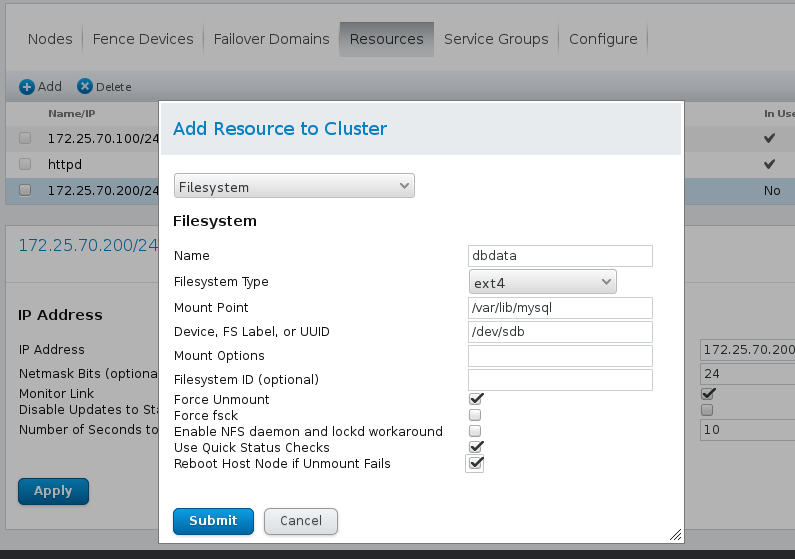

File System
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 18]

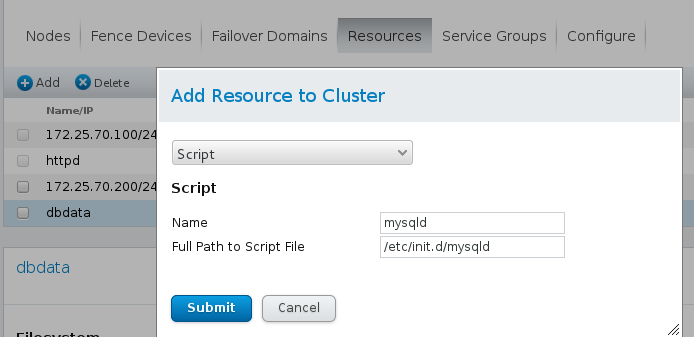

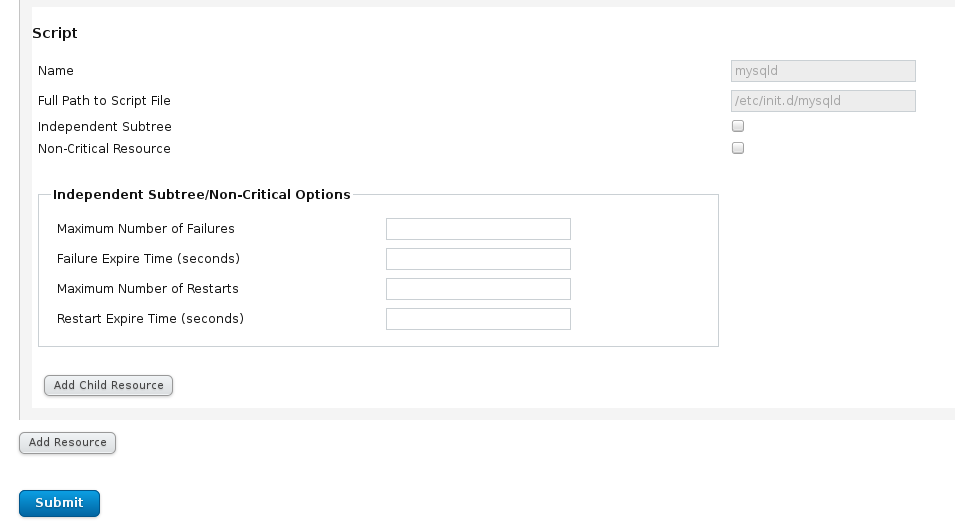

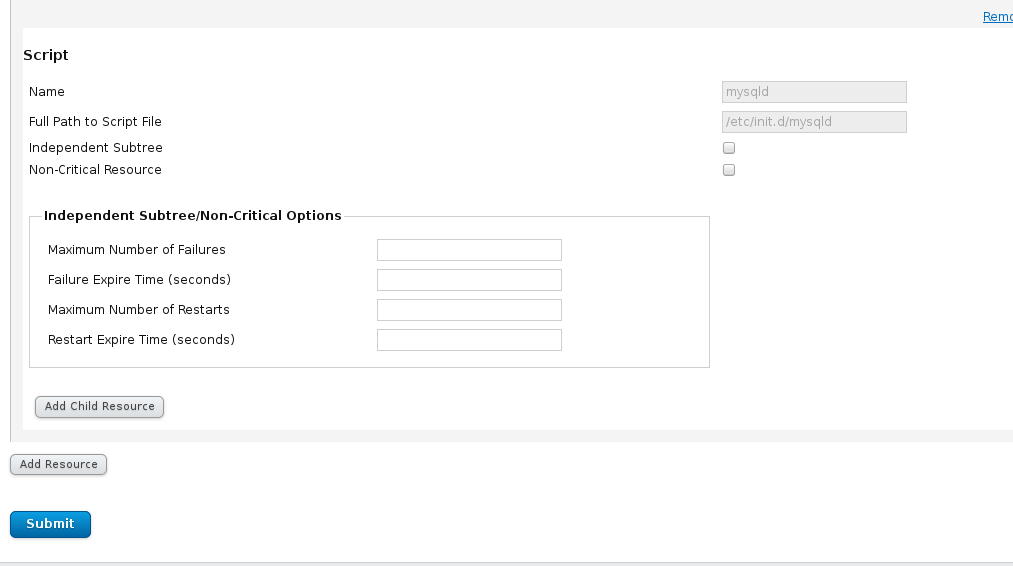

Script
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 19]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 20]

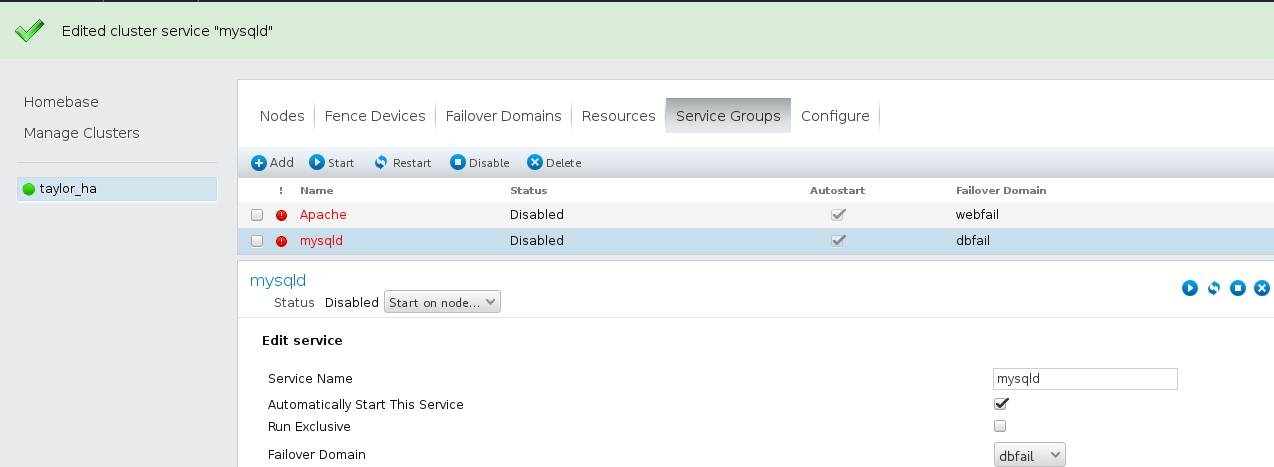

3、在Service Groups中添加sql服务组
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 21]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 22]

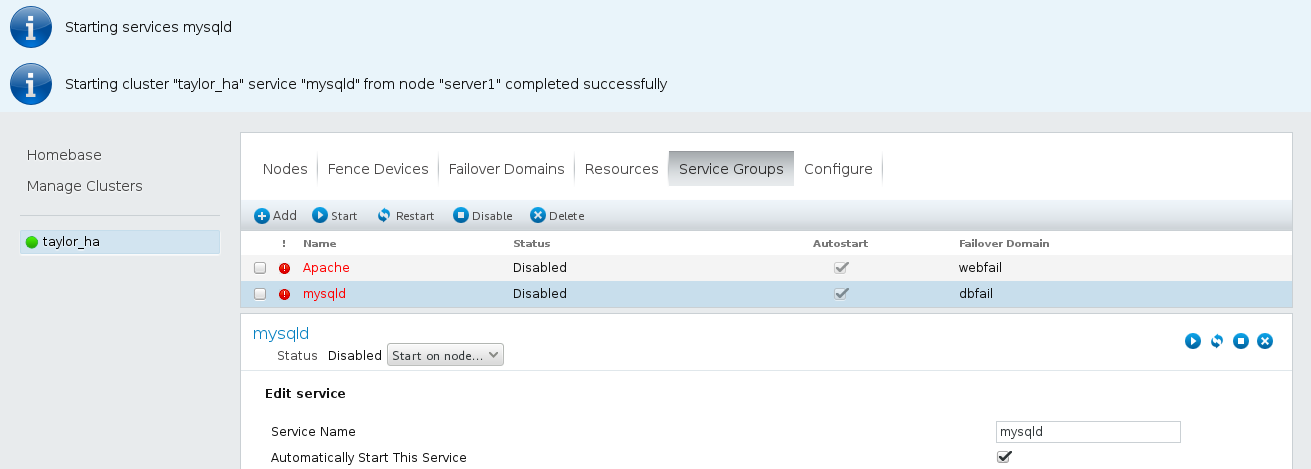

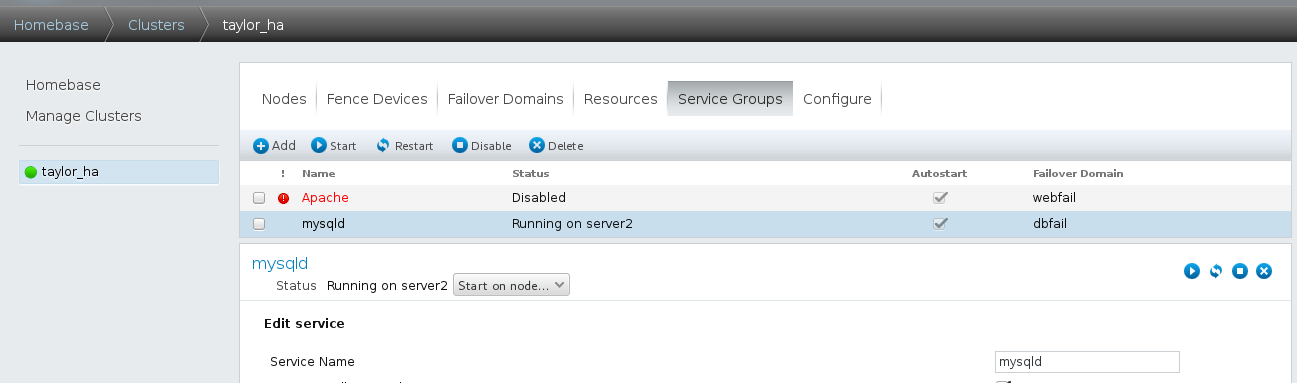

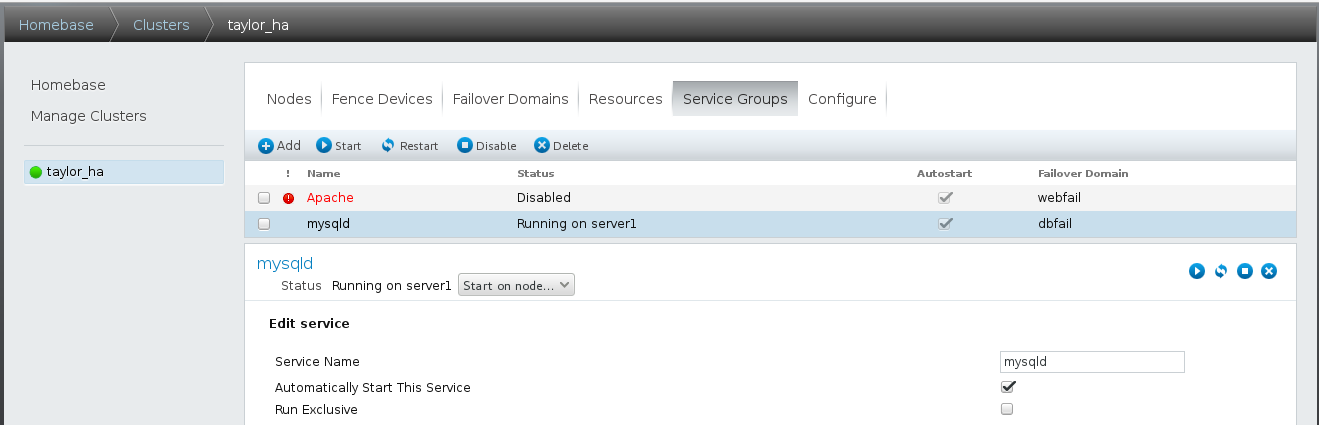

4、开启sql
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 23]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 24]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 25]

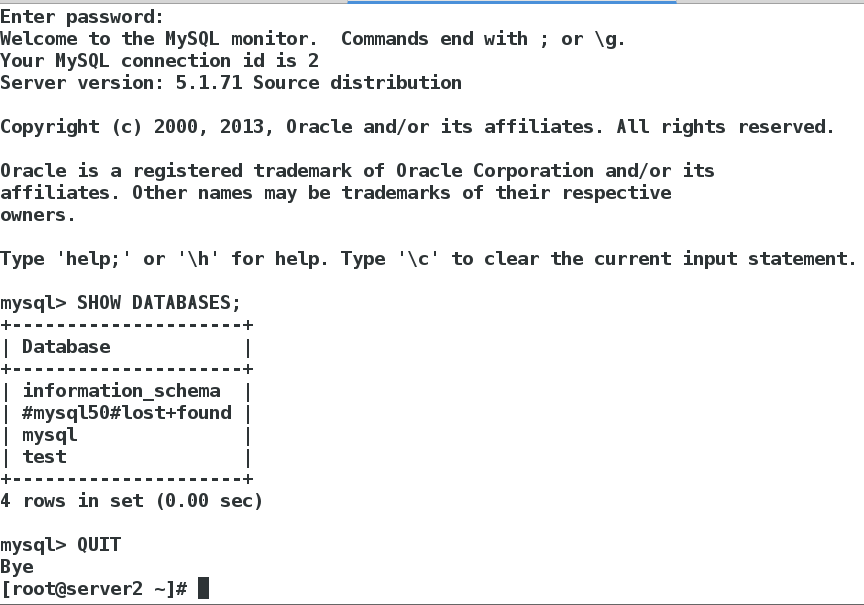

11、测试

[root@server2 ~]# mysql -p
    ===========================
    mysql> SHOW DATABASES;
    mysql> QUIT
    Bye

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 26]

clusvcadm -e Apache		#启动Apache服务组
    clusvcadm -r Apache -m server2	#将Apache服务组切到server2
    clusvcadm -d Apache		#关闭Apache服务组

### 三、CLVM/GFS2集群文件系统部署 ###

前言：

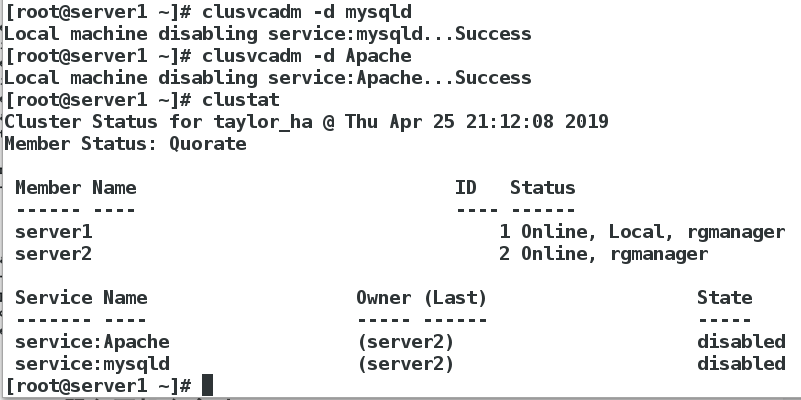

首先将上个实验的apache、sql服务组的资源停掉

clusvcadm -d Apache
    clusvcadm -d sql

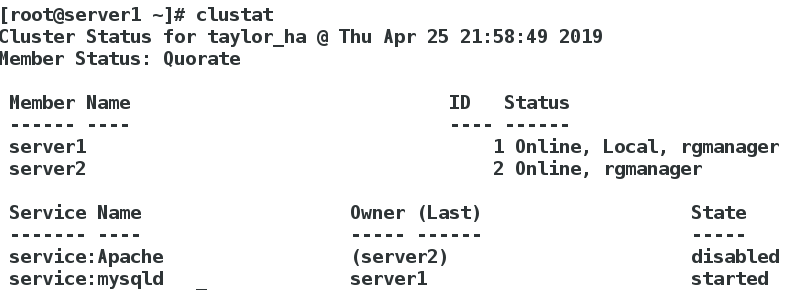

    clustat

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 27]
1、设置CLVM服务开机自启动

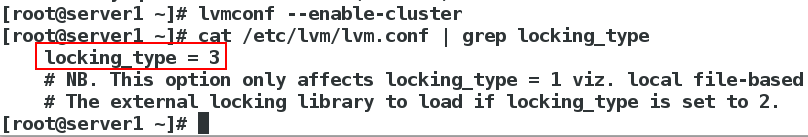

lvmconf --enable-cluster
    cat /etc/lvm/lvm.conf | grep locking_type		#为3则自启动

![在这里插入图片描述][20190425131505776.png]
2、划分物理卷、逻辑卷组、逻辑卷

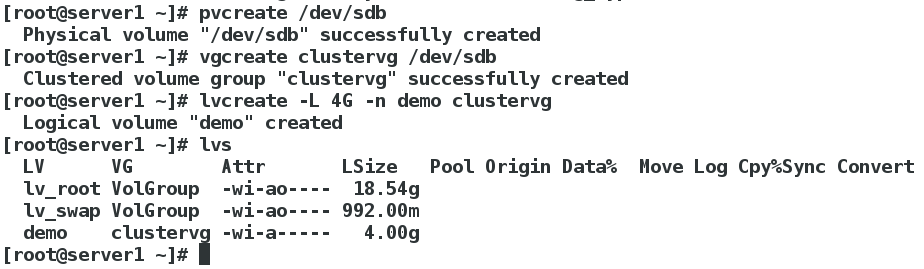

pvcreate /dev/sdb
    vgcreate clustervg /dev/sdb
    lvcreate -L 4G -n demo clustervg
    lvs

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 28]
3、格式化逻辑卷为GFS2集群文件系统

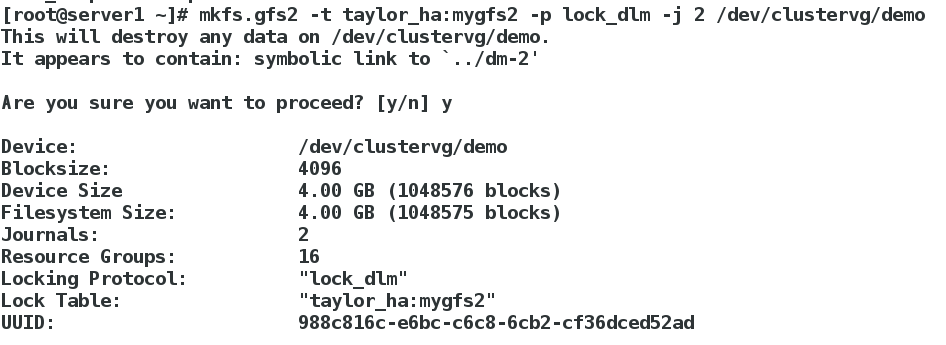

[root@server1 ~]# mkfs.gfs2 -t HA:mygfs2 -p lock_dlm -j 2 /dev/clustervg/demo
    ==============================================================================
    This will destroy any data on /dev/clustervg/demo.
    It appears to contain: symbolic link to `../dm-2'

    Are you sure you want to proceed? [y/n] y

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 29]

mkfs.gfs2
     	-j #: 指定日志区域的个数，有几个就能够被几个节点所挂载；
     	-J #: 指定日志区域的大小，默认为128MB;
     	-p { lock_dlm|lock_nolock}：所使用的锁协议名称，集群需要使用lock_dlm；
     	-t <name>: 锁表的名称
     			   格式为clustername:fsname, clustername为当前节点所在的集群的名称
     			   这也是为什么要使用RHCS；fsname文件系统名称，自定义，要在当前集群惟一，这也叫锁表名称，表明是分布式锁的范围。

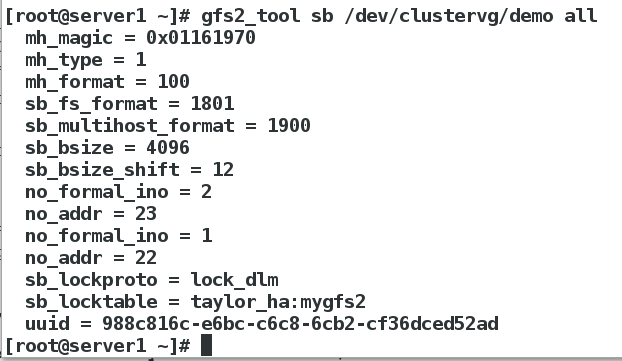

gfs2_tool sb /dev/clustervg/demo all

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 30]

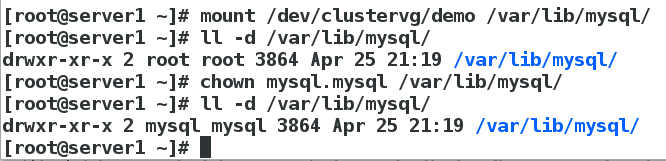

4、挂载设备，更改目录的权限

mount /dev/clustervg/demo /var/lib/mysql/
    ll -d /var/lib/mysql/
    chown mysql.mysql /var/lib/mysql/
    ll -d /var/lib/mysql/

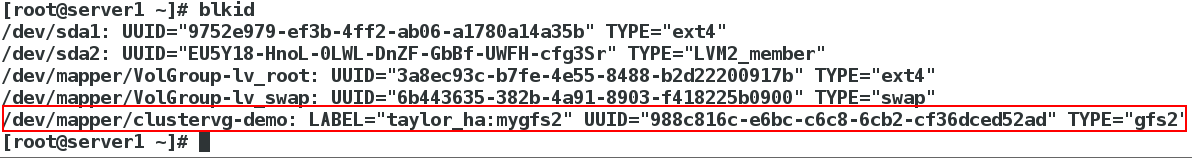

    blkid

![在这里插入图片描述][20190425132723948.png]
![在这里插入图片描述][20190425132739785.png]

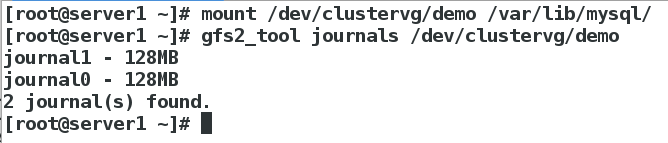

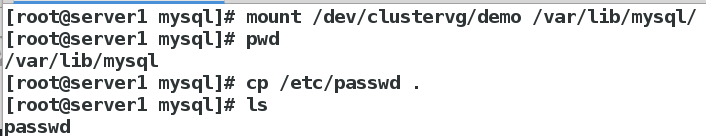

5、测试多点挂载
server1：

mount /dev/clustervg/demo /var/lib/mysql/
    [root@server1 mysql]# pwd
    /var/lib/mysql
    [root@server1 mysql]# cp /etc/passwd .
    [root@server1 mysql]# ls
    passwd
    [root@server1 mysql]#

![在这里插入图片描述][20190425133127355.png]
server2:

[root@server2 ~]# cd /var/lib/mysql/
    [root@server2 mysql]# ls
    passwd
    [root@server2 mysql]#

![在这里插入图片描述][20190425133635682.png]
![在这里插入图片描述][20190425133847702.png]

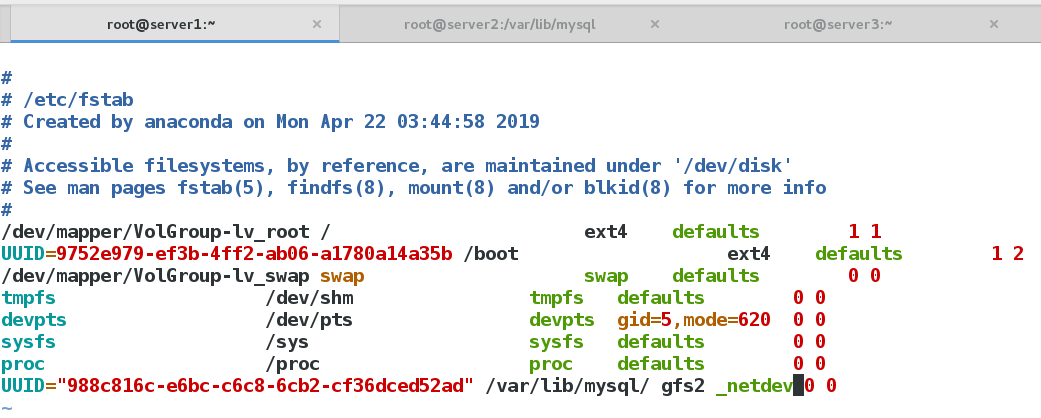

6、将组文件永久挂载在/var/lib/mysql

vim /etc/fstab
    ===============
    UUID="7c3da294-a84f-2f87-3592-c04263b70fa2"     /var/lib/mysql  gfs2    _netdev 0 0		#UUID可以通过blkid查看
    ====================================================================================
    mount -a

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 31]
7、更改浏览器设置

server1、server2：

更改之前先卸载逻辑卷：

umount /dev/clustervg/demo

先在Service Groups—sql中删除 Filesystem：

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 32]
修改完，submit，很重要！！

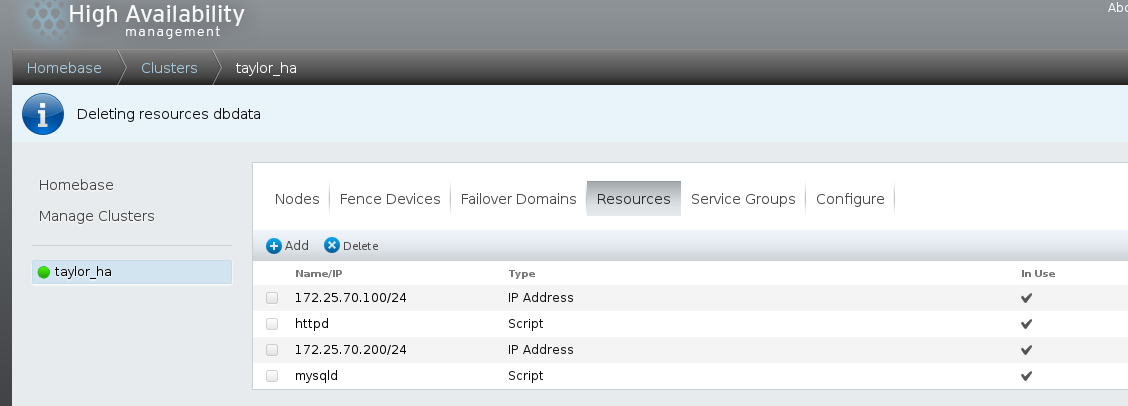

2、删除集群资源中的dbdata![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 33]

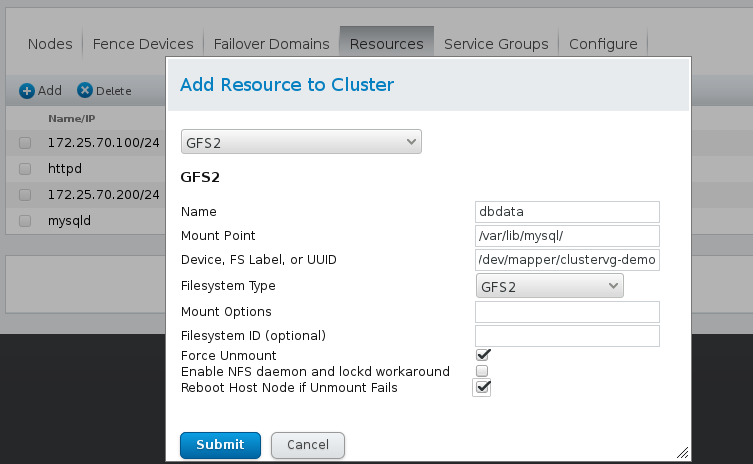

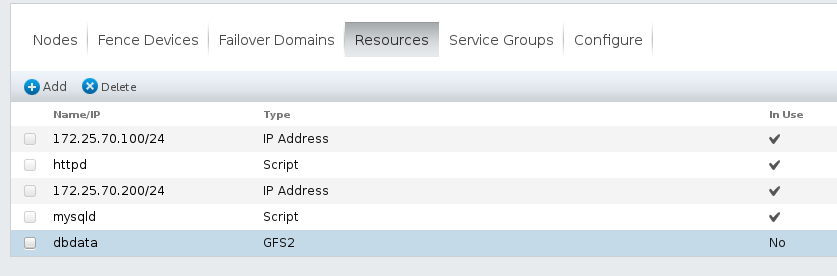

3、重新添加集群资源
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 34]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 35]

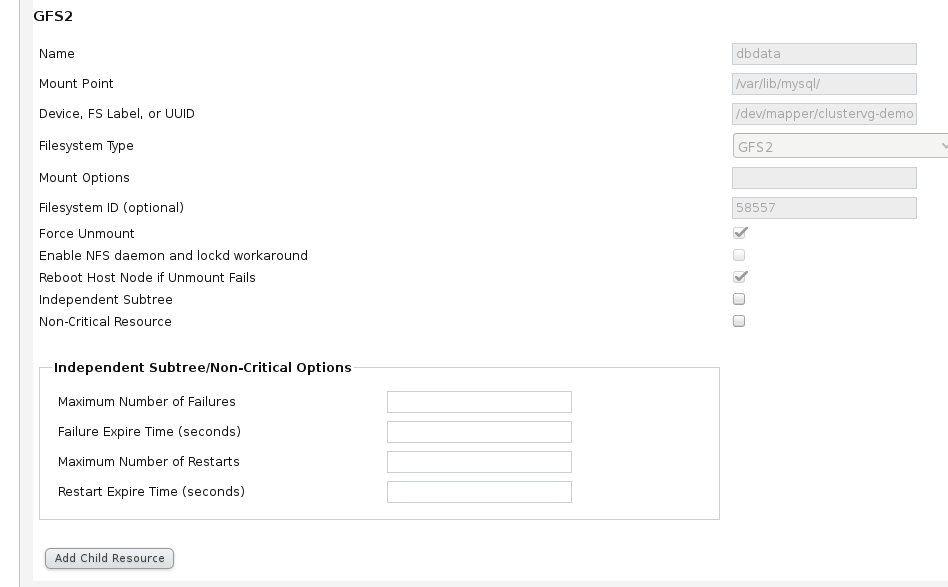

4、在Service Groups——sql中添加更改后的gfs2的dbdata：![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 36]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 37]
修改完，submit，很重要！！

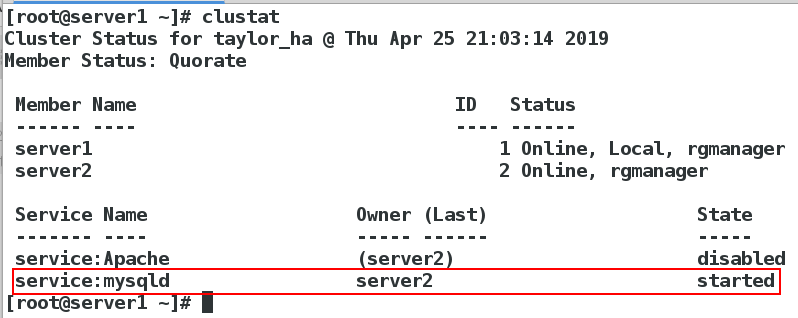

8、测试

启动sql服务组
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 38]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 39]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTcwMzY5_size_16_color_FFFFFF_t_70 40]
