java 服务任务 有三种实现方式

    1. activiti:class 要实现 javaDelegate或ActivityBehavior
    2. activiti:delegateExpression 也要实现上面两个类
    3. activiti:expression 直接调用javaBean

    第一种方式在前面博客中已经实现过了，这里实现一下2和3这两个方式

    activiti:delegateExpression的实现方式：

    1. bmpn中的serviceTask中引用类
    <process id="leaveBill" name="leaveBillprocess" isExecutable="true">
        <startEvent id="startevent1" name="Start"></startEvent>
        <endEvent id="endevent1" name="End"></endEvent>
        <userTask id="usertask1" name="User Task"></userTask>
        <sequenceFlow id="flow1" sourceRef="startevent1" targetRef="usertask1"></sequenceFlow>
        <serviceTask id="servicetask1" name="Service Task"></serviceTask>
        <sequenceFlow id="flow2" sourceRef="usertask1" targetRef="servicetask1" activiti:delegateExpression="${myDelegate}"></sequenceFlow>
        <sequenceFlow id="flow3" sourceRef="servicetask1" targetRef="endevent1"></sequenceFlow>
    </process>


    2. 定义myDelegate
    public class Mydelegate  implements JavaDelegate,Serializable{

    	@Override
    	public void execute(DelegateExecution execution) {
    		System.out.println("自定义java类");

    	}


    }


    RuntimeService runtimeService = engine.getRuntimeService();
        	Deployment de = rs.createDeployment().addClasspathResource("test.bpmn").deploy();
        	ProcessDefinition defi = rs.createProcessDefinitionQuery().deploymentId(de.getId()).singleResult();

    Map<String,Object> vars=new HashMap<>();
    vars.put("myDelegate", new Mydelegate());
    ProcessInstance pi = runtimeService.startProcessInstanceByKey(de.getKey(),vars);


    实现activiti:expression 直接调用javaBean

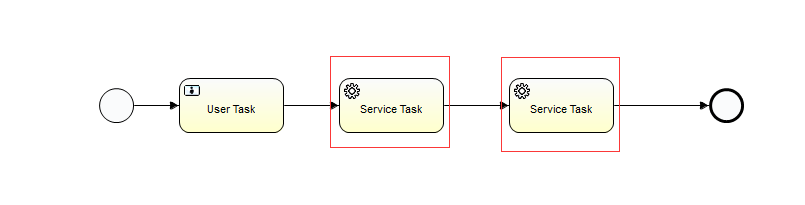

    1. 定义bmpn文件
     <serviceTask id="servicetask2" name="Service Task"activiti:expression="${myBean.print(execution)}" ></serviceTask>
        <sequenceFlow id="flow3" sourceRef="servicetask1" targetRef="servicetask2"
    activiti:expression="${execution.setVariable('myName',myBean.name)}"></sequenceFlow>

    2. 定义自定义类

    public class MyBean  implements Serializable{
    	private static final long serialVersionUID = 4888650505758480822L;

    	private String name="test";

    	public String getName() {
    		return name;
    	}

    	public void print(Execution exe) {
    		System.out.println("执行流id"+exe.getId());
    	}
    }

    RuntimeService runtimeService = engine.getRuntimeService();
        	Deployment de = rs.createDeployment().addClasspathResource("test.bpmn").deploy();
        	ProcessDefinition defi = rs.createProcessDefinitionQuery().deploymentId(de.getId()).singleResult();

    Map<String,Object> vars=new HashMap<>();
    vars.put("myBean", new Mydelegate());
    ProcessInstance pi = runtimeService.startProcessInstanceByKey(de.getKey(),vars);
    runtimeService.getVariable(pi.getId(), "myName");

![70][]
