RabbitMQ：基于分布式消息队列 RabbitMQ 实现延迟队列

【参考文献】：基于 rabbitmq 实现延迟队列

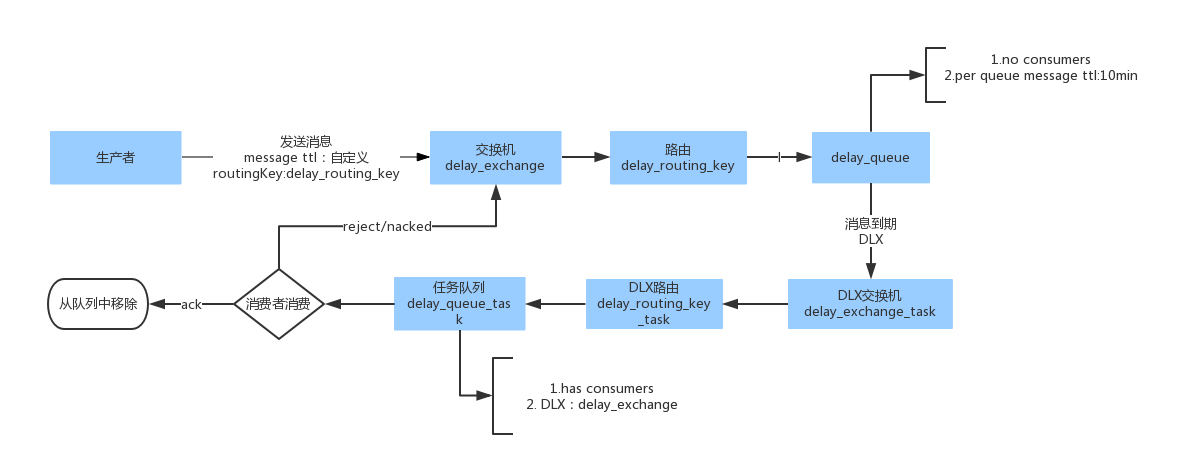

流程图：

【延迟队列】：

package com.caox.rabbitmq.demo._16_rabbitmq_distributed_delay_retry_queue_ttl;
import com.google.common.base.Preconditions;
import com.google.common.collect.Maps;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.Consumer;
import lombok.extern.slf4j.Slf4j;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.io.IOException;
import java.util.HashMap;
import java.util.concurrent.TimeUnit;
/**
 * Created by nazi on 2018/8/2.
 * 基于 RabbitMQ 实现的分布式延迟重试队列
 */
@Slf4j
public class RabbitMQDelayQueue {
    private static Logger LOGGER = LoggerFactory.getLogger(RabbitMQDelayQueue.class);
    private static final String POSTFIX_TASK = "_task";
    // direct类型 交换器
    public static final String EXCHANGE_TYPE_DIRECT = "direct";
    private Connection connection;
    //注册消费者
    private ConsumerRegister consumerRegister;
    //任务队列配置
    private String taskExchangeName;
    private String taskQueueName;
    private String taskRoutingKeyName;
    //延迟队列配置
    private String delayExchangeName;
    private String delayQueueName;
    private String delayRoutingKeyName;
    //延迟队列中的消息ttl
    private long perDelayQueueMessageTTL;
    public RabbitMQDelayQueue(Connection connection, ConsumerRegister consumerRegister, String delayExchangeName,
                              String delayQueueName, String delayRoutingKeyName, long perDelayQueueMessageTTL) throws Exception {
        this.connection = connection;
        this.consumerRegister = consumerRegister;
        this.delayExchangeName = delayExchangeName;
        this.delayQueueName = delayQueueName;
        this.delayRoutingKeyName = delayRoutingKeyName;
        this.perDelayQueueMessageTTL = perDelayQueueMessageTTL;
        this.taskExchangeName = delayExchangeName + POSTFIX_TASK;
        this.taskQueueName = delayQueueName + POSTFIX_TASK;
        this.taskRoutingKeyName = delayRoutingKeyName + POSTFIX_TASK;
        init();
        registerConsumer();
    }
    /**
     * @Description 注册消费者
     */
    public interface ConsumerRegister {
        public Consumer register(Channel channel) throws IOException;
    }
    /**
     * 注册带有ttl的queue和对应的任务队列
     * @throws IOException
     */
    private void init() throws Exception {
        Channel channel = connection.createChannel();
        channel.exchangeDeclare(taskExchangeName, EXCHANGE_TYPE_DIRECT, true);
        channel.exchangeDeclare(delayExchangeName, EXCHANGE_TYPE_DIRECT, true);
        // 任务队列 B
        HashMap<String, Object> argumentsTask = Maps.newHashMap();
        argumentsTask.put("x-dead-letter-exchange", delayExchangeName);
        argumentsTask.put("x-dead-letter-routing-key", delayRoutingKeyName);
        channel.queueDeclare(taskQueueName, true, false, false, argumentsTask);
        channel.queueBind(taskQueueName, taskExchangeName, taskRoutingKeyName);
        // 延迟队列 A
        HashMap<String, Object> argumentsDelay = Maps.newHashMap();
        argumentsDelay.put("x-dead-letter-exchange", taskExchangeName);
        argumentsDelay.put("x-dead-letter-routing-key", taskRoutingKeyName);
        argumentsDelay.put("x-message-ttl", perDelayQueueMessageTTL);
        channel.queueDeclare(delayQueueName, true, false, false, argumentsDelay);
        channel.queueBind(delayQueueName, delayExchangeName, delayRoutingKeyName);
        channel.close();
    }
    /**
     * 注册消费者
     * @throws IOException
     * @author roc
     */
    private void registerConsumer() throws IOException {
        LOGGER.info("register consumer ->{}", this);
        Channel channel = connection.createChannel();
        Consumer consumer = consumerRegister.register(channel);
        channel.basicConsume(taskQueueName, false, consumer);
        LOGGER.info("register consumer ->{} success", this);
    }
    /**
     * 消息入队
     *
     * @param body 消息内容
     * @param timeout 超时时间
     * @param unit 超时时间单位
     * @throws IOException
     * @author roc
     */
    public void put(byte[] body, long timeout, TimeUnit unit) throws Exception {
        Preconditions.checkNotNull(body);
        Preconditions.checkArgument(timeout >= 0);
        Preconditions.checkNotNull(unit);
        LOGGER.info("put element to delay queue ->{}", body.hashCode());
        Channel channel = null;
        try {
            channel = connection.createChannel();
            // deliveryMode=2 标识任务的持久性
            long millis = unit.toMillis(timeout);
            AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder().expiration(String.valueOf(millis)).deliveryMode(2).build();
            channel.basicPublish(delayExchangeName, delayRoutingKeyName, properties, body);
            LOGGER.info("put element to delay queue success");
        } finally {
            if (null != channel){
                channel.close();
            }
        }
    }
    public static class Builder {
        private Connection connection;
        private ConsumerRegister consumerRegister;
        private String delayExchangeName;
        private String delayQueueName;
        private String delayRoutingKeyName;
        private long perDelayQueueMessageTTL;
        public Builder setConnection(Connection connection) {
            this.connection = connection;
            return this;
        }
        public Builder setDelayExchangeName(String delayExchangeName) {
            this.delayExchangeName = delayExchangeName;
            return this;
        }
        public Builder setDelayQueueName(String delayQueueName) {
            this.delayQueueName = delayQueueName;
            return this;
        }
        public Builder setDelayRoutingKeyName(String delayRoutingKeyName) {
            this.delayRoutingKeyName = delayRoutingKeyName;
            return this;
        }
        public Builder setConsumerRegister(ConsumerRegister consumerRegister) {
            this.consumerRegister = consumerRegister;
            return this;
        }
        public Builder setPerDelayQueueMessageTTL(long timeout, TimeUnit unit) {
            this.perDelayQueueMessageTTL = unit.toMillis(timeout);;
            return this;
        }
        public RabbitMQDelayQueue build() throws Exception {
            Preconditions.checkNotNull(connection);
            Preconditions.checkNotNull(delayExchangeName);
            Preconditions.checkNotNull(delayQueueName);
            Preconditions.checkNotNull(delayRoutingKeyName);
            Preconditions.checkNotNull(consumerRegister);
            return new RabbitMQDelayQueue(connection, consumerRegister, delayExchangeName,
                    delayQueueName, delayRoutingKeyName, perDelayQueueMessageTTL);
        }
    }
}

【测试】：

package com.caox.rabbitmq.demo._16_rabbitmq_distributed_delay_retry_queue_ttl;
import com.rabbitmq.client.*;
import java.io.IOException;
import java.nio.charset.Charset;
import java.util.List;
import java.util.Map;
import java.util.concurrent.TimeUnit;
/**
 * Created by nazi on 2018/8/2.
 */
public class RabbitMQDelayQueueTest {
    public static void main(String[] args) throws Exception {
        delayQueue();
    }
    public static void delayQueue() throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUsername("caoxia");
        factory.setPassword("caoxia123456");
        Address address = new Address("127.0.0.1", 5672);
        Connection connection = factory.newConnection(new Address[] { address });
        RabbitMQDelayQueue delayQueue = new RabbitMQDelayQueue.Builder()
                .setConnection(connection)
                .setPerDelayQueueMessageTTL(15, TimeUnit.SECONDS)
                .setDelayExchangeName("delay_exchange_roc")
                .setDelayQueueName("delay_queue_roc")
                .setDelayRoutingKeyName("delay_routing_key_roc")
                .setConsumerRegister
                        (new RabbitMQDelayQueue.ConsumerRegister() {
//                            @Override
                            public Consumer register(Channel channel) throws IOException {
                                return new DefaultConsumer(channel) {
//                                    @Override
                                    public void handleDelivery(String consumerTag, Envelope envelope,
                                                               BasicProperties properties, byte[] body) throws IOException {
                                        long deliveryTag = envelope.getDeliveryTag();
                                        System.out.println(deliveryTag);
                                        String exchange = envelope.getExchange();
                                        String routingKey = envelope.getRoutingKey();
                                        // TODO do something
                                        String content = new String(body, Charset.forName("utf-8"));
                                        System.out.println("receive message --- > " + content);
                                        Map<String, Object> headers = properties.getHeaders();
                                        if (headers != null) {
                                            List<Map<String, Object>> xDeath = (List<Map<String, Object>>) headers.get("x-death");
                                            System.out.println("xDeath--- > " + xDeath);
                                            if (xDeath != null && !xDeath.isEmpty()) {
                                                Map<String, Object> entrys = xDeath.get(0);
                                            }
                                        }
                                        // 消息拒收
                                        // if(do something) 消息重新入队
//                                        getChannel().basicReject(deliveryTag, false);
                                        // else 消息应答
                                         getChannel().basicAck(deliveryTag, false);
                                    }
                                };
                            }
                        }).build();
        delayQueue.put("{\"name\" : \"i am roc!!\"}\"".getBytes("UTF-8"), 3, TimeUnit.SECONDS);
    }
}
