前言

继前两篇springboot整合案例，今天我们来说说springboot整合mybatis

1.创建工程

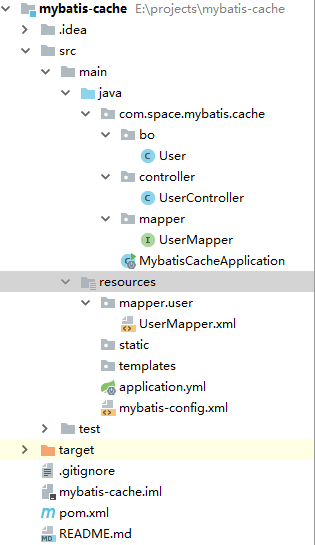

这里博主就不多说了，直接贴图

2.添加依赖

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <scope>runtime</scope>
</dependency>
<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>1.3.2</version>
</dependency>

这里添加了mysql和mybatis的依赖

3.配置yml

server:
  port: 8080
spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/test
    hikari:
      username: root
      password: 123
mybatis:
  mapper-locations: classpath:mapper/**/*.xml  # mapper文件的路径

4.编码

首先，我们先建张数据表，就叫user吧

CREATE TABLE `t_user` (
  `id` bigint(20) NOT NULL,
  `name` varchar(11) DEFAULT NULL,
  `email` varchar(22) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8

User.java

package com.space.mybatis.cache.bo;
import lombok.Data;
/**
 * @author zhuzhe
 * @date 2018/5/8 13:29
 */
@Data
public class User {
    private Long id;
    private String userName;
    private String email;
}

UserMapper.java

package com.space.mybatis.cache.mapper;
import com.space.mybatis.cache.bo.User;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Component;
import java.util.List;
/**
 * @author zhuzhe
 * @date 2018/5/8 13:29
 */
@Component
@Mapper
public interface UserMapper {
    int save(User user);
    List<User> getAll();
    int delete(Long id);
}

UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.space.mybatis.cache.mapper.UserMapper" >
  <resultMap id="BaseResultMap" type="com.space.mybatis.cache.bo.User" >
    <id column="id" property="id" jdbcType="BIGINT" />
    <result column="name" property="userName" jdbcType="VARCHAR" />
    <result column="email" property="email" jdbcType="VARCHAR" />
  </resultMap>
  <insert id="save" parameterType="com.space.mybatis.cache.bo.User" >
    insert into t_user (id, name, email)
    values (#{id,jdbcType=BIGINT},  #{userName,jdbcType=VARCHAR},
      #{email,jdbcType=VARCHAR})
  </insert>
  <select id="getAll" resultMap="BaseResultMap">
    select * from t_user
  </select>
  <delete id="delete" parameterType="java.lang.Long">
    delete from t_user where id = #{id}
  </delete>
</mapper>

5.测试

编写测试类 UserController.java

package com.space.mybatis.cache.controller;
import com.space.mybatis.cache.bo.User;
import com.space.mybatis.cache.mapper.UserMapper;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import java.util.List;
/**
 * @author zhuzhe
 * @date 2018/5/8 13:30
 */
@RequestMapping("/user")
@RestController
@Slf4j
public class UserController {
    @Autowired
    private UserMapper userMapper;
    @RequestMapping("/add")
    public String testAdd(User user){
        log.info(user.toString());
        userMapper.save(user);
        return user.toString();
    }
    @RequestMapping("/get")
    public List<User> testAdd(){
        return userMapper.getAll();
    }
    @RequestMapping("/delete/{id}")
    public String delete(@PathVariable("id") Long id){
        userMapper.delete(id);
        return "delete";
    }
}

在这里我们使用postman进行测试：

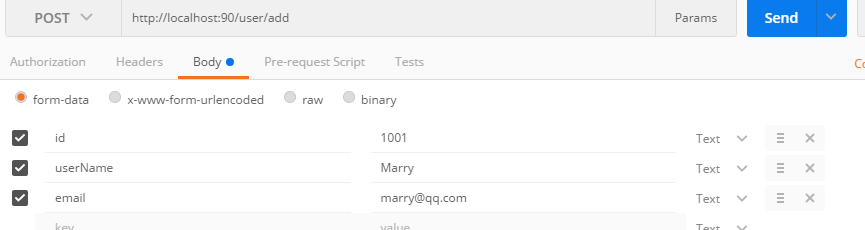

先测试添加：

70 1

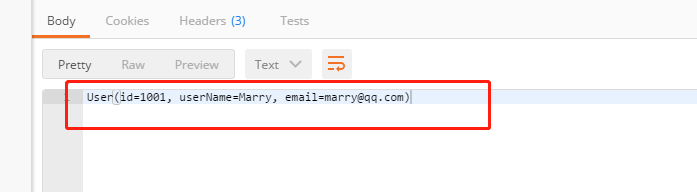

可以看到返回结果：

70 2

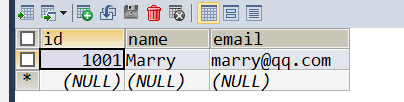

数据库也已经添加成功。

70 3

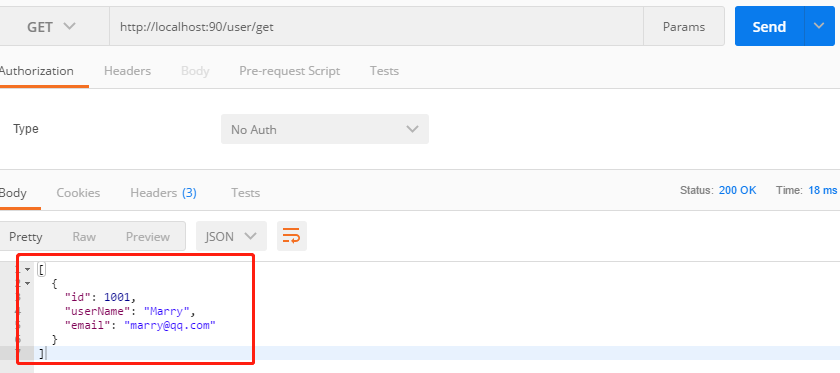

测试get:

70 4

OK！delete方法在此不多做演示。

至此，springboot整合mybatis就完成了。

6.实现mybatis的二级缓存

其实，要实现mybatis的二级缓存也是很EASY的。下面我们就来说说：

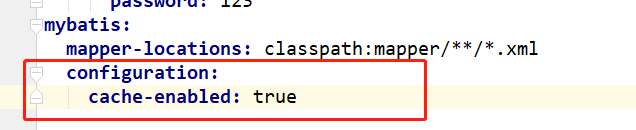

首先，在application.yml文件中进行配置

70 5

然后，我们在UserMapper.xml中进行详细配置：在xml中添加如下代码

<!--
    eviction LRU
    flushInterval缓存时间，以毫秒为单位
    size缓存大小
    readOnly如果为false的话，缓存对象必须是可序列化的
    readOnly=true  当查询时，与上一次执行查询的时间差距小于
     flushInterval缓存时间，直接从缓存里取
    -->
  <cache eviction="LRU"
         type="org.apache.ibatis.cache.impl.PerpetualCache"
         flushInterval="60000"
         size="1024"
         readOnly="true"/>
