## 可视化说明 ##

在之前博客[HOG原理及OpenCV实现][HOG_OpenCV]中，我们解释了HOG算法的原理。最终提取到的特征就是一串向量，其实我们并不知道它具体是什么样子，也不知道它到底是不是能体现目标区域与非目标区域的差异。为了解决这个问题，我们需要对HOG特征做可视化处理。
HOG特征首先去计算每个像素的梯度，然后建立滑动窗口，在滑动窗中建立滑动块，在块中建立等分的单元（cell）。我们仔细思考下这个过程，一个块在滑动时，每次包含的单元是不同的，但是对于一个单元而言，它是不随块滑动而改变的。这就意味着，如果块尺寸，块步长，单元尺寸确定了，一个窗口中的单元数目与它们中分别包含的像素就确定了。HOG的可视化就是利用这一点，它可视化的东西就是一个单元内的bin投票结果。
为了让下面的过程变得更直观，我们将整个图像作为一个检测窗来使用，也就是说不存在滑动窗的概念。
特别要注意，这应该是HOG最容易产生异常的地方。下面的图片本来是个900×600  900 × 600 的尺寸，但是我对它做了缩放，调整成904×600  904 × 600 。这是为了让904的范围内可以滑出整数个块，因为此时HOG在使用默认参数，即块尺寸16×16  16 × 16 ，块步长8×8  8 × 8 。

900−168=110.5  900 − 16 8 = 110.5

904−168=111  904 − 16 8 = 111

--------------------

## 代码实现 ##

#include  <iostream>
    #include <opencv2/core/core.hpp>
    #include <opencv2/highgui/highgui.hpp>
    #include <opencv2/opencv.hpp>

    using namespace cv;
    using namespace std;

    // HOGDescriptor visual_imagealizer
    // adapted for arbitrary size of feature sets and training images
    Mat get_hogdescriptor_visual_image(Mat& origImg,
        vector<float>& descriptorValues,
        Size winSize,
        Size cellSize,
        int scaleFactor,
        double viz_factor)
    {
        Mat visual_image;
        resize(origImg, visual_image, Size(origImg.cols*scaleFactor, origImg.rows*scaleFactor));

        int gradientBinSize = 9;
        // dividing 180° into 9 bins, how large (in rad) is one bin?
        float radRangeForOneBin = 3.14/(float)gradientBinSize;

        // prepare data structure: 9 orientation / gradient strenghts for each cell
        int cells_in_x_dir = winSize.width / cellSize.width;
        int cells_in_y_dir = winSize.height / cellSize.height;
        int totalnrofcells = cells_in_x_dir * cells_in_y_dir;
        float*** gradientStrengths = new float**[cells_in_y_dir];
        int** cellUpdateCounter   = new int*[cells_in_y_dir];
        for (int y=0; y<cells_in_y_dir; y++)
        {
            gradientStrengths[y] = new float*[cells_in_x_dir];
            cellUpdateCounter[y] = new int[cells_in_x_dir];
            for (int x=0; x<cells_in_x_dir; x++)
            {
                gradientStrengths[y][x] = new float[gradientBinSize];
                cellUpdateCounter[y][x] = 0;

                for (int bin=0; bin<gradientBinSize; bin++)
                    gradientStrengths[y][x][bin] = 0.0;
            }
        }

        // nr of blocks = nr of cells - 1
        // since there is a new block on each cell (overlapping blocks!) but the last one
        int blocks_in_x_dir = cells_in_x_dir - 1;
        int blocks_in_y_dir = cells_in_y_dir - 1;

        // compute gradient strengths per cell
        int descriptorDataIdx = 0;
        int cellx = 0;
        int celly = 0;

        for (int blockx=0; blockx<blocks_in_x_dir; blockx++)
        {
            for (int blocky=0; blocky<blocks_in_y_dir; blocky++)
            {
                // 4 cells per block ...
                for (int cellNr=0; cellNr<4; cellNr++)
                {
                    // compute corresponding cell nr
                    int cellx = blockx;
                    int celly = blocky;
                    if (cellNr==1) celly++;
                    if (cellNr==2) cellx++;
                    if (cellNr==3)
                    {
                        cellx++;
                        celly++;
                    }
                    for (int bin=0; bin<gradientBinSize; bin++)
                    {
                        float gradientStrength = descriptorValues[ descriptorDataIdx ];
                        descriptorDataIdx++;
                        gradientStrengths[celly][cellx][bin] += gradientStrength;
                    } // for (all bins)
                    // note: overlapping blocks lead to multiple updates of this sum!
                    // we therefore keep track how often a cell was updated,
                    // to compute average gradient strengths
                    cellUpdateCounter[celly][cellx]++;
                } // for (all cells)
            } // for (all block x pos)
        } // for (all block y pos)


        // compute average gradient strengths
        for (int celly=0; celly<cells_in_y_dir; celly++)
        {
            for (int cellx=0; cellx<cells_in_x_dir; cellx++)
            {

                float NrUpdatesForThisCell = (float)cellUpdateCounter[celly][cellx];

                // compute average gradient strenghts for each gradient bin direction
                for (int bin=0; bin<gradientBinSize; bin++)
                {
                    gradientStrengths[celly][cellx][bin] /= NrUpdatesForThisCell;
                }
            }
        }


        cout << "descriptorDataIdx = " << descriptorDataIdx << endl;

        // draw cells
        for (int celly=0; celly<cells_in_y_dir; celly++)
        {
            for (int cellx=0; cellx<cells_in_x_dir; cellx++)
            {
                int drawX = cellx * cellSize.width;
                int drawY = celly * cellSize.height;

                int mx = drawX + cellSize.width/2;
                int my = drawY + cellSize.height/2;

                rectangle(visual_image,
                    Point(drawX*scaleFactor,drawY*scaleFactor),
                    Point((drawX+cellSize.width)*scaleFactor,
                    (drawY+cellSize.height)*scaleFactor),
                    CV_RGB(100,100,100),
                    1);

                // draw in each cell all 9 gradient strengths
                for (int bin=0; bin<gradientBinSize; bin++)
                {
                    float currentGradStrength = gradientStrengths[celly][cellx][bin];

                    // no line to draw?
                    if (currentGradStrength==0)
                        continue;

                    float currRad = bin * radRangeForOneBin + radRangeForOneBin/2;

                    float dirVecX = cos( currRad );
                    float dirVecY = sin( currRad );
                    float maxVecLen = cellSize.width/2;
                    float scale = viz_factor; // just a visual_imagealization scale,
                    // to see the lines better

                    // compute line coordinates
                    float x1 = mx - dirVecX * currentGradStrength * maxVecLen * scale;
                    float y1 = my - dirVecY * currentGradStrength * maxVecLen * scale;
                    float x2 = mx + dirVecX * currentGradStrength * maxVecLen * scale;
                    float y2 = my + dirVecY * currentGradStrength * maxVecLen * scale;

                    // draw gradient visual_imagealization
                    line(visual_image,
                        Point(x1*scaleFactor,y1*scaleFactor),
                        Point(x2*scaleFactor,y2*scaleFactor),
                        CV_RGB(0,0,255),
                        1);

                } // for (all bins)

            } // for (cellx)
        } // for (celly)


        // don't forget to free memory allocated by helper data structures!
        for (int y=0; y<cells_in_y_dir; y++)
        {
            for (int x=0; x<cells_in_x_dir; x++)
            {
                delete[] gradientStrengths[y][x];
            }
            delete[] gradientStrengths[y];
            delete[] cellUpdateCounter[y];
        }
        delete[] gradientStrengths;
        delete[] cellUpdateCounter;

        return visual_image;
    }


    int main()
    {
        HOGDescriptor hog;
        hog.winSize=Size(904,600);
        vector<float> des;
        Mat src = imread("timg.jpg");
        Mat dst ;
        resize(src,dst,Size(904,600));
        imshow("src",src);
        hog.compute(dst,des);
        cout<<des.size()<<endl;
        Mat background = Mat::zeros(Size(904,600),CV_8UC1);
        Mat background_hog = get_hogdescriptor_visual_image(background,des,hog.winSize,hog.cellSize,1,2.0);

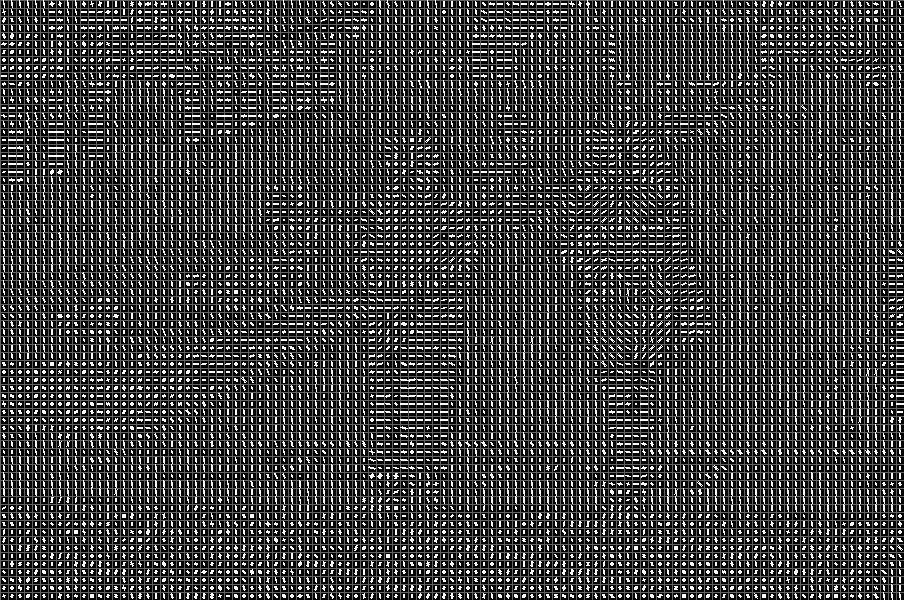

        imshow("HOG特征1",background_hog);
        imwrite("特征可视化1.jpg",background_hog);
        Mat src_hog = get_hogdescriptor_visual_image(src,des,hog.winSize,hog.cellSize,1,2.0);

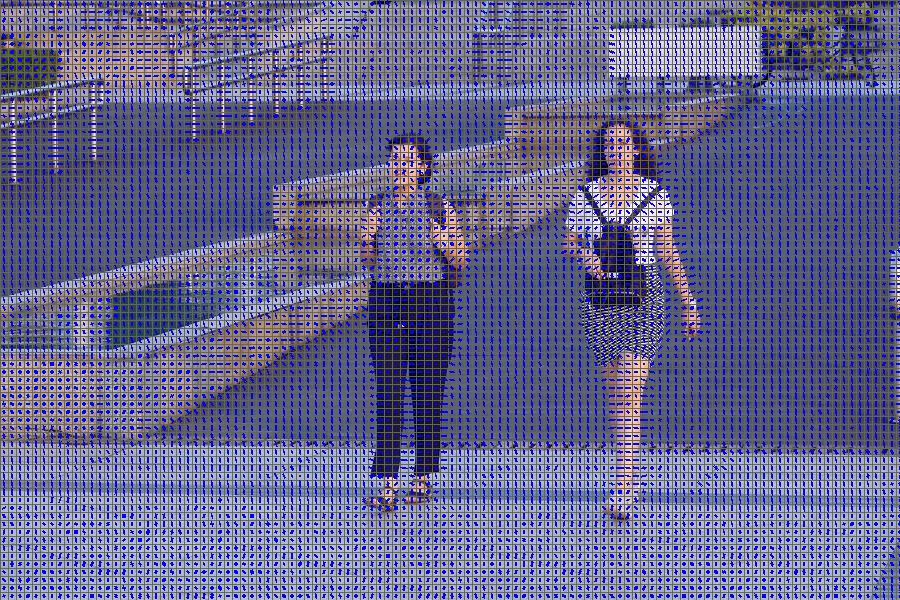

        imshow("HOG特征2",src_hog);
        imwrite("特征可视化2.jpg",src_hog);
        waitKey();
        return 0;
    }

![这里写图片描述][70]
![这里写图片描述][70 1]

![这里写图片描述][70 2]
