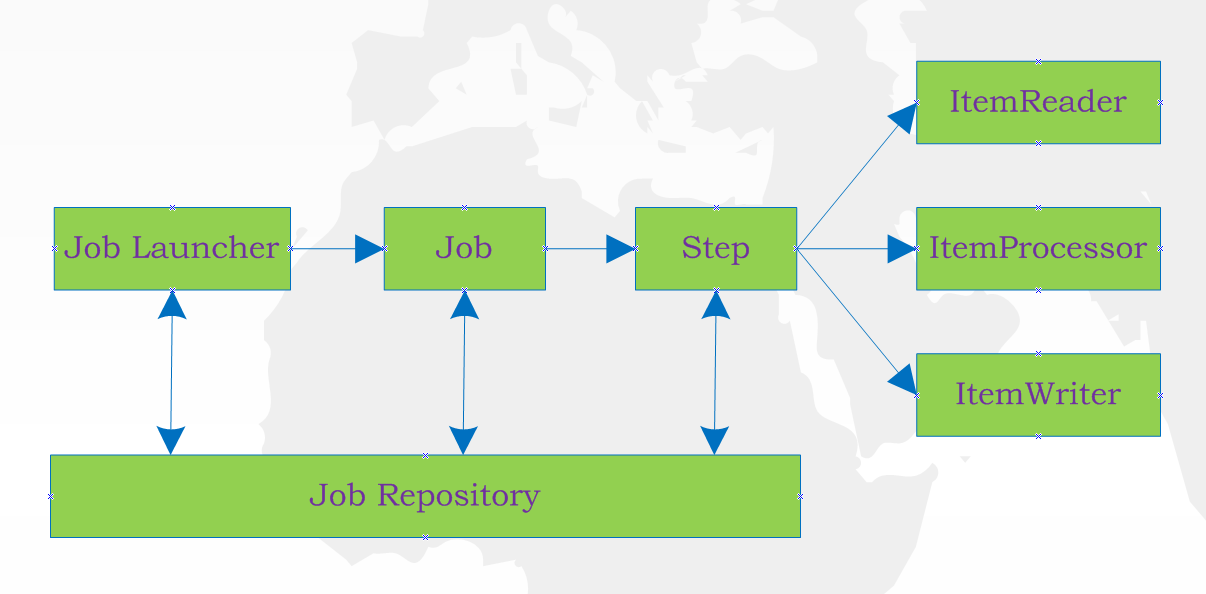

Spring Batch是SpringSource和Accenture联合开发的，主要解决轻量级的大数据批处理。下在附上一个架构图，方便理解。

![Center][]

显然，在我们的开发过程中，我们主要观注ItemReader, ItemProcessor, ItemWriter, 数据的读写包括文件与数据库， 对于中间的环节ItemProcessor，也是至关重要的，也就是说：读来的数据的处理逻辑就在此，处理了之后再进入写的环节。当然我们可以重写ItemReader, ItemProcessor, ItemWriter.

好了，下面进入Spring Batch的示例环节。

1. Spring的相关配置文件：DB相关的属性文件database.properties，DB相关的配置文件applicationDatabase.xml（包括ProxoolDataSource, DataSourceTransactionManager）， Spring Batch的基本配置文件applicationContext.xml， 业务相关的配置文件migrationSimpleJob.xml

database.properties

jdbc.connection.driverClassName=oracle.jdbc.driver.OracleDriver
    jdbc.connection.url=jdbc:oracle:thin:<username>/<password>@100.111.86.250:1521:<SID>
    jdbc.connection.username=<username>
    jdbc.connection.password=<password>
    proxool.houseKeepingTestSql=SELECT CURRENT_DATE
    proxool.prototypeCount=0
    proxool.hourseKeepingSleepTime=30000
    proxool.maximumActiveTime=300000
    proxool.maximumConnectionLifetime=14400000
    proxool.minimumConnectionCount=5
    proxool.maximumConnectionCount=15
    proxool.statistics=15s,10m,1d
    proxool.alias=pool_dbname
    proxool.simultaneous-build-throttle=50

applicationDatabase.xml

<?xml version="1.0" encoding="UTF-8"?>
    <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:batch="http://www.springframework.org/schema/batch"
    	xmlns:p="http://www.springframework.org/schema/p"
    	xsi:schemaLocation="
    			http://www.springframework.org/schema/beans
    			http://www.springframework.org/schema/beans/spring-beans.xsd
    			http://www.springframework.org/schema/context
    			http://www.springframework.org/schema/context/spring-context.xsd
    			http://www.springframework.org/schema/aop
    	 		http://www.springframework.org/schema/aop/spring-aop.xsd
    	 		http://www.springframework.org/schema/mvc
    			http://www.springframework.org/schema/mvc/spring-mvc.xsd
    			http://www.springframework.org/schema/tx
    	 		http://www.springframework.org/schema/tx/spring-tx.xsd
    	 		http://www.springframework.org/schema/batch
    			http://www.springframework.org/schema/batch/spring-batch.xsd">

    	<bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
    		<property name="locations">
    			<list>
    				<value>conf/database.properties</value>
    			</list>
    		</property>
    	</bean>

    	<bean id="dataSource" class="org.logicalcobwebs.proxool.ProxoolDataSource">
    		<property name="driver" value="${jdbc.connection.driverClassName}" />
    		<property name="driverUrl" value="${jdbc.connection.url}" />
    		<property name="user" value="${jdbc.connection.username}" />
    		<property name="password" value="${jdbc.connection.password}" />

    		<property name="houseKeepingTestSql" value="${proxool.houseKeepingTestSql}" />
    		<property name="prototypeCount" value="${proxool.prototypeCount}" />
    		<property name="houseKeepingSleepTime" value="${proxool.hourseKeepingSleepTime}" />
    		<property name="maximumActiveTime" value="${proxool.maximumActiveTime}" />
    		<property name="maximumConnectionLifetime" value="${proxool.maximumConnectionLifetime}" />
    		<property name="minimumConnectionCount" value="${proxool.minimumConnectionCount}" />
    		<property name="maximumConnectionCount" value="${proxool.maximumConnectionCount}" />
    		<property name="statistics" value="${proxool.statistics}" />
    		<property name="alias" value="${proxool.alias}" />
    		<property name="simultaneousBuildThrottle" value="${proxool.simultaneous-build-throttle}" />
    	</bean>

    	<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    		<property name="dataSource" ref="dataSource"></property>
    	</bean>

    	<tx:advice id="transactionAdvice" transaction-manager="transactionManager">
    		<tx:attributes>
    			<tx:method name="add*" propagation="REQUIRED" />
    			<tx:method name="get*" propagation="REQUIRED" />
    			<tx:method name="edit*" propagation="REQUIRED" />
    			<tx:method name="delete*" propagation="REQUIRED" />
    			<tx:method name="*" no-rollback-for="Throwable" read-only="true" />
    		</tx:attributes>
    	</tx:advice>

    </beans>

applicationContext.xml

migrationSimpleJob.xml

<?xml version="1.0" encoding="UTF-8"?>
    <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:batch="http://www.springframework.org/schema/batch"
    	xmlns:p="http://www.springframework.org/schema/p"
    	xsi:schemaLocation="
    			http://www.springframework.org/schema/beans
    			http://www.springframework.org/schema/beans/spring-beans.xsd
    			http://www.springframework.org/schema/context
    			http://www.springframework.org/schema/context/spring-context.xsd
    			http://www.springframework.org/schema/aop
    	 		http://www.springframework.org/schema/aop/spring-aop.xsd
    	 		http://www.springframework.org/schema/mvc
    			http://www.springframework.org/schema/mvc/spring-mvc.xsd
    			http://www.springframework.org/schema/tx
    	 		http://www.springframework.org/schema/tx/spring-tx.xsd
    	 		http://www.springframework.org/schema/batch
    			http://www.springframework.org/schema/batch/spring-batch.xsd">

    	<import resource="applicationContext.xml" />

    	<bean id="managedObjectMapper" class="com.ManagedObjectMapper" />

    	<bean id="itemReader" class="org.springframework.batch.item.database.JdbcCursorItemReader" scope="step">
    		<property name="dataSource" ref="dataSource" />
    		<property name="sql" value="SELECT CO_GID, CO_OC_ID, CO_NAME, CO_DN FROM MANAGE_OBJECTS" />
    		<property name="rowMapper" ref="managedObjectMapper" />
    	</bean>

    	<bean id="itemProcessor" scope="step" class="com.nokia.migration.nasda.processor.ManagedObjectProcessor" />

    	<bean id="itemWriter" class="org.springframework.batch.item.xml.StaxEventItemWriter">
    		<property name="marshaller" ref="managedObjectMarshaller" />
    		<property name="resource" value="file:export/cmData.xml" />
    		<property name="rootTagName" value="cmData" />
    	</bean>

    	<bean id="managedObjectMarshaller" class="org.springframework.oxm.jaxb.Jaxb2Marshaller">
    		<property name="classesToBeBound" value="com.ManagedObject" />
    	</bean>

    	<batch:job id="migrationSimpleJob" job-repository="jobRepository" parent="simpleJob">
    		<batch:step id="migrationStep">
    			<batch:tasklet transaction-manager="transactionManager">
    				<batch:chunk reader="itemReader" processor="itemProcessor" writer="itemWriter" commit-interval="2" />
    			</batch:tasklet>
    		</batch:step>
    	</batch:job>
    </beans>

2. Bean类，关联DB Table中的字段

package com.bean;

    import javax.xml.bind.annotation.XmlAccessOrder;
    import javax.xml.bind.annotation.XmlAccessorOrder;
    import javax.xml.bind.annotation.XmlRootElement;

    @XmlRootElement(name = "managedObject")
    @XmlAccessorOrder(XmlAccessOrder.UNDEFINED)
    public class ManagedObject {
    	private long gid;
    	private long cid;
    	private String name;
    	private String dn;

    	public long getGid() {
    		return this.gid;
    	}

    	public long getCid() {
    		return this.cid;
    	}

    	public String getName() {
    		return this.name;
    	}

    	public String getDn() {
    		return this.dn;
    	}

    	public void setGid(long gid) {
    		this.gid = gid;
    	}

    	public void setCid(long cid) {
    		this.cid = cid;
    	}

    	public void setName(String name) {
    		this.name = name;
    	}

    	public void setDn(String dn) {
    		this.dn = dn;
    	}

    	@Override
    	public String toString() {
    		return this.getDn();
    	}
    }

3. Mapper类，用于关联DB Table和Bean类的纽带

package com.mapper;

    import java.sql.ResultSet;
    import java.sql.SQLException;

    import org.springframework.jdbc.core.RowMapper;

    import com.nokia.migration.nasda.bean.ManagedObject;

    public class ManagedObjectMapper implements RowMapper<ManagedObject> {

    	@Override
    	public ManagedObject mapRow(ResultSet resultSet, int rowNum) throws SQLException {
    		ManagedObject managedObject = new ManagedObject();

    		managedObject.setGid(resultSet.getLong("CO_GID"));
    		managedObject.setCid(resultSet.getLong("CO_OC_ID"));
    		managedObject.setName(resultSet.getString("CO_NAME"));
    		managedObject.setDn(resultSet.getString("CO_DN"));

    		return managedObject;
    	}

    }

4. 重写ItemReader, ItemProcessor, ItemWriter, 在此只重写了ItemProcess作为示例

package com.processor;

    import org.springframework.batch.item.ItemProcessor;

    import com.nokia.migration.nasda.bean.ManagedObject;

    /**
     * @author shengshu
     *
     */
    public class ManagedObjectProcessor implements ItemProcessor<ManagedObject, ManagedObject> {

    	@Override
    	public ManagedObject process(ManagedObject mo) throws Exception {
    		System.out.println(mo.toString());

    		return mo;
    	}

    }

5. 程序启动类

package com.nokia.migration.nasda;

    import org.springframework.batch.core.Job;
    import org.springframework.batch.core.JobExecution;
    import org.springframework.batch.core.JobParameters;
    import org.springframework.batch.core.launch.JobLauncher;
    import org.springframework.context.ApplicationContext;
    import org.springframework.context.support.FileSystemXmlApplicationContext;

    public class MigrationJobLauncher {

    	public static void main(String[] args) {
    		@SuppressWarnings("resource")
    		ApplicationContext context = new FileSystemXmlApplicationContext("conf/migrationSimpleJob.xml");

    		JobLauncher launcher = (JobLauncher) context.getBean("jobLauncher");
    		Job job = (Job) context.getBean("migrationSimpleJob");

    		try {
    			JobExecution result = launcher.run(job, new JobParameters());
    			System.out.println(result.toString());
    		} catch (Exception e) {
    			e.printStackTrace();
    		}
    	}
    }

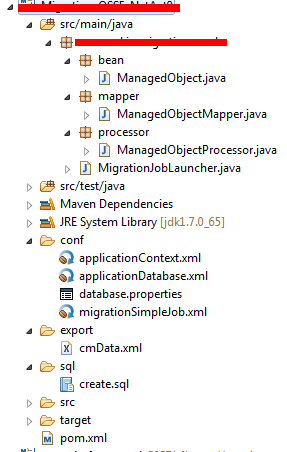

Eclipse环境相关

*  pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>

    	<groupId>com.nokia.migration</groupId>
    	<artifactId>Migration-OSS5-NetAct8</artifactId>
    	<version>1.0</version>
    	<packaging>jar</packaging>

    	<name>Migration-OSS5-NetAct8</name>
    	<url>http://maven.apache.org</url>

    	<properties>
    		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    		<spring.batch.version>3.0.3.RELEASE</spring.batch.version>
    		<spring.version>4.1.4.RELEASE</spring.version>
    		<log4j.version>1.2.17</log4j.version>
    		<junit.version>4.11</junit.version>
    		<maven.compiler.source>1.7</maven.compiler.source>
    		<maven.compiler.target>1.7</maven.compiler.target>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework</groupId>
    			<artifactId>spring-beans</artifactId>
    			<version>${spring.version}</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework</groupId>
    			<artifactId>spring-context</artifactId>
    			<version>${spring.version}</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework</groupId>
    			<artifactId>spring-core</artifactId>
    			<version>${spring.version}</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework</groupId>
    			<artifactId>spring-aop</artifactId>
    			<version>${spring.version}</version>
    		</dependency>
    		<dependency>
    			<groupId>org.mybatis</groupId>
    			<artifactId>mybatis-spring</artifactId>
    			<version>1.2.2</version>
    		</dependency>
    		<dependency>
    			<groupId>org.mybatis</groupId>
    			<artifactId>mybatis</artifactId>
    			<version>3.2.8</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.batch</groupId>
    			<artifactId>spring-batch-core</artifactId>
    			<version>${spring.batch.version}</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.batch</groupId>
    			<artifactId>spring-batch-infrastructure</artifactId>
    			<version>${spring.batch.version}</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework</groupId>
    			<artifactId>spring-jdbc</artifactId>
    			<version>${spring.version}</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework</groupId>
    			<artifactId>spring-oxm</artifactId>
    			<version>${spring.version}</version>
    		</dependency>

    		<dependency>
    			<groupId>com.oracle</groupId>
    			<artifactId>ojdbc5</artifactId>
    			<version>11.1.0.1</version>
    		</dependency>

    		<dependency>
    			<groupId>org.logicalcobwebs</groupId>
    			<artifactId>proxool</artifactId>
    			<version>0.9.0RC3</version>
    		</dependency>

    		<dependency>
    			<groupId>dom4j</groupId>
    			<artifactId>dom4j</artifactId>
    			<version>1.6.1</version>
    		</dependency>

    		<dependency>
    			<groupId>org.apache.commons</groupId>
    			<artifactId>commons-lang3</artifactId>
    			<version>3.1</version>
    		</dependency>
    		<dependency>
    			<groupId>commons-io</groupId>
    			<artifactId>commons-io</artifactId>
    			<version>2.4</version>
    		</dependency>

    		<dependency>
    			<groupId>junit</groupId>
    			<artifactId>junit</artifactId>
    			<scope>test</scope>
    			<version>${junit.version}</version>
    		</dependency>
    	</dependencies>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.apache.maven.plugins</groupId>
    				<artifactId>maven-shade-plugin</artifactId>
    				<executions>
    					<execution>
    						<phase>package</phase>
    						<goals>
    							<goal>shade</goal>
    						</goals>
    					</execution>
    				</executions>
    				<configuration>
    					<finalName>Migration-OSS5-NetAct8</finalName>
    					<shadedArtifactAttached>true</shadedArtifactAttached>
    					<transformers>
    						<transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
    							<mainClass>com.nokia.migration.nasda.MigrationJobLauncher</mainClass>
    						</transformer>
    					</transformers>
    				</configuration>
    			</plugin>
    		</plugins>
    	</build>
    </project>

*  create.sql

DECLARE TABLE_COUNT NUMBER;

    BEGIN
      SELECT COUNT(1) INTO TABLE_COUNT FROM USER_TABLES WHERE TABLE_NAME='MANAGE_OBJECTS';

      IF TABLE_COUNT>0 THEN
        EXECUTE IMMEDIATE 'DROP TABLE MANAGE_OBJECTS';
      END IF;

      EXECUTE IMMEDIATE 'CREATE TABLE MANAGE_OBJECTS(
      CO_GID NUMBER NOT NULL,
      CO_OC_ID NUMBER NOT NULL,
      CO_NAME VARCHAR2(80),
      CO_DN VARCHAR2(256),
      CONSTRAINT CO_GID_PK PRIMARY KEY (CO_GID)
      )';
    END;

    COMMIT;

    --==============================================================================

    DECLARE
      MAXRECORD CONSTANT INT:=1000000;
      IRECORD         INT         :=1;
    BEGIN
      FOR IRECORD IN 1..MAXRECORD
      LOOP
        INSERT
        INTO MANAGE_OBJECTS
          (
            CO_GID,
            CO_OC_ID,
            CO_NAME,
            CO_DN
          )
          VALUES
          (
            ROUND(DBMS_RANDOM.VALUE(520355000000000000,520355999999999999)),
            ROUND(DBMS_RANDOM.VALUE(16,9999)),
            DBMS_RANDOM.STRING('U', 4),
            'PLMN-MIG/'||DBMS_RANDOM.STRING('U', 4)||'-'||ROUND(DBMS_RANDOM.VALUE(1,9999))||'/'||DBMS_RANDOM.STRING('U', 4)||'-'||ROUND(DBMS_RANDOM.VALUE(1,9999))
          );
      END LOOP;
      DBMS_OUTPUT.PUT_LINE('Insert Successfully');
      COMMIT;
    END;

*  目录结构

![Center 1][]

[Center]: /images/20220805/8e5e33e5537f42559ca83b82cc0c2ef1.png
[Center 1]: /images/20220805/bdd9dd5439d74250b90cef7566fe3a0c.png
