在前面的文章《OpenCV中feature2D学习——FAST特征点检测》中讲了利用FAST算子进行特征点检测，这里尝试使用FAST算子来进行特征点检测，并结合SIFT/SURF/BRIEF算子进行特征点提取和匹配。

I、结合SIFT算子进行特征点提取和匹配

由于数据类型的不同，SIFT和SURF算子只能采用FlannBasedMatcher或者BruteForceMatcher来进行匹配（参考OpenCV中feature2D学习——BFMatcher和FlannBasedMatcher）。

/**
* @概述：采用FAST算子检测特征点，采用SIFT算子对特征点进行特征提取，并使用BruteForce匹配法进行特征点的匹配
* @类和函数：FastFeatureDetector + SiftDescriptorExtractor + BruteForceMatcher
* @author：holybin
*/
#include <stdio.h>
#include <iostream>
#include "opencv2/core/core.hpp"
#include "opencv2/nonfree/features2d.hpp"    //SurfFeatureDetector实际在该头文件中
#include "opencv2/legacy/legacy.hpp"    //BruteForceMatcher实际在该头文件中
//#include "opencv2/features2d/features2d.hpp"    //FlannBasedMatcher实际在该头文件中
#include "opencv2/highgui/highgui.hpp"
using namespace cv;
using namespace std;
int main( int argc, char** argv )
{
    Mat src_1 = imread("cat3d120.jpg");
    Mat src_2 = imread("cat0.jpg");
    if( !src_1.data || !src_2.data )
    {
        cout<< " --(!) Error reading images "<<endl;
        return -1;
    }
    //-- Step 1: 使用FAST算子检测特征点
    FastFeatureDetector fast(20);
    vector<KeyPoint> keypoints_1, keypoints_2;
    fast.detect( src_1, keypoints_1 );    //FAST(src_1, keypoints_1, 20);
    fast.detect( src_2, keypoints_2 );    //FAST(src_2, keypoints_2, 20);
    cout<<"img1--number of keypoints: "<<keypoints_1.size()<<endl;
    cout<<"img2--number of keypoints: "<<keypoints_2.size()<<endl;
    //-- Step 2: 使用SIFT算子提取特征（计算特征向量）
    SiftDescriptorExtractor extractor;    //SurfDescriptorExtractor extractor;
    Mat descriptors_1, descriptors_2;
    extractor.compute( src_1, keypoints_1, descriptors_1 );
    extractor.compute( src_2, keypoints_2, descriptors_2 );
    //-- Step 3: 使用BruteForce法进行暴力匹配
    BruteForceMatcher< L2<float> > matcher;    //FlannBasedMatcher matcher;
    vector< DMatch > matches;
    matcher.match( descriptors_1, descriptors_2, matches );
    cout<<"number of matches: "<<matches.size()<<endl;
    //-- 显示匹配结果
    Mat matchImg;
    drawMatches( src_1, keypoints_1, src_2, keypoints_2, matches, matchImg,
        Scalar::all(-1), Scalar::all(-1), vector<char>(), DrawMatchesFlags::NOT_DRAW_SINGLE_POINTS);
    imshow("matching result", matchImg );
    imwrite("match_result.png", matchImg);
    waitKey(0);
    return 0;
}

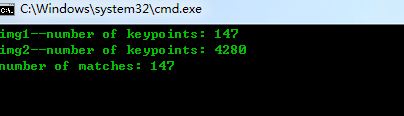

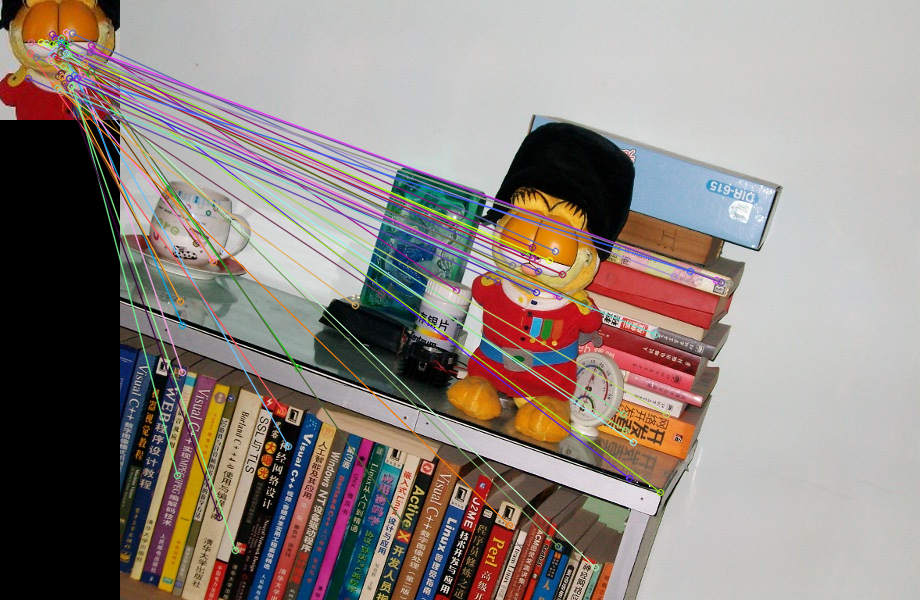

运行结果如下：

SouthEast

SouthEast 1

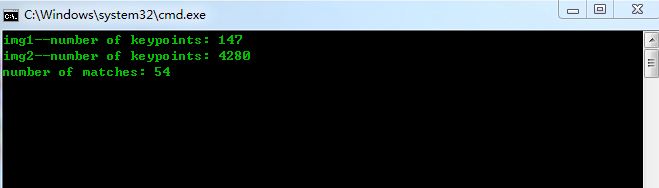

II、结合BRIEF算子进行特征点提取和匹配

BRIEF算子只能采用BruteForceMatcher来进行匹配（参考OpenCV中feature2D学习——BFMatcher和FlannBasedMatcher）。

/**
* @概述：采用FAST算子检测特征点，采用BRIEF算子对特征点进行特征提取，并使用BruteForce匹配法进行特征点的匹配
* @类和函数：FastFeatureDetector + BriefDescriptorExtractor + BruteForceMatcher
* @author：holybin
*/
#include <stdio.h>
#include <iostream>
#include "opencv2/core/core.hpp"
#include "opencv2/nonfree/features2d.hpp"    //SurfFeatureDetector实际在该头文件中
#include "opencv2/legacy/legacy.hpp"    //BruteForceMatcher实际在该头文件中
//#include "opencv2/features2d/features2d.hpp"    //FlannBasedMatcher实际在该头文件中
#include "opencv2/highgui/highgui.hpp"
using namespace cv;
using namespace std;
int main( int argc, char** argv )
{
    Mat src_1 = imread("cat3d120.jpg");
    Mat src_2 = imread("cat0.jpg");
    if( !src_1.data || !src_2.data )
    {
        cout<< " --(!) Error reading images "<<endl;
        return -1;
    }
    //-- Step 1: 使用FAST算子检测特征点
    FastFeatureDetector fast(20);
    vector<KeyPoint> keypoints_1, keypoints_2;
    fast.detect( src_1, keypoints_1 );    //FAST(src_1, keypoints_1, 20);
    fast.detect( src_2, keypoints_2 );    //FAST(src_2, keypoints_2, 20);
    cout<<"img1--number of keypoints: "<<keypoints_1.size()<<endl;
    cout<<"img2--number of keypoints: "<<keypoints_2.size()<<endl;
    //-- Step 2: 使用BRIEF算子提取特征（计算特征向量）
    BriefDescriptorExtractor extractor;
    Mat descriptors_1, descriptors_2;
    extractor.compute( src_1, keypoints_1, descriptors_1 );
    extractor.compute( src_2, keypoints_2, descriptors_2 );
    //-- Step 3: 使用BruteForce法进行暴力匹配
    BruteForceMatcher< L2<float> > matcher;    //FlannBasedMatcher matcher;
    vector< DMatch > matches;
    matcher.match( descriptors_1, descriptors_2, matches );
    cout<<"number of matches: "<<matches.size()<<endl;
    //-- 显示匹配结果
    Mat matchImg;
    drawMatches( src_1, keypoints_1, src_2, keypoints_2, matches, matchImg,
        Scalar::all(-1), Scalar::all(-1), vector<char>(), DrawMatchesFlags::NOT_DRAW_SINGLE_POINTS);
    imshow("matching result", matchImg );
    imwrite("match_result.png", matchImg);
    waitKey(0);
    return 0;
}
