springboot使用注解参数校验 javax.validation 和 hibernate-validator

• 1. 参数校验概述
• • 1.1 需求概述
  • 1.2 validation与validator
• 2 注解说明
• • 2.1 validator内置注解
  • 2.2 hibernate validator扩展定义注解
• 1. 实现验证
• • 3.1 引入依赖
  • 3.2 代码实现
  • 3.3 实现验证

1. 参数校验概述

1.1 需求概述

常见的业务开发中无可避免的会进行请求参数校验，一般对于复杂的业务参数校验，可以通过校验类单独的校验方法进行处理，通常对于一些与业务无关简单的参数校验可以采用javax.validation 和 hibernate-validator通过注解的方式实现校验。

1.2 validation与validator

javax的validation是Java定义的一套基于注解的数据校验规范，目前已经从JSR 303的1.0版本升级到JSR 349的1.1版本，再到JSR 380的2.0版本（2.0完成于2017.08），已经经历了三个版本。
需要注意的是，JSR只是一项标准，它规定了一些校验注解的规范，但没有实现，比如@Null、@NotNull、@Pattern等，它们位于 javax.validation.constraints这个包下。而hibernate validator是对这个规范的实现，并增加了一些其他校验注解，如 @NotBlank、@NotEmpty、@Length等，它们位于org.hibernate.validator.constraints这个包下。

如果我们的项目使用了Spring Boot，hibernate validator框架已经集成在 spring-boot-starter-web中，所以无需再添加其他依赖。如果不是Spring Boot项目，需要添加如下依赖。

<dependency>
    <groupId>org.hibernate.validator</groupId>
    <artifactId>hibernate-validator</artifactId>
    <version>6.0.13.Final</version>
</dependency>

2 注解说明

2.1 validator内置注解

2.2 hibernate validator扩展定义注解

注意：
1.正则表达式@Pattern注解只用于String类型的字段上。数字类型的可用@Range注解。
2.需要在Controller中请求对象或者参数前加@Validated或@Valid注解一起使用，
@Validated和@Valid注解区别不是很大，一般情况下任选一个即可，区别如下：

虽然@Validated比@Valid更加强大，在@Valid之上提供了分组功能和验证排序功能，不过在实际项目中一直没有用到过 Hibernate-validate框架中的注解是需要加在实体中一起使用的

3. 实现验证

3.1 引入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.0</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>category</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>category</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.4</version>
        </dependency>
        <!--数据库连接诶-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--常用工具-->
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>30.1.1-jre</version>
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.6.3</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
        </dependency>
        <!--swagger2-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.6.1</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.6.1</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.6</version>
        </dependency>
        <!--字段校验-->
        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
            <version>2.0.1.Final</version>
        </dependency>
        <dependency>
            <groupId>org.hibernate.validator</groupId>
            <artifactId>hibernate-validator</artifactId>
            <version>6.0.13.Final</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

3.2 代码实现

1.实体类

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import org.hibernate.validator.constraints.Length;
import org.hibernate.validator.constraints.Range;
import javax.validation.constraints.*;
/** * 员工实体类 * * @author zrj * @since 2021/7/31 **/
@Data
@ApiModel(value = "Employee", description = "员工信息")
public class Employee {
    @NotNull(message = "userId is empty")
    @ApiModelProperty(value = "员工ID")
    private Integer id;
    @NotBlank(message = "员工姓名不能为空")
    @Length(min = 1, max = 100, message = "员工姓名长度不能超过50字")
    @ApiModelProperty(value = "员工姓名")
    private String name;
    @Range(min = 1, max = 200, message = "年龄范围[1,200]")
    @ApiModelProperty(value = "年龄")
    private Integer age;
    @Pattern(regexp = "^[0-1]$", message = "员工类型范围[0,1]")
    @ApiModelProperty(value = "员工类型（0行政岗;1基础岗")
    private String type;
    @Pattern(regexp = "^[1][^0^1^2][0-9]{9}$", message = "员工手机号码不合法")
    @ApiModelProperty(value = "员工手机号码")
    private String phone;
    @Email(message = "员工邮箱不合法")
    @Length(min = 1, max = 50, message = "员工邮箱长度")
    @ApiModelProperty(value = "员工邮箱")
    private String email;
    @Length(min = 0, max = 200, message = "备注长度不能超过100字")
    @ApiModelProperty(value = "备注")
    private String remarks;
}

2.控制类

import com.example.category.entity.Employee;
import com.example.category.entity.Response;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.*;
import javax.validation.Valid;
/** * 员工控制类 * * @author zrj * @since 2021/7/31 **/
@RestController
@RequestMapping("/employee")
@Api(value = "employee", description = "员工管理")
public class EmployeeController {
    @GetMapping("/test")
    @ApiOperation(value = "test测试", notes = "test测试", httpMethod = "GET")
    public Response test() {
        return Response.success("查询成功", null);
    }
    /** * Valid测试 * 这里职位测试@Valid，所以不在写其他各层 */
    @PostMapping("/validEpmloyee")
    @ApiOperation(value = "Valid测试", notes = "Valid测试", httpMethod = "POST")
    public Response<Employee> validEpmloyee(@Valid @RequestBody Employee employee) {
        System.out.println("测试请求对象：" + employee);
        if (employee != null) {
            return Response.success("查询成功", employee);
        }
        return Response.fail("查询失败");
    }
}

3.结果集响应码

package com.example.category.entity;
import lombok.Data;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
/** * 结果集封装 * * @author zrj * @date 2021/6/2 * @since V1.0 **/
@Data
@Component
public class Response<T> {
    private static ResponseCode responseCode;
    /** * 提示消息 */
    private String message;
    /** * 具体返回的数据 */
    private T data;
    /** * 状态码 */
    private String code;
    private Response(String code, String message, T data) {
        this.message = message;
        this.code = code;
        this.data = data;
    }
    private Response(String code, String msg) {
        this.message = msg;
        this.code = code;
    }
    @Autowired
    public Response(ResponseCode responseCode) {
        Response.responseCode = responseCode;
    }
    /** * 返回成功Response对象 */
    public static <T> Response<T> success(String successMessage, T data) {
        return new Response<>(responseCode.getSuccessCode(), successMessage, data);
    }
    /** * 返回错误Response对象 */
    public static <T> Response<T> fail(String errorMessage) {
        return new Response<>(responseCode.getErrorCode(), errorMessage);
    }
}
import lombok.Data;
import org.springframework.stereotype.Component;
/** * 响应码 * * @author zrj * @date 2021/6/2 * @since V1.0 **/
@Data
@Component
public class ResponseCode {
    public String successCode = "200";
    public String errorCode = "500";
    public String authErrorCode = "300";
}

4.异常切面封装类

import com.example.category.entity.Response;
import com.fasterxml.jackson.databind.JsonMappingException;
import lombok.extern.slf4j.Slf4j;
import org.springframework.http.converter.HttpMessageNotReadableException;
import org.springframework.util.CollectionUtils;
import org.springframework.validation.ObjectError;
import org.springframework.web.bind.MethodArgumentNotValidException;
import org.springframework.web.bind.MissingServletRequestParameterException;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.method.HandlerMethod;
import org.springframework.web.method.annotation.MethodArgumentTypeMismatchException;
import javax.validation.ConstraintViolation;
import javax.validation.ConstraintViolationException;
import java.util.List;
import java.util.Set;
/** * 异常切面封装类 * * @author zrj * @since 2021/7/31 **/
@ControllerAdvice
@ResponseBody
@Slf4j
public class ExceptionHandlerAdvice {
    /** * Exception */
    @ExceptionHandler(Exception.class)
    public Response<String> handleGlobalException(Exception exception, HandlerMethod handlerMethod) {
        if (exception instanceof MethodArgumentNotValidException) {
            List<ObjectError> errors = ((MethodArgumentNotValidException) exception).getBindingResult().getAllErrors();
            StringBuilder sb = new StringBuilder();
            if (!CollectionUtils.isEmpty(errors)) {
                for (ObjectError error : errors) {
                    if (sb.length() != 0) {
                        sb.append("，");
                    }
                    sb.append(error.getDefaultMessage());
                }
            }
            return Response.fail(sb.toString());
        }
        // 约束异常
        if (exception instanceof ConstraintViolationException) {
            Set<ConstraintViolation<?>> exceptionSet = ((ConstraintViolationException) exception).getConstraintViolations();
            StringBuilder sb = new StringBuilder();
            if (!CollectionUtils.isEmpty(exceptionSet)) {
                for (ConstraintViolation<?> set : exceptionSet) {
                    if (sb.length() != 0) {
                        sb.append("，");
                    }
                    sb.append(set.getMessageTemplate());
                }
            }
            return Response.fail(sb.toString());
        }
        // 参数类型转换异常处理
        if (exception instanceof MethodArgumentTypeMismatchException) {
            return Response.fail(((MethodArgumentTypeMismatchException) exception).getName() + " 类型不匹配");
        }
        if (exception instanceof JsonMappingException) {
            return Response.fail("JSON格式错误, " + exception.getLocalizedMessage());
        }
        if (exception instanceof HttpMessageNotReadableException) {
            return Response.fail("请求体格式错误, " + exception.getLocalizedMessage());
        }
        if (exception instanceof MissingServletRequestParameterException) {
            String paramName = ((MissingServletRequestParameterException) exception).getParameterName();
            return Response.fail(paramName + " 不能为空");
        }
        //if (exception instanceof MarketingException) {
        // MarketingException marketingException = (MarketingException) exception;
        // return RdfaResult.fail(marketingException.getErrorCodeEnum().getCode(), exception.getMessage());
        //}
        // 其他异常打印日志
        log.error("{}.{} error, ", handlerMethod.getBeanType().getSimpleName(), handlerMethod.getMethod().getName(), exception);
        //if (exception instanceof RpcException) {
        // return RdfaResult.fail(ErrorCodeEnum.RPC_ERROR.getCode(), "RPC调用错误，请稍后重试");
        //}
        return Response.fail("服务器内部错误，请联系开发人员！");
    }
}

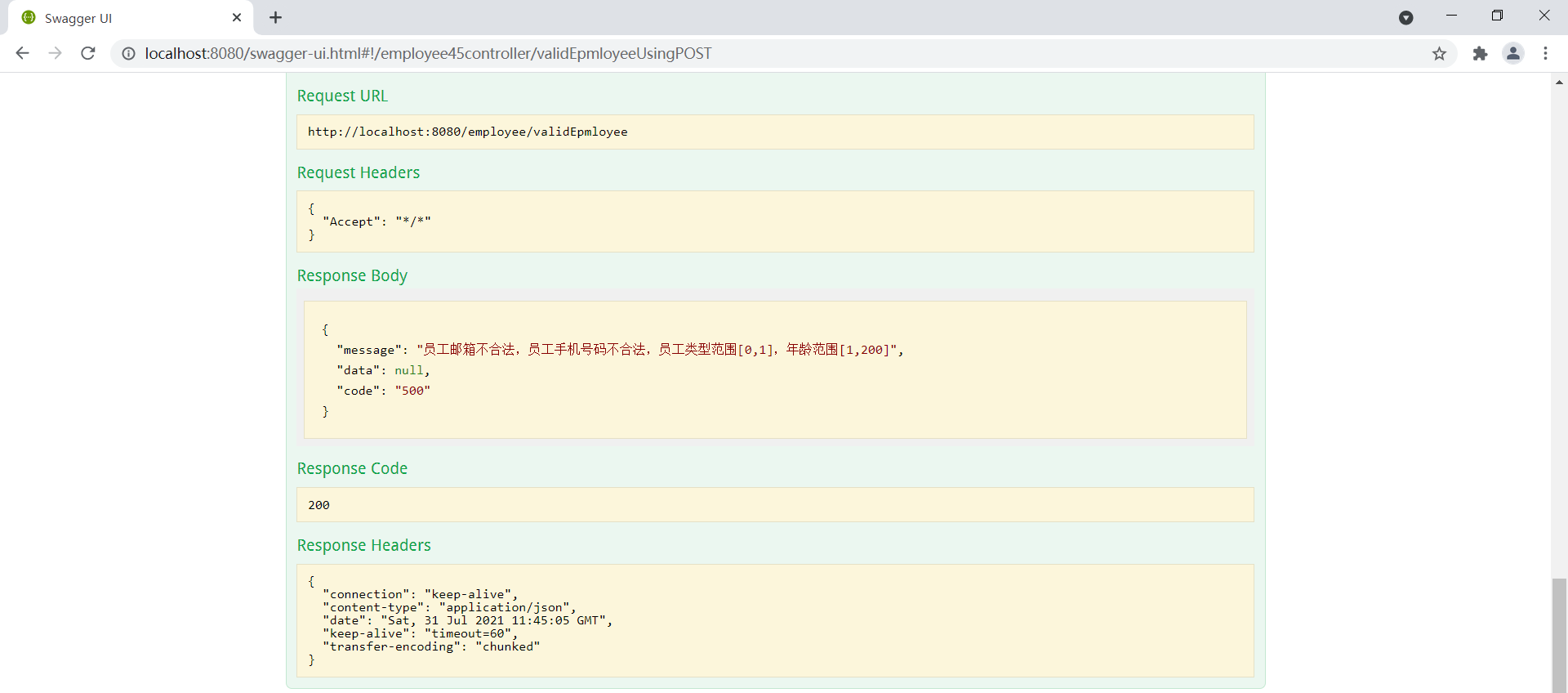

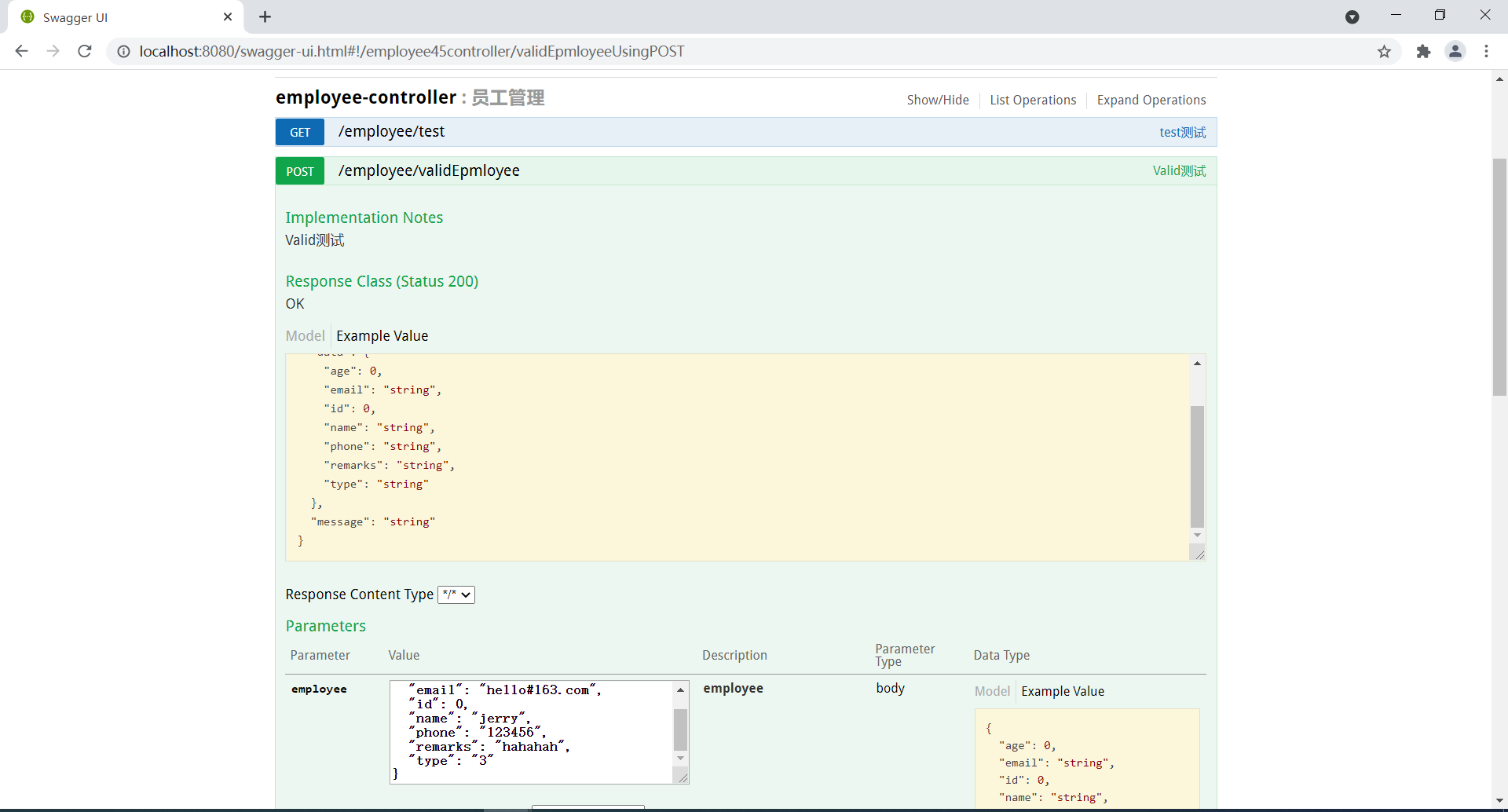

3.3 实现验证
