SpringBoot技术实践-SpringRetry重试框架

冷不防 2022-08-31 09:59 350阅读 0赞

一、环境搭建

  1. 加入SpringRetry依赖，SpringRetry使用AOP实现，所以也需要加入AOP包


    org.springframework.retry
    spring-retry


    org.springframework
    spring-aspects

  2. 官方文档

    • https://www.baeldung.com/spring-retry

二、RetryTemplate

2.1 RetryTemplate

  1. RetryTemplate封装了Retry基本操作

    • org.springframework.retry.support.RetryTemplate
  2. RetryTemplate中可以指定监听、回退策略、重试策略等
  3. 只需要正常new RetryTemplate()即可使用

2.2 RetryListener

  1. RetryListener指定了当执行过程中出现错误时的回调

    • org.springframework.retry.RetryListener

    package org.springframework.retry;

    public interface RetryListener {

    1. /** * 任务开始执行时调用，只调用一次 */
    2. <T, E extends Throwable> boolean open(RetryContext context, RetryCallback<T, E> callback);
    4. /** * 任务执行结束时(包含重试)调用，只调用一次 */
    5. <T, E extends Throwable> void close(RetryContext context, RetryCallback<T, E> callback, Throwable throwable);
    7. /** * 出现错误时回调 */
    8. <T, E extends Throwable> void onError(RetryContext context, RetryCallback<T, E> callback, Throwable throwable);

    }

  2. 配置之后在RetryTemplate中指定

2.3 回退策略

2.3.1 FixedBackOffPolicy

  1. 当出现错误时延迟多少时间继续调用

    FixedBackOffPolicy fixedBackOffPolicy = new FixedBackOffPolicy();
    fixedBackOffPolicy.setBackOffPeriod(1000L);
    retryTemplate.setBackOffPolicy(fixedBackOffPolicy);

  2. 配置之后在RetryTemplate中指定

2.3.2 ExponentialBackOffPolicy

  1. 当出现错误时第一次按照指定延迟时间延迟后按照指数进行延迟

    // 指数回退(秒)，第一次回退1s，第二次回退2s，第三次4秒，第四次8秒
    ExponentialBackOffPolicy exponentialBackOffPolicy = new ExponentialBackOffPolicy();
    exponentialBackOffPolicy.setInitialInterval(1000L);
    exponentialBackOffPolicy.setMultiplier(2);
    retryTemplate.setBackOffPolicy(exponentialBackOffPolicy);

  2. 配置之后在RetryTemplate中指定

2.4 重试策略

  1. 重试策略主要指定出现错误时重试次数

    // 重试策略
    SimpleRetryPolicy retryPolicy = new SimpleRetryPolicy();
    retryPolicy.setMaxAttempts(5);
    retryTemplate.setRetryPolicy(retryPolicy);

  2. 配置之后在RetryTemplate中指定

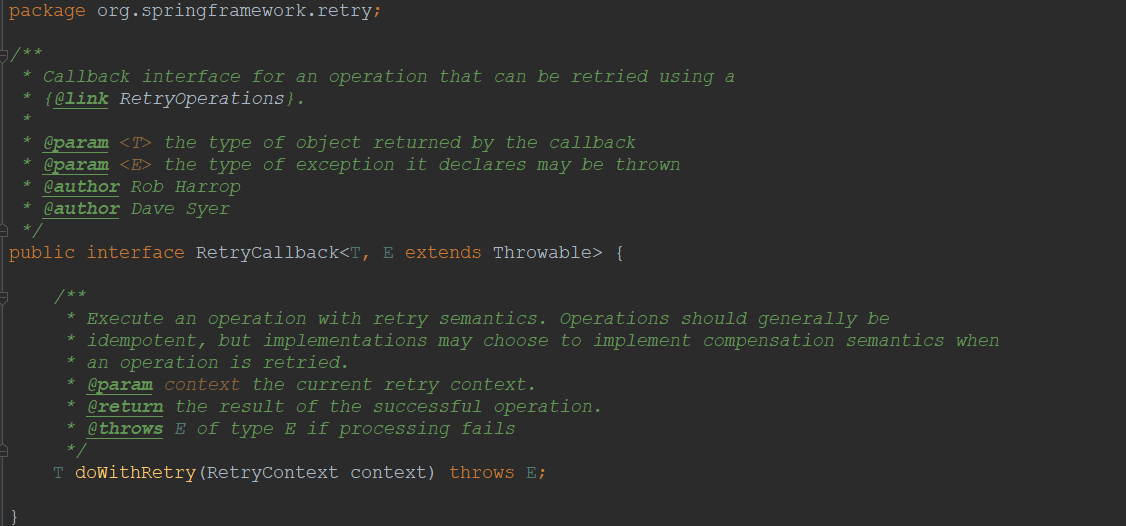

2.5 RetryCallback

  1. RetryCallback为retryTemplate.execute时执行的回调

    • public final T execute(RetryCallback retryCallback) throws E


2.6 核心使用

  1. 可以使用RetryTemplate完成简单使用

  2. 配置retryTemplate

    • 指定回退策略为ExponentialBackOffPolicy
    • 指定重试策略为SimpleRetryPolicy
    • 指定监听器RetryListener

    import com.codecoord.util.PrintUtil;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;
    import org.springframework.retry.RetryCallback;
    import org.springframework.retry.RetryContext;
    import org.springframework.retry.RetryListener;
    import org.springframework.retry.backoff.ExponentialBackOffPolicy;
    import org.springframework.retry.policy.SimpleRetryPolicy;
    import org.springframework.retry.support.RetryTemplate;

    @Configuration
    public class RetryTemplateConfig {

    1. /** * 注入retryTemplate */
    2. @Bean
    3. public RetryTemplate retryTemplate() {
    4.     RetryTemplate retryTemplate = new RetryTemplate();
    6.     /// 回退固定时间(秒)
    7.    /* FixedBackOffPolicy fixedBackOffPolicy = new FixedBackOffPolicy(); fixedBackOffPolicy.setBackOffPeriod(1000L); retryTemplate.setBackOffPolicy(fixedBackOffPolicy);*/
    9.     // 指数回退(秒)，第一次回退1s，第二次回退2s
    10.     ExponentialBackOffPolicy exponentialBackOffPolicy = new ExponentialBackOffPolicy();
    11.     exponentialBackOffPolicy.setInitialInterval(1000L);
    12.     exponentialBackOffPolicy.setMultiplier(2);
    13.     retryTemplate.setBackOffPolicy(exponentialBackOffPolicy);
    15.     // 重试策略
    16.     SimpleRetryPolicy retryPolicy = new SimpleRetryPolicy();
    17.     retryPolicy.setMaxAttempts(5);
    18.     retryTemplate.setRetryPolicy(retryPolicy);
    20.     // 设置监听器，open和close分别在启动和结束时执行一次
    21.     RetryListener[] listeners = {
    22.             new RetryListener() {
    23.                 @Override
    24.                 public <T, E extends Throwable> boolean open(RetryContext context, RetryCallback<T, E> callback) {
    25.                     PrintUtil.print("open");
    26.                     return true;
    27.                 }
    28.                 @Override
    29.                 public <T, E extends Throwable> void close(RetryContext context, RetryCallback<T, E> callback,
    30.                         Throwable throwable) {
    31.                     PrintUtil.print("close");
    32.                 }
    33.                 @Override
    34.                 public <T, E extends Throwable> void onError(RetryContext context, RetryCallback<T, E> callback,
    35.                         Throwable throwable) {
    36.                     PrintUtil.print("onError");
    37.                 }
    38.             }
    39.     };
    40.     retryTemplate.setListeners(listeners);
    42.     return retryTemplate;
    43. }

    }

  3. 在controller中注入RetryTemplate使用，也可以是在service中

    @RestController
    public class SpringRetryController {

    1. @Resource
    2. private RetryTemplate retryTemplate;
    3. private static int count = 0;
    5. @RequestMapping("/retry")
    6. public Object retry() {
    7.     try {
    8.         count = 0;
    9.         retryTemplate.execute((RetryCallback<Void, RuntimeException>) context -> {
    10.             // 业务代码
    11.             // ....
    12.             // 模拟抛出异常
    13.             ++count;
    14.             throw new RuntimeException("抛出异常");
    15.         });
    16.     } catch (RuntimeException e) {
    17.         System.out.println("Exception");
    18.     }
    20.     return "retry = " + count;
    21. }

    }

  4. 访问retry接口，然后观察日志输出

    18:27:20.648 - http-nio-8888-exec-1 - open
    18:27:20.649 - http-nio-8888-exec-1 - retryTemplate.execute执行
    18:27:20.649 - http-nio-8888-exec-1 - onError
    18:27:21.658 - http-nio-8888-exec-1 - retryTemplate.execute执行
    18:27:21.658 - http-nio-8888-exec-1 - onError
    18:27:23.670 - http-nio-8888-exec-1 - retryTemplate.execute执行
    18:27:23.670 - http-nio-8888-exec-1 - onError
    18:27:27.679 - http-nio-8888-exec-1 - retryTemplate.execute执行
    18:27:27.679 - http-nio-8888-exec-1 - onError
    18:27:35.681 - http-nio-8888-exec-1 - retryTemplate.execute执行
    18:27:35.681 - http-nio-8888-exec-1 - onError
    18:27:35.681 - http-nio-8888-exec-1 - close

三、EnableRetry

  1. @EnableRetry开启重试，在类上指定的时候方法将默认执行，重试三次

  2. 定义service，开启@EnableRetry注解和指定@Retryable，重试可以参考后面一节

    import org.springframework.retry.annotation.Retryable;

    public interface RetryService {

    1. /** * 重试方法调用 */
    2. @Retryable
    3. void retryServiceCall();

    }

    import org.springframework.retry.annotation.EnableRetry;
    import org.springframework.stereotype.Service;

    @EnableRetry
    @Service
    public class RetryServiceImpl implements RetryService {

    1. @Override
    2. public void retryServiceCall() {
    3.     PrintUtil.print("方法调用..");
    4.     throw new RuntimeException("手工异常");
    5. }

    }

  3. controller中注入service

    @RequestMapping(“/retryAnnotation”)
    public Object retryAnnotation() {

    1. retryService.retryServiceCall();
    2. return "retryAnnotation";

    }

  4. 将会默认重试

    18:46:48.721 - http-nio-8888-exec-1 - 方法调用..
    18:46:49.724 - http-nio-8888-exec-1 - 方法调用..
    18:46:50.730 - http-nio-8888-exec-1 - 方法调用..
    java.lang.RuntimeException: 手工异常

四、Retryable

  1. 用于需要重试的方法上的注解

  2. 有以下几个属性

    • Retryable注解参数

      • value：指定发生的异常进行重试
      • include：和value一样，默认空，当exclude也为空时，所有异常都重试
      • exclude：指定异常不重试，默认空，当include也为空时，所有异常都重试
      • maxAttemps：重试次数，默认3
      • backoff：重试补偿机制，默认没有

    • @Backoff 注解 重试补偿策略

      • 不设置参数时，默认使用FixedBackOffPolicy（指定等待时间），重试等待1000ms
      • 设置delay，使用FixedBackOffPolicy（指定等待设置delay和maxDealy时，重试等待在这两个值之间均态分布）
      • 设置delay、maxDealy、multiplier，使用 ExponentialBackOffPolicy（指数级重试间隔的实现），multiplier即指定延迟倍数，比如delay=5000L，multiplier=2,则第一次重试为5秒，第二次为10秒，第三次为20秒

    @Target({ ElementType.METHOD, ElementType.TYPE })
    @Retention(RetentionPolicy.RUNTIME)
    @Documented
    public @interface Retryable {

    1. /** * Retry interceptor bean name to be applied for retryable method. Is mutually * exclusive with other attributes. * @return the retry interceptor bean name */
    2. String interceptor() default "";
    4. /** * Exception types that are retryable. Synonym for includes(). Defaults to empty (and * if excludes is also empty all exceptions are retried). * @return exception types to retry */
    5. Class<? extends Throwable>[] value() default { };
    7. /** * Exception types that are retryable. Defaults to empty (and if excludes is also * empty all exceptions are retried). * @return exception types to retry */
    8. Class<? extends Throwable>[] include() default { };
    10. /** * Exception types that are not retryable. Defaults to empty (and if includes is also * empty all exceptions are retried). * If includes is empty but excludes is not, all not excluded exceptions are retried * @return exception types not to retry */
    11. Class<? extends Throwable>[] exclude() default { };
    13. /** * A unique label for statistics reporting. If not provided the caller may choose to * ignore it, or provide a default. * * @return the label for the statistics */
    14. String label() default "";
    16. /** * Flag to say that the retry is stateful: i.e. exceptions are re-thrown, but the * retry policy is applied with the same policy to subsequent invocations with the * same arguments. If false then retryable exceptions are not re-thrown. * @return true if retry is stateful, default false */
    17. boolean stateful() default false;
    19. /** * @return the maximum number of attempts (including the first failure), defaults to 3 */
    20. int maxAttempts() default 3;
    22. /** * @return an expression evaluated to the maximum number of attempts (including the first failure), defaults to 3 * Overrides {@link #maxAttempts()}. * @date 1.2 */
    23. String maxAttemptsExpression() default "";
    25. /** * Specify the backoff properties for retrying this operation. The default is a * simple {@link Backoff} specification with no properties - see it's documentation * for defaults. * @return a backoff specification */
    26. Backoff backoff() default @Backoff();
    28. /** * Specify an expression to be evaluated after the {@code SimpleRetryPolicy.canRetry()} * returns true - can be used to conditionally suppress the retry. Only invoked after * an exception is thrown. The root object for the evaluation is the last {@code Throwable}. * Other beans in the context can be referenced. * For example: * <pre class=code> * {@code "message.contains('you can retry this')"}. * </pre> * and * <pre class=code> * {@code "@someBean.shouldRetry(#root)"}. * </pre> * @return the expression. * @date 1.2 */
    29. String exceptionExpression() default "";
    31. /** * Bean names of retry listeners to use instead of default ones defined in Spring context * @return retry listeners bean names */
    32. String[] listeners() default { };

    }

    @Target(ElementType.TYPE)
    @Retention(RetentionPolicy.RUNTIME)
    @Documented
    public @interface Backoff {

    1. /** * Synonym for {@link #delay()}. * * @return the delay in milliseconds (default 1000) */
    2. long value() default 1000;
    4. /** * A canonical backoff period. Used as an initial value in the exponential case, and * as a minimum value in the uniform case. * @return the initial or canonical backoff period in milliseconds (default 1000) */
    5. long delay() default 0;
    7. /** * The maximimum wait (in milliseconds) between retries. If less than the * {@link #delay()} then the default of * {@value org.springframework.retry.backoff.ExponentialBackOffPolicy#DEFAULT_MAX_INTERVAL} * is applied. * * @return the maximum delay between retries (default 0 = ignored) */
    8. long maxDelay() default 0;
    10. /** * If positive, then used as a multiplier for generating the next delay for backoff. * * @return a multiplier to use to calculate the next backoff delay (default 0 = * ignored) */
    11. double multiplier() default 0;
    13. /** * An expression evaluating to the canonical backoff period. Used as an initial value * in the exponential case, and as a minimum value in the uniform case. Overrides * {@link #delay()}. * @return the initial or canonical backoff period in milliseconds. * @date 1.2 */
    14. String delayExpression() default "";
    16. /** * An expression evaluating to the maximimum wait (in milliseconds) between retries. * If less than the {@link #delay()} then the default of * {@value org.springframework.retry.backoff.ExponentialBackOffPolicy#DEFAULT_MAX_INTERVAL} * is applied. Overrides {@link #maxDelay()} * * @return the maximum delay between retries (default 0 = ignored) * @date 1.2 */
    17. String maxDelayExpression() default "";
    19. /** * Evaluates to a vaule used as a multiplier for generating the next delay for * backoff. Overrides {@link #multiplier()}. * * @return a multiplier expression to use to calculate the next backoff delay (default * 0 = ignored) * @date 1.2 */
    20. String multiplierExpression() default "";
    22. /** * In the exponential case ({@link #multiplier()} > 0) set this to true to have the * backoff delays randomized, so that the maximum delay is multiplier times the * previous delay and the distribution is uniform between the two values. * * @return the flag to signal randomization is required (default false) */
    23. boolean random() default false;

    }

  3. 在需要重试的方法上配置对应的重试次数、重试异常的异常类型、设置回退延迟时间、重试策略、方法监听名称

    @Component
    public class PlatformClassService {

    1. @Retryable(
    2.     // 重试异常的异常类型
    3.     value = { Exception.class},
    4.     // 最大重试次数
    5.     maxAttempts = 5,
    6.     // 设置回退延迟时间
    7.     backoff = @Backoff(delay = 500),
    8.     // 配置回调方法名称
    9.     listeners = "retryListener"
    10. )
    11. public void call() {
    12.     System.out.println("call...");
    13.     throw new RuntimeException("手工异常");
    14. }

    }

    // 初始延迟2秒，然后之后验收1.5倍延迟重试，总重试次数4
    @Retryable(value = { Exception.class}, maxAttempts = 4, backoff = @Backoff(delay = 2000L, multiplier = 1.5))

  4. 监听方法，在配置类中进行配置

    /* 注解调用 */
    @Bean
    public RetryListener retryListener() {

    1. return new RetryListener() {
    2.     @Override
    3.     public <T, E extends Throwable> boolean open(RetryContext context, RetryCallback<T, E> callback) {
    4.         System.out.println("open context = " + context + ", callback = " + callback);
    5.         // 返回true继续执行后续调用
    6.         return true;
    7.     }
    9.     @Override
    10.     public <T, E extends Throwable> void close(RetryContext context, RetryCallback<T, E> callback,
    11.                                                Throwable throwable) {
    12.         System.out.println("close context = " + context + ", callback = " + callback);
    13.     }
    14.     @Override
    15.     public <T, E extends Throwable> void onError(RetryContext context, RetryCallback<T, E> callback,
    16.                                                  Throwable throwable) {
    17.         System.out.println("onError context = " + context + ", callback = " + callback);
    18.     }
    19. };

    }

  5. 调用服务

    @RestController
    public class SpringRetryController {

    1. @Resource
    2. private PlatformClassService platformClassService;
    4. @RequestMapping("/retryPlatformCall")
    5. public Object retryPlatformCall() {
    6.     try {
    7.         platformClassService.call();
    8.     } catch (Exception e) {
    9.         return "尝试调用失败";
    10.     }
    11.     return "retryPlatformCall";
    12. }

    }

  6. 调用结果
