Spring Boot文档阅读笔记-how-to-implement-2-way-ssl-using-spring-boot

深碍√TFBOYSˉ_ 2022-09-02 11:49 14阅读 0赞

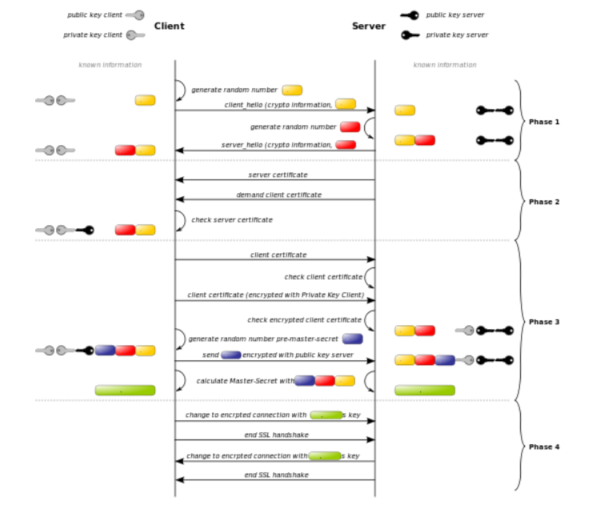

two-way-ssl需要12次握手（除去TCP的三次握手），如下图：

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxNzg0NDI3NjE_size_16_color_FFFFFF_t_70][]

双向认证过程：

1.客户端发送ClientHello消息，告诉服务端要使用SSL。

2.客户端发送ServerHello的响应，告诉客户端使用SSL。

3.服务端发送证书给客户端；

4.服务端发送发送数据，要求客户端发送证书；

5.此时客户端与服务端招呼已经结束；

6.客户端发送自己的证书给服务端（客户端认证服务端证书成功）；

7.客户端发送session key（使用服务端公钥加密）；

8.客户端发送一个CertificateVerify消息让服务器知道它拥有发送证书；

9.客户端发送自己支持的通道加密套给服务端；

10.客户端要服务端从中选着一个；

11.服务端选择一个加密套，并且告诉客户端，我选择了这个；

12.服务端发送认证完成。

使用keytool生成证书：

keytool -genkeypair -alias client-app -keyalg RSA -keysize 2048 -storetype JKS -keystore client-app.jks -validity 3650 -ext SAN=dns:localhost,ip:127.0.0.1
    keytool -genkeypair -alias server-app -keyalg RSA -keysize 2048 -storetype JKS -keystore server-app.jks -validity 3650 -ext SAN=dns:localhost,ip:127.0.0.1
    keytool -export -alias client-app -file client-app.crt -keystore client-app.jks
    keytool -export -alias server-app -file server-app.crt -keystore server-app.jks
    keytool -import -alias server-app -file server-app.crt -keystore client-app.jks
    keytool -import -alias client-app -file client-app.crt -keystore server-app.jks

下面使用Spring Boot进行SSL双向认证

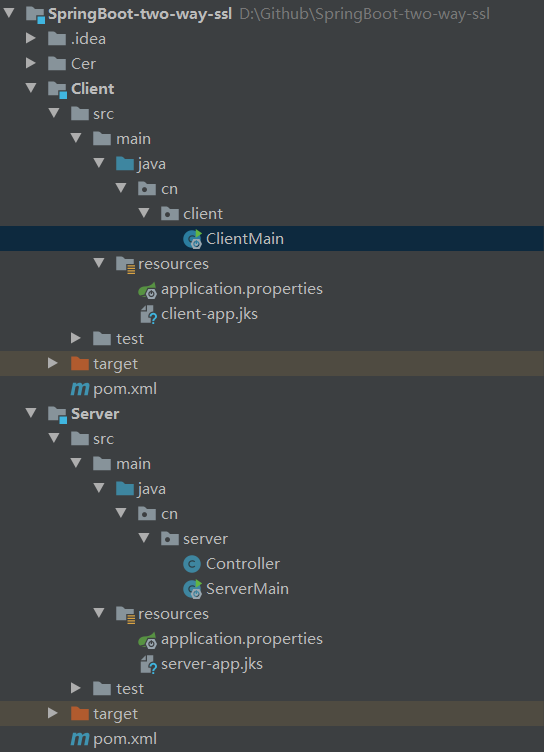

程序结构如下：

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxNzg0NDI3NjE_size_16_color_FFFFFF_t_70 1][]

关键代码：

服务端

application.properties

spring.application.name=server-app

    server.port=9002
    server.ssl.enabled=true
    server.ssl.client-auth=need
    server.ssl.key-store=classpath:server-app.jks
    server.ssl.key-store-password=server-app
    server.ssl.key-alias=server-app
    server.ssl.key-store-type=JKS
    server.ssl.key-store-provider=SUN
    server.ssl.trust-store=classpath:server-app.jks
    server.ssl.trust-store-password=server-app
    server.ssl.trust-store-type=JKS

Controller.java

package cn.server;

    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.RequestMapping;
    import org.springframework.web.bind.annotation.RestController;

    @RestController
    @RequestMapping("/server-app")
    public class Controller {

        @GetMapping("/data")
        public String getData(){

            System.out.println("Returning data from server-app data method");
            return "Hello from Server-App-data method";
        }
    }

客户端

application.properties

spring.application.name=client-app

    server.port=9001
    server.ssl.enabled=true
    server.ssl.client-auth=need
    server.ssl.key-store=classpath:client-app.jks
    server.ssl.key-store-password=client-app
    server.ssl.key-alias=client-app
    server.ssl.key-store-type=JKS
    server.ssl.key-store-provider=SUN
    server.ssl.trust-store=classpath:client-app.jks
    server.ssl.trust-store-password=client-app
    server.ssl.trust-store-type=JKS

    endpoint.server-app=https://localhost:9002/server-app/data

ClientMain.java

package cn.client;

    import org.apache.http.client.HttpClient;
    import org.apache.http.conn.ssl.NoopHostnameVerifier;
    import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
    import org.apache.http.conn.ssl.TrustSelfSignedStrategy;
    import org.apache.http.impl.client.HttpClients;
    import org.apache.http.ssl.SSLContextBuilder;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.boot.CommandLineRunner;
    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.context.annotation.Bean;
    import org.springframework.core.io.ClassPathResource;
    import org.springframework.http.client.HttpComponentsClientHttpRequestFactory;
    import org.springframework.web.client.RestTemplate;

    import java.io.InputStream;
    import java.net.URI;
    import java.security.KeyStore;

    @SpringBootApplication
    public class ClientMain implements CommandLineRunner {

        @Autowired
        RestTemplate restTemplate;

        @Value("${endpoint.server-app}")
        private String msEndpoint;

        @Bean
        public RestTemplate getRestTemplate(){

            RestTemplate restTemplate = new RestTemplate();

            KeyStore keyStore;
            HttpComponentsClientHttpRequestFactory requestFactory = null;

            try {
                keyStore = KeyStore.getInstance("jks");
                ClassPathResource classPathResource = new ClassPathResource("client-app.jks");
                InputStream inputStream = classPathResource.getInputStream();
                keyStore.load(inputStream, "client-app".toCharArray());

                SSLConnectionSocketFactory socketFactory = new SSLConnectionSocketFactory(new SSLContextBuilder()
                        .loadTrustMaterial(null, new TrustSelfSignedStrategy())
                        .loadKeyMaterial(keyStore, "client-app".toCharArray()).build(),
                        NoopHostnameVerifier.INSTANCE);

                HttpClient httpClient = HttpClients.custom().setSSLSocketFactory(socketFactory)
                        .setMaxConnTotal(Integer.valueOf(5))
                        .setMaxConnPerRoute(Integer.valueOf(5))
                        .build();

                requestFactory = new HttpComponentsClientHttpRequestFactory(httpClient);
                requestFactory.setReadTimeout(Integer.valueOf(10000));
                requestFactory.setConnectTimeout(Integer.valueOf(10000));

                restTemplate.setRequestFactory(requestFactory);
            }
            catch (Exception exception) {

                System.out.println("Exception Occured while creating restTemplate "+exception);
                exception.printStackTrace();
            }
            return restTemplate;
        }

        public static void main(String[] args) {

            SpringApplication.run(ClientMain.class, args);
        }

        @Override
        public void run(String... args) throws Exception {

            String forObject = restTemplate.getForObject(new URI(msEndpoint), String.class);
            System.out.println(forObject);
        }
    }

源码打包下载地址：

[https://github.com/fengfanchen/Java/tree/master/SpringBoot-two-way-ssl][https_github.com_fengfanchen_Java_tree_master_SpringBoot-two-way-ssl]
