Flink metric 简单尝试

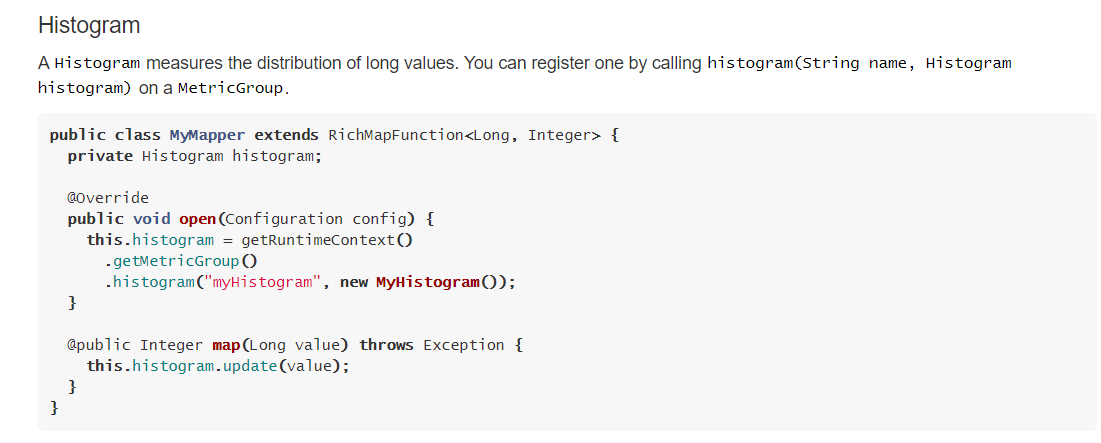

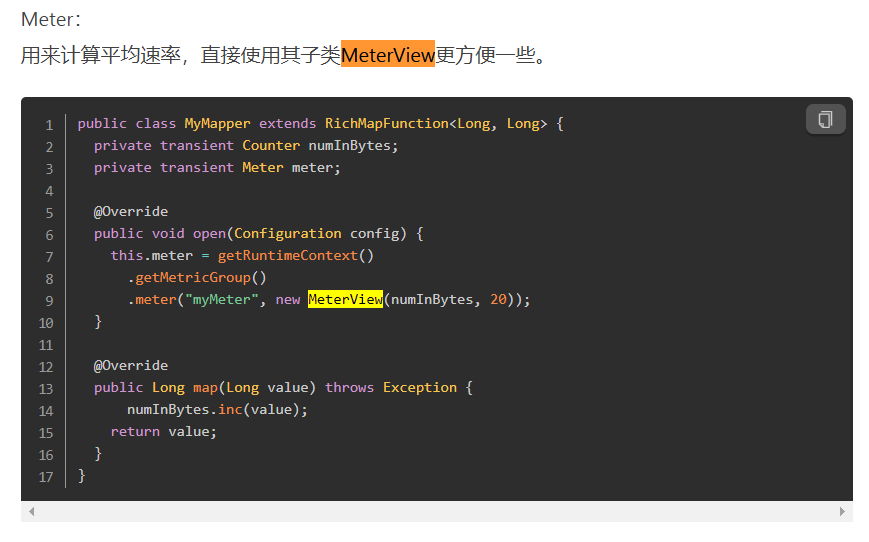

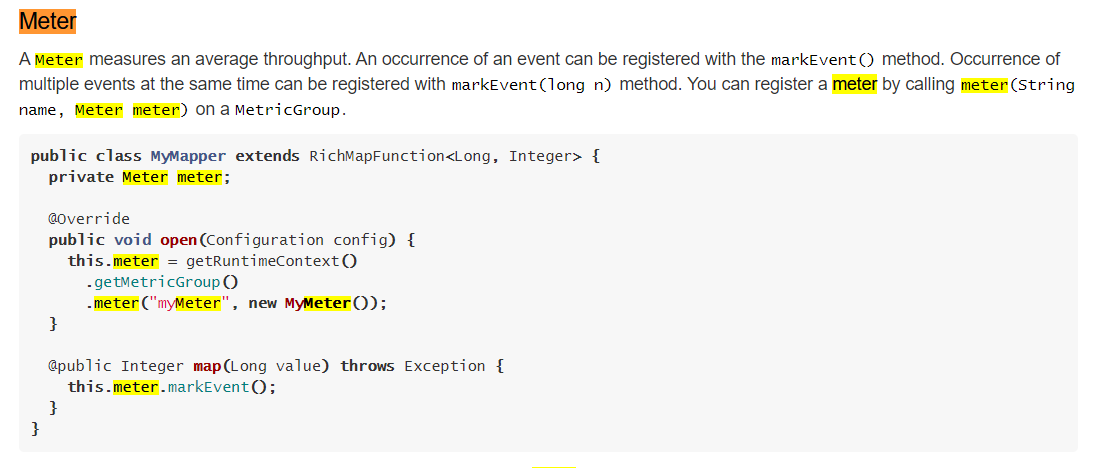

参考文档：

https://ci.apache.org/projects/flink/flink-docs-release-1.3/monitoring/metrics.html

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzMxODY2Nzkz_size_16_color_FFFFFF_t_70

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzMxODY2Nzkz_size_16_color_FFFFFF_t_70 1

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzMxODY2Nzkz_size_16_color_FFFFFF_t_70 2

实际代码：

package metric
import java.util.Properties
import com.sjb.constant.Constants
import org.apache.flink.api.common.functions.RichMapFunction
import org.apache.flink.api.common.serialization.SimpleStringSchema
import org.apache.flink.streaming.api.scala.StreamExecutionEnvironment
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer
import org.apache.flink.api.scala._
import org.apache.flink.configuration.Configuration
import org.apache.flink.metrics.{Counter, Histogram, Meter, MeterView}
import org.apache.flink.runtime.metrics.DescriptiveStatisticsHistogram
//import quartz.QuartzScheduler
//todo metric.MetricTest
object MetricTest {
  def main(args: Array[String]): Unit = {
    val env = StreamExecutionEnvironment.getExecutionEnvironment
    env.setParallelism(1)
    println("启动启动一个定时任务.........")
//    QuartzScheduler.refreshScheduler();
    println("启动定时任务完成.........")
    val properties = new Properties;
    properties.put("bootstrap.servers", Constants.BOOTSTRAP_SERVERS)
    properties.put("group.id", Constants.GROUP_ID_TEST)
    properties.setProperty("flink.partition-discovery.interval-millis", 300 * 1000 + "")
    val stream = env.addSource(new FlinkKafkaConsumer[String](
      "cep_test",
      new SimpleStringSchema(),
      properties).setStartFromEarliest())
    stream.map(new RichMapFunction[String, String] {
      private var counter: Counter = null
      private var meter: Meter = null
      private var histogram: Histogram = null
      override def open(parameters: Configuration): Unit = {
       this.counter = getRuntimeContext()
          .getMetricGroup()
          .addGroup("myGroup")
          .counter("myCounter");
        this.meter = getRuntimeContext()
          .getMetricGroup()
          .addGroup("myGroup")
          .meter("myMeter", new MeterView(10));
        this.histogram = getRuntimeContext()
          .getMetricGroup()
          .addGroup("myGroup")
          .histogram("myHistogram",new DescriptiveStatisticsHistogram(1000));
      }
      override def map(in: String): String = {
//        counter.inc()
        this.meter.markEvent()
        histogram.update(1024)
        val aa = this.meter.getRate
        aa.toString
      }
    }).print("==>")
    env.execute("aaaa")
  }
}
