Spring Cloud Gateway的使用

左手的ㄟ右手 2022-10-29 07:40 184阅读 0赞

官网：[https://cloud.spring.io/spring-cloud-static/spring-cloud-gateway/2.1.0.RELEASE/single/spring-cloud-gateway.html\#\_discoveryclient\_route\_definition\_locator][https_cloud.spring.io_spring-cloud-static_spring-cloud-gateway_2.1.0.RELEASE_single_spring-cloud-gateway.html_discoveryclient_route_definition_locator]

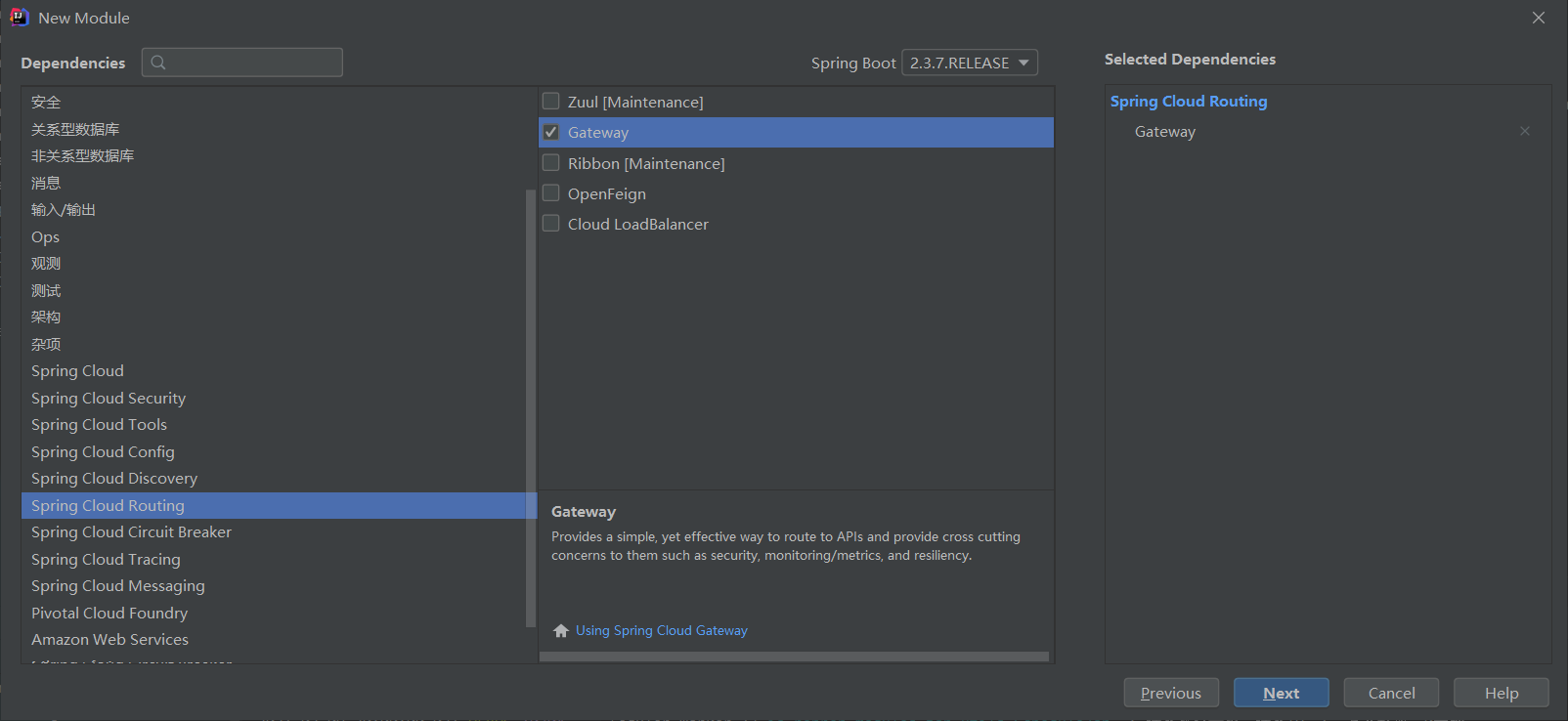

创建一个新module，引入gateway依赖：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2JhaWt1bmxvbmc_size_16_color_FFFFFF_t_70]
然后需要引入nacos的discovery和config两个依赖(版本和其他模块对应即可，一般直接引入common模块即可)：

<dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            </dependency>


            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
            </dependency>

然后配置下注册中心地址和配置中心地址：
application.properties：

# 应用名称
    spring.application.name=gulimall-gateway
    spring.cloud.nacos.discovery.server-addr=127.0.0.1:8848

创建个bootstrap.properties：

spring.application.name=gulimall-gateway
    spring.cloud.nacos.config.server-addr=127.0.0.1:8848

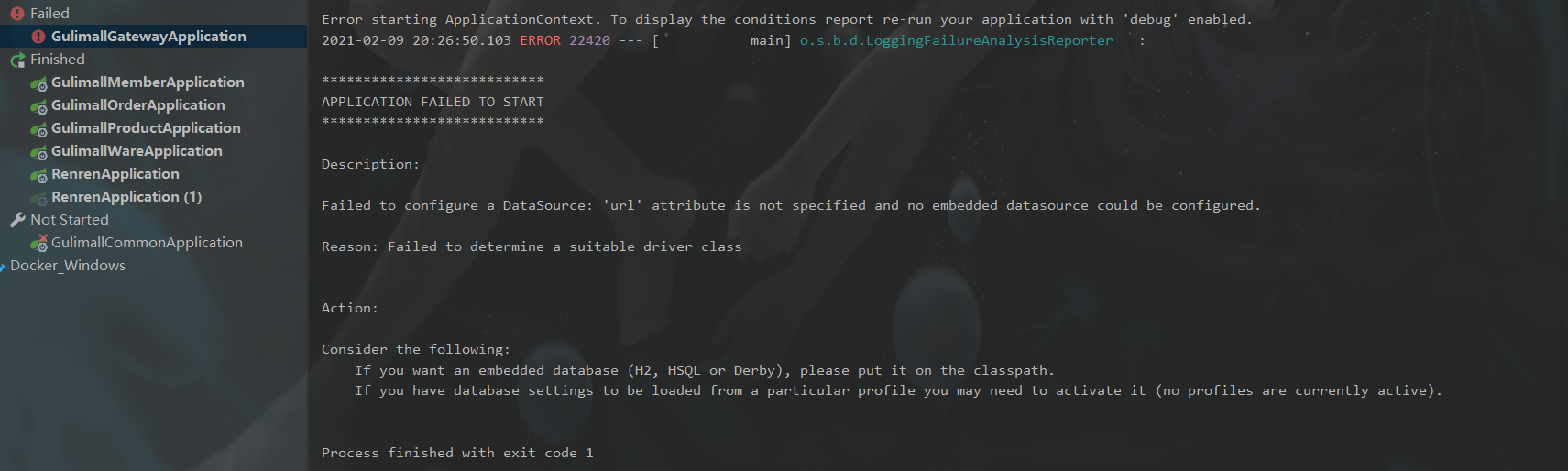

然后启动项目：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2JhaWt1bmxvbmc_size_16_color_FFFFFF_t_70 1]
因为我是引入的common模块，那个模块引入了mybatisplus相关依赖，需要配置数据库信息，解决方法直接在启动类上：
`@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)`

再次启动即可成功。

使用示例（创建个application.yml）：

spring:
      cloud:
        gateway:
          routes:
            - id: to_baidu
              uri: https://www.baidu.com
              predicates:
                - Query=to,baidu #如果携带参数to=baidu则匹配成功，跳转至uri
            - id: to_qq
              uri: https://www.qq.com
              predicates:
                - Query=to,qq

访问即可看到效果：

http://localhost:88/?to=baidu
    http://localhost:88/?to=qq

也可以用编码方式：

package com.atguigu.springcloude.config;

    import org.springframework.cloud.gateway.route.RouteLocator;
    import org.springframework.cloud.gateway.route.builder.RouteLocatorBuilder;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;

    /** * @author baikunlong * @date 2020/12/9 9:37 * 配置路由的第二种方式：采用编码 */
    @Configuration
    public class GatewayConfig {
        @Bean
        public RouteLocator myRouteLocator(RouteLocatorBuilder builder){
            RouteLocatorBuilder.Builder routes = builder.routes();
            // 如果路径包含/guonei则跳转至uri
            routes.route("baidu",r->r.path("/guonei").uri("http://news.baidu.com/guonei"));
            return routes.build();
        }
        @Bean
        public RouteLocator myRouteLocator2(RouteLocatorBuilder builder){
            RouteLocatorBuilder.Builder routes = builder.routes();
            routes.route("baidu2",r->r.path("/guoji").uri("http://news.baidu.com/guoji"));
            return routes.build();
        }
    }

可以自定义过滤器：

package com.atguigu.springcloude.filter;

    import lombok.extern.slf4j.Slf4j;
    import org.springframework.cloud.gateway.filter.GatewayFilterChain;
    import org.springframework.cloud.gateway.filter.GlobalFilter;
    import org.springframework.core.Ordered;
    import org.springframework.http.HttpStatus;
    import org.springframework.stereotype.Component;
    import org.springframework.web.server.ServerWebExchange;
    import reactor.core.publisher.Mono;

    import java.time.LocalDateTime;

    /** * @author baikunlong * @date 2020/12/9 11:07 */
    @Component
    @Slf4j
    public class MyLogGatewayFilter implements GlobalFilter, Ordered {
        @Override
        public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
            log.info("进入我的过滤器："+ LocalDateTime.now());
            if(exchange.getRequest().getQueryParams().getFirst("uname")==null){
                log.info("用户名为空，禁止访问");
                exchange.getResponse().setStatusCode(HttpStatus.NOT_ACCEPTABLE);
                return exchange.getResponse().setComplete();
            }
            return chain.filter(exchange);
        }


        @Override
        public int getOrder() {
            //过滤器的顺序，越小等级越高
            return 0;
        }
    }

其他示例：

spring:
      application:
        name: cloud-gateway
      cloud:
        gateway:
          discovery:
            locator:
              enabled: true #开启从注册中心动态创建路由的功能，利用微服务名进行路由
    # 配置路由的第一种方式：采用yml配置（这种简单）
          routes:
            - id: payment_routh #payment_route #路由的ID，没有固定规则但要求唯一，建议配合服务名
    # uri: http://localhost:8001 #匹配后提供服务的路由地址
              uri: lb://cloud-payment-service #匹配后提供服务的路由地址
              predicates:
                - Path=/payment/get/**         # 断言，路径相匹配的进行路由

            - id: payment_routh2 #payment_route #路由的ID，没有固定规则但要求唯一，建议配合服务名
    # uri: http://localhost:8001 #匹配后提供服务的路由地址
              uri: lb://cloud-payment-service #匹配后提供服务的路由地址
    # 断言的所有规则些在该项目启动时会打印
              predicates:
                - Path=/payment/lb/**         # 断言，路径相匹配的进行路由
    # - After=2020-12-09T10:51:37.485+08:00[Asia/Shanghai] #在多久之后才能访问系统
    # Between就可以做秒杀活动，只有该时间段内才能访问系统，否则都是404
    # - Between=2020-12-09T10:51:37.485+08:00[Asia/Shanghai],2020-12-09T11:51:37.485+08:00[Asia/Shanghai]
    # - Cookie=username,zzyy #必须携带username=zzyy的cookie，像这样：curl http://localhost:9527/payment/lb --cookie "username=zzyy"
    # - Header=X-Request-Id, \d+ # 请求头要有X-Request-Id属性并且值为整数的正则表达式，像这样curl http://localhost:9527/payment/lb -H "X-Request-Id:111"
                # 还有一些有用到再看
