Zookeeper下载与安装教程（for windows）

缺乏、安全感 2022-12-20 15:58 2202阅读 0赞

Zookeeper下载与安装教程（for windows）

  • Zookeeper下载
  • Zookeeper安装
    • 前置条件
    • 单机模式部署
    • 伪集群模式部署
    • 集群模式部署
  • Zookeeper简单操作

Zookeeper下载

1、首先进入apache官网

  • https://www.apache.org/
    然后点击中间的Projects->Project List菜单项进入ProjectList页面，如下图：
    在这里插入图片描述
    2、在ProjectList页面中找点Zookeeper链接，然后点击进入Zookeeper的主页，如下图：
    在这里插入图片描述
    3、在Zookeeper主页的顶部点击菜单Project->Releases，进入Zookeeper发布版本信息页面，如下图：
    在这里插入图片描述
    4、找到最新版的下载链接，如下图：
    在这里插入图片描述

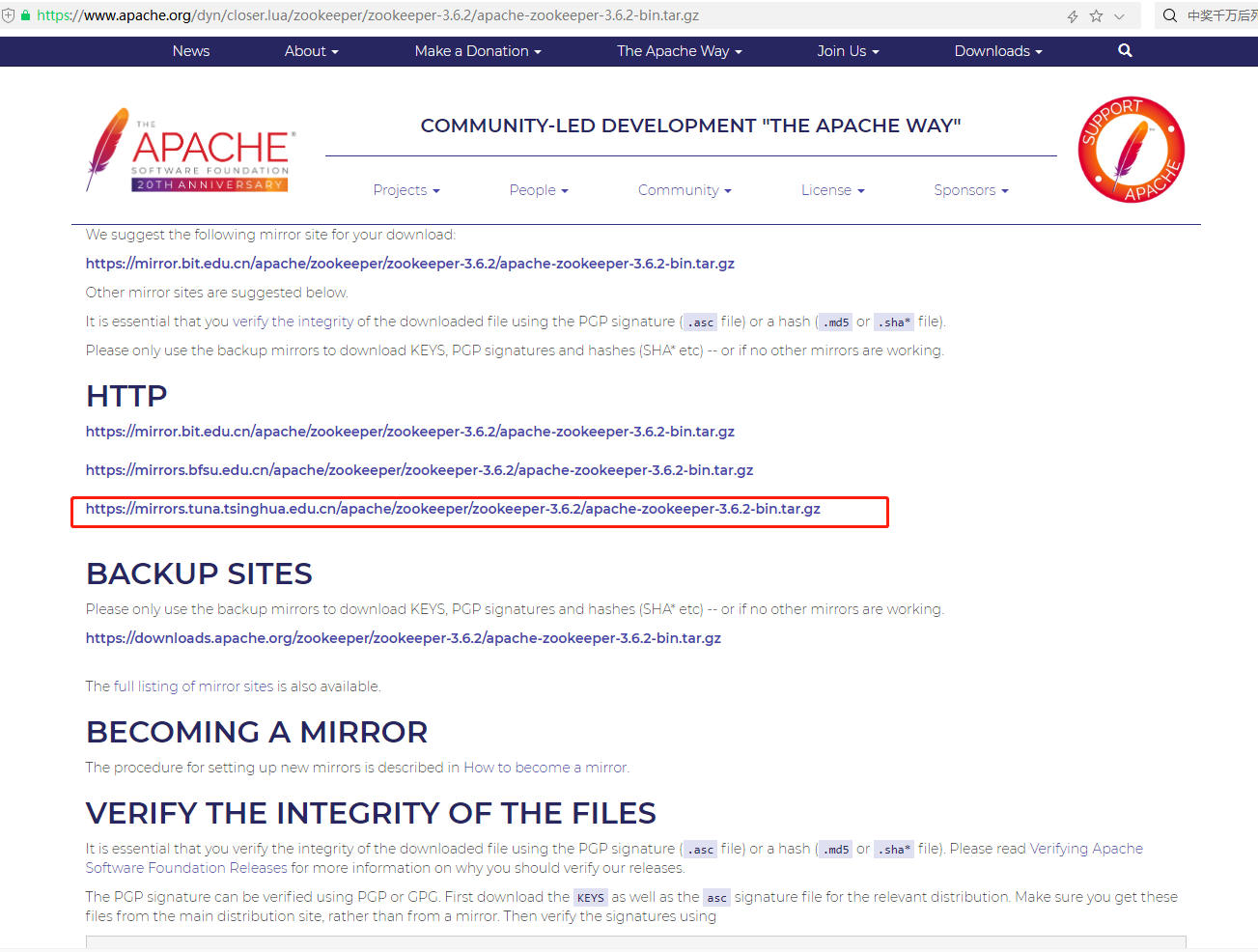

    5、目前最新版本是3.6.2，点击链接进入下载的镜像地址页面，如下图：
    在这里插入图片描述
    6、在国内直接选择清华大学的镜像下载链接进行下载就行，下载后如下图：
    在这里插入图片描述

Zookeeper安装

前置条件

  • 已安装JDK
  • 已配置了环境变量JAVA_HOME，PATH

单机模式部署

1、解压apache-zookeeper-3.6.2-bin.tar.gz至D:\zookeeper\apache-zookeeper-3.6.2-bin。
2、复制D:\zookeeper\apache-zookeeper-3.6.2-bin\conf\zoo-sample.cfg，粘贴为D:\zookeeper\apache-zookeeper-3.6.2-bin\zoo.cfg。
3、修改D:\zookeeper\apache-zookeeper-3.6.2-bin\zoo.cfg。
主要修改了dataDir，如下：

  1. # The number of milliseconds of each tick
  2. tickTime=2000
  3. # The number of ticks that the initial
  4. # synchronization phase can take
  5. initLimit=10
  6. # The number of ticks that can pass between
  7. # sending a request and getting an acknowledgement
  8. syncLimit=5
  9. # the directory where the snapshot is stored.
  10. # do not use /tmp for storage, /tmp here is just
  11. # example sakes.
  12. dataDir=D:\\zookeeper\\data
  13. # the port at which the clients will connect
  14. clientPort=2181
  15. # the maximum number of client connections.
  16. # increase this if you need to handle more clients
  17. #maxClientCnxns=60
  18. #
  19. # Be sure to read the maintenance section of the
  20. # administrator guide before turning on autopurge.
  21. #
  22. # http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
  23. #
  24. # The number of snapshots to retain in dataDir
  25. #autopurge.snapRetainCount=3
  26. # Purge task interval in hours
  27. # Set to "0" to disable auto purge feature
  28. #autopurge.purgeInterval=1
  30. ## Metrics Providers
  31. #
  32. # https://prometheus.io Metrics Exporter
  33. #metricsProvider.className=org.apache.zookeeper.metrics.prometheus.PrometheusMetricsProvider
  34. #metricsProvider.httpPort=7000
  35. #metricsProvider.exportJvmInfo=true
  37. # server.N = YYY:A:B

配置文件关键配置项说明：

  • tickTime：这个时间是作为 Zookeeper 服务器之间或客户端与服务器之间维持心跳的时间间隔，也就是每个 tickTime 时间就会发送一个心跳。
  • initLimit：LF初始通信时限，集群中的follower服务器（F）与leader服务器（L）之间初始连接时能容忍的最多心跳数（tickTime的数量）。
  • syncLimit：LF同步通信时限，集群中的follower服务器与leader服务器之间请求和应答之间能容忍的最多心跳数（tickTime的数量）。
  • dataDir：顾名思义就是 Zookeeper 保存数据的目录，默认情况下，Zookeeper 将写数据的日志文件也保存在这个目录里。
  • clientPort：客户端连接端口，这个端口就是客户端连接 Zookeeper 服务器的端口，Zookeeper 会监听这个端口，接受客户端的访问请求
  • autopurge.snapRetainCount：保留数量。
  • autopurge.purgeInterval：清理时间间隔，单位：小时。
  • server.N = YYY:A:B，其中N表示服务器编号，YYY表示服务器的IP地址，A为LF通信端口，表示该服务器与集群中的leader交换的信息的端口。B为选举端口，表示选举新leader时服务器间相互通信的端口（当leader挂掉时，其余服务器会相互通信，选择出新的leader）。一般来说，集群中每个服务器的A端口都是一样，每个服务器的B端口也是一样。但是当所采用的为伪集群时，IP地址都一样，只能时A端口和B端口不一样。

4、启动Zookeeper服务器。
在bin目录下执行

  1. zkServer.cmd

就可以了，如下：

  1. D:\zookeeper\apache-zookeeper-3.6.2-bin\bin>zkServer.cmd
  3. D:\zookeeper\apache-zookeeper-3.6.2-bin\bin>call "C:\Java\jre1.8.0_144"\bin\java "-Dzookeeper.log.dir=D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\logs" "-Dzookeeper.root.logger=INFO,CONSOLE" "-Dzookeeper.log.file=zookeeper-Administrator-server-ECS-A0E1-0001.log" "-XX:+HeapDumpOnOutOfMemoryError" "-XX:OnOutOfMemoryError=cmd /c taskkill /pid %%p /t /f" -cp "D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\build\classes;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\build\lib\*;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\*;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\*;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\conf" org.apache.zookeeper.server.quorum.QuorumPeerMain "D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\conf\zoo.cfg"
  4. 2020-11-13 14:13:15,368 [myid:] - INFO  [main:QuorumPeerConfig@174] - Reading configuration from: D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\conf\zoo.cfg
  5. 2020-11-13 14:13:15,399 [myid:] - INFO  [main:QuorumPeerConfig@460] - clientPortAddress is 0.0.0.0:2181
  6. 2020-11-13 14:13:15,399 [myid:] - INFO  [main:QuorumPeerConfig@464] - secureClientPort is not set
  7. 2020-11-13 14:13:15,399 [myid:] - INFO  [main:QuorumPeerConfig@480] - observerMasterPort is not set
  8. 2020-11-13 14:13:15,399 [myid:] - INFO  [main:QuorumPeerConfig@497] - metricsProvider.className is org.apache.zookeeper.metrics.impl.DefaultMetricsProvider
  9. 2020-11-13 14:13:15,399 [myid:] - INFO  [main:DatadirCleanupManager@78] - autopurge.snapRetainCount set to 3
  10. 2020-11-13 14:13:15,399 [myid:] - INFO  [main:DatadirCleanupManager@79] - autopurge.purgeInterval set to 0
  11. 2020-11-13 14:13:15,399 [myid:] - INFO  [main:DatadirCleanupManager@101] - Purge task is not scheduled.
  12. 2020-11-13 14:13:15,399 [myid:] - WARN  [main:QuorumPeerMain@138] - Either no config or no quorum defined in config, running in standalone mode
  13. 2020-11-13 14:13:15,399 [myid:] - INFO  [main:ManagedUtil@44] - Log4j 1.2 jmx support found and enabled.
  14. 2020-11-13 14:13:15,461 [myid:] - INFO  [main:QuorumPeerConfig@174] - Reading configuration from: D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\conf\zoo.cfg
  15. 2020-11-13 14:13:15,461 [myid:] - INFO  [main:QuorumPeerConfig@460] - clientPortAddress is 0.0.0.0:2181
  16. 2020-11-13 14:13:15,461 [myid:] - INFO  [main:QuorumPeerConfig@464] - secureClientPort is not set
  17. 2020-11-13 14:13:15,461 [myid:] - INFO  [main:QuorumPeerConfig@480] - observerMasterPort is not set
  18. 2020-11-13 14:13:15,461 [myid:] - INFO  [main:QuorumPeerConfig@497] - metricsProvider.className is org.apache.zookeeper.metrics.impl.DefaultMetricsProvider
  19. 2020-11-13 14:13:15,461 [myid:] - INFO  [main:ZooKeeperServerMain@122] - Starting server
  20. 2020-11-13 14:13:15,508 [myid:] - INFO  [main:ServerMetrics@62] - ServerMetrics initialized with provider org.apache.zookeeper.metrics.impl.DefaultMetricsProvider@61443d8f
  21. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:FileTxnSnapLog@124] - zookeeper.snapshot.trust.empty : false
  22. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -
  23. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -   ______                  _
  24. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -  |___  /                 | |
  25. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -     / /    ___     ___   | | __   ___    ___   _ __     ___   _ __
  26. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -    / /    / _ \   / _ \  | |/ /  / _ \  / _ \ | '_ \   / _ \ | '__|
  27. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -   / /__  | (_) | | (_) | |   <  |  __/ |  __/ | |_) | |  __/ | |
  28. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -  /_____|  \___/   \___/  |_|\_\  \___|  \___| | .__/   \___| |_|
  29. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -                                               | |
  30. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -                                               |_|
  31. 2020-11-13 14:13:15,524 [myid:] - INFO  [main:ZookeeperBanner@42] -
  32. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:zookeeper.version=3.6.2--803c7f1a12f85978cb049af5e4ef23bd8b688715, built on 09/04/2020 12:44 GMT
  33. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:host.name=ecs-a0e1-0001
  34. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:java.version=1.8.0_144
  35. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:java.vendor=Oracle Corporation
  36. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:java.home=C:\Java\jre1.8.0_144
  37. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:java.class.path=D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\build\classes;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\build\lib\*;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\*;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\audience-annotations-0.5.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\commons-cli-1.2.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\commons-lang-2.6.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jackson-annotations-2.10.3.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jackson-core-2.10.3.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jackson-databind-2.10.3.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\javax.servlet-api-3.1.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-http-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-io-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-security-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-server-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-servlet-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-util-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jline-2.14.6.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\json-simple-1.1.1.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\log4j-1.2.17.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\metrics-core-3.2.5.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-buffer-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-codec-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-common-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-handler-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-resolver-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-transport-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-transport-native-epoll-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-transport-native-unix-common-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\simpleclient-0.6.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\simpleclient_common-0.6.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\simpleclient_hotspot-0.6.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\simpleclient_servlet-0.6.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\slf4j-api-1.7.25.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\slf4j-log4j12-1.7.25.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\snappy-java-1.1.7.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\zookeeper-3.6.2.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\zookeeper-jute-3.6.2.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\zookeeper-prometheus-metrics-3.6.2.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\conf
  38. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:java.library.path=C:\Java\jre1.8.0_144\bin;C:\Windows\Sun\Java\bin;C:\Windows\system32;C:\Windows;C:\ProgramData\Oracle\Java\javapath;C:\Python39\Scripts\;C:\Python39\;C:\Windows\system32;C:\Windows;C:\Windows\System32\Wbem;C:\Windows\System32\WindowsPowerShell\v1.0\;C:\Program Files\nodejs\;C:\ProgramData\chocolatey\bin;C:\Program Files\nodejs;D:\nodejs\node_global;C:\Program Files\Git\cmd;C:\Java\jre1.8.0_144\bin;C:\Redis\;C:\Users\Administrator\AppData\Local\Microsoft\WindowsApps;C:\Users\Administrator\AppData\Roaming\npm;D:\nodejs\node_global;C:\Users\Administrator\AppData\Local\Programs\Microsoft VS Code\bin;C:\Java\jre1.8.0_144\bin;.
  39. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:java.io.tmpdir=C:\Users\ADMINI~1\AppData\Local\Temp\2\
  40. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:java.compiler=<NA>
  41. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:os.name=Windows Server 2016
  42. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:os.arch=amd64
  43. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:os.version=10.0
  44. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:user.name=Administrator
  45. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:user.home=C:\Users\Administrator
  46. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:user.dir=D:\zookeeper\apache-zookeeper-3.6.2-bin\bin
  47. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:os.memory.free=231MB
  48. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:os.memory.max=3641MB
  49. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:Environment@98] - Server environment:os.memory.total=245MB
  50. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:ZooKeeperServer@129] - zookeeper.enableEagerACLCheck = false
  51. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:ZooKeeperServer@137] - zookeeper.digest.enabled = true
  52. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:ZooKeeperServer@141] - zookeeper.closeSessionTxn.enabled = true
  53. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:ZooKeeperServer@1444] - zookeeper.flushDelay=0
  54. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:ZooKeeperServer@1453] - zookeeper.maxWriteQueuePollTime=0
  55. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:ZooKeeperServer@1462] - zookeeper.maxBatchSize=1000
  56. 2020-11-13 14:13:15,539 [myid:] - INFO  [main:ZooKeeperServer@243] - zookeeper.intBufferStartingSizeBytes = 1024
  57. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:BlueThrottle@141] - Weighed connection throttling is disabled
  58. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:ZooKeeperServer@1256] - minSessionTimeout set to 4000
  59. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:ZooKeeperServer@1265] - maxSessionTimeout set to 40000
  60. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:ResponseCache@45] - Response cache size is initialized with value 400.
  61. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:ResponseCache@45] - Response cache size is initialized with value 400.
  62. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:RequestPathMetricsCollector@111] - zookeeper.pathStats.slotCapacity = 60
  63. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:RequestPathMetricsCollector@112] - zookeeper.pathStats.slotDuration = 15
  64. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:RequestPathMetricsCollector@113] - zookeeper.pathStats.maxDepth = 6
  65. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:RequestPathMetricsCollector@114] - zookeeper.pathStats.initialDelay = 5
  66. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:RequestPathMetricsCollector@115] - zookeeper.pathStats.delay = 5
  67. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:RequestPathMetricsCollector@116] - zookeeper.pathStats.enabled = false
  68. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:ZooKeeperServer@1481] - The max bytes for all large requests are set to 104857600
  69. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:ZooKeeperServer@1495] - The large request threshold is set to -1
  70. 2020-11-13 14:13:15,555 [myid:] - INFO  [main:ZooKeeperServer@339] - Created server with tickTime 2000 minSessionTimeout 4000 maxSessionTimeout 40000 clientPortListenBacklog -1 datadir D:\zookeeper\data\version-2 snapdir D:\zookeeper\data\version-2
  71. 2020-11-13 14:13:15,571 [myid:] - INFO  [main:Log@169] - Logging initialized @365ms to org.eclipse.jetty.util.log.Slf4jLog
  72. 2020-11-13 14:13:15,633 [myid:] - WARN  [main:ContextHandler@1520] - o.e.j.s.ServletContextHandler@32709393{/,null,UNAVAILABLE} contextPath ends with /*
  73. 2020-11-13 14:13:15,633 [myid:] - WARN  [main:ContextHandler@1531] - Empty contextPath
  74. 2020-11-13 14:13:15,649 [myid:] - INFO  [main:Server@359] - jetty-9.4.24.v20191120; built: 2019-11-20T21:37:49.771Z; git: 363d5f2df3a8a28de40604320230664b9c793c16; jvm 1.8.0_144-b01
  75. 2020-11-13 14:13:15,680 [myid:] - INFO  [main:DefaultSessionIdManager@333] - DefaultSessionIdManager workerName=node0
  76. 2020-11-13 14:13:15,680 [myid:] - INFO  [main:DefaultSessionIdManager@338] - No SessionScavenger set, using defaults
  77. 2020-11-13 14:13:15,680 [myid:] - INFO  [main:HouseKeeper@140] - node0 Scavenging every 660000ms
  78. 2020-11-13 14:13:15,680 [myid:] - WARN  [main:ConstraintSecurityHandler@757] - ServletContext@o.e.j.s.ServletContextHandler@32709393{/,null,STARTING} has uncovered http methods for path: /*
  79. 2020-11-13 14:13:15,696 [myid:] - INFO  [main:ContextHandler@825] - Started o.e.j.s.ServletContextHandler@32709393{/,null,AVAILABLE}
  80. 2020-11-13 14:13:15,727 [myid:] - INFO  [main:AbstractConnector@330] - Started ServerConnector@2f686d1f{HTTP/1.1,[http/1.1]}{0.0.0.0:8080}
  81. 2020-11-13 14:13:15,727 [myid:] - INFO  [main:Server@399] - Started @514ms
  82. 2020-11-13 14:13:15,727 [myid:] - INFO  [main:JettyAdminServer@182] - Started AdminServer on address 0.0.0.0, port 8080 and command URL /commands
  83. 2020-11-13 14:13:15,727 [myid:] - INFO  [main:ServerCnxnFactory@169] - Using org.apache.zookeeper.server.NIOServerCnxnFactory as server connection factory
  84. 2020-11-13 14:13:15,727 [myid:] - WARN  [main:ServerCnxnFactory@309] - maxCnxns is not configured, using default value 0.
  85. 2020-11-13 14:13:15,727 [myid:] - INFO  [main:NIOServerCnxnFactory@666] - Configuring NIO connection handler with 10s sessionless connection timeout, 2 selector thread(s), 16 worker threads, and 64 kB direct buffers.
  86. 2020-11-13 14:13:15,727 [myid:] - INFO  [main:NIOServerCnxnFactory@674] - binding to port 0.0.0.0/0.0.0.0:2181
  87. 2020-11-13 14:13:15,755 [myid:] - INFO  [main:WatchManagerFactory@42] - Using org.apache.zookeeper.server.watch.WatchManager as watch manager
  88. 2020-11-13 14:13:15,755 [myid:] - INFO  [main:WatchManagerFactory@42] - Using org.apache.zookeeper.server.watch.WatchManager as watch manager
  89. 2020-11-13 14:13:15,756 [myid:] - INFO  [main:ZKDatabase@132] - zookeeper.snapshotSizeFactor = 0.33
  90. 2020-11-13 14:13:15,757 [myid:] - INFO  [main:ZKDatabase@152] - zookeeper.commitLogCount=500
  91. 2020-11-13 14:13:15,761 [myid:] - INFO  [main:SnapStream@61] - zookeeper.snapshot.compression.method = CHECKED
  92. 2020-11-13 14:13:15,767 [myid:] - INFO  [main:FileSnap@85] - Reading snapshot D:\zookeeper\data\version-2\snapshot.0
  93. 2020-11-13 14:13:15,769 [myid:] - INFO  [main:DataTree@1737] - The digest value is empty in snapshot
  94. 2020-11-13 14:13:15,780 [myid:] - INFO  [main:FileTxnSnapLog@363] - 8 txns loaded in 3 ms
  95. 2020-11-13 14:13:15,780 [myid:] - INFO  [main:ZKDatabase@289] - Snapshot loaded in 22 ms, highest zxid is 0x8, digest is 1371985504
  96. 2020-11-13 14:13:15,781 [myid:] - INFO  [main:FileTxnSnapLog@470] - Snapshotting: 0x8 to D:\zookeeper\data\version-2\snapshot.8
  97. 2020-11-13 14:13:15,782 [myid:] - INFO  [main:ZooKeeperServer@529] - Snapshot taken in 2 ms
  98. 2020-11-13 14:13:15,790 [myid:] - INFO  [ProcessThread(sid:0 cport:2181)::PrepRequestProcessor@136] - PrepRequestProcessor (sid:0) started, reconfigEnabled=false
  99. 2020-11-13 14:13:15,790 [myid:] - INFO  [main:RequestThrottler@74] - zookeeper.request_throttler.shutdownTimeout = 10000
  100. 2020-11-13 14:13:15,802 [myid:] - INFO  [main:ContainerManager@83] - Using checkIntervalMs=60000 maxPerMinute=10000 maxNeverUsedIntervalMs=0
  101. 2020-11-13 14:13:15,802 [myid:] - INFO  [main:ZKAuditProvider@42] - ZooKeeper audit is disabled.

伪集群模式部署

伪集群模式就是在同一主机启动多个zookeeper并组成集群

1、在同一个主机上，通过复制得到三个zookeeper实例

  • zookeeper-3.6.2-12181
  • zookeeper-3.6.2-12182
  • zookeeper-3.6.2-12183

2、对三个zookeeper节点进行配置
zookeeper1配置文件/conf/zoo.cfg修改如下：

  1. tickTime=2000
  2. initLimit=5
  3. syncLimit=2
  4. dataDir=D:\\zookeeper\\data\\zookeeper-cluster\\zookeeper-3.6.2-12181\\data
  5. clientPort=12181
  7. server.1=127.0.0.1:12888:13888
  8. server.2=127.0.0.1:14888:15888
  9. server.3=127.0.0.1:16888:17888

注：server.1中的数字1为服务器的ID，需要与data/myid文件中的id一致

zookeeper2配置文件/conf/zoo.cfg修改如下：

  1. tickTime=2000
  2. initLimit=5
  3. syncLimit=2
  4. dataDir=D:\\zookeeper\\data\\zookeeper-cluster\\zookeeper-3.6.2-12182\\data
  5. clientPort=12182
  7. server.1=127.0.0.1:12888:13888
  8. server.2=127.0.0.1:14888:15888
  9. server.3=127.0.0.1:16888:17888

zookeeper3配置文件/conf/zoo.cfg修改如下：

  1. tickTime=2000
  2. initLimit=5
  3. syncLimit=2
  4. dataDir=D:\\zookeeper\\data\\zookeeper-cluster\\zookeeper-3.6.2-12183\\data
  5. clientPort=12183
  7. server.1=127.0.0.1:12888:13888
  8. server.2=127.0.0.1:14888:15888
  9. server.3=127.0.0.1:16888:17888

3、分别启动三个zookeeper节点

集群模式部署

集群模式就是在不同主机上安装zookeeper然后组成集群的模式，可以参考伪集群模式安装

1、在三台机器上分别部署1个ZooKeeper实例
2、zookeeper配置文件conf/zoo.cfg，如下：

  1. tickTime=2000
  2. initLimit=5
  3. syncLimit=2
  4. dataDir=D:\\zookeeper\\data
  5. clientPort=2181
  7. server.1=127.0.0.1:2888:3888
  8. server.2=127.0.0.2:2888:3888
  9. server.3=127.0.0.3:2888:3888

3、zookeeper的data/myid配置，使用如下命令：
当然zookeeper1 对应的是 1，zookeeper2 对应的是 2，zookeeper3 对应的是 3
4、分别启动三个zookeeper节点，即完成对ZooKeeper集群的安装

Zookeeper简单操作

1、使用客户端连接Zookeeper服务。
在bin目录下执行

  1. zkCli.cmd -server 127.0.0.1:2181

就可以了，如下：

  1. D:\zookeeper\apache-zookeeper-3.6.2-bin\bin>zkCli.cmd -server 127.0.0.1:2181
  2. Connecting to 127.0.0.1:2181
  3. 2020-11-13 14:15:07,950 [myid:] - INFO  [main:Environment@98] - Client environment:zookeeper.version=3.6.2--803c7f1a12f85978cb049af5e4ef23bd8b688715, built on 09/04/2020 12:44 GMT
  4. 2020-11-13 14:15:07,952 [myid:] - INFO  [main:Environment@98] - Client environment:host.name=ecs-a0e1-0001
  5. 2020-11-13 14:15:07,952 [myid:] - INFO  [main:Environment@98] - Client environment:java.version=1.8.0_144
  6. 2020-11-13 14:15:07,954 [myid:] - INFO  [main:Environment@98] - Client environment:java.vendor=Oracle Corporation
  7. 2020-11-13 14:15:07,954 [myid:] - INFO  [main:Environment@98] - Client environment:java.home=C:\Java\jre1.8.0_144
  8. 2020-11-13 14:15:07,954 [myid:] - INFO  [main:Environment@98] - Client environment:java.class.path=D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\build\classes;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\build\lib\*;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\*;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\audience-annotations-0.5.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\commons-cli-1.2.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\commons-lang-2.6.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jackson-annotations-2.10.3.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jackson-core-2.10.3.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jackson-databind-2.10.3.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\javax.servlet-api-3.1.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-http-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-io-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-security-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-server-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-servlet-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jetty-util-9.4.24.v20191120.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\jline-2.14.6.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\json-simple-1.1.1.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\log4j-1.2.17.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\metrics-core-3.2.5.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-buffer-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-codec-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-common-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-handler-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-resolver-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-transport-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-transport-native-epoll-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\netty-transport-native-unix-common-4.1.50.Final.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\simpleclient-0.6.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\simpleclient_common-0.6.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\simpleclient_hotspot-0.6.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\simpleclient_servlet-0.6.0.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\slf4j-api-1.7.25.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\slf4j-log4j12-1.7.25.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\snappy-java-1.1.7.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\zookeeper-3.6.2.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\zookeeper-jute-3.6.2.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\lib\zookeeper-prometheus-metrics-3.6.2.jar;D:\zookeeper\apache-zookeeper-3.6.2-bin\bin\..\conf
  9. 2020-11-13 14:15:07,954 [myid:] - INFO  [main:Environment@98] - Client environment:java.library.path=C:\Java\jre1.8.0_144\bin;C:\Windows\Sun\Java\bin;C:\Windows\system32;C:\Windows;C:\ProgramData\Oracle\Java\javapath;C:\Python39\Scripts\;C:\Python39\;C:\Windows\system32;C:\Windows;C:\Windows\System32\Wbem;C:\Windows\System32\WindowsPowerShell\v1.0\;C:\Program Files\nodejs\;C:\ProgramData\chocolatey\bin;C:\Program Files\nodejs;D:\nodejs\node_global;C:\Program Files\Git\cmd;C:\Java\jre1.8.0_144\bin;C:\Redis\;C:\Users\Administrator\AppData\Local\Microsoft\WindowsApps;C:\Users\Administrator\AppData\Roaming\npm;D:\nodejs\node_global;C:\Users\Administrator\AppData\Local\Programs\Microsoft VS Code\bin;C:\Java\jre1.8.0_144\bin;.
  10. 2020-11-13 14:15:07,955 [myid:] - INFO  [main:Environment@98] - Client environment:java.io.tmpdir=C:\Users\ADMINI~1\AppData\Local\Temp\2\
  11. 2020-11-13 14:15:07,956 [myid:] - INFO  [main:Environment@98] - Client environment:java.compiler=<NA>
  12. 2020-11-13 14:15:07,956 [myid:] - INFO  [main:Environment@98] - Client environment:os.name=Windows Server 2016
  13. 2020-11-13 14:15:07,957 [myid:] - INFO  [main:Environment@98] - Client environment:os.arch=amd64
  14. 2020-11-13 14:15:07,957 [myid:] - INFO  [main:Environment@98] - Client environment:os.version=10.0
  15. 2020-11-13 14:15:07,958 [myid:] - INFO  [main:Environment@98] - Client environment:user.name=Administrator
  16. 2020-11-13 14:15:07,958 [myid:] - INFO  [main:Environment@98] - Client environment:user.home=C:\Users\Administrator
  17. 2020-11-13 14:15:07,959 [myid:] - INFO  [main:Environment@98] - Client environment:user.dir=D:\zookeeper\apache-zookeeper-3.6.2-bin\bin
  18. 2020-11-13 14:15:07,959 [myid:] - INFO  [main:Environment@98] - Client environment:os.memory.free=236MB
  19. 2020-11-13 14:15:07,960 [myid:] - INFO  [main:Environment@98] - Client environment:os.memory.max=3641MB
  20. 2020-11-13 14:15:07,961 [myid:] - INFO  [main:Environment@98] - Client environment:os.memory.total=245MB
  21. 2020-11-13 14:15:07,966 [myid:] - INFO  [main:ZooKeeper@1006] - Initiating client connection, connectString=127.0.0.1:2181 sessionTimeout=30000 watcher=org.apache.zookeeper.ZooKeeperMain$MyWatcher@41a4555e
  22. 2020-11-13 14:15:07,970 [myid:] - INFO  [main:X509Util@77] - Setting -D jdk.tls.rejectClientInitiatedRenegotiation=true to disable client-initiated TLS renegotiation
  23. 2020-11-13 14:15:08,050 [myid:] - INFO  [main:ClientCnxnSocket@239] - jute.maxbuffer value is 1048575 Bytes
  24. 2020-11-13 14:15:08,056 [myid:] - INFO  [main:ClientCnxn@1716] - zookeeper.request.timeout value is 0. feature enabled=false
  25. Welcome to ZooKeeper!
  26. 2020-11-13 14:15:08,061 [myid:127.0.0.1:2181] - INFO  [main-SendThread(127.0.0.1:2181):ClientCnxn$SendThread@1167] - Opening socket connection to server 127.0.0.1/127.0.0.1:2181.
  27. 2020-11-13 14:15:08,061 [myid:127.0.0.1:2181] - INFO  [main-SendThread(127.0.0.1:2181):ClientCnxn$SendThread@1169] - SASL config status: Will not attempt to authenticate using SASL (unknown error)
  28. 2020-11-13 14:15:08,063 [myid:127.0.0.1:2181] - INFO  [main-SendThread(127.0.0.1:2181):ClientCnxn$SendThread@999] - Socket connection established, initiating session, client: /127.0.0.1:56145, server: 127.0.0.1/127.0.0.1:2181
  29. JLine support is enabled
  30. 2020-11-13 14:15:08,077 [myid:127.0.0.1:2181] - INFO  [main-SendThread(127.0.0.1:2181):ClientCnxn$SendThread@1433] - Session establishment complete on server 127.0.0.1/127.0.0.1:2181, session id = 0x10095960df40000, negotiated timeout = 30000
  32. WATCHER::
  34. WatchedEvent state:SyncConnected type:None path:null
  35. [zk: 127.0.0.1:2181(CONNECTED) 0]

2、在客户端使用ls命令来查看当前Zookeeper中所包含的内容：

  • 命令：ls /

    [zk: 127.0.0.1:2181(CONNECTED) 0] ls /
    [zookeeper]
    [zk: 127.0.0.1:2181(CONNECTED) 1]

3、创建一个新的znode节点“zk”以及与它关联的字符串

  • 命令：create zk/ myData

    [zk: 127.0.0.1:2181(CONNECTED) 1] create /zk myData
    Created /zk
    [zk: 127.0.0.1:2181(CONNECTED) 2] ls /
    [zk, zookeeper]
    [zk: 127.0.0.1:2181(CONNECTED) 3]

4、获取znode节点”zk”

  • 命令：get /zk

    [zk: 127.0.0.1:2181(CONNECTED) 3] get /zk
    myData
    [zk: 127.0.0.1:2181(CONNECTED) 4]

5、删除znode节点”zk”

  • 命令：delete /zk

    [zk: 127.0.0.1:2181(CONNECTED) 4] delete /zk
    [zk: 127.0.0.1:2181(CONNECTED) 5]

6、退出客户端

  • 命令：quit

    [zk: 127.0.0.1:2181(CONNECTED) 5] quit

    WATCHER::

    WatchedEvent state:Closed type:None path:null
    2020-11-13 14:27:42,998 [myid:] - INFO [main:ZooKeeper@1619] - Session: 0x10095960df40000 closed
    2020-11-13 14:27:42,998 [myid:] - INFO [main-EventThread:ClientCnxn$EventThread@577] - EventThread shut down for session: 0x10095960df40000
    2020-11-13 14:27:43,000 [myid:] - ERROR [main:ServiceUtils@42] - Exiting JVM with code 0
    D:\zookeeper\apache-zookeeper-3.6.2-bin\bin>

发表评论

表情：
评论列表 （有 0 条评论，2202人围观）

还没有评论，来说两句吧...

相关阅读
