什么是红黑树？

冷不防 2023-02-20 07:14 44阅读 0赞

# 什么是红黑树？ #

![format_png][]

![format_png 1][]

![format_png 2][]

![format_png 3][]

![format_png 4][]

![format_png 5][]

![format_png 6][]

![format_png 7][]

![format_png 8][]

![format_png 9][]

![format_png 10][]

————————————

![format_png 11][]

![format_png 12][]

![format_png 13][]

**二叉查找树（BST）具备什么特性呢？**

1.左子树上所有结点的值均小于或等于它的根结点的值。

2.右子树上所有结点的值均大于或等于它的根结点的值。

3.左、右子树也分别为二叉排序树。

下图中这棵树，就是一颗典型的二叉查找树：

![format_png 14][]

1.查看根节点9：

![format_png 15][]

2.由于10 > 9，因此查看右孩子13：

![format_png 16][]

3.由于10 < 13，因此查看左孩子11：

![format_png 17][]

4.由于10 < 11，因此查看左孩子10，发现10正是要查找的节点：

![format_png 18][]

![format_png 19][]

![format_png 20][]

![format_png 21][]

![format_png 22][]

![format_png 23][]

![format_png 24][]

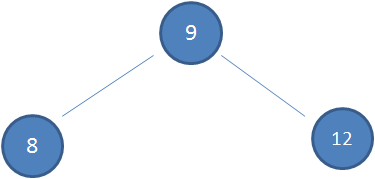

假设初始的二叉查找树只有三个节点，根节点值为9，左孩子值为8，右孩子值为12：

![format_png 25][]

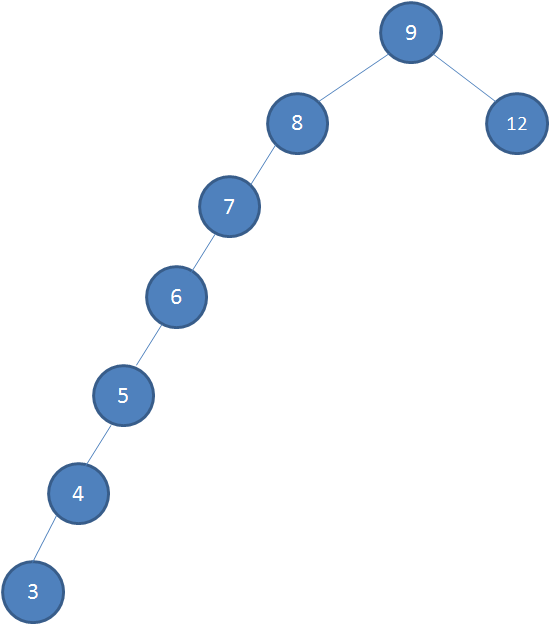

接下来我们依次插入如下五个节点：7,6,5,4,3。依照二叉查找树的特性，结果会变成什么样呢？

![format_png 26][]

![format_png 27][]

![format_png 28][]

![format_png 29][]

![format_png 30][]

1.节点是红色或黑色。

2.根节点是黑色。

3.每个叶子节点都是黑色的空节点（NIL节点）。

4 每个红色节点的两个子节点都是黑色。(从每个叶子到根的所有路径上不能有两个连续的红色节点)

5.从任一节点到其每个叶子的所有路径都包含相同数目的黑色节点。

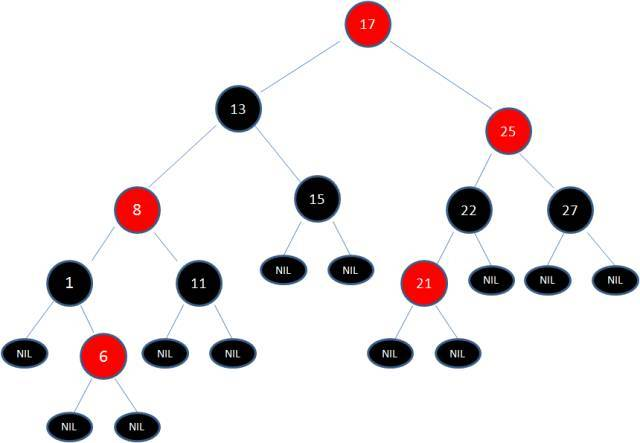

下图中这棵树，就是一颗典型的红黑树：

![format_png 31][]

![format_png 32][]

![format_png 33][]

![format_png 34][]

什么情况下会破坏红黑树的规则，什么情况下不会破坏规则呢？我们举两个简单的栗子：

1.向原红黑树插入值为14的新节点：

![format_png 35][]

2.向原红黑树插入值为21的新节点：

![format_png 36][]

由于父节点22是红色节点，因此这种情况打破了红黑树的规则4（每个红色节点的两个子节点都是黑色），必须进行调整，使之重新符合红黑树的规则。

![format_png 37][]

![format_png 38][]

**变色：**

为了重新符合红黑树的规则，尝试把红色节点变为黑色，或者把黑色节点变为红色。

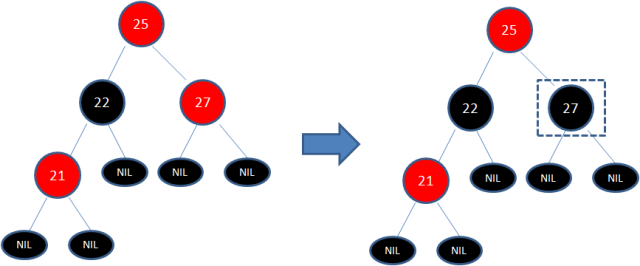

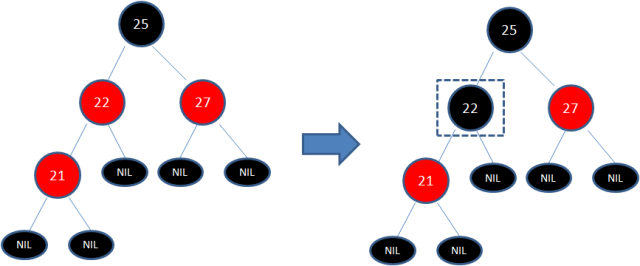

下图所表示的是红黑树的一部分，需要注意节点25并非根节点。因为节点21和节点22连续出现了红色，不符合规则4，所以把节点22从红色变成黑色：

![format_png 39][]

但这样并不算完，因为凭空多出的黑色节点打破了规则5，所以发生连锁反应，需要继续把节点25从黑色变成红色：

![format_png 40][]

此时仍然没有结束，因为节点25和节点27又形成了两个连续的红色节点，需要继续把节点27从红色变成黑色：

![format_png 41][]

**左旋转：**

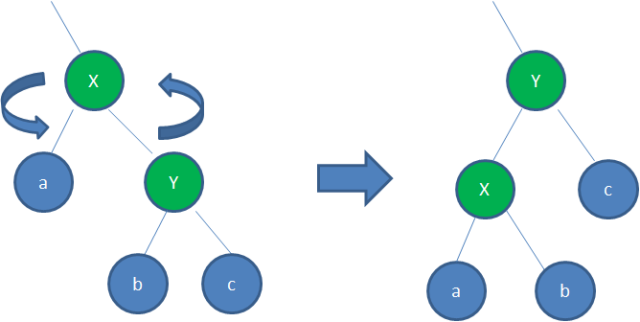

逆时针旋转红黑树的两个节点，使得父节点被自己的右孩子取代，而自己成为自己的左孩子。说起来很怪异，大家看下图：

![format_png 42][]

图中，身为右孩子的Y取代了X的位置，而X变成了自己的左孩子。此为左旋转。

**右旋转：**

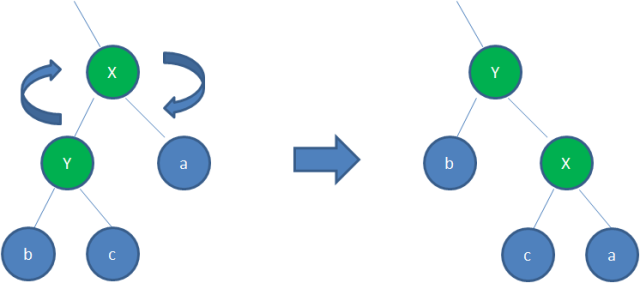

顺时针旋转红黑树的两个节点，使得父节点被自己的左孩子取代，而自己成为自己的右孩子。大家看下图：

![format_png 43][]

图中，身为左孩子的Y取代了X的位置，而X变成了自己的右孩子。此为右旋转。

![format_png 44][]

![format_png 45][]

我们以刚才插入节点21的情况为例：

![format_png 46][]

首先，我们需要做的是变色，把节点25及其下方的节点变色：

![format_png 47][]

此时节点17和节点25是连续的两个红色节点，那么把节点17变成黑色节点？恐怕不合适。这样一来不但打破了规则4，而且根据规则2（根节点是黑色），也不可能把节点13变成红色节点。

变色已无法解决问题，我们把节点13看做X，把节点17看做Y，像刚才的示意图那样进行左旋转：

![format_png 48][]

![format_png 49][]

![format_png 50][]

由于根节点必须是黑色节点，所以需要变色，变色结果如下：

![format_png 51][]

这样就结束了吗？并没有。因为其中两条路径(17 -> 8 -> 6 -> NIL)的黑色节点个数是4，其他路径的黑色节点个数是3，不符合规则5。

这时候我们需要把节点13看做X，节点8看做Y，像刚才的示意图那样进行右旋转：

![format_png 52][]

![format_png 53][]

![format_png 54][]

最后根据规则来进行变色：

![format_png 55][]

如此一来，我们的红黑树变得重新符合规则。这一个例子的调整过程比较复杂，经历了如下步骤：

变色 -> 左旋转 -> 变色 -> 右旋转 -> 变色

![format_png 56][]

![format_png 57][]

![format_png 58][]

![format_png 59][]

**几点说明：**

1. 关于红黑树自平衡的调整，插入和删除节点的时候都涉及到很多种Case，由于篇幅原因无法展开来一一列举，有兴趣的朋友可以参考维基百科，里面讲的非常清晰。

2.漫画中红黑树调整过程的示例是一种比较复杂的情形，没太看明白的小伙伴也不必钻牛角尖，关键要懂得红黑树自平衡调整的主体思想。
