【RocketMQ源码】三、Producer 源码学习

谁借莪１个温暖的怀抱￠ 2023-02-26 10:24 72阅读 0赞

# 一、启动流程 #

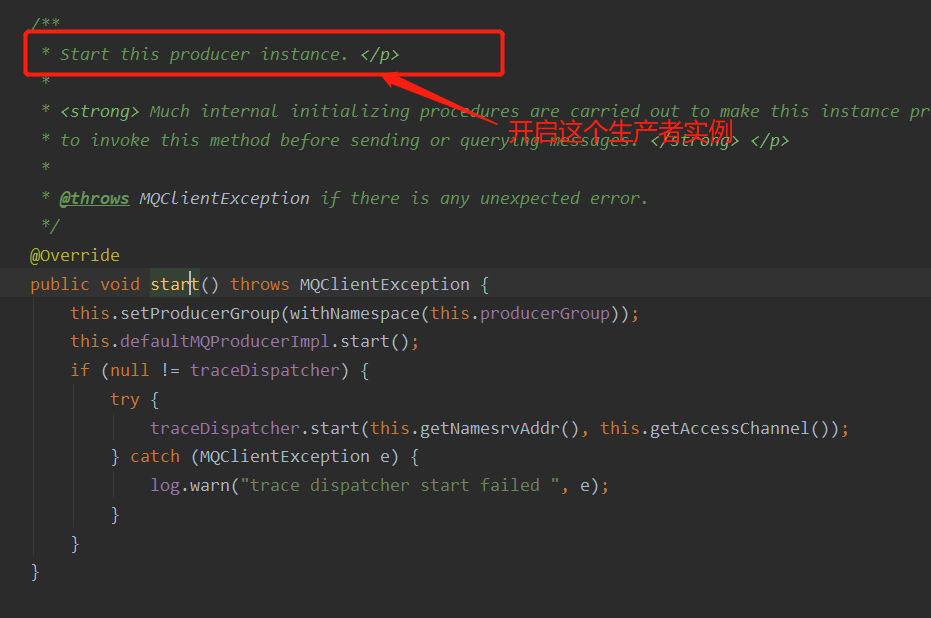

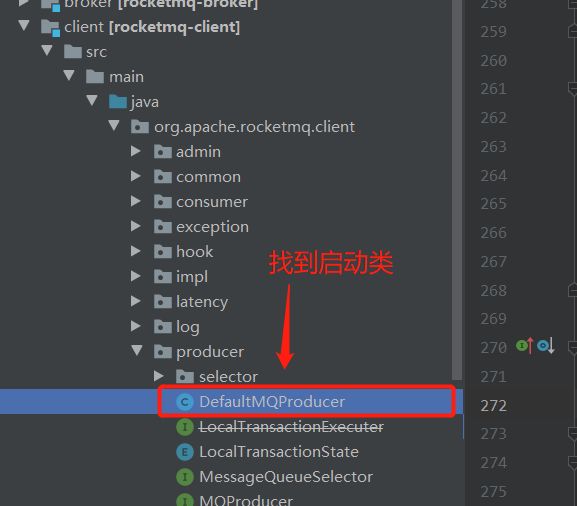

## 1.1 默认启动类解析 ##

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70][]![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 1][]

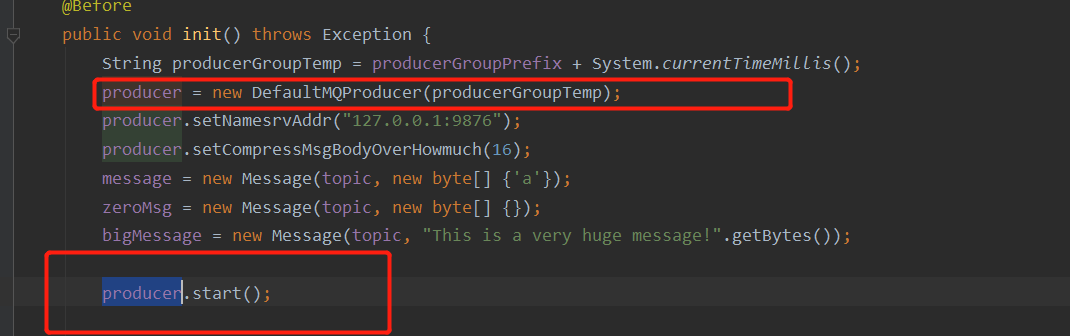

查看这个start 的引用可以发现它是基于 DefaultMQProducer 这个类创建的，即需要通过这个类创建 Producer 并发送消息

![20200715111353959.png][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 2][]

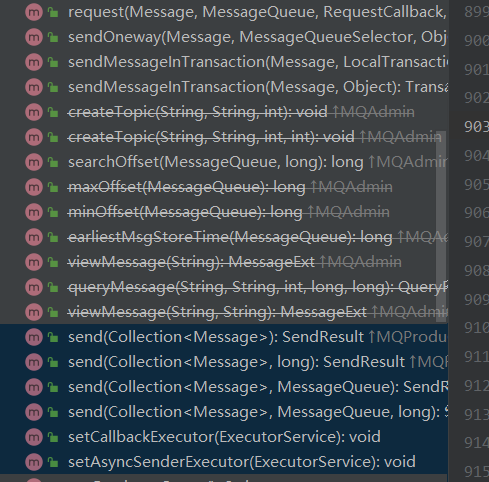

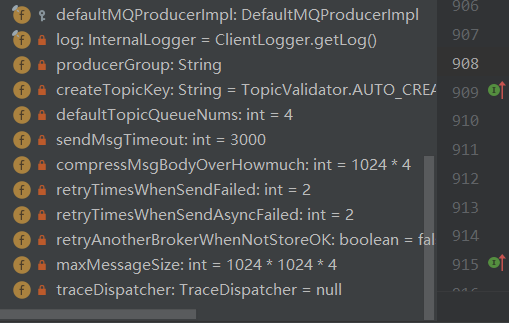

同时可以看到这个类中定义了各种消息的发送方法和默认参数

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 3][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 4][]

## 1.2 默认参数解析 ##

<table>
 <tbody>
  <tr>
   <td><strong>参数名称</strong></td>
   <td style="width:516px;"><strong>参数作用</strong></td>
  </tr>
  <tr>
   <td>producerGroup</td>
   <td style="width:516px;">生产者所属组</td>
  </tr>
  <tr>
   <td>createTopicKey</td>
   <td style="width:516px;">默认Topic</td>
  </tr>
  <tr>
   <td>defaultTopicQueueNums</td>
   <td style="width:516px;">默认主题在每一个Broker队列数量</td>
  </tr>
  <tr>
   <td>sendMsgTimeout</td>
   <td style="width:516px;">发送消息默认超时时间，默认3s</td>
  </tr>
  <tr>
   <td>compressMsgBodyOverHowmuch</td>
   <td style="width:516px;">消息体超过该值则启用压缩，默认4k</td>
  </tr>
  <tr>
   <td>retryTimesWhenSendFailed</td>
   <td style="width:516px;">同步方式发送消息重试次数，默认为2，总共执行3次</td>
  </tr>
  <tr>
   <td>retryTimesWhenSendAsyncFailed</td>
   <td style="width:516px;">异步方法发送消息重试次数，默认为2</td>
  </tr>
  <tr>
   <td>retryAnotherBrokerWhenNotStoreOK</td>
   <td style="width:516px;">消息重试时选择另外一个Broker时，是否不等待存储结果就返回，默认为false</td>
  </tr>
  <tr>
   <td>maxMessageSize</td>
   <td style="width:516px;">允许发送的最大消息长度，默认为4M</td>
  </tr>
 </tbody>
</table>

## 1.3 代码跟踪 ##

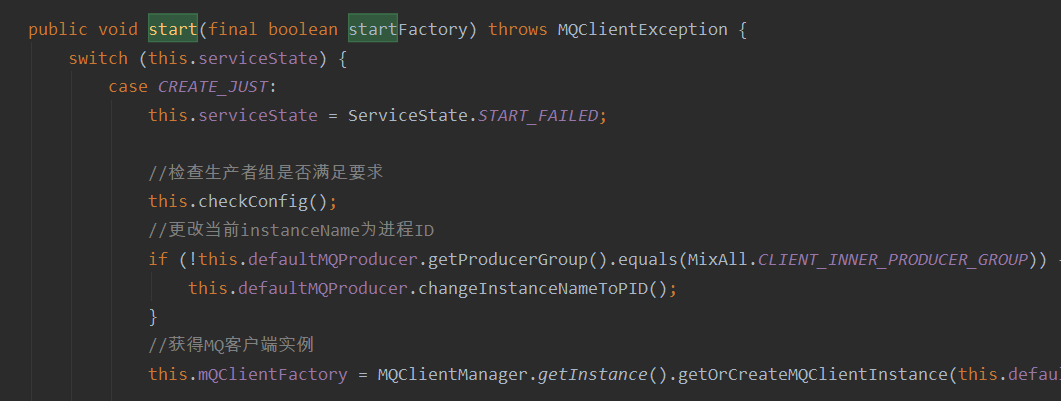

*代码：DefaultMQProducerImpl\#start*

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 5][]

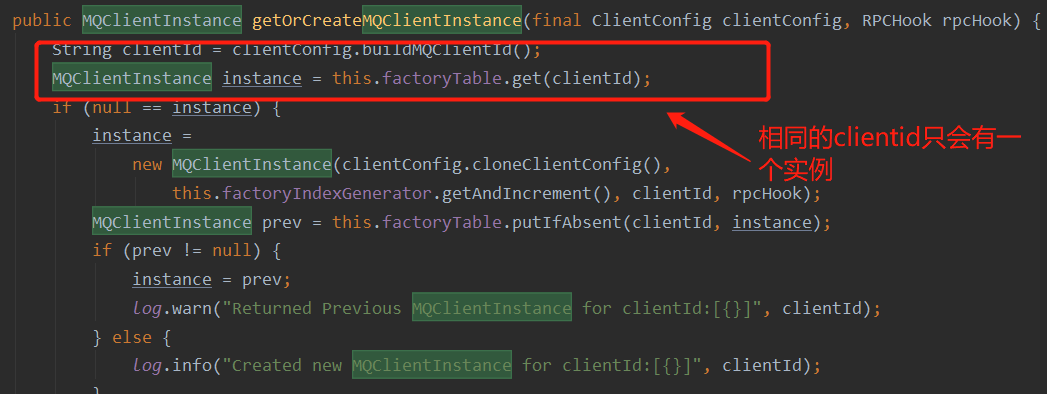

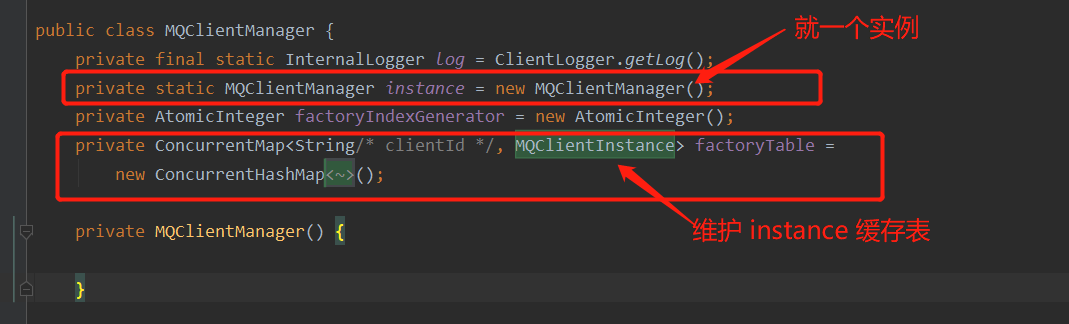

点开 MQClientManager，可以看到整个JVM中只有一个 MQClientManager 实例，维护一个MQClientInstance缓存表

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 6][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 7][]

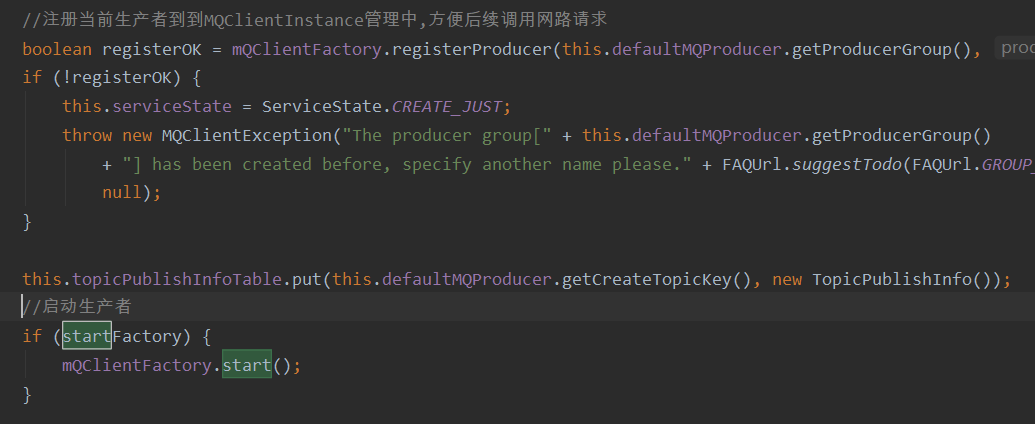

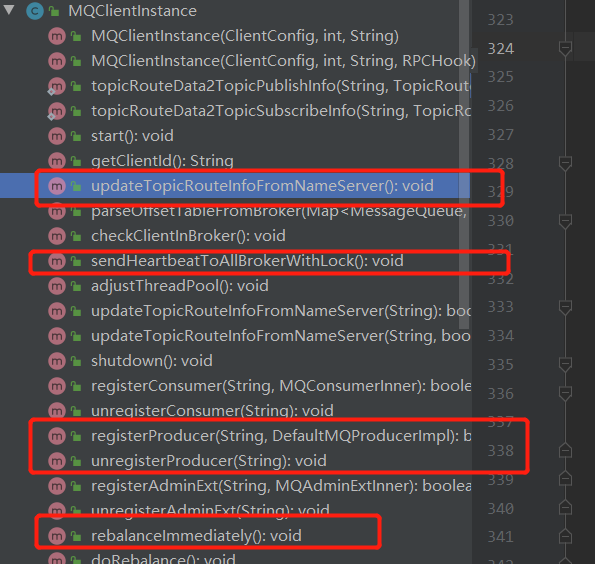

查看MQClientInstance，发现其封装了RocketMQ网络处理API，是消息生产者和消息消费者与NameServer、Broker打交道的网络通道

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 8][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE2MzMx_size_16_color_FFFFFF_t_70 9][]

# 二、消息发送 #
