Gitlab: SSH-Keys管理（API方式:指定用户）

女爷i 2023-02-28 04:24 127阅读 0赞

在这里插入图片描述

使用自己的token管理自己的ssh-key是一种常见的使用场景，还有一种就是仅限于GitLab的admin账户，使用Admin的token可以操作所有用户的ssh-key，这篇文章将继续进行说明。

环境准备

docker-compose文件

  1. liumiaocn:gitlab liumiao$ cat docker-compose.yml
  2. version: '2'
  3. services:
  4.   # Version Control service: Gitlab
  5.   gitlab:
  6.     image: gitlab/gitlab-ce:12.10.5-ce.0
  7.     ports:
  8.       - "32001:80"
  9.     volumes:
  10.       - ./log/:/var/log/gitlab
  11.       - ./data/:/var/opt/gitlab
  12.       - ./conf/:/etc/gitlab
  13.     restart: "no"
  14. liumiaocn:gitlab liumiao$

事前准备

创建如下目录：

  1. liumiaocn:gitlab liumiao$ ls
  2. docker-compose.yml
  3. liumiaocn:gitlab liumiao$ mkdir -p log data conf
  4. liumiaocn:gitlab liumiao$ ls
  5. conf            data            docker-compose.yml    log
  6. liumiaocn:gitlab liumiao$

启动

启动命令：docker-compose up -d

登录并创建apitoken

登录URL

  • http://localhost:32001

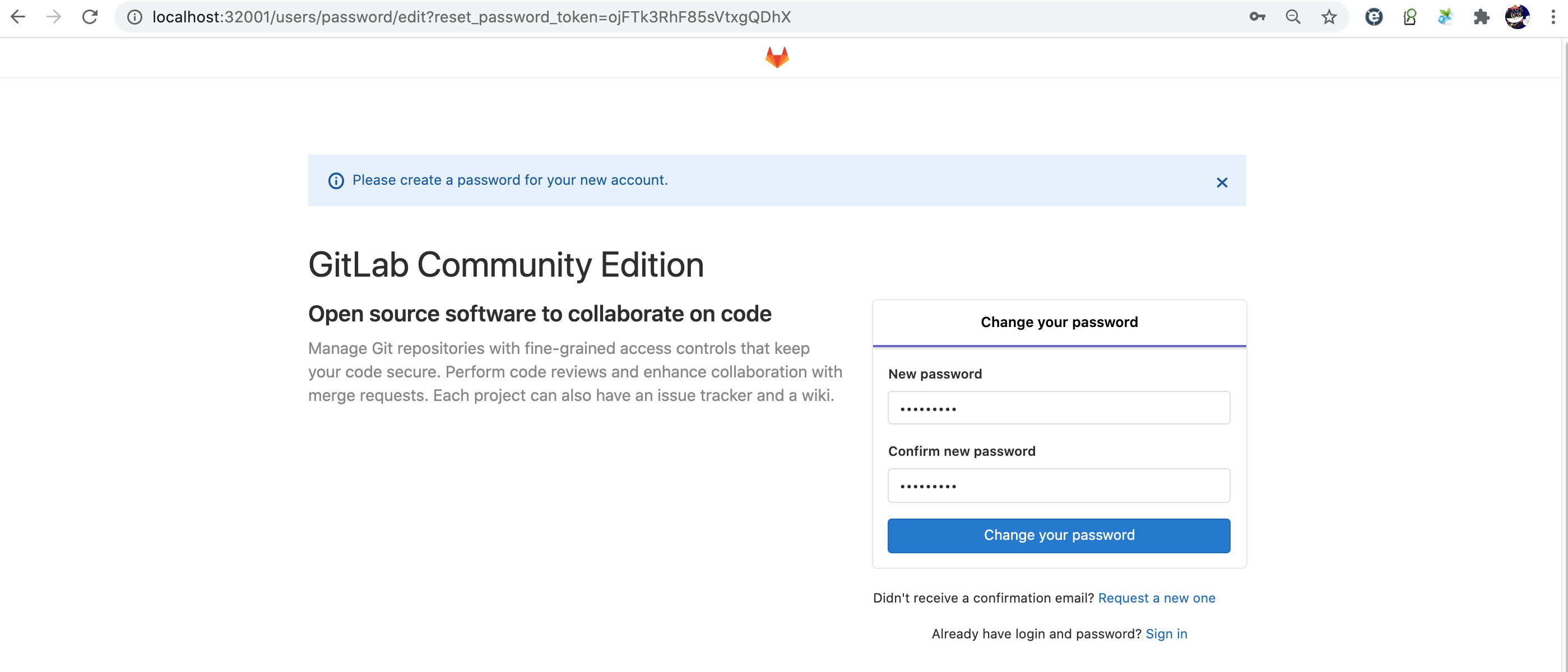

在这里插入图片描述
注：此处设定root用户密码，由于后续直接使用token进行用户创建，示例说明中不再直接需要使用root设定的密码。

创建api用的token

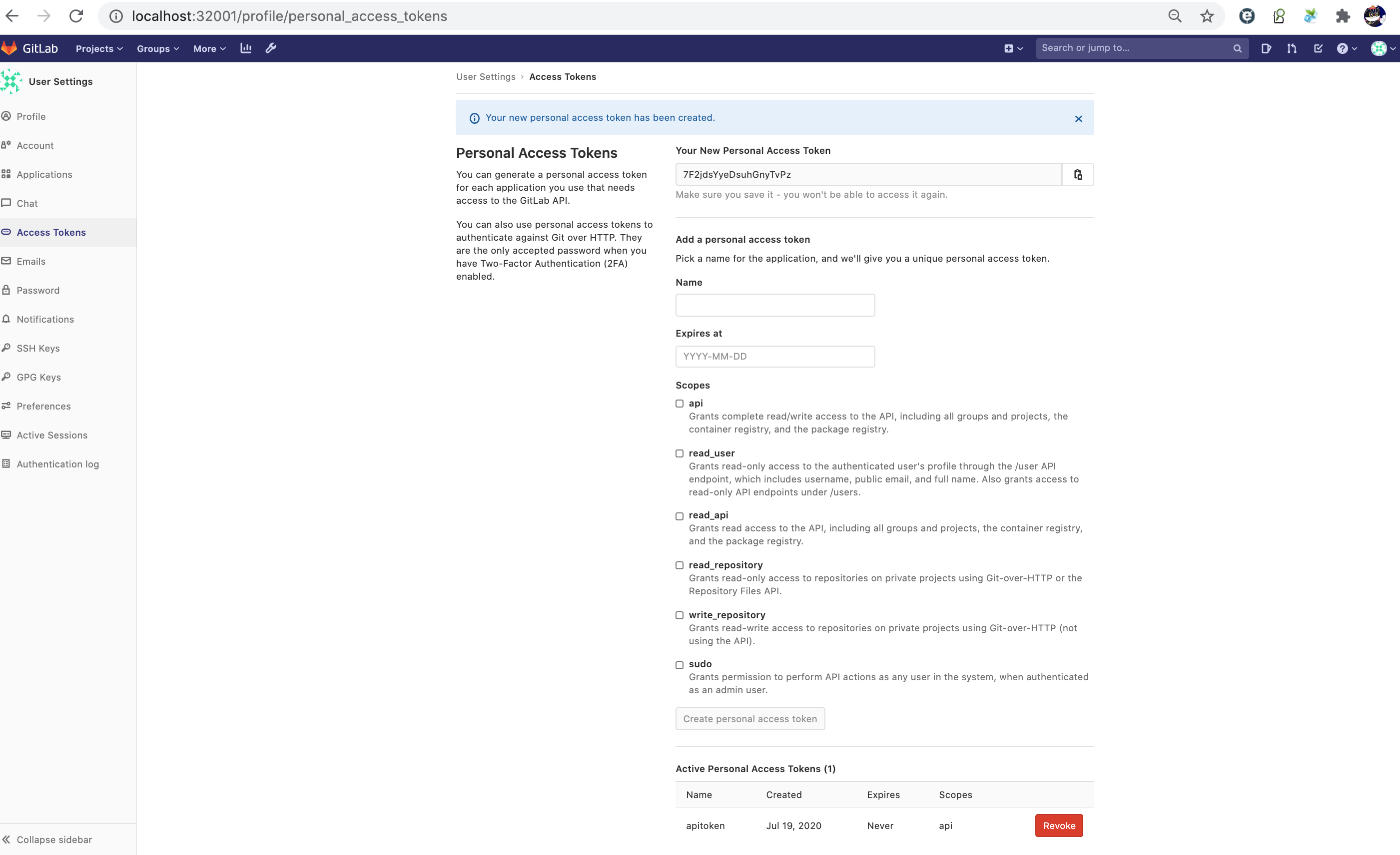

通过settings菜单或者直接使用如下URL，创建api用的token

  • http://localhost:32001/profile/personal\_access\_tokens

在这里插入图片描述

事前准备

添加名为liumiao的用户，也可通过界面操作进行，此步可以跳过

执行命令
access_token=“7F2jdsYyeDsuhGnyTvPz”
gitlab_url=“localhost:32001”
curl -X POST -H “PRIVATE-TOKEN: ${access_token}” http://$\{gitlab\_url\}/api/v4/users
-H ‘cache-control: no-cache’
-H ‘content-type: application/json’
-d ‘{ “email”: “liumiaocn@outlook.com”,
“username”: “liumiao”,
“password”: “12341234”,
“name”: “liumiao”,
“skip_confirmation”: “true”
}’

执行日志示例：

  1. liumiaocn:~ liumiao$ curl -X POST -H "PRIVATE-TOKEN: ${access_token}" http://${gitlab_url}/api/v4/users   -H 'cache-control: no-cache'   -H 'content-type: application/json'   -d '{ "email": "liumiaocn@outlook.com",
  2. >   "username": "liumiao",
  3. >   "password": "12341234",
  4. >   "name": "liumiao",
  5. >   "skip_confirmation": "true"
  6. > }' |jq .
  7.   % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
  8.                                  Dload  Upload   Total   Spent    Left  Speed
  9. 100   898  100   759  100   139   1785    327 --:--:-- --:--:-- --:--:--  2112
  10. {
  11.   "id": 2,
  12.   "name": "liumiao",
  13.   "username": "liumiao",
  14.   "state": "active",
  15.   "avatar_url": "https://www.gravatar.com/avatar/95c1f7ff72d71b448592a335ba80fb64?s=80&d=identicon",
  16.   "web_url": "http://2dba3d4f4dfa/liumiao",
  17.   "created_at": "2020-07-19T21:35:27.312Z",
  18.   "bio": null,
  19.   "location": null,
  20.   "public_email": "",
  21.   "skype": "",
  22.   "linkedin": "",
  23.   "twitter": "",
  24.   "website_url": "",
  25.   "organization": null,
  26.   "job_title": "",
  27.   "work_information": null,
  28.   "last_sign_in_at": null,
  29.   "confirmed_at": "2020-07-19T21:35:27.148Z",
  30.   "last_activity_on": null,
  31.   "email": "liumiaocn@outlook.com",
  32.   "theme_id": 1,
  33.   "color_scheme_id": 1,
  34.   "projects_limit": 100000,
  35.   "current_sign_in_at": null,
  36.   "identities": [],
  37.   "can_create_group": true,
  38.   "can_create_project": true,
  39.   "two_factor_enabled": false,
  40.   "external": false,
  41.   "private_profile": false,
  42.   "is_admin": false
  43. }
  44. liumiaocn:~ liumiao$

设定token的图形方式

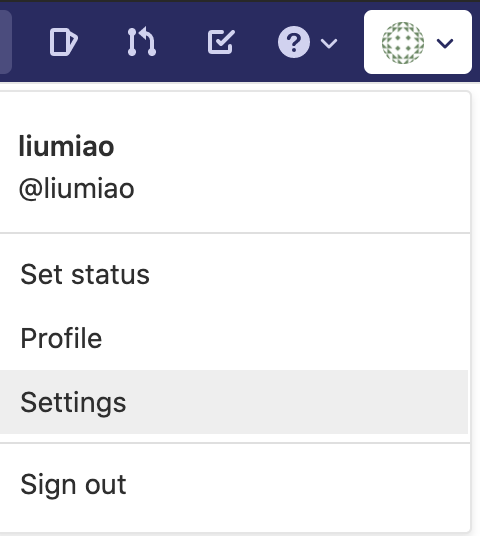

通过GitLab的界面操作，可以很容易地设定token，首先登录之后选择用户菜单中的Settings
在这里插入图片描述

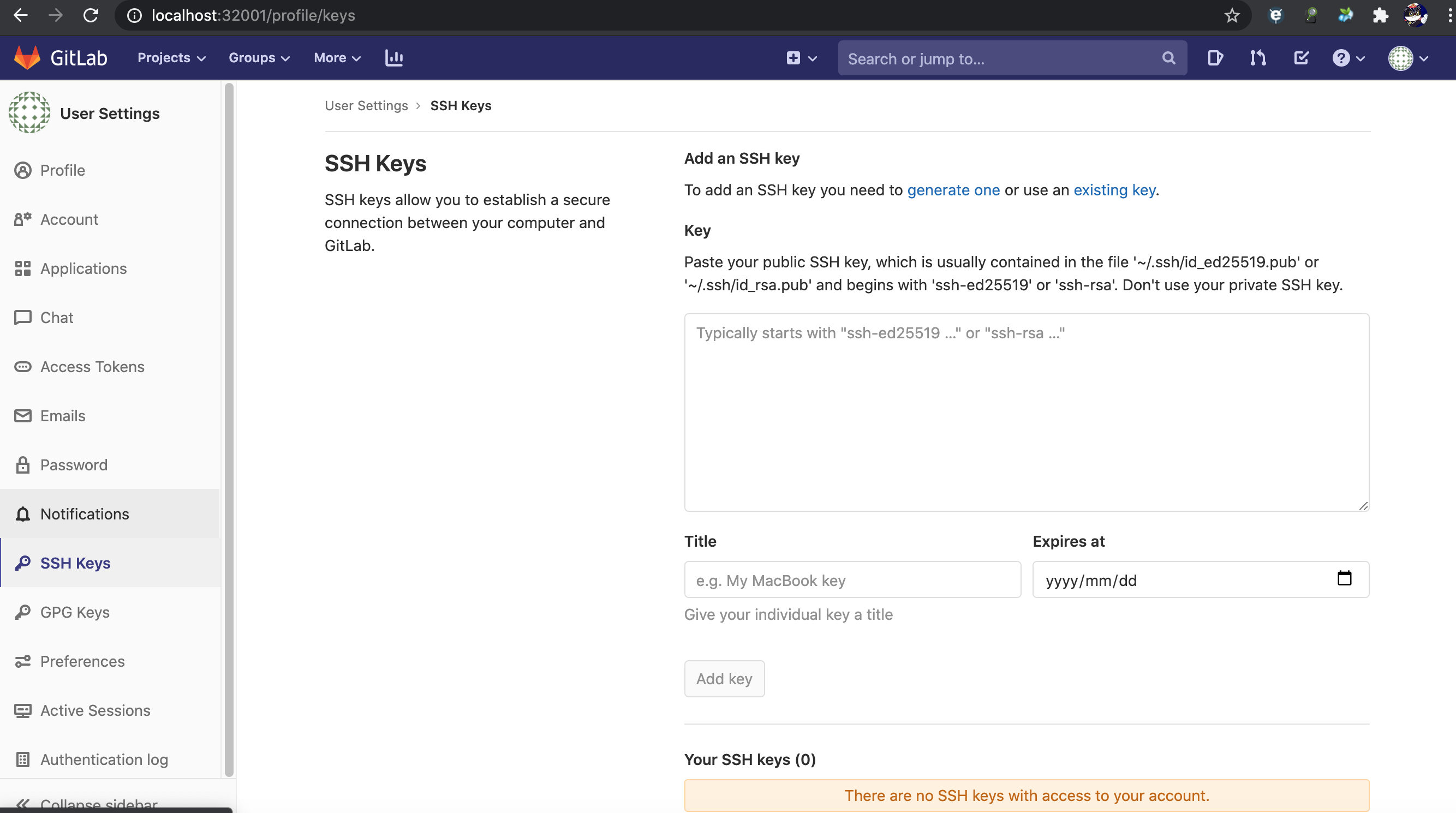

然后选择SSH Keys左侧菜单项即可通过界面方式对ssh-key进行操作
在这里插入图片描述

创建本地用户的ssh-key

  1. liumiaocn:~ liumiao$ ssh-keygen
  2. Generating public/private rsa key pair.
  3. Enter file in which to save the key (/Users/liumiao/.ssh/id_rsa):
  4. Enter passphrase (empty for no passphrase):
  5. Enter same passphrase again:
  6. Your identification has been saved in /Users/liumiao/.ssh/id_rsa.
  7. Your public key has been saved in /Users/liumiao/.ssh/id_rsa.pub.
  8. The key fingerprint is:
  9. SHA256:FgCQGZ5XL0dLvCYw3F34LQzXgR0bePHsNdGe94jPWXk liumiao@liumiaocn
  10. The key's randomart image is:
  11. +---[RSA 3072]----+
  12. |  o*.ooooo.==+ ..|
  13. | .o.+..==.+ +=  o|
  14. |  o .o. =* o. ooo|
  15. |   .  .oo.+ .. o+|
  16. |       oS  . ...+|
  17. |       .    . ..E|
  18. |             o o.|
  19. |              +  |
  20. |                 |
  21. +----[SHA256]-----+
  22. liumiaocn:~ liumiao$

这样在当前用户的HOME下的.ssh目录中就会有如下rsa方式的公钥和私钥，注意设定的是公钥，私钥是需要我们自己妥善保管的，公钥是可以从私钥中取出来的，详细展开内容可以参看：

  • https://blog.csdn.net/liumiaocn/category_9573907.html

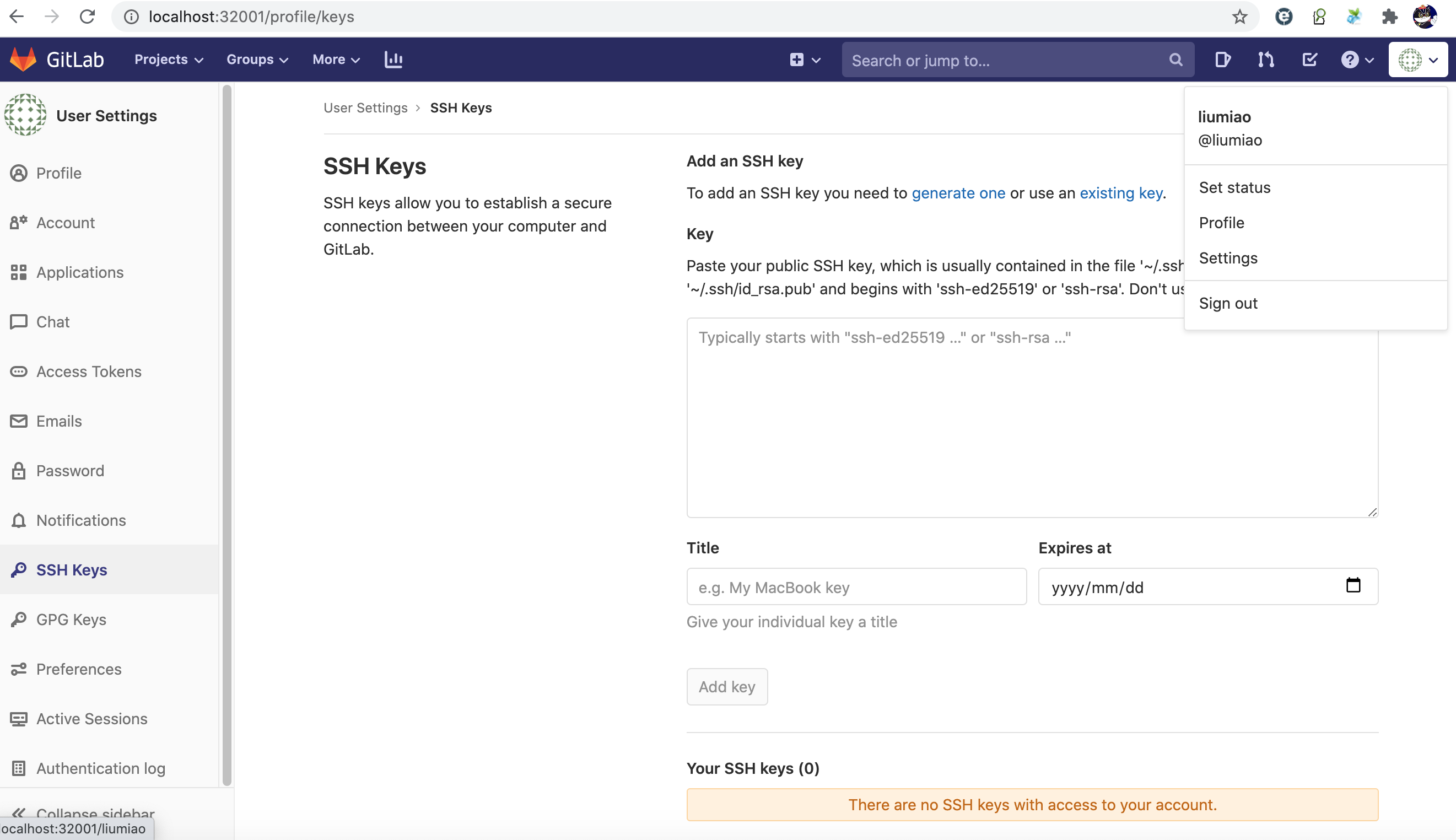

创建前确认

在这里插入图片描述

操作：添加用户ssh-key（指定用户）

使用users/${userid}/keys可以添加当前指定用户的token，执行示例命令与日志如下所示

  1. liumiaocn:~ liumiao$ userid=2
  2. liumiaocn:~ liumiao$ curl -X POST -H "PRIVATE-TOKEN: ${access_token}" http://${gitlab_url}/api/v4/users/${userid}/keys   -H 'cache-control: no-cache'   -H 'content-type: application/json'   -d '{"title": "ssh key for local mac os setting by admin",
  3. >   "key": "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQC9V0ynK5YE84hoeK8LonTw2zixdrSrbR8yuaK1tGuvWD/OZ/P/zDjLHmcJqrK7tB1pgbWAmne8hhXjgNPNHglPp+epU6rP+a3VfDNA6bmbeMQDs/8IW89lhHE0PhIG4zalntgx2sPlhmqVi0XXn77RFXF8h0kbGPIL/nXwvGXfx7GQBpCmhqioJX7kXTReEEdLA6Ec7LgYYZUTorNlZkw3D+beuezyHt+zE6ggpP3aDDigaeMXlf2yfdClpETCIure4vxvXBHBZt9dy54A+YJNcPgY49Pj4Z6C2KVqTS9kM+fQ1gHZsjP9vbObh0TmsV0Zffy0HXwayNqiIutuk65RdVxTCjdCiz/9Lwxza9P7PcJEmb6tW+me/QROKT1LsJH6gn59ufGiB+OsmBg9lK+CaG+CVi0WGDmPKlh/oJ+noGQGgr0NHxkBqJLTim1HCCS5rb2U+ynjtHSKEKZ5BMqxG4ci6WZOsJg/gedefHA9R5Xd3TJkGas+2P3nfjB5zJM= liumiao@liumiaocn",
  4. >   "expires_at": "2020-09-19T00:00:00.000Z"
  5. > }' |jq .
  6.   % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
  7.                                  Dload  Upload   Total   Spent    Left  Speed
  8. 100  1379  100   697  100   682   3226   3157 --:--:-- --:--:-- --:--:--  6384
  9. {
  10.   "id": 8,
  11.   "title": "ssh key for local mac os setting by admin",
  12.   "key": "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQC9V0ynK5YE84hoeK8LonTw2zixdrSrbR8yuaK1tGuvWD/OZ/P/zDjLHmcJqrK7tB1pgbWAmne8hhXjgNPNHglPp+epU6rP+a3VfDNA6bmbeMQDs/8IW89lhHE0PhIG4zalntgx2sPlhmqVi0XXn77RFXF8h0kbGPIL/nXwvGXfx7GQBpCmhqioJX7kXTReEEdLA6Ec7LgYYZUTorNlZkw3D+beuezyHt+zE6ggpP3aDDigaeMXlf2yfdClpETCIure4vxvXBHBZt9dy54A+YJNcPgY49Pj4Z6C2KVqTS9kM+fQ1gHZsjP9vbObh0TmsV0Zffy0HXwayNqiIutuk65RdVxTCjdCiz/9Lwxza9P7PcJEmb6tW+me/QROKT1LsJH6gn59ufGiB+OsmBg9lK+CaG+CVi0WGDmPKlh/oJ+noGQGgr0NHxkBqJLTim1HCCS5rb2U+ynjtHSKEKZ5BMqxG4ci6WZOsJg/gedefHA9R5Xd3TJkGas+2P3nfjB5zJM= liumiao@liumiaocn",
  13.   "created_at": "2020-07-19T23:26:27.672Z",
  14.   "expires_at": null
  15. }
  16. liumiaocn:~ liumiao$

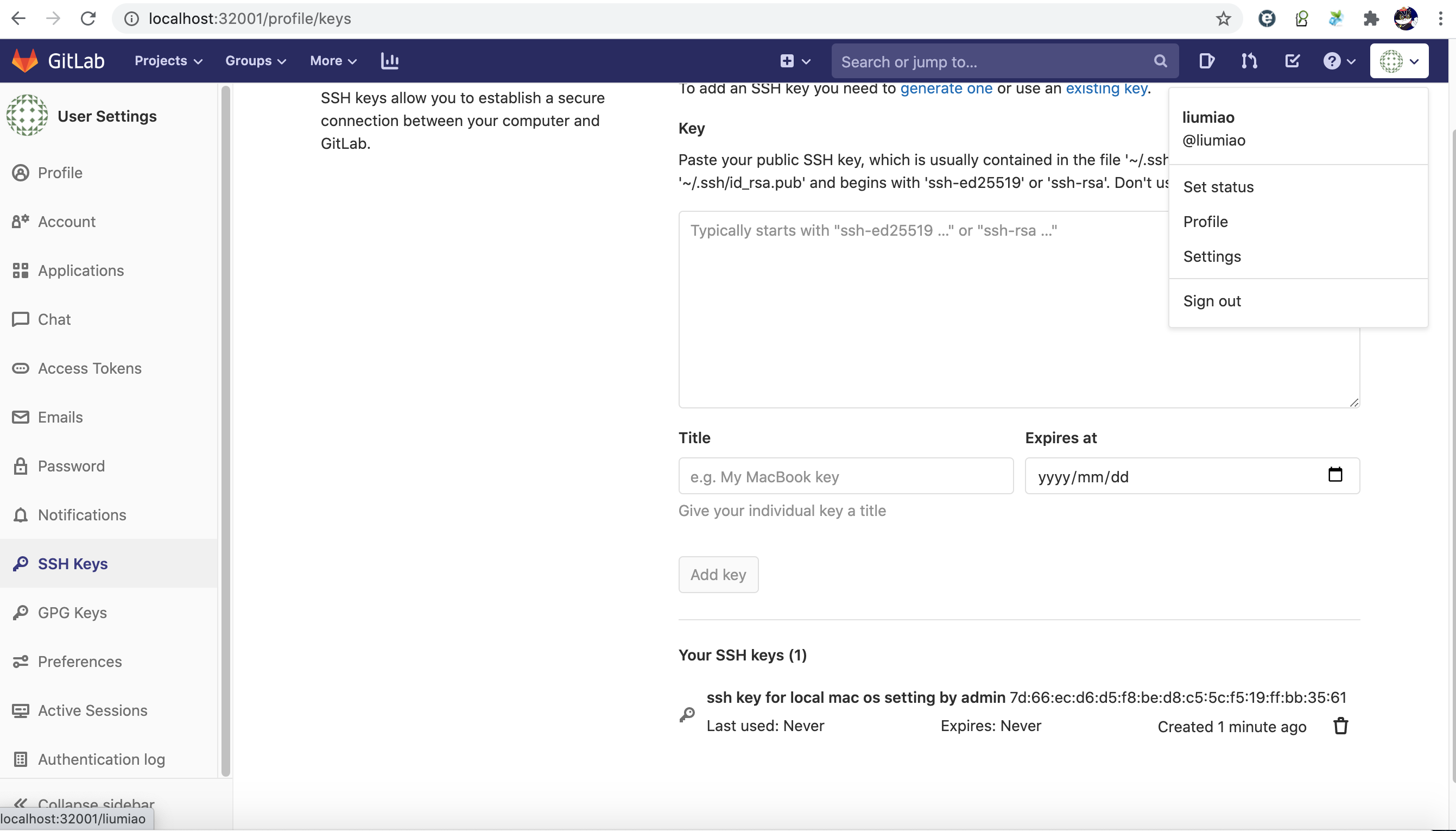

结果确认：注意用户是liumiao，执行用户的token为root（admin）的
在这里插入图片描述

操作： 查询指定用户ssh-key

使用/users/${userid}/keys可查询指定用户，比如：

  1. liumiaocn:~ liumiao$ useridorname=2
  2. liumiaocn:~ liumiao$ curl -H "PRIVATE-TOKEN: ${access_token}" http://${gitlab_url}/api/v4/users/${useridorname}/keys
  3. [{"id":8,"title":"ssh key for local mac os setting by admin","key":"ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQC9V0ynK5YE84hoeK8LonTw2zixdrSrbR8yuaK1tGuvWD/OZ/P/zDjLHmcJqrK7tB1pgbWAmne8hhXjgNPNHglPp+epU6rP+a3VfDNA6bmbeMQDs/8IW89lhHE0PhIG4zalntgx2sPlhmqVi0XXn77RFXF8h0kbGPIL/nXwvGXfx7GQBpCmhqioJX7kXTReEEdLA6Ec7LgYYZUTorNlZkw3D+beuezyHt+zE6ggpP3aDDigaeMXlf2yfdClpETCIure4vxvXBHBZt9dy54A+YJNcPgY49Pj4Z6C2KVqTS9kM+fQ1gHZsjP9vbObh0TmsV0Zffy0HXwayNqiIutuk65RdVxTCjdCiz/9Lwxza9P7PcJEmb6tW+me/QROKT1LsJH6gn59ufGiB+OsmBg9lK+CaG+CVi0WGDmPKlh/oJ+noGQGgr0NHxkBqJLTim1HCCS5rb2U+ynjtHSKEKZ5BMqxG4ci6WZOsJg/gedefHA9R5Xd3TJkGas+2P3nfjB5zJM= liumiao@liumiaocn","created_at":"2020-07-19T23:26:27.672Z","expires_at":null}]liumiaocn:~ liumiao$
  4. liumiaocn:~ liumiao$ useridorname=liumiao
  5. liumiaocn:~ liumiao$ curl -H "PRIVATE-TOKEN: ${access_token}" http://${gitlab_url}/api/v4/users/${useridorname}/keys
  6. [{"id":8,"title":"ssh key for local mac os setting by admin","key":"ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQC9V0ynK5YE84hoeK8LonTw2zixdrSrbR8yuaK1tGuvWD/OZ/P/zDjLHmcJqrK7tB1pgbWAmne8hhXjgNPNHglPp+epU6rP+a3VfDNA6bmbeMQDs/8IW89lhHE0PhIG4zalntgx2sPlhmqVi0XXn77RFXF8h0kbGPIL/nXwvGXfx7GQBpCmhqioJX7kXTReEEdLA6Ec7LgYYZUTorNlZkw3D+beuezyHt+zE6ggpP3aDDigaeMXlf2yfdClpETCIure4vxvXBHBZt9dy54A+YJNcPgY49Pj4Z6C2KVqTS9kM+fQ1gHZsjP9vbObh0TmsV0Zffy0HXwayNqiIutuk65RdVxTCjdCiz/9Lwxza9P7PcJEmb6tW+me/QROKT1LsJH6gn59ufGiB+OsmBg9lK+CaG+CVi0WGDmPKlh/oJ+noGQGgr0NHxkBqJLTim1HCCS5rb2U+ynjtHSKEKZ5BMqxG4ci6WZOsJg/gedefHA9R5Xd3TJkGas+2P3nfjB5zJM= liumiao@liumiaocn","created_at":"2020-07-19T23:26:27.672Z","expires_at":null}]liumiaocn:~ liumiao$
  7. liumiaocn:~ liumiao$

操作：删除用户ssh-key（指定用户）

操作日志如下所示：

  1. liumiaocn:~ liumiao$ keyid=8
  2. liumiaocn:~ liumiao$ userid=2
  3. liumiaocn:~ liumiao$ curl -X DELETE -H "PRIVATE-TOKEN: ${access_token}" http://${gitlab_url}/api/v4/users/${userid}/keys/${keyid}
  4. liumiaocn:~ liumiao$ echo $?
  5. 0
  6. liumiaocn:~ liumiao$

结果确认

  1. liumiaocn:~ liumiao$ useridorname=2
  2. liumiaocn:~ liumiao$ curl -H "PRIVATE-TOKEN: ${access_token}" http://${gitlab_url}/api/v4/users/${useridorname}/keys
  3. []liumiaocn:~ liumiao$

在这里插入图片描述

其他

如果token中为当前用户，使用方式的URL中不必包含userid，详细可参看：

  • https://liumiaocn.blog.csdn.net/article/details/107455400
