## spring解决循环依赖 ##

spring在创建和依赖注入单例对象时，通过三级缓存的设计，可以解决大多数的循环依赖问题，但是基于三级缓存的解决方案，对于部分场景还是无法解决循环依赖的问题，会由spring抛出异常。

spring的三级缓存由`singletonObjects`、`earlySingletonObjects`、`singletonFactories`组成：

*  singletonObjects：保存初始化完成的单例bean实例；
 *  earlySingletonObjects：保存提前曝光的单例bean实例；
 *  singletonFactories：保存单例bean的工厂函数对象；

对于通常的A依赖B、B依赖A的简单循环依赖的场景，spring的单例对象创建和依赖注入的流程如下图：

@Service
    public class A {

        @Autowired
        private B b;

        public A() {
        }
    }

    @Service
    public class B {

        @Autowired
        private A a;

        public B() {
        }
    }

![在这里插入图片描述][20191109153334423.png]

## 构造方法注入导致循环依赖 ##

#### 成功 ####

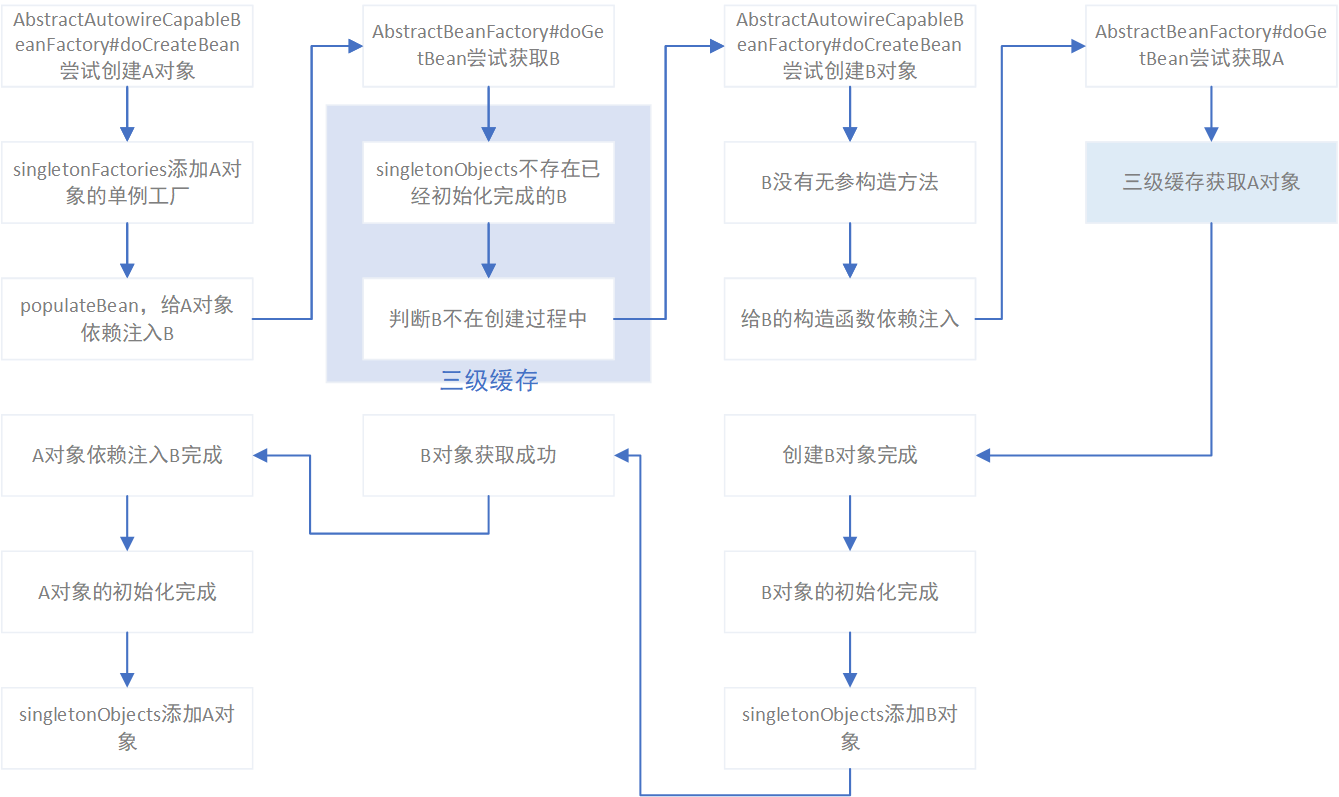

对于相互依赖的Bean，如果全部都是构造方法依赖注入，spring必然无法解决这种循环依赖。但是如果如下场景，A通过`@Autowired`依赖B，而B通过构造方法依赖A，spring可以成功解决循环依赖。

@Service
    public class A {

        @Autowired
        private B b;

        public A() {
        }
    }

    @Service
    public class B {

        private A a;

        public B(A a) {
            this.a = a;
        }
    }

![在这里插入图片描述][20191109153351759.png]

#### 循环依赖异常 ####

但是对于这种部分Bean通过构造方法依赖注入的场景，spring的三级缓存并不是百试百灵。把上面成功依赖注入的A和B相互换位，A通过构造方法依赖B，而B通过`@Autowired`依赖A，则会出现spring无法解决循环依赖而抛出循环依赖的异常。

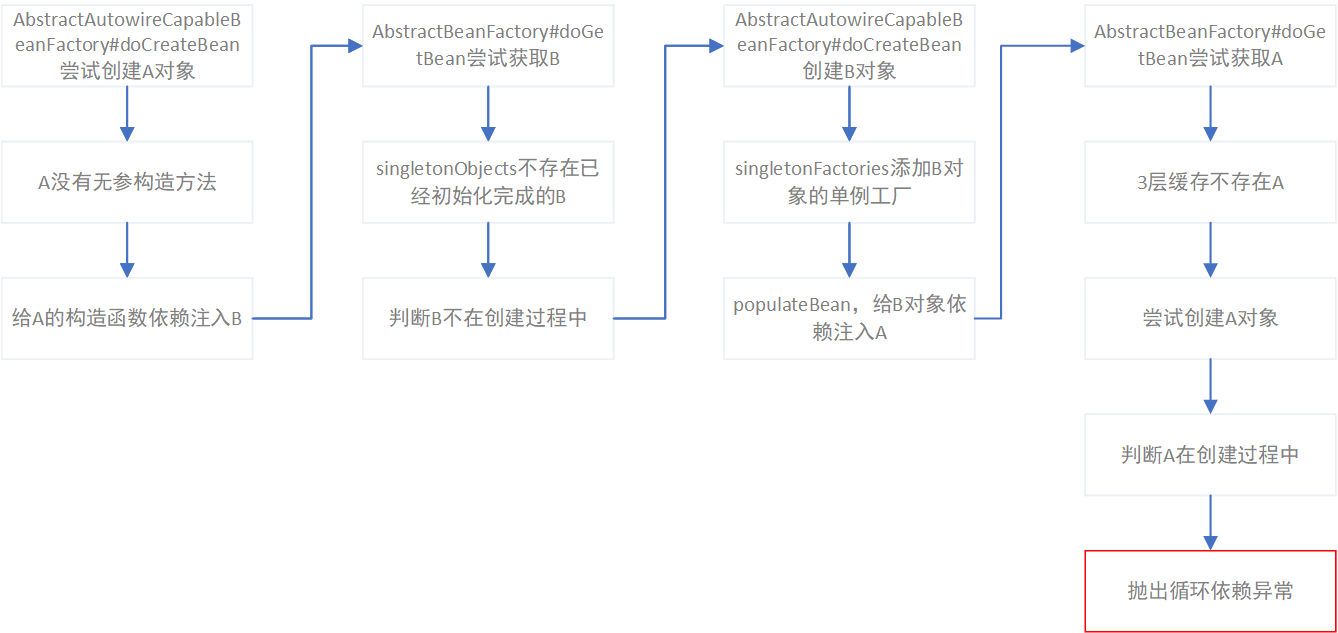

并没有修改依赖复杂度，仅仅是A与B相互换了依赖位置，spring就抛出了循环依赖异常，其中的流程如下图：

@Service
    public class A {

        private B b;

        public A(B b) {
            this.b = b;
        }
    }

    @Service
    public class B {

        @Autowired
        private A a;

        public B() {
        }
    }

***************************
    APPLICATION FAILED TO START
    ***************************

    Description:

    The dependencies of some of the beans in the application context form a cycle:

    ┌─────┐
    |  a defined in file [D:\Program\workspace\other\springboot\target\classes\com\wakzz\autowire\A.class]
    ↑     ↓
    |  b (field private com.wakzz.autowire.A com.wakzz.autowire.B.a)
    └─────┘

![在这里插入图片描述][20191109153407266.png]

## 代理导致循环依赖 ##

#### @Transactional代理成功 ####

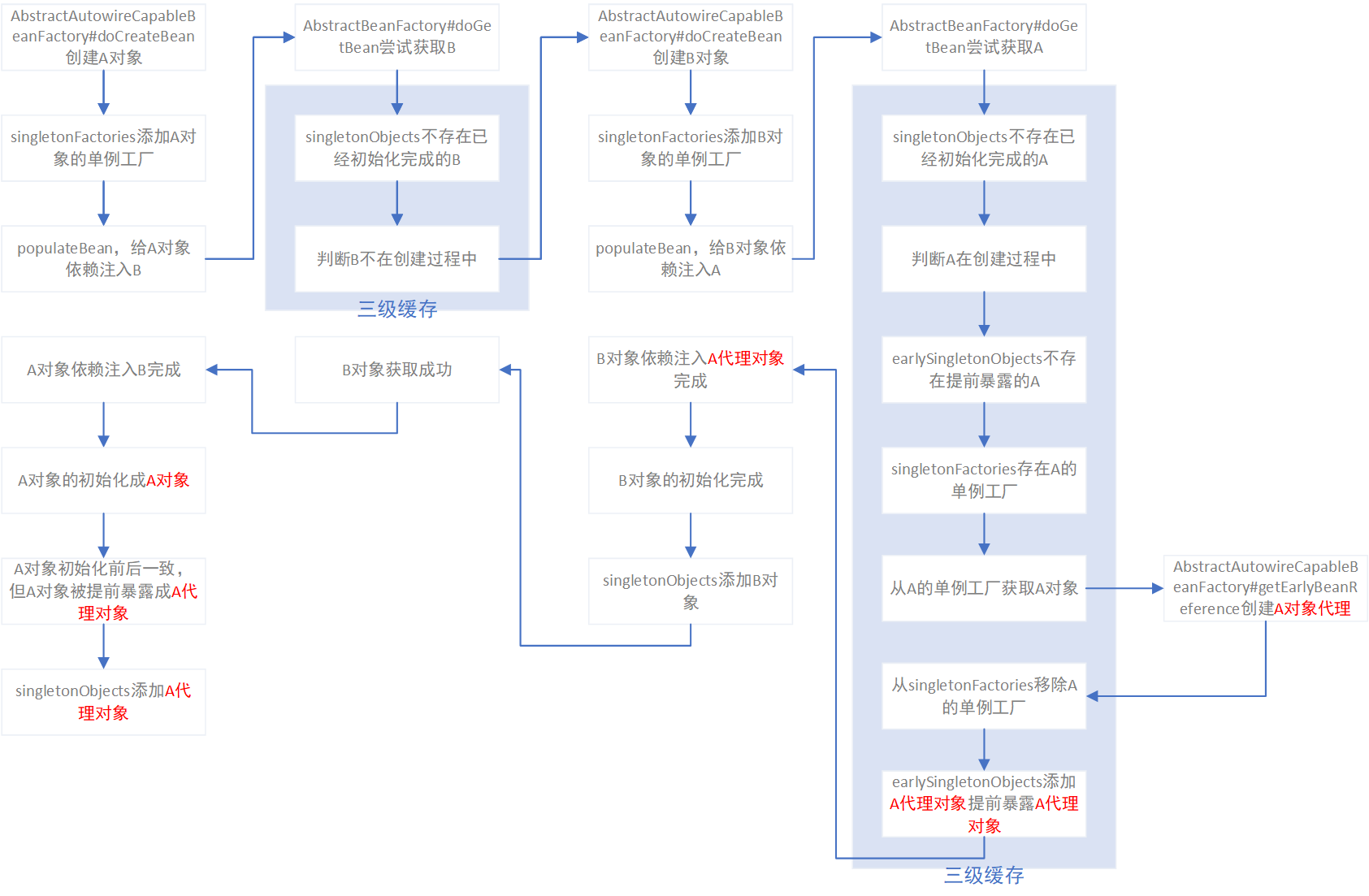

spring经常会对创建的单例对象进行代理，对于代理对象的依赖注入与非代理对象依赖注入有稍微的区别。例如通过`@Transactional`注解代理A后的依赖注入流程如下图：

@Transactional
    @Service
    public class A {

        @Autowired
        private B b;

        public A() {
        }
    }

    @Service
    public class B {

        @Autowired
        private A a;

        public B() {
        }
    }

![在这里插入图片描述][20191109153421535.png]

#### @Async代理循环依赖异常 ####

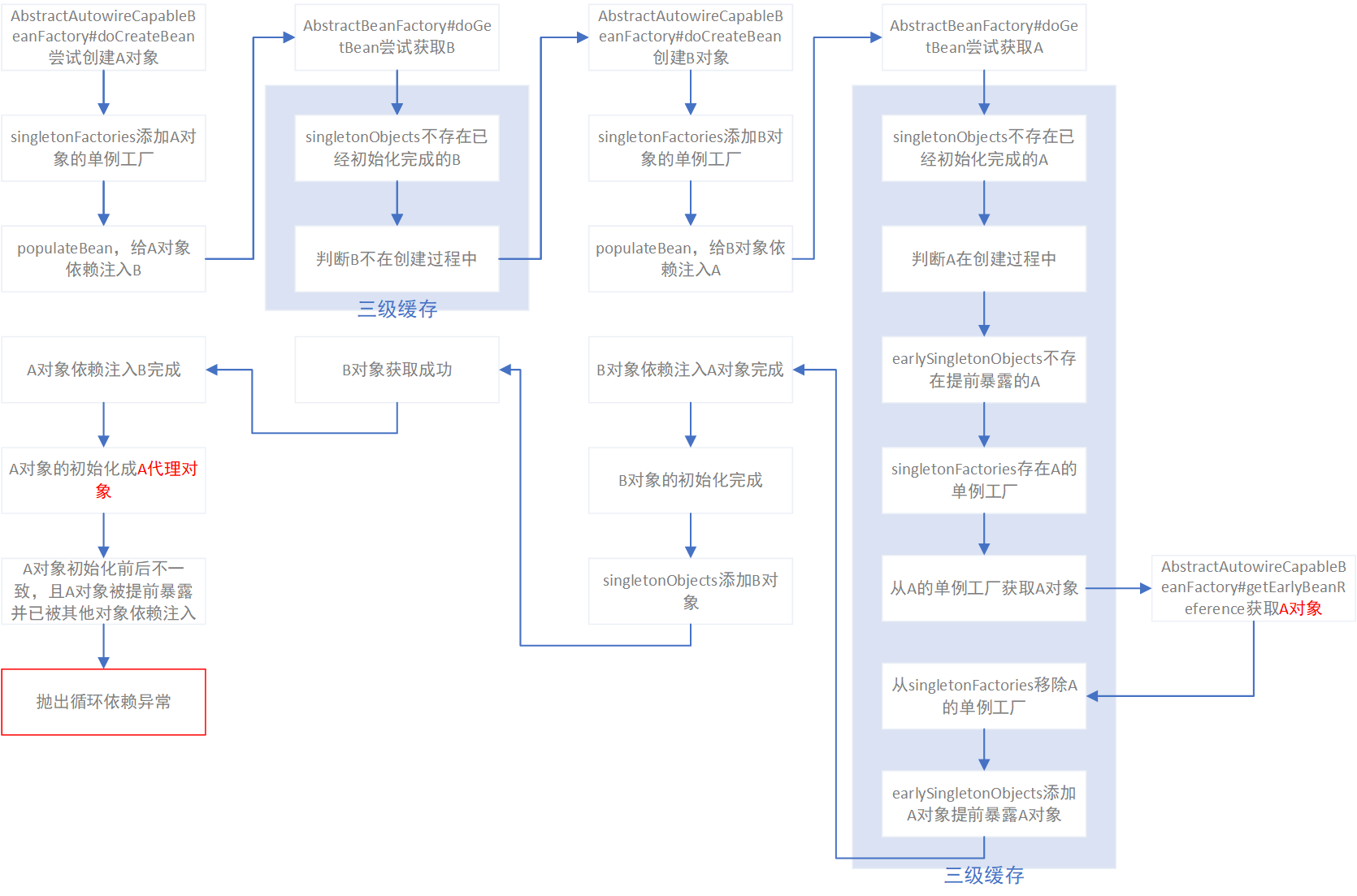

然而并不是每个代理对象的依赖注入流程都是一样的，典型的例子就是`@Async`注解，`@Async`经常会造成循环依赖的问题。将上面成功代理依赖注入的案例中的`@Transactional`注解换成`@Async`注解，应用启动后spring就会抛出`BeanCurrentlyInCreationException`异常，该流程如下图：

@Async
    @Service
    public class A {

        @Autowired
        private B b;

        public A() {
        }
    }

    @Service
    public class B {

        @Autowired
        private A a;

        public B() {
        }
    }

org.springframework.beans.factory.BeanCurrentlyInCreationException: Error creating bean with name 'a': Bean with name 'a' has been injected into other beans [b] in its raw version as part of a circular reference, but has eventually been wrapped. This means that said other beans do not use the final version of the bean. This is often the result of over-eager type matching - consider using 'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.
    	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:602) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:495) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:317) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:315) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:199) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:759) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:869) ~[spring-context-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:550) ~[spring-context-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:762) ~[spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:398) ~[spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    	at org.springframework.boot.SpringApplication.run(SpringApplication.java:330) ~[spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    	at org.springframework.boot.builder.SpringApplicationBuilder.run(SpringApplicationBuilder.java:137) [spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    	at com.wakzz.Application.main(Application.java:20) [classes/:na]

![在这里插入图片描述][20191109153434929.png]

有图可见，`@Async`和`@Transactional`在对象创建和依赖注入的流程中的区别，仅仅是Bean对象被代理成代理对象的时机。`@Transactional`的代理是当从单例工程获取对象时，由单例工厂完成单例对象的代理；而`@Async`的代理则是在Bean对象依赖注入完成之后，再初始化并代理成代理对象。

#### @Async代理成功 ####

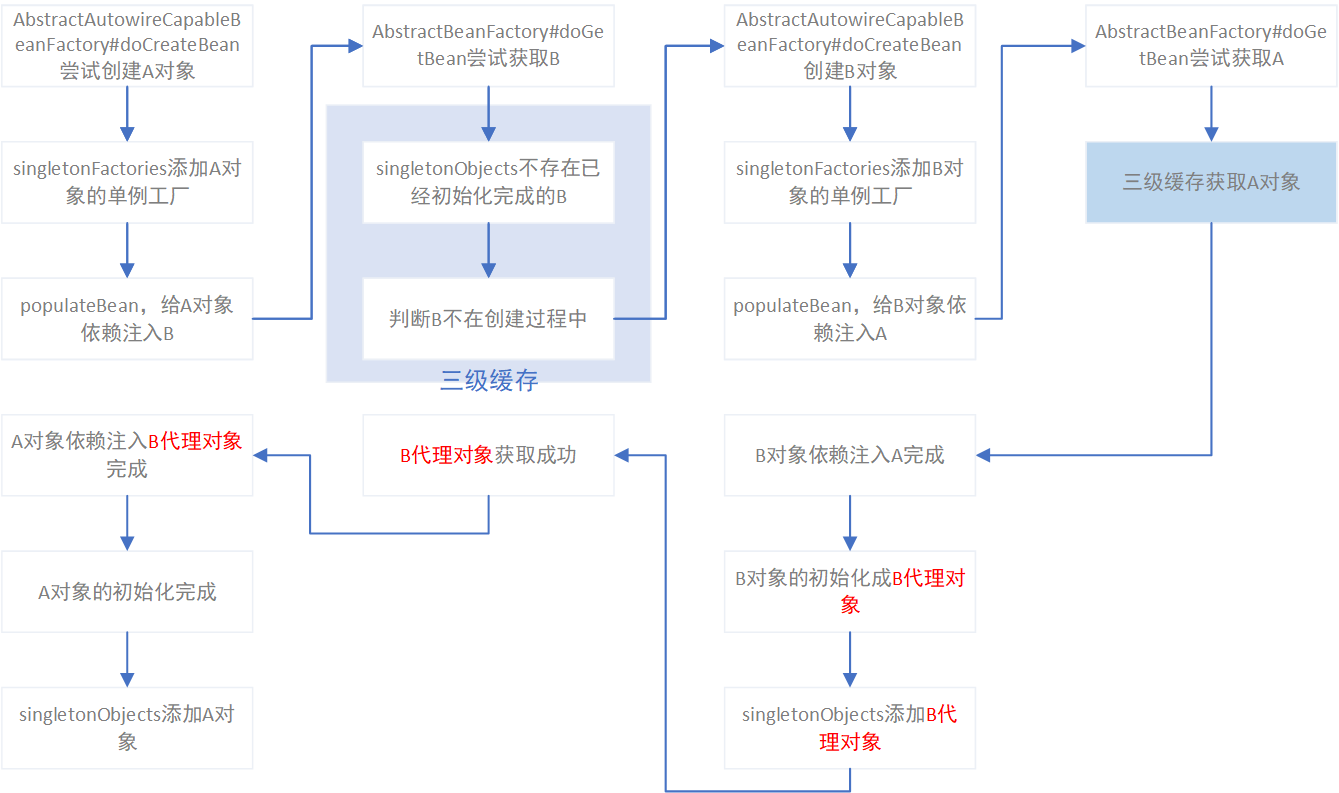

跟部分对象构造方法注入的场景一样，不需要修改依赖复杂度，仅仅是修改了A与B的依赖关系，让被代理的对象后一步创建，就可以解决该依赖关系成功启动应用。spring的流程如下图：

@Service
    public class A {

        @Autowired
        private B b;

        public A() {
        }
    }

    @Async
    @Service
    public class B {

        @Autowired
        private A a;

        public B() {
        }
    }

![在这里插入图片描述][20191109153448315.png]
