SpringOauth2简单登陆

傷城~ 2023-05-31 12:11 1阅读 0赞

# SpringOauth2实现Jdbc简单认证登陆 #

创建一个SpringBoot工程
依赖如下:

<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>1.5.10.RELEASE</version>
    		<relativePath />
    	</parent>

    	<properties>
    		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    		<java.version>1.8</java.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-security</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>


    		<dependency>
    			<groupId>org.springframework.security.oauth</groupId>
    			<artifactId>spring-security-oauth2</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-data-jpa</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>mysql</groupId>
    			<artifactId>mysql-connector-java</artifactId>
    			<version>8.0.16</version>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.security</groupId>
    			<artifactId>spring-security-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    	</dependencies>

这里主要依赖的是Spring Security 、Spring Security Oauth2 依赖，创建好项目后我们创建一个User类并且实现UserDetail接口如下：

public class UserInfo implements UserDetails{

        private String name;

        private String email;

        private String password;

        public void setPassword(String password) {
            this.password = password;
        }

        public String getName() {
            return name;
        }

        public void setName(String name) {
            this.name = name;
        }

        public String getEmail() {
            return email;
        }

        public void setEmail(String email) {
            this.email = email;
        }

        @Transient
        private List<GrantedAuthority> authorityList;

        public List<GrantedAuthority> getAuthorityList() {
            return authorityList;
        }

        public void setAuthorityList(List<GrantedAuthority> authorityList) {
            this.authorityList = authorityList;
        }

        @Override
        public Collection<? extends GrantedAuthority> getAuthorities() {
            return authorityList;
        }

        @Override
        public String getPassword() {
            return password;
        }

        @Override
        public String getUsername() {
            return name;
        }

        @Override
        public boolean isAccountNonExpired() {
            return true;
        }

        @Override
        public boolean isAccountNonLocked() {
            return true;
        }

        @Override
        public boolean isCredentialsNonExpired() {
            return true;
        }

        @Override
        public boolean isEnabled() {
            return true;
        }

        @Override
        public String toString() {
            return "UserInfo{" +
                    "name='" + name + '\'' +
                    ", email='" + email + '\'' +
                    ", password='" + password + '\'' +
                    ", authorityList=" + authorityList +
                    '}';
        }
    }

这里UserDetail接口我就不多解释了，这几个方法大家都应该很清楚，然后我们创建一个CustomerUserService去实现UserDetailsService接口的loadUserByUsername方法：

@Service
    public class CustomerUserService implements UserDetailsService {
        private Logger log = LoggerFactory.getLogger(this.getClass());

        @Override
        public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
            UserInfo user = new UserInfo();
            user.setName(username);
            user.setPassword("123456");

            log.info("username ->" + username);

            if (user.getName().equals("zhoubiao")) {
                List<GrantedAuthority> auths = new ArrayList<>();
                auths.add(new SimpleGrantedAuthority("ROLE_USER"));
                user.setAuthorityList(auths);
                log.info("user ->" + user);
                return user;
            }

            return null;
        }
    }

这里的代码很简单。这里的角色权限都是写死的。不管是用mybatis的mapper还是spring data jpa 都可以通过注入到这里来进行查询操作。这里为了简化操作。我就写死了。

然后我们创建我们的授权服务器：

@Configuration
    @EnableAuthorizationServer
    public class OAuth2AuthorizationServer extends
            AuthorizationServerConfigurerAdapter {

        @Resource
        private DataSource dataSource;

        @Bean
        public ClientDetailsService clientDetailsService() {
            return new JdbcClientDetailsService(dataSource);
        }

        @Override
        public void configure(ClientDetailsServiceConfigurer clients)
                throws Exception {
            clients.jdbc(dataSource);
        }

注意这里的DataSource是依赖Spring Data Jpa 中为我们封装的Spring Jdbc的相关配置依赖。

下面就是我们的资源服务器配置了如下：

@Configuration
    @EnableResourceServer
    public class OAuth2ResourceServer extends ResourceServerConfigurerAdapter {

        @Override
        public void configure(HttpSecurity http) throws Exception {
            http.authorizeRequests()
                .anyRequest()
                .authenticated()
            .and()
                .requestMatchers()
                .antMatchers("/api/**");
        }

    }

这里注意资源服务器应该是和授权服务器分开的，这里为了演示方便，我把他们放在一起了。这里对`/api/`下的所有请求进行拦截认证。

我们在pom.xml中引入了Security 的依赖，那么我们是需要使用到它的，那么我们创建一个WebSecurityConfig并且继承自`WebSecurityConfigurerAdapter`这个适配器类

@EnableWebSecurity
    @Configuration
    public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
        @Autowired
        private CustomerUserService customerUserService;
        @Autowired
        public void configureAuthentication(AuthenticationManagerBuilder authenticationManagerBuilder) throws Exception {
            authenticationManagerBuilder

           .userDetailsService(this.customerUserService);
        }
    }

这里使用了`AuthenticationManagerBuilder`来管理认证信息，最后我们创建一个UserController 来进行测试：

@Controller
    public class UserController {

        @RequestMapping("/api/userinfo")
        public ResponseEntity<UserInfo> getUserInfo() {
            UserInfo user = (UserInfo) SecurityContextHolder.getContext()
                    .getAuthentication().getPrincipal();
            String email = user.getUsername();
            user.setName(user.getUsername());
            user.setEmail(email);

            return ResponseEntity.ok(user);
        }
    }

下面是application.properties配置：

spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
    spring.datasource.url=jdbc:mysql://localhost:3306/_oauth2
    spring.datasource.username=root
    spring.datasource.password=root

    #jpa
    spring.jpa.hibernate.ddl-auto=update
    spring.jpa.show-sql=true

下面是这个资源需要的sql，这里为什么需要创建sql呢，因为我们是走的jdbc模式，下面这个sql的结构可以从`JdbcClientDetailsService` 这个类从获取，如下：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3F3ZTg2MzE0_size_16_color_FFFFFF_t_70]

SET NAMES utf8;
    SET FOREIGN_KEY_CHECKS = 0;

    -- ----------------------------
    -- Table structure for `oauth_client_details`
    -- ----------------------------
    DROP TABLE IF EXISTS `oauth_client_details`;
    CREATE TABLE `oauth_client_details` (
      `client_id` varchar(48) NOT NULL,
      `resource_ids` varchar(256) DEFAULT NULL,
      `client_secret` varchar(256) DEFAULT NULL,
      `scope` varchar(256) DEFAULT NULL,
      `authorized_grant_types` varchar(256) DEFAULT NULL,
      `web_server_redirect_uri` varchar(256) DEFAULT NULL,
      `authorities` varchar(256) DEFAULT NULL,
      `access_token_validity` int(11) DEFAULT NULL,
      `refresh_token_validity` int(11) DEFAULT NULL,
      `additional_information` varchar(4096) DEFAULT NULL,
      `autoapprove` varchar(256) DEFAULT NULL,
      PRIMARY KEY (`client_id`)
    ) ENGINE=InnoDB DEFAULT CHARSET=utf8;

    -- ----------------------------
    -- Records of `oauth_client_details`
    -- ----------------------------
    BEGIN;
    INSERT INTO `oauth_client_details` VALUES ('clientapp', null, '112233', 'read_userinfo', 'authorization_code', 'http://localhost:9001/callback', null, '3600', null, null, null);
    COMMIT;

    SET FOREIGN_KEY_CHECKS = 1;

然后我们使用chrome浏览器访问`http://localhost:8080/oauth/authorize?client_id=clientapp&redirect_uri=http://localhost:9001/callback&response_type=code&scope=read_userinfo`

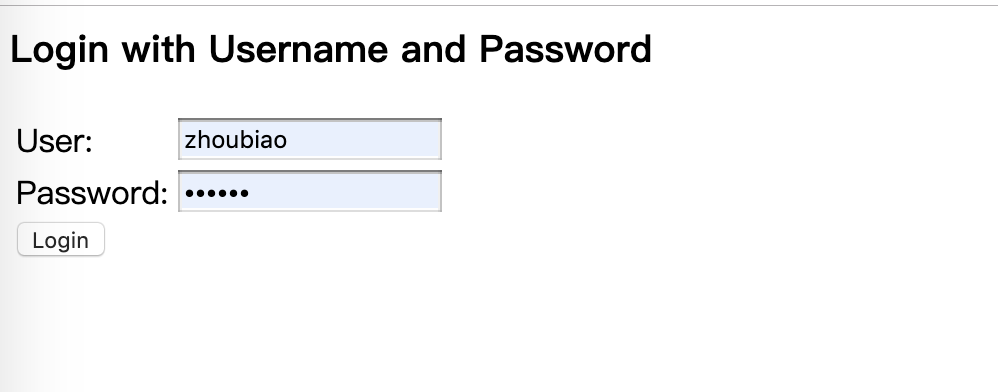

然后出现了身份认证：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3F3ZTg2MzE0_size_16_color_FFFFFF_t_70 1]

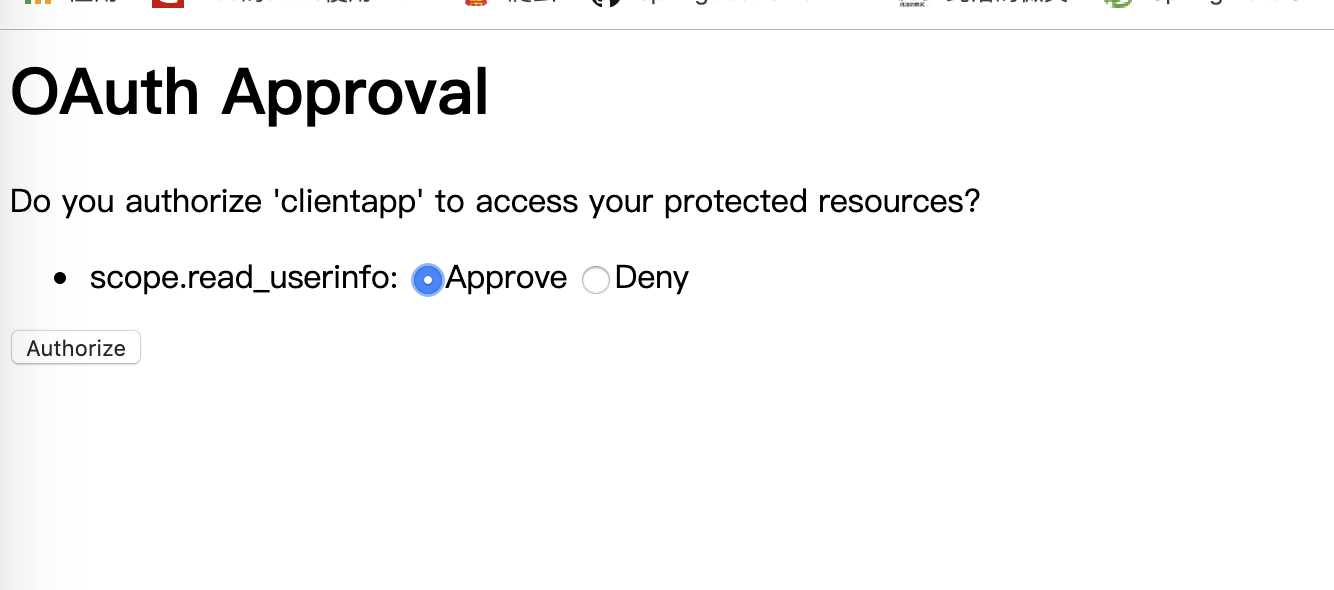

我们输入账号和密码点击登陆后：

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3F3ZTg2MzE0_size_16_color_FFFFFF_t_70 2]
这里提示我们授权。我们点击Approve，如果点击了Deny就是拒绝授权。

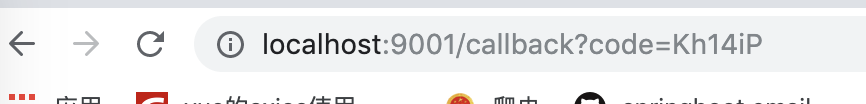

![在这里插入图片描述][20191025102031459.png]

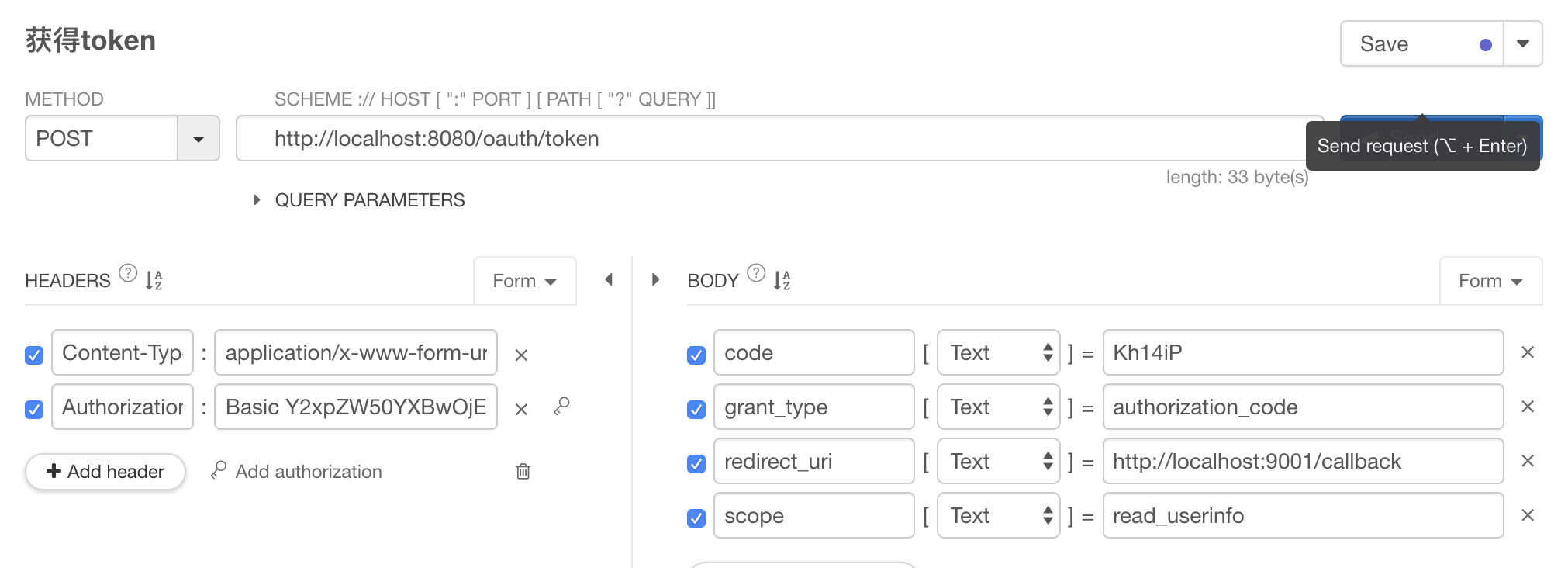

这里我们就拿到了授权码，然后我们使用postman之类的http来进行后面的测试：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3F3ZTg2MzE0_size_16_color_FFFFFF_t_70 3]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3F3ZTg2MzE0_size_16_color_FFFFFF_t_70 4]

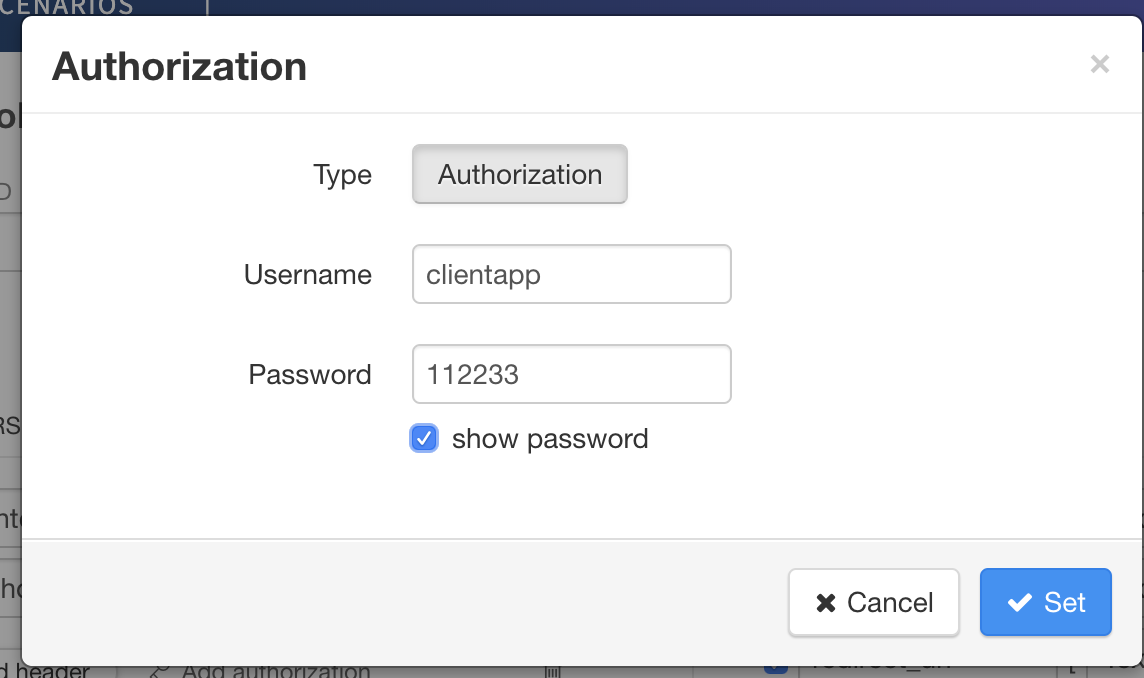

这里我们要填入客户端id 和密码，这里是来自数据里面的。这里所有的表单填入的信息都来自数据库表中的数据。

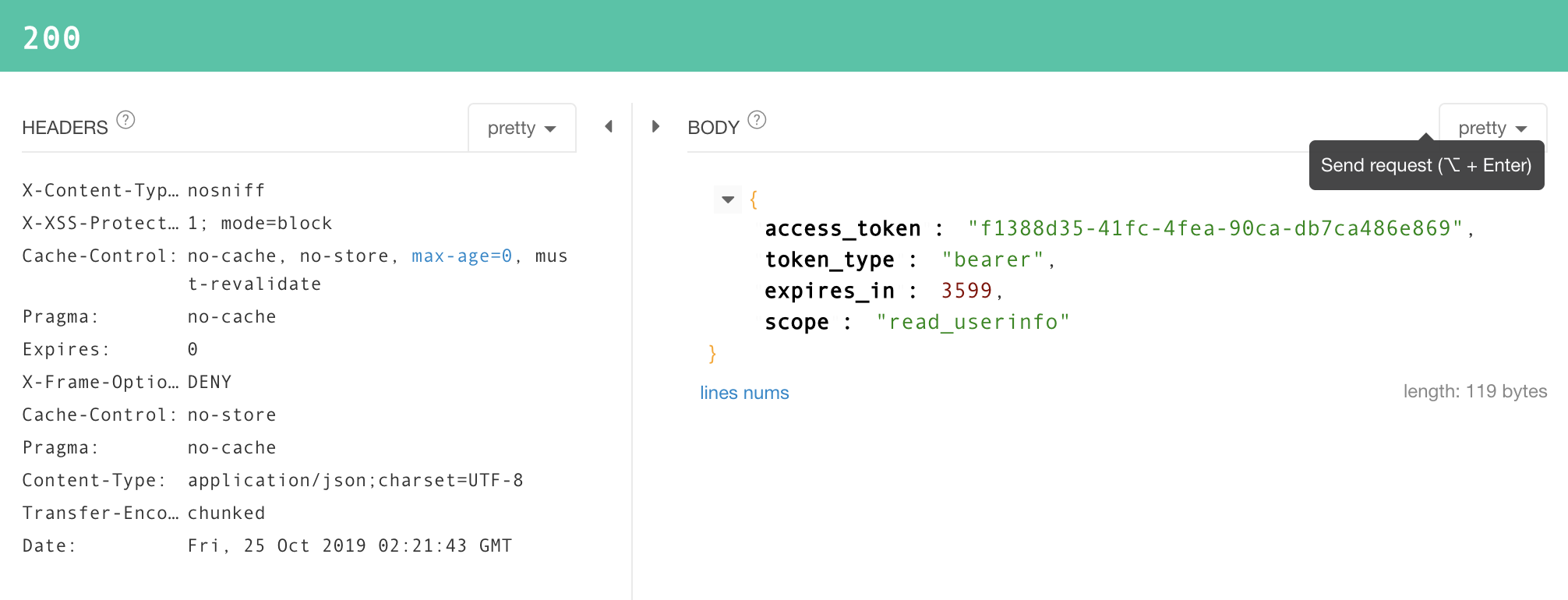

然后我们点击发送：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3F3ZTg2MzE0_size_16_color_FFFFFF_t_70 5]

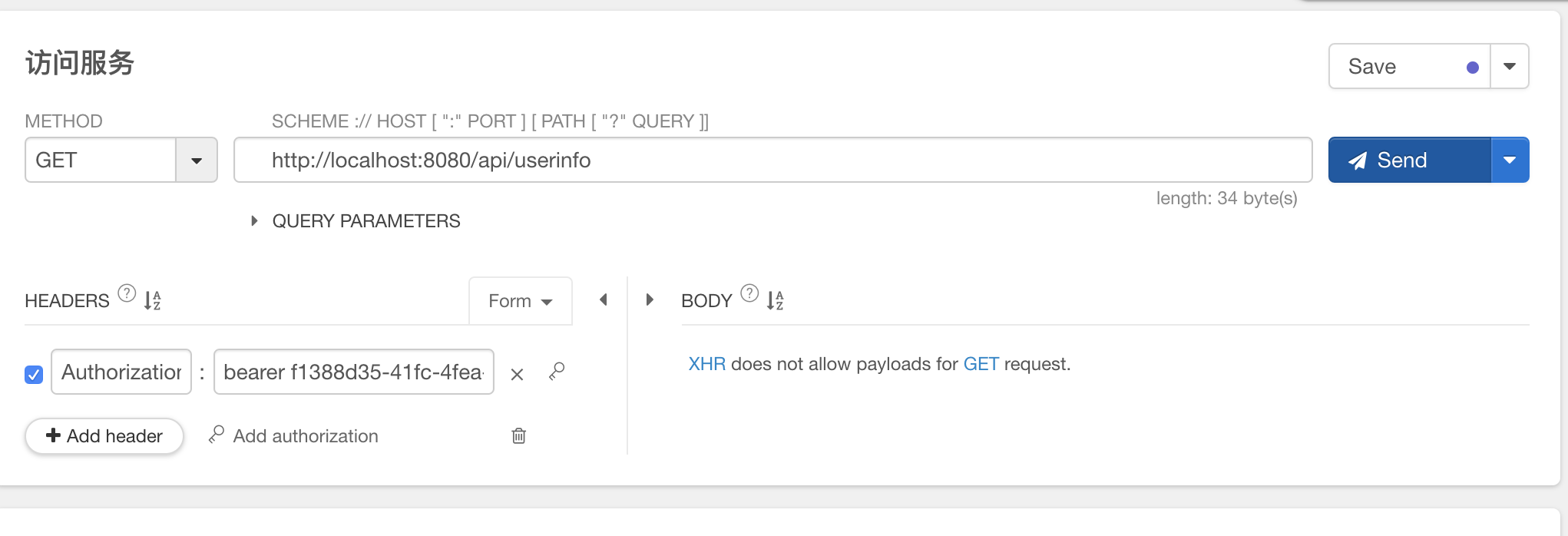

这里就可以拿到token了。然后我们就可以用token 来换取我们的api服务了
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3F3ZTg2MzE0_size_16_color_FFFFFF_t_70 6]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3F3ZTg2MzE0_size_16_color_FFFFFF_t_70 7]

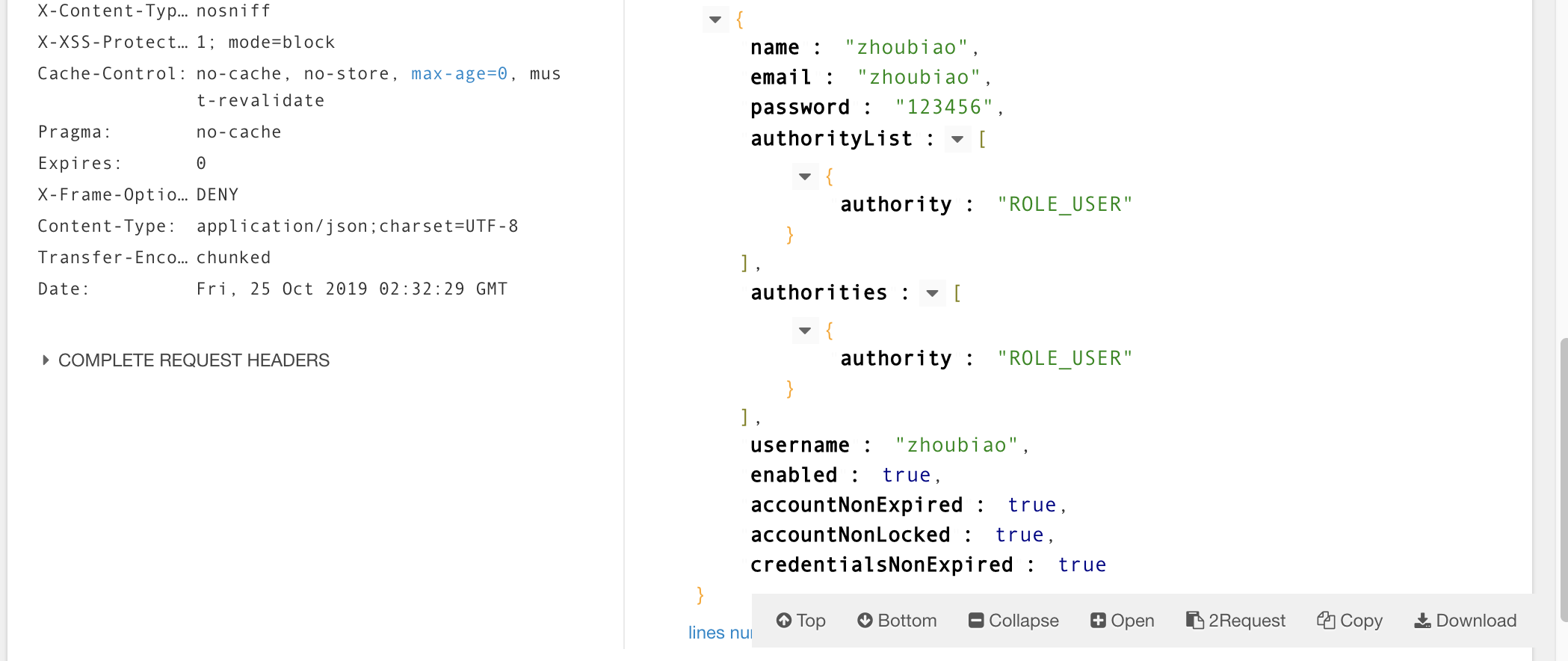

这里就拿到了我们api提供的信息了。

# 总结 #

这里使用了授权码模式的oauth2的认证，总体来说很简单的。注意这里的实验是不能用在生产级别的，如果要用到生产级，那么还需要对代码进行多次的封装和配置。
