UE4-【C++】【UE4接入CISQLite3】

末蓝、 2023-06-11 06:23 188阅读 0赞

1.下载插件CISQLite3

2.创建UE4工程，添加Plugins目录和CISQLite3，将1下载到的插件放入Plugins/CISQLite3

3.工程添加uplugin

.uproject添加
"Plugins": [
    {
        "Name": "CISQLite3",
        "Enabled": true
    }
]
UE工程目录.Build.cs 添加模块
PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine", "InputCore", "CISQLite3" });
插件目录.Build.cs
public class CISQLite3 : ModuleRules
{
  public CISQLite3(ReadOnlyTargetRules Target) : base(Target)
  {
        bEnableUndefinedIdentifierWarnings = false;
        PublicIncludePaths.AddRange(
      new string[] {
        "CISQLite3/Public"
      }
    );
    PrivateIncludePaths.AddRange(
      new string[] {
        "CISQLite3/Private"
      }
    );
    PublicDependencyModuleNames.AddRange(
      new string[] {
        "Engine",
        "Core",
        "CoreUObject"
      }
    );
    PrivateDependencyModuleNames.AddRange(
      new string[] {}
    );
    DynamicallyLoadedModuleNames.AddRange(
      new string[] {}
    );
  }
}

4.删除工程目录的Binaries和插件Binaries

5.选中.uproject，生成VS解决方案

6.编译

报错：

1.Error:There may be an operating system error or the module may not be properly set up

解决办法：将插件添加到.uproject里即可解决

2.C4668警告错误

解决办法：https://blog.csdn.net/yuxikuo_1/article/details/102799307

7.使用

由于自己没有创建数据库，所以可以从其他demo里下载数据库文件.db

CustomCharacter.h 添加
    UFUNCTION(BlueprintCallable, Category = "My Actor")
    bool GetMyStats();
    UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "My Actor")
    FString Name;
    UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "My Actor")
    int32 Age;
    UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "My Actor")
    FString Gender;
    UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "My Actor")
    float Height;
CustomCharacter.cpp 添加
#include "SQLiteDatabase.h"
bool AMyCharacter::GetMyStats()
{
    FString dbName = TEXT("TestDatabase");
    FString actorName = TEXT("Bruce Willis");
    if (!USQLiteDatabase::IsDatabaseRegistered(dbName))
    {
        USQLiteDatabase::RegisterDatabase(dbName, "Databases/TestDatabase.db", true);
    }
    bool didPopulate = USQLiteDatabase::GetDataIntoObject(dbName, FString::Printf(TEXT("SELECT Name, Age, Gender, Height FROM Actors WHERE Name = \"%s\""), *actorName), this);
    return didPopulate;
}
void AMyCharacter::BeginPlay()
{
    Super::BeginPlay();
    bool is_ok = GetMyStats();
    if (is_ok)
    {

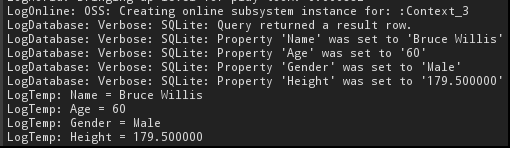

        UE_LOG(LogTemp, Log, TEXT("Name = %s"),*Name);
        UE_LOG(LogTemp, Log, TEXT("Age = %d"), Age);
        UE_LOG(LogTemp, Log, TEXT("Gender = %s"), *Gender);
        UE_LOG(LogTemp, Log, TEXT("Height = %f"), Height);
    }
}
