### 本篇文章将在[Apache Flume介绍和使用案例三][Apache Flume]这篇文章的基础上将logger sink修改为kafka sink(即整合flume到kafka完成实时数据的采集) ###

### 1. 先说一下，为什么要使用 Flume + Kafka？ ###

**以实时流处理项目为例，由于采集的数据量可能存在峰值和峰谷，假设是一个电商项目，那么峰值通常出现在秒杀时，这时如果直接将 `Flume` 聚合后的数据输入到 `Storm` 等分布式计算框架中，可能就会超过集群的处理能力，这时采用 `Kafka` 就可以起到削峰的作用。`Kafka` 天生为大数据场景而设计，具有高吞吐的特性，能很好地抗住峰值数据的冲击。**

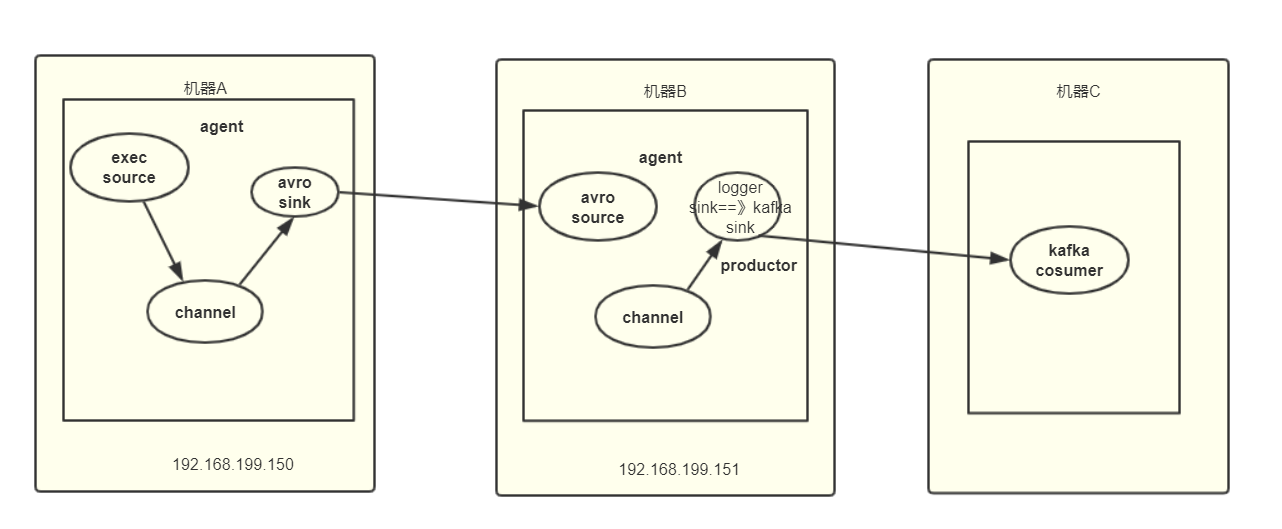

### 2. 大体流程如图所示： ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM1ODg1NDg4_size_16_color_FFFFFF_t_70]

将配置文件：`avro-memory-logger.conf`

avro-memory-logger.sources = avro-source
    avro-memory-logger.sinks = logger-sink
    avro-memory-logger.channels = memory-channel

    avro-memory-logger.sources.avro-source.type = avro
    avro-memory-logger.sources.avro-source.bind = hadoop000
    avro-memory-logger.sources.avro-source.port = 44444

    avro-memory-logger.sinks.logger-sink.type = logger

    avro-memory-logger.channels.memory-channel.type = memory

    avro-memory-logger.sources.avro-source.channels = memory-channel
    avro-memory-logger.sinks.logger-sink.channel = memory-channel

修改为`avro-memory-kafka.conf`

avro-memory-kafka.sources = avro-source
    avro-memory-kafka.sinks = kafka-sink
    avro-memory-kafka.channels = memory-channel

    avro-memory-kafka.sources.avro-source.type = avro
    avro-memory-kafka.sources.avro-source.bind = hadoop000
    avro-memory-kafka.sources.avro-source.port = 44444

    avro-memory-kafka.sinks.kafka-sink.type = org.apache.flume.sink.kafka.KafkaSink
    avro-memory-kafka.sinks.kafka-sink.brokerList = hadoop000:9092
    avro-memory-kafka.sinks.kafka-sink.topic = hello_topic
    avro-memory-kafka.sinks.kafka-sink.batchSize=5
    avro-memory-kafka.sinks.kafka-sink.requiredAcks=1


    avro-memory-kafka.channels.memory-channel.type = memory

    avro-memory-kafka.sources.avro-source.channels = memory-channel
    avro-memory-kafka.sinks.kafka-sink.channel = memory-channel

**1. 启动`zookeeper`**

zkServer.sh start

**2. 启动`kafka`**

kafka-server-start.sh $KAFKA_HOME/config/server.properties

**3. 启动：`Flume avro-memory-kafka`**

flume-ng agent \
     --name avro-memory-kafka \
     --conf conf \
     --conf-file $FLUME_HOME/conf/avro-memory-kafka.conf
     -Dflume.root.logger=INFO,console

**4. 启动：`Flume exec-memory-avro`**

flume-ng agent \
     --name exec-memory-avro \
     --conf conf \
     --conf-file $FLUME_HOME/conf/exec-memory-avro.conf
     -Dflume.root.logger=INFO,console

**最后启动消费者**

kafka-console-consumer.sh --zookeeper hadoop000:2181 --topic hello_topic    #这里的hello_topic配置在`avro-memory-kafka.conf`

测试：增加两条信息促发`Flume`采集

[hadoop@hadoop000 data]$ echo hello hadoop >> data.log
    [hadoop@hadoop000 data]$ echo hello spark >> data.log

并检测到`kafka`消费者消费信息

[hadoop@hadoop000 ~]$ kafka-console-consumer.sh --zookeeper hadoop000:2181 --topic hello_topic
    hello hadoop
    hello spark

参考：[http://flume.apache.org/releases/content/1.9.0/FlumeUserGuide.html\#kafka-sink][http_flume.apache.org_releases_content_1.9.0_FlumeUserGuide.html_kafka-sink]
