一、Spring事务实现

1、事务注解实现方式及配置

Spring中事务也是用AOP切面技术来实现的。

1.1、首先用注解的方式引入事务管理功能：

代码如下：

@Component
@EnableTransactionManagement(proxyTargetClass = false)
@MapperScan(basePackages = { “com.chj.dao”},annotationClass = Repository.class)
public class EnableTransactionManagementBean {
@Bean
public SqlSessionFactoryBean sqlSessionFactoryBean(DataSource dataSource) {
SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
sqlSessionFactoryBean.setDataSource(dataSource);
return sqlSessionFactoryBean;
}
//这样也可以

• @Bean
  public PlatformTransactionManager annotationDrivenTransactionManager(DataSource dataSource) {
  DataSourceTransactionManager dtm = new DataSourceTransactionManager();
  dtm.setDataSource(dataSource);
  return dtm;
  }
  @Bean
  public TransactionTemplate transactionTemplate(PlatformTransactionManager platformTransactionManager) {
  TransactionTemplate transactionTemplate = new TransactionTemplate();
  transactionTemplate.setTransactionManager(platformTransactionManager);
  *return transactionTemplate;
  }
  }

引用这个注解就显示的添加了注解事务功能，但是我们自己还是需要定义数据源和事务管理平台的：

1.2、数据源定义：

com.chj.datasource.DataSourceConfiguration

@Configuration
@PropertySource(“classpath:config/core/core.properties”)
public class DataSourceConfiguration {
@Value(“${jdbc.driverClassName}“)
private String driverClass;
@Value(“${jdbc.url:jdbc}“)
private String jdbcUrl;
@Value(“${jdbc.username}“)
private String user;
@Value(“${jdbc.password}“)
private String password;
@Resource
Environment environment;
// @Bean

• *public DataSource comboPooledDataSource() {
  ComboPooledDataSource comboPooledDataSource = new ComboPooledDataSource();
  try {

     comboPooledDataSource.setDriverClass(**driverClass**);
     comboPooledDataSource.setJdbcUrl(**jdbcUrl**);
     comboPooledDataSource.setUser(**user**);
     comboPooledDataSource.setPassword(**password**);
     comboPooledDataSource.setMinPoolSize(10);
     comboPooledDataSource.setMaxPoolSize(100);
     comboPooledDataSource.setMaxIdleTime(1800);
     comboPooledDataSource.setAcquireIncrement(3);
     comboPooledDataSource.setMaxStatements(1000);
     comboPooledDataSource.setInitialPoolSize(10);
     comboPooledDataSource.setIdleConnectionTestPeriod(60);
     comboPooledDataSource.setAcquireRetryAttempts(30);
     comboPooledDataSource.setBreakAfterAcquireFailure(**false**);
     comboPooledDataSource.setTestConnectionOnCheckout(**false**);
     comboPooledDataSource.setAcquireRetryDelay(100);

  } catch (PropertyVetoException e) {

     e.printStackTrace();

  }
  return comboPooledDataSource;
  }
  @Bean
  public DataSource dynamicDataSource() {
  ComboPooledDataSource comboPooledDataSource = new ComboPooledDataSource();
  try {

     comboPooledDataSource.setDriverClass(**driverClass**);
     comboPooledDataSource.setJdbcUrl(**jdbcUrl**);
     comboPooledDataSource.setUser(**user**);
     comboPooledDataSource.setPassword(**password**);
     comboPooledDataSource.setMinPoolSize(10);
     comboPooledDataSource.setMaxPoolSize(100);
     comboPooledDataSource.setMaxIdleTime(1800);
     comboPooledDataSource.setAcquireIncrement(3);
     comboPooledDataSource.setMaxStatements(1000);
     comboPooledDataSource.setInitialPoolSize(10);
     comboPooledDataSource.setIdleConnectionTestPeriod(60);
     comboPooledDataSource.setAcquireRetryAttempts(30);
     comboPooledDataSource.setBreakAfterAcquireFailure(**false**);
     comboPooledDataSource.setTestConnectionOnCheckout(**false**);
     comboPooledDataSource.setAcquireRetryDelay(100);

  } catch (PropertyVetoException e) {

     e.printStackTrace();

  }
  Map targetDataSources = new HashMap<>();
  targetDataSources.put(“ds1”,comboPooledDataSource);
  DynamicDataSource dynamicDataSource = new DynamicDataSource();
  dynamicDataSource.setTargetDataSources(targetDataSources);
  dynamicDataSource.setDefaultTargetDataSource(comboPooledDataSource);
  return dynamicDataSource;
  }
  }

1.3、定义事务管理平台：

//@Component
public class TransactionManagementConfigurerBean implements TransactionManagementConfigurer {
@Autowired
private DataSource dataSource;
@Override
public PlatformTransactionManager annotationDrivenTransactionManager() {
DataSourceTransactionManager dtm = new DataSourceTransactionManager();
dtm.setDataSource(dataSource);
return dtm;
}
}

数据源和事务管理平台的加载都是在类ProxyTransactionManagementConfiguration进行的。

2、事务标签解析以及入口分析

spring-tx-5.1.3.RELEASE.jar!\META-INF\spring.handlers

http\://www.springframework.org/schema/tx=org.springframework.transaction.config.TxNamespaceHandler

org.springframework.transaction.config.TxNamespaceHandler

public class TxNamespaceHandler extends NamespaceHandlerSupport {
static final String TRANSACTION_MANAGER_ATTRIBUTE = “transaction-manager”;
static final String DEFAULT_TRANSACTION_MANAGER_BEAN_NAME = “transactionManager”;
static String getTransactionManagerName(Element element) {
return (element.hasAttribute(TRANSACTION_MANAGER_ATTRIBUTE) ?
element.getAttribute(TRANSACTION_MANAGER_ATTRIBUTE) : DEFAULT_TRANSACTION_MANAGER_BEAN_NAME);
}
@Override
public void init() {
registerBeanDefinitionParser(“advice”, new TxAdviceBeanDefinitionParser());
registerBeanDefinitionParser(“annotation-driven”, new AnnotationDrivenBeanDefinitionParser());
registerBeanDefinitionParser(“jta-transaction-manager”, new JtaTransactionManagerBeanDefinitionParser());
}
}

org.springframework.transaction.config.AnnotationDrivenBeanDefinitionParser#parse

@Override
@Nullable
public BeanDefinition parse(Element element, ParserContext parserContext) {
registerTransactionalEventListenerFactory(parserContext);
String mode = element.getAttribute(“mode”);
if (“aspectj”.equals(mode)) {
// mode=”aspectj”

• registerTransactionAspect(element, parserContext);
  if (ClassUtils.isPresent(“javax.transaction.Transactional”, getClass().getClassLoader())) {
  registerJtaTransactionAspect(element, parserContext);
  }
  }
  else { **// mode=”proxy” *AopAutoProxyConfigurer.*configureAutoProxyCreator*(element, parserContext);
  } return null**;
  }

2.1、事务代理入口类分析：

org.springframework.transaction.config.AnnotationDrivenBeanDefinitionParser.AopAutoProxyConfigurer#configureAutoProxyCreator

private static class AopAutoProxyConfigurer {
public static void configureAutoProxyCreator(Element element, ParserContext parserContext) {
AopNamespaceUtils.*registerAutoProxyCreatorIfNecessary*(parserContext, element);
String txAdvisorBeanName = TransactionManagementConfigUtils.*TRANSACTION_ADVISOR_BEAN_NAME*; if* (!parserContext.getRegistry().containsBeanDefinition(txAdvisorBeanName)) {
Object eleSource = parserContext.extractSource(element); // Create the TransactionAttributeSource definition.*

• RootBeanDefinition sourceDef = *new RootBeanDefinition(

   **"org.springframework.transaction.annotation.AnnotationTransactionAttributeSource"**);

  sourceDef.setSource(eleSource);
  sourceDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
  String sourceName = parserContext.getReaderContext().registerWithGeneratedName(sourceDef);
  *// Create the TransactionInterceptor definition. *RootBeanDefinition interceptorDef = new RootBeanDefinition(TransactionInterceptor.class);
  interceptorDef.setSource(eleSource);
  interceptorDef.setRole(BeanDefinition.*ROLE_INFRASTRUCTURE); registerTransactionManager*(element, interceptorDef);
  interceptorDef.getPropertyValues().add(“transactionAttributeSource”, new* RuntimeBeanReference(sourceName));
  String interceptorName = parserContext.getReaderContext().registerWithGeneratedName(interceptorDef); // Create the TransactionAttributeSourceAdvisor definition.*
• RootBeanDefinition advisorDef = new RootBeanDefinition(BeanFactoryTransactionAttributeSourceAdvisor.class);
  advisorDef.setSource(eleSource);
  advisorDef.setRole(BeanDefinition.**ROLE_INFRASTRUCTURE*);
  advisorDef.getPropertyValues().add(“transactionAttributeSource”, new RuntimeBeanReference(sourceName));
  advisorDef.getPropertyValues().add(“adviceBeanName”, interceptorName); if (element.hasAttribute(“order”)) {
  advisorDef.getPropertyValues().add(“order”, element.getAttribute(“order”));
  }
  parserContext.getRegistry().registerBeanDefinition(txAdvisorBeanName, advisorDef);
  CompositeComponentDefinition compositeDef = new CompositeComponentDefinition(element.getTagName(), eleSource);
  compositeDef.addNestedComponent(new BeanComponentDefinition(sourceDef, sourceName));
  compositeDef.addNestedComponent(new BeanComponentDefinition(interceptorDef, interceptorName));
  compositeDef.addNestedComponent(new** BeanComponentDefinition(advisorDef, txAdvisorBeanName));
  parserContext.registerComponent(compositeDef);
  }
  }
  }

2.2、事务代理对象创建

org.springframework.aop.config.AopNamespaceUtils#registerAutoProxyCreatorIfNecessary

public static void registerAutoProxyCreatorIfNecessary(
ParserContext parserContext, Element sourceElement) {
BeanDefinition beanDefinition = AopConfigUtils.*registerAutoProxyCreatorIfNecessary*( parserContext.getRegistry(), parserContext.extractSource(sourceElement));* useClassProxyingIfNecessary(parserContext.getRegistry(), sourceElement); registerComponentIfNecessary*(beanDefinition, parserContext);
}

把AOP入口类封装成beanDefinition对象，把beanDefinition缓存到map中，然后实例化：

org.springframework.aop.config.AopConfigUtils#registerOrEscalateApcAsRequired

@Nullable
private static BeanDefinition registerOrEscalateApcAsRequired(
Class<?> cls, BeanDefinitionRegistry registry, @Nullable Object source) {
Assert.notNull(registry, “BeanDefinitionRegistry must not be null”);
if (registry.containsBeanDefinition(*AUTO_PROXY_CREATOR_BEAN_NAME*)) { BeanDefinition apcDefinition = registry.getBeanDefinition(*AUTO_PROXY_CREATOR_BEAN_NAME*); if (!cls.getName().equals(apcDefinition.getBeanClassName())) { int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName()); int requiredPriority = findPriorityForClass(cls); if (currentPriority < requiredPriority) {
apcDefinition.setBeanClassName(cls.getName());
}
} return null;
} *//把AOP入口类封装成beanDefinition对象，要实例化 *RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
beanDefinition.setSource(source);
beanDefinition.getPropertyValues().add(“order”, Ordered.*HIGHEST_PRECEDENCE);
beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE*); *//注解aop入口类的beanName名称 AopConfigUtils.AUTO_PROXY_CREATOR_BEAN_NAME *registry.registerBeanDefinition(*AUTO_PROXY_CREATOR_BEAN_NAME*, beanDefinition); return** beanDefinition;
}

代理类自动创建的核心

org.springframework.aop.config.AopConfigUtils

public abstract class AopConfigUtils {
//The bean name of the internally managed auto-proxy creator.

• *public static final String AUTO_PROXY_CREATOR_BEAN_NAME =

   **"org.springframework.aop.config.****internalAutoProxyCreator****"**;

  //Stores the auto proxy creator classes in escalation order.
• *private static final List> APC_PRIORITY_LIST = new ArrayList<>(3);
  static {
  // Set up the escalation list…*优先级由低到高*
• **APC_PRIORITY_LIST*.add(InfrastructureAdvisorAutoProxyCreator.class**);

// xml配置方式解析
APC_PRIORITY_LIST.add(AspectJAwareAdvisorAutoProxyCreator.class);

// 注解配置方式解析
APC_PRIORITY_LIST.add(AnnotationAwareAspectJAutoProxyCreator.class);
}

org.springframework.beans.factory.support.DefaultListableBeanFactory#registerBeanDefinition

else {
//把beanDefinition缓存到map中

• // Still in startup registration phase*
• *this.beanDefinitionMap.put(beanName, beanDefinition);
  //把beanName放到beanDefinitionNames list中，这个list着重记住，bean实例化的时候需要用到
• *this.beanDefinitionNames.add(beanName);
  this.manualSingletonNames.remove(beanName);
  }

/\* Map of bean definition objects, keyed by bean name. */
private final Map beanDefinitionMap = *new ConcurrentHashMap<>(256);

2.3、事务操作入口（开启、提交、回滚）

org.springframework.transaction.interceptor.TransactionInterceptor#invoke

@Override
@Nullable
public Object invoke(MethodInvocation invocation) throws Throwable {

• Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null); // Adapt to TransactionAspectSupport’s invokeWithinTransaction…*
• *return invokeWithinTransaction(invocation.getMethod(), targetClass, invocation::proceed);
  }

org.springframework.transaction.interceptor.TransactionAspectSupport#invokeWithinTransaction

@Nullable
protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
final InvocationCallback invocation) throws Throwable {
// If the transaction attribute is null, the method is non-transactional.

• //获取事务属性类 AnnotationTransactionAttributeSource*
• TransactionAttributeSource tas = getTransactionAttributeSource(); //获取方法上面有@Transactional注解的属性*
• *final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);
  //获取事务管理器
• *final PlatformTransactionManager tm = determineTransactionManager(txAttr);
  final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);
  if (txAttr == null || !(tm instanceof CallbackPreferringPlatformTransactionManager)) {
  // Standard transaction demarcation with getTransaction and commit/rollback calls.
• TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification);
  Object retVal = null;
  try { // This is an around advice: Invoke the next interceptor in the chain.*
• // This will normally result in a target object being invoked.*
• * //火炬传递
• retVal = invocation.proceedWithInvocation();
  }catch (Throwable ex) { // target invocation exception*
• * //事务回滚
• completeTransactionAfterThrowing(txInfo, ex);
  throw ex;
  } finally {
  cleanupTransactionInfo(txInfo);
  } //事务提交*
• commitTransactionAfterReturning(txInfo);
  *return retVal;
  }

备注：具体细节后面分析

3、在理解spring事务的时候必须牢记的几个概念：

Connection连接、事务、和用户会话

我们在看了jdbc代码以后可以清楚的知道，事务就是由connection对象控制的，所以connection对象是和事务是绑定的，然后用户请求过来时又需要数据库连接来执行sql语句，所以用户请求线程又是跟connection是绑定的。

在spring中事务传播属性有如下几种：

PROPAGATION_REQUIRED**：**如果当前没有事务，就新建一个事务，如果已经存在一个事务中，加入到这个事务中。这是最常见的选择。

PROPAGATION_SUPPORTS**：**支持当前事务，如果当前没有事务，就以非事务方式执行。

PROPAGATION_MANDATORY**：**使用当前的事务，如果当前没有事务，就抛出异常。

PROPAGATION_REQUIRES_NEW**：**新建事务，如果当前存在事务，把当前事务挂起。

PROPAGATION_NOT_SUPPORTED**：**以非事务方式执行操作，如果当前存在事务，就把当前事务挂起。

PROPAGATION_NEVER**：**以非事务方式执行，如果当前存在事务，则抛出异常。

PROPAGATION_NESTED**：**如果当前存在事务，则在嵌套事务内执行。如果当前没有事务，则执行与PROPAGATION_REQUIRED类似的操作。

其中最常见的，用得最多就是：

PROPAGATION_REQUIRED**、PROPAGATION_REQUIRES_NEW、PROPAGATION_NESTED这三种。**

事务的传播属性是spring特有的，是spring用来控制方法事务的一种手段，说直白点就是用来控制方法是否使用同一事务的一种属性，以及按照什么规则回滚的一种手段。

二、传播属性的事务控制1

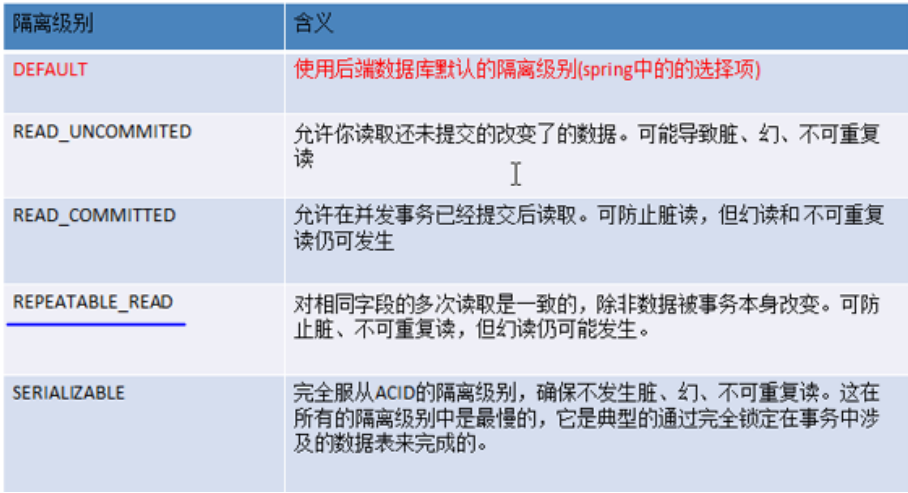

1、事务传播属性概念：

1.1、未提交读read uncommited

假如开启了两个事务，事务1的隔离级别为未提交读，然后开启事务进行查询（不提交），事务2同一个表中插入一条数据，然后继续执行事务1的查询操作发现可以查询到事务2中插入的数据。

1.2、读已提交read commit

同样开始两个事务，事务1查询数据，隔离级别为read commit（未提交），事务2继续执行插入操作，这个时候回到事务1中继续查询，发现两次查询的结果不一样，这也就是所谓的的幻读。

1.3、可重复读repeatable read

同样开始两个事务，事务级别为repeatable read，操作步骤同上，发现两次查询的结果是一致的；如果这个时候我们在事务1中插入一条数据不存在的数据（已删除的数据），但是发现数据插入失败，这也是幻读现象。

1.4、可串行化

就是将事务一个接一个的串行化的去执行，这种方式可以解决幻读但是效率非常低下。

行锁：

如果多个事务操作同一行数据，比如修改同一条数据，那么同事只是成功一条，其实就是等于给这条数据加锁，先获得锁的事务先操作。

2、获取事务属性对象

2.1、入口代码分析

这个类是事务切面的Advice，所有有关spring的事务控制逻辑都在这个类里面。

com.chj.transaction.EnableTransactionManagementBean

@Component
@EnableTransactionManagement(proxyTargetClass = false)
@MapperScan(basePackages = { “com.chj.dao”},annotationClass = Repository.class)
public class EnableTransactionManagementBean {

org.springframework.transaction.annotation.EnableTransactionManagement

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(TransactionManagementConfigurationSelector.class)
public @interface EnableTransactionManagement {

org.springframework.transaction.annotation.TransactionManagementConfigurationSelector

public class TransactionManagementConfigurationSelector extends** AdviceModeImportSelector {
/\\

• * ConfigurationClassPostProcessor*
• * ConfigurationClassParser 569行掉的*
• * 收集beanName，然后封装成beanDefinition对象*
• */*
• @Override
  protected String[] selectImports(AdviceMode adviceMode) {
  *switch (adviceMode) {

   **case** ***PROXY***:
      **return new** String\[\] \{AutoProxyRegistrar.**class**.getName(),
            ProxyTransactionManagementConfiguration.**class**.getName()\};
   **case** ***ASPECTJ***:
      **return new** String\[\] \{determineTransactionAspectClass()\};
   **default**:
      **return null**;

  }
  }

org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration

@Configuration
public class ProxyTransactionManagementConfiguration extends AbstractTransactionManagementConfiguration {
/*

• * 明显是创建事务切面实例 BeanFactoryTransactionAttributeSourceAdvisor*
• * */*
• @Bean(name = TransactionManagementConfigUtils.**TRANSACTION_ADVISOR_BEAN_NAME)
  @Role(BeanDefinition.ROLE_INFRASTRUCTURE*) public BeanFactoryTransactionAttributeSourceAdvisor transactionAdvisor() {
  BeanFactoryTransactionAttributeSourceAdvisor advisor = new* BeanFactoryTransactionAttributeSourceAdvisor();
  advisor.setTransactionAttributeSource(transactionAttributeSource()); //设置通知类*
• advisor.setAdvice(transactionInterceptor());
  if (this.enableTx != null) {
  advisor.setOrder(this.enableTx.getNumber(“order”));
  }
  return advisor;
  }
  @Bean
  @Role(BeanDefinition.**ROLE_INFRASTRUCTURE*) public TransactionAttributeSource transactionAttributeSource() { return new AnnotationTransactionAttributeSource();
  }
  */\
• * 创建事务advice TransactionInterceptor*
• * */*
• @Bean
  @Role(BeanDefinition.**ROLE_INFRASTRUCTURE*) public TransactionInterceptor transactionInterceptor() {
  TransactionInterceptor interceptor = new* TransactionInterceptor();
  interceptor.setTransactionAttributeSource(transactionAttributeSource()); //事务管理器要跟数据源挂钩，所以需要自己定义*
• *if (this.txManager != null) {
  interceptor.setTransactionManager(this.txManager);
  }
  return interceptor;
  }
  }

2.2、创建事务advice

org.springframework.transaction.interceptor.TransactionInterceptor

public class TransactionInterceptor extends TransactionAspectSupport implements MethodInterceptor, Serializable {

@Override
@Nullable
public Object invoke(MethodInvocation invocation) throws Throwable {

• Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null); // Adapt to TransactionAspectSupport’s invokeWithinTransaction…*
• *return invokeWithinTransaction(invocation.getMethod(), targetClass, invocation::proceed);
  }

org.springframework.transaction.interceptor.TransactionAspectSupport#invokeWithinTransaction

@Nullable
protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
final InvocationCallback invocation) throws Throwable {
// If the transaction attribute is null, the method is non-transactional.

• //获取事务属性类 AnnotationTransactionAttributeSource*
• *TransactionAttributeSource tas = getTransactionAttributeSource();

//获取方法上面有@Transactional注解的属性
final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);

3、事务注解解析@Transactional

这个方法就会扫描method上面的@Transactional注解，把注解里面配置的属性封装到对象中，对应的对象是：RuleBasedTransactionAttribute，获取方法上面有@Transactional注解的属性，

3.1、获取方法上面有@Transactional注解的属性方法入口：

//获取方法上面有@Transactional注解的属性
final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);

org.springframework.transaction.interceptor.AbstractFallbackTransactionAttributeSource#getTransactionAttribute

// We need to work it out.
TransactionAttribute txAttr = computeTransactionAttribute(method, targetClass);
// Put it in the cache.
if (txAttr == null) {
this.attributeCache.put(cacheKey, NULL_TRANSACTION_ATTRIBUTE);
}

org.springframework.transaction.interceptor.AbstractFallbackTransactionAttributeSource#computeTransactionAttribute

@Nullable
protected TransactionAttribute computeTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
// Don’t allow no-public methods as required.

• *if (allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
  return null;
  }
  // The method may be on an interface, but we need attributes from the target class.
• // If the target class is null, the method will be unchanged.*
• Method specificMethod = AopUtils.getMostSpecificMethod(method, targetClass);
  **// First try is the method in the target class. *TransactionAttribute txAttr = findTransactionAttribute(specificMethod); if (txAttr != null) { return** txAttr;
  }

org.springframework.transaction.annotation.AnnotationTransactionAttributeSource#findTransactionAttribute(java.lang.reflect.Method)

@Override
@Nullable
protected TransactionAttribute findTransactionAttribute(Method method) {
return determineTransactionAttribute(method);
}

3.2、this.annotationParsers说明

org.springframework.transaction.annotation.AnnotationTransactionAttributeSource#determineTransactionAttribute

private final Set annotationParsers;

public AnnotationTransactionAttributeSource(boolean publicMethodsOnly) {
this.publicMethodsOnly = publicMethodsOnly;
if (jta12Present || ejb3Present) {
this.annotationParsers = new LinkedHashSet<>(4);
//主要是用这个注解解析器，解析方法上面的@Transactional注解

• *this.annotationParsers.add(new SpringTransactionAnnotationParser());
  if (jta12Present) {
  this.annotationParsers.add(new JtaTransactionAnnotationParser());
  }
  if (ejb3Present) {
  this.annotationParsers.add(new Ejb3TransactionAnnotationParser());
  }
  }else {
  this.annotationParsers = Collections.singleton(new SpringTransactionAnnotationParser());
  }
  }

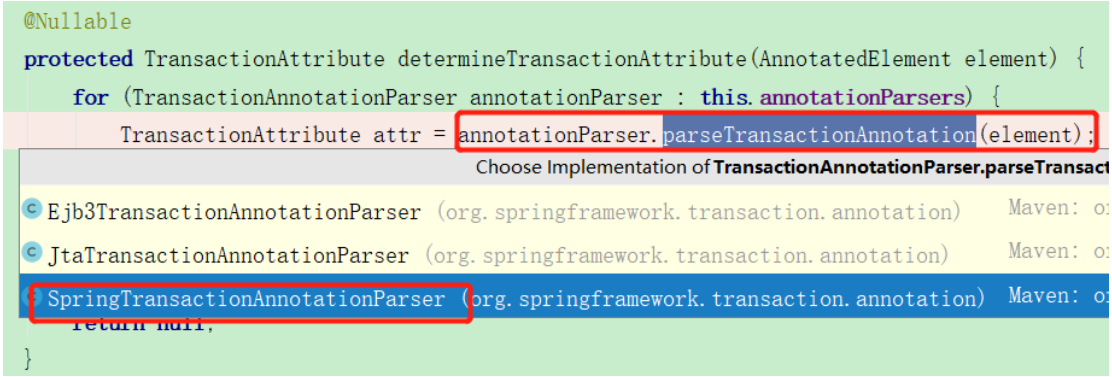

通过SpringTransactionAnnotationParser解析方法上面的@Transactional注解

org.springframework.transaction.annotation.SpringTransactionAnnotationParser#parseTransactionAnnotation(java.lang.reflect.AnnotatedElement)

public class SpringTransactionAnnotationParser implements TransactionAnnotationParser, Serializable {
@Override
@Nullable
public TransactionAttribute parseTransactionAnnotation(AnnotatedElement element) {
AnnotationAttributes attributes = AnnotatedElementUtils.findMergedAnnotationAttributes(
element, Transactional.class, false, false);
if (attributes != null) {
return parseTransactionAnnotation(attributes);
}else {
return null;
}
}

3.3、注解解析方法parseTransactionAnnotation分析

org.springframework.transaction.annotation.SpringTransactionAnnotationParser#parseTransactionAnnotation(org.springframework.core.annotation.AnnotationAttributes)

对象RuleBasedTransactionAttribute中分装了事务相关的配置属性，例如传播属性以及隔离级别等

protected TransactionAttribute parseTransactionAnnotation(AnnotationAttributes attributes) {
RuleBasedTransactionAttribute rbta = new RuleBasedTransactionAttribute();
Propagation propagation = attributes.getEnum(“propagation”**);** // 事务传播属性
rbta.setPropagationBehavior(propagation.value());
Isolation isolation = attributes.getEnum(“isolation”); //事务隔离级别
rbta.setIsolationLevel(isolation.value());
rbta.setTimeout(attributes.getNumber(“timeout”).intValue());
rbta.setReadOnly(attributes.getBoolean(“readOnly”));
rbta.setQualifier(attributes.getString(“value”));
List rollbackRules = new ArrayList<>();
for (Class<?> rbRule : attributes.getClassArray(“rollbackFor”)) {
rollbackRules.add(new RollbackRuleAttribute(rbRule));
}
for (String rbRule : attributes.getStringArray(“rollbackForClassName”)) {
rollbackRules.add(new RollbackRuleAttribute(rbRule));
}
for (Class<?> rbRule : attributes.getClassArray(“noRollbackFor”)) {
rollbackRules.add(new NoRollbackRuleAttribute(rbRule));
}
for (String rbRule : attributes.getStringArray(“noRollbackForClassName”)) {
rollbackRules.add(new NoRollbackRuleAttribute(rbRule));
}
rbta.setRollbackRules(rollbackRules);

return rbta;
}

4、开启事务源码分析

4.1、开启事务代码入口

org.springframework.transaction.interceptor.TransactionAspectSupport#invokeWithinTransaction

// Standard transaction demarcation with getTransaction and commit/rollback calls.
TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification);

org.springframework.transaction.interceptor.TransactionAspectSupport#createTransactionIfNecessary

@Nullable
protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
final InvocationCallback invocation) throws Throwable {
// If the transaction attribute is null, the method is non-transactional.

• //获取事务属性类 AnnotationTransactionAttributeSource*
• TransactionAttributeSource tas = getTransactionAttributeSource(); //获取方法上面有@Transactional注解的属性*
• *final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);
  //获取事务管理器
• *final PlatformTransactionManager tm = determineTransactionManager(txAttr);
  final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);
  if (txAttr == null || !(tm instanceof CallbackPreferringPlatformTransactionManager)) {
  *// Standard transaction demarcation with getTransaction and commit/rollback calls. *TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification);
  Object retVal = null; try** {

   *// This is an around advice: Invoke the next interceptor in the chain.*

• // This will normally result in a target object being invoked.*
• * //火炬传递
• retVal = invocation.proceedWithInvocation();
  }catch (Throwable ex) { // target invocation exception*
• * //事务回滚
• completeTransactionAfterThrowing(txInfo, ex);
  throw ex;
  } finally {
  cleanupTransactionInfo(txInfo);
  } //事务提交*
• commitTransactionAfterReturning(txInfo);
  *return retVal;
  }

4.2、进入方法createTransactionIfNecessary，分析开启事务方法

org.springframework.transaction.interceptor.TransactionAspectSupport#createTransactionIfNecessary

//开启事务，这里重点看
status = tm.getTransaction(txAttr);

org.springframework.transaction.support.AbstractPlatformTransactionManager#getTransaction

@Override
public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition) throws TransactionException {

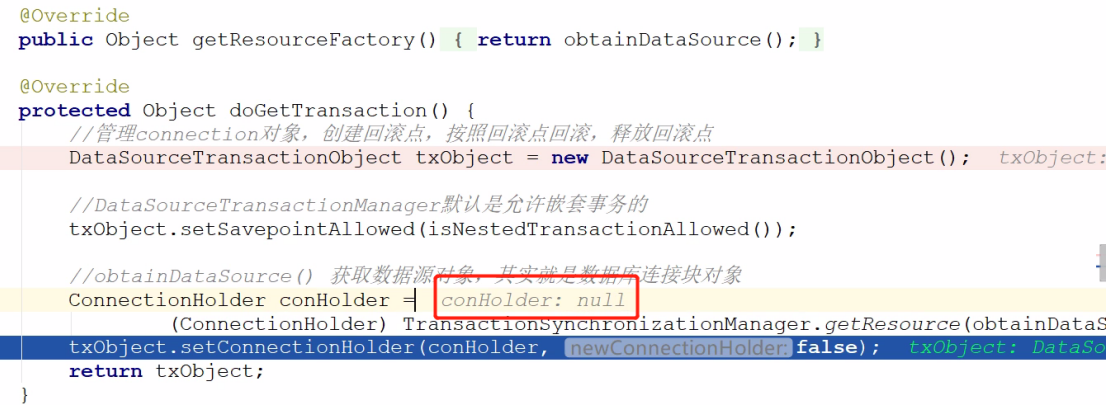

//这里重点看，.DataSourceTransactionObject拿到对象
**Object transaction = doGetTransaction();* // Cache debug flag to avoid repeated checks.*

• *boolean debugEnabled = logger.isDebugEnabled();
  if (definition == null) {
  // Use defaults if no transaction definition given.
• definition = new DefaultTransactionDefinition();

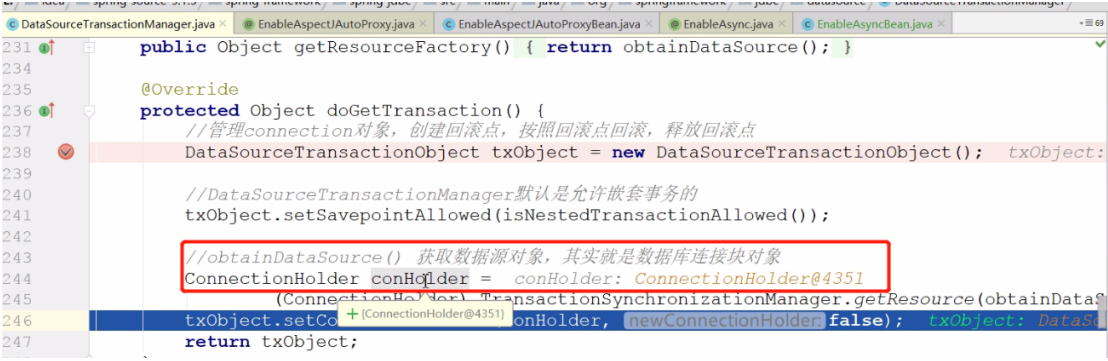

  } //第一次进来connectionHolder为空的，所以不存在事务*
• *if (isExistingTransaction(transaction)) {
  // Existing transaction found -> check propagation behavior to find out how to behave.
• *return handleExistingTransaction(definition, transaction, debugEnabled);
  }
  // Check definition settings for new transaction.
• *if (definition.getTimeout() < TransactionDefinition.TIMEOUT_DEFAULT) {
  throw new InvalidTimeoutException(“Invalid transaction timeout”, definition.getTimeout());
  }
  // No existing transaction found -> check propagation behavior to find out how to proceed.
• *if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
  throw new IllegalTransactionStateException(

      **"No existing transaction found for transaction marked with propagation 'mandatory'"**);

  }
  //第一次进来大部分会走这里
• *else if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||

   definition.getPropagationBehavior() == TransactionDefinition.***PROPAGATION\_REQUIRES\_NEW*** ||
   definition.getPropagationBehavior() == TransactionDefinition.***PROPAGATION\_NESTED***) \{

  //先挂起
• SuspendedResourcesHolder suspendedResources = suspend(null);
  *if (debugEnabled) {

   **logger**.debug(**"Creating new transaction with name \["** \+ definition.getName() + **"\]: "** \+ definition);

  }
  try {

   **boolean** newSynchronization = (getTransactionSynchronization() != ***SYNCHRONIZATION\_NEVER***);

  *//创建事务状态对象，其实就是封装了事务对象的一些信息，记录事务状态的 *DefaultTransactionStatus status = newTransactionStatus( definition, transaction, true, newSynchronization, debugEnabled, suspendedResources); *//开启事务,重点看看 DataSourceTransactionObject *doBegin(transaction, definition); *//开启事务后，改变事务状态 *prepareSynchronization(status, definition);**

   **return** status;

  } catch (RuntimeException | Error ex) {
  resume(null, suspendedResources);
  throw ex;
  }
  }else {
  // Create “empty” transaction: no actual transaction, but potentially synchronization.
• *if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT && logger.isWarnEnabled()) {
  logger.warn(“Custom isolation level specified but no actual transaction initiated; “ +

      **"isolation level will effectively be ignored: "** \+ definition);

  }
  boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
  return prepareTransactionStatus(definition, null, true, newSynchronization, debugEnabled, null);
  }
  }

这个方法创建事务对象，事务对象往往需要跟连接挂钩，所以里面肯定会有连接对象 ConnectionHolder，在这个方法里面会首先从ThreadLocal中获取连接对象，如下：

4.3、方法doGetTransaction分析

org.springframework.jdbc.datasource.DataSourceTransactionManager#doGetTransaction

@Override
protected Object doGetTransaction() {
//管理connection对象，创建回滚点，按照回滚点回滚，释放回滚点

• DataSourceTransactionObject txObject = new DataSourceTransactionObject(); //DataSourceTransactionManager默认是允许嵌套事务的*
• txObject.setSavepointAllowed(isNestedTransactionAllowed()); //obtainDataSource() 获取数据源对象，其实就是数据库连接块对象（第一次进来为null*）
• *ConnectionHolder conHolder =

   (ConnectionHolder) TransactionSynchronizationManager.*getResource*(obtainDataSource());

  txObject.setConnectionHolder(conHolder, false);
  return txObject;
  }

这个ThreadLocal中value封装了一个map，map是数据源对象DataSource和连接对象的映射关系，也就是说，如果上一个事务中建立了映射关系，下一个事务就可以通过当前线程从ThreadLocal中获取到这个map，然后根据当前使用的数据源对象拿到对应的连接对象，然后设置到事务对象中。

4.4、根据connectionHolder对象判断当前是否存在事务

事务和连接是异议绑定的，数据库连接又与用户请求回话绑定。

第一次进来connectionHolder为空的，所以不存在事务：

第二次进来connectionHolder不为空：

当方法Object transaction = doGetTransaction();执行完后，往下走：

//第一次进来connectionHolder为空的，所以不存在事务
if (isExistingTransaction(transaction)) {
// Existing transaction found -> check propagation behavior to find out how to behave.

• *return handleExistingTransaction(definition, transaction, debugEnabled);
  }

该方法判断当前是否存在事务，如果能从事务对象中拿到连接对象，就表示当前是存在事务的。如果不存在，也就是说是第一次创建事务。则往下走：

//第一次进来大部分会走这里
else if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
//先挂起

• SuspendedResourcesHolder suspendedResources = suspend(null);
  *if (debugEnabled) {

   **logger**.debug(**"Creating new transaction with name \["** \+ definition.getName() + **"\]: "** \+ definition);

  }
  try {

   **boolean** newSynchronization = (getTransactionSynchronization() != ***SYNCHRONIZATION\_NEVER***);
   *//创建事务状态对象，其实就是封装了事务对象的一些信息，记录事务状态的*

• *DefaultTransactionStatus status = newTransactionStatus(

   definition, transaction, **true**, newSynchronization, debugEnabled, suspendedResources);

  *//开启事务,重点看看 DataSourceTransactionObject *doBegin(transaction, definition);* //开启事务后，改变事务状态*
• prepareSynchronization(status, definition);
  *return status;
  }

后续源码分析详见第六章。
