搭建Eureka 服务端和客户端

心已赠人 2023-07-04 12:56 49阅读 0赞

# 1.搭建Eureka 服务端   #

0. demo项目下载地址

链接：https://pan.baidu.com/s/1jCLIJYclU9QrwG5NmkPJ5w
          提取码：fk75

1.新建SpringBoot项目 ,pom.xml文件  服务端依赖

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.2.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.zhang.cloud</groupId>
    	<artifactId>demo</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>demo</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    		<spring-cloud.version>Hoxton.SR1</spring-cloud.version>
    	</properties>

    	<dependencies>

    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
    		</dependency>
    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>${spring-cloud.version}</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>

    </project>

2.启动类

@SpringBootApplication
    @EnableEurekaServer  //服务端Eureka注解
    public class DemoApplication {
    	public static void main(String[] args) {
    		SpringApplication.run(DemoApplication.class, args);
    	}
    }

3.配置文件 application.properties

#指定运行端口
    server.port=8001
    #指定服务名称
    spring.application.name=eureka-server
    #指定主机地址
    eureka.instance.hostname=localhost
    #指定是否要从注册中心获取服务（注册中心不需要开启）
    eureka.client.fetch-registry=false
    #指定是否要注册到注册中心（注册中心不需要开启）
    eureka.client.register-with-eureka=false
    #关闭保护模式
    eureka.server.enable-self-preservation=false

4.启动项目访问  [http://localhost:8001/][http_localhost_8001]   如图访问成功

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3poYW5nc2hlbmdxaWFuZzE2OA_size_16_color_FFFFFF_t_70][]

# 2.搭建Eureka客户端 #

0.demo项目下载地址

链接：https://pan.baidu.com/s/1LC4gCekVw0HhdkGGUbj-rw
         提取码：1659

1.pom.xml文件 客户端依赖 web依赖

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>
        <parent>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-parent</artifactId>
            <version>2.2.4.RELEASE</version>
            <relativePath/>
        </parent>
        <groupId>com.zhang.cloud</groupId>
        <artifactId>eurekaclient</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <name>eurekaclient</name>
        <description>Demo project for Spring Boot</description>

        <properties>
            <java.version>1.8</java.version>
            <spring-cloud.version>Hoxton.SR1</spring-cloud.version>
        </properties>

        <dependencies>

            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
            </dependency>
            <dependency>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-web</artifactId>
    	</dependency>
        </dependencies>

        <dependencyManagement>
            <dependencies>
                <dependency>
                    <groupId>org.springframework.cloud</groupId>
                    <artifactId>spring-cloud-dependencies</artifactId>
                    <version>${spring-cloud.version}</version>
                    <type>pom</type>
                    <scope>import</scope>
                </dependency>
            </dependencies>
        </dependencyManagement>
    </project>

2.启动类

@SpringBootApplication
    @EnableEurekaClient  //Eureka客户端注解
    public class EurekaClientApplication {
    	public static void main(String[] args) {
    		SpringApplication.run(EurekaClientApplication.class, args);
    	}
    }

3.配置文件 application.properties

#指定运行端口
    server.port=8101
    #服务名称
    spring.application.name=eureka-client
    #获取注册实例列表
    eureka.client.fetch-registry=true
    #注册到Eureka的注册中心
    eureka.client.register-with-eureka=true
    #配置注册中心地址
    eureka.client.service-url.defaultZone=http://localhost:8001/eureka/

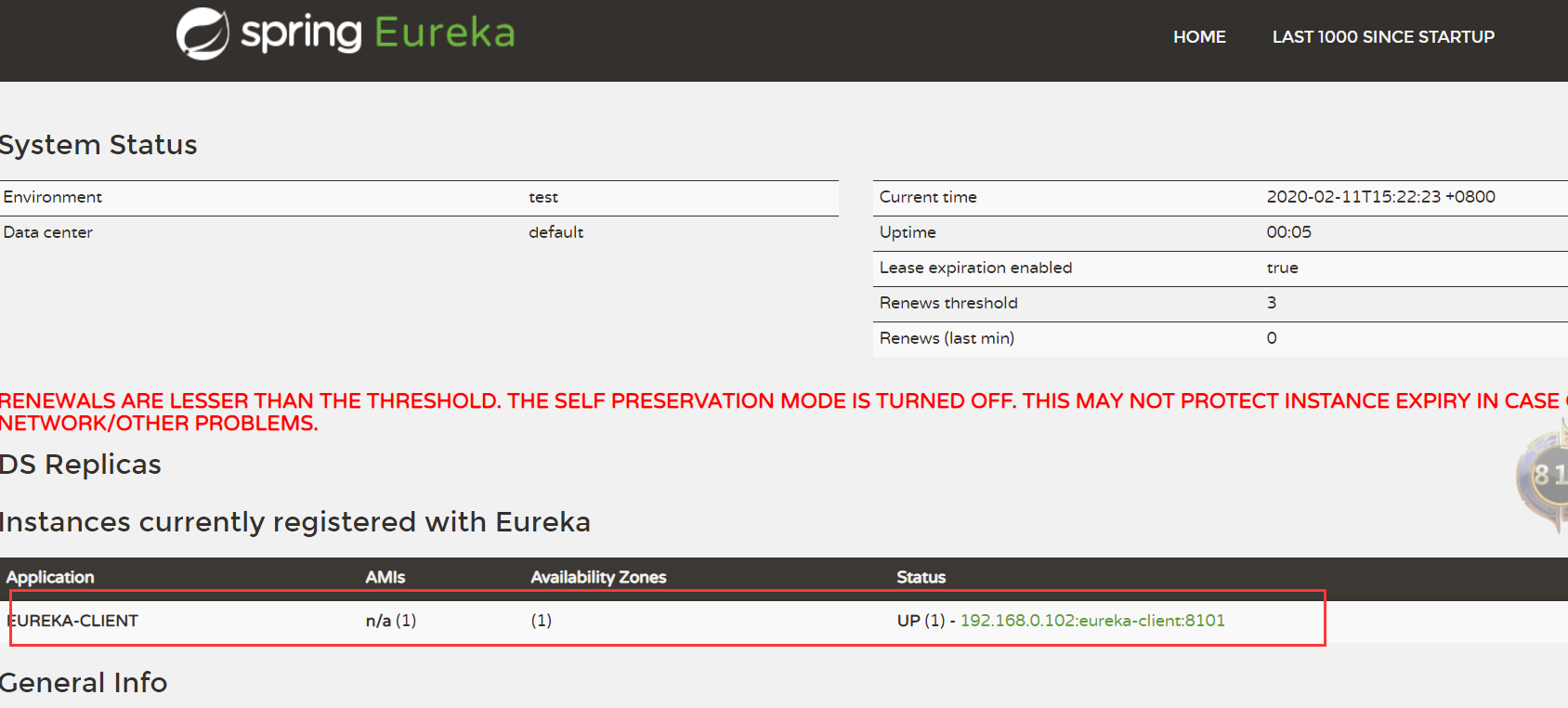

4.启动项目,访问[http://localhost:8001/][http_localhost_8001]  ,可以看到已经注册到Eureka服务端

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3poYW5nc2hlbmdxaWFuZzE2OA_size_16_color_FFFFFF_t_70 1][]
