jenkins+Docker+springcloud微服务持续集成

待我称王封你为后i 2023-10-06 10:36 29阅读 0赞

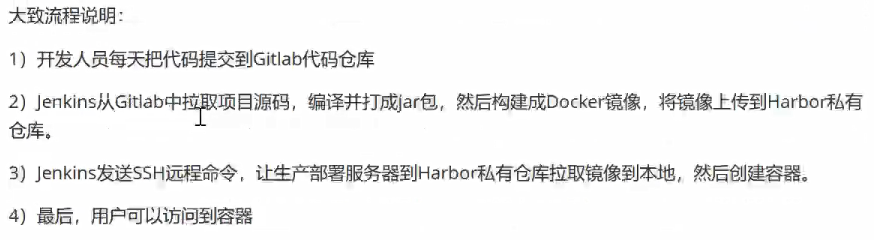

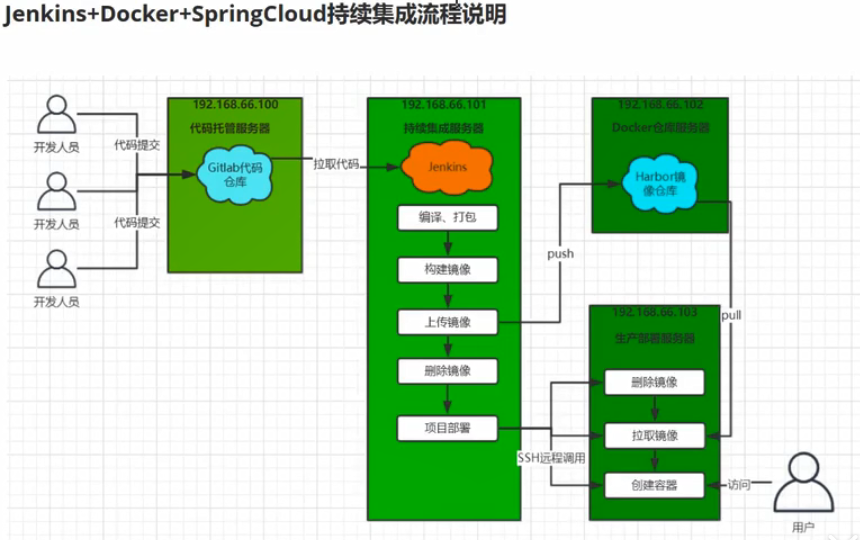

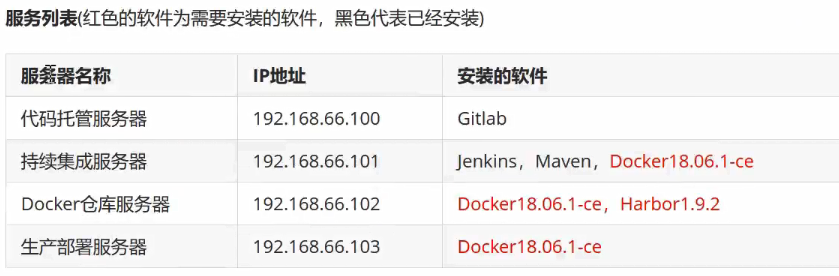

## 流程说明 ##

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 1]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 2]

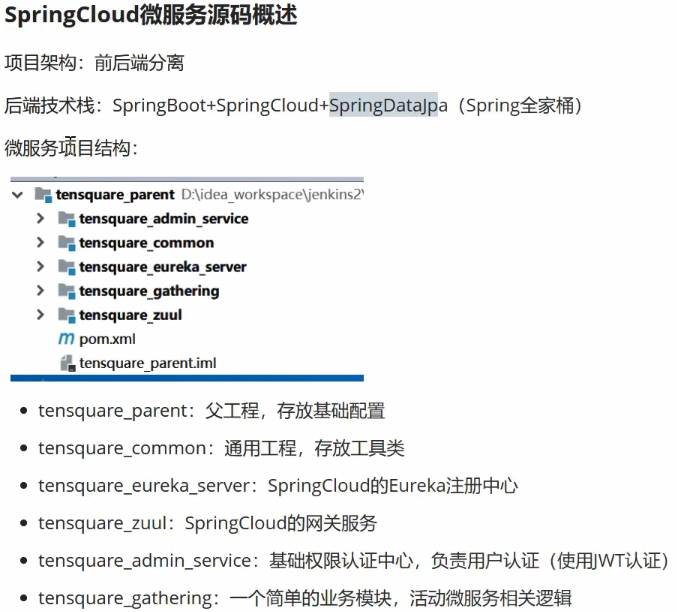

![在这里插入图片描述][20200606173220426.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 3]

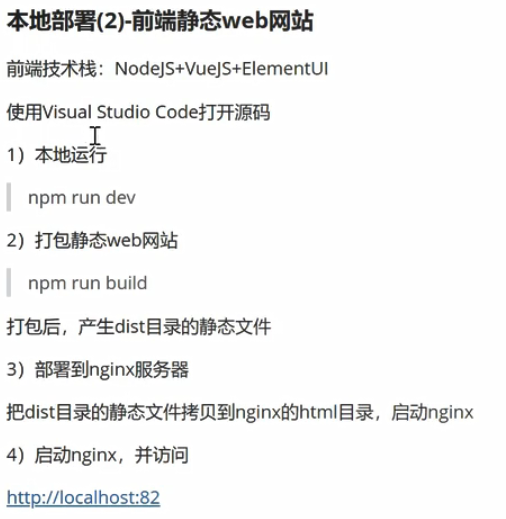

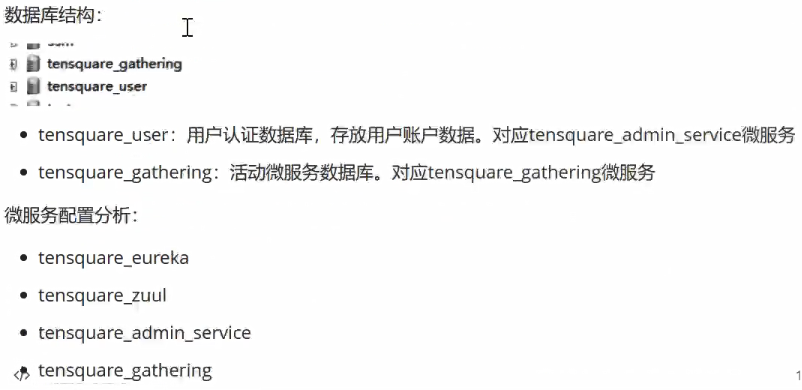

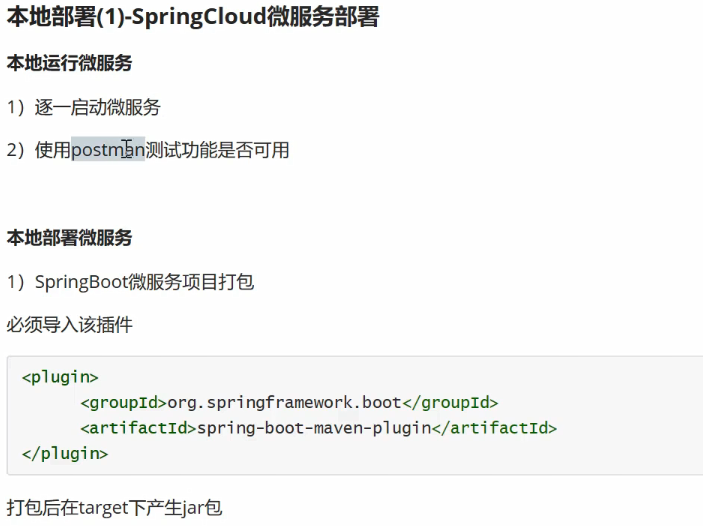

## 本地部署 ##

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 4]
![在这里插入图片描述][20200606174031191.png]
微服务是可以独立部署的，如果不借助spring-boot-maven插件，package出来的jar包是不能运行的。

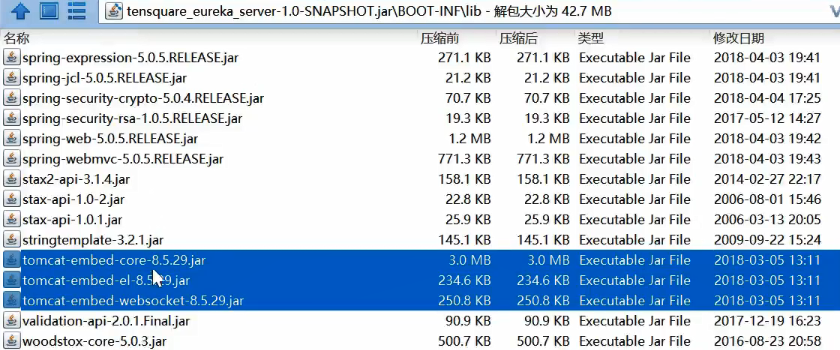

借助spring-boot-maven插件package出来的jar包已经内嵌了tomcat相关的jar，可以独立运行（java -jar）：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 5]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 6]

## 使用Dockerfile制作微服务镜像 ##

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 7]
`vi Dockerfile`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 8]

docker build --build-arg JAR_FILE=tensquare_eureka_server-1.0-SNAPSHOT.jar -t eureka:v1 .

*  –build-arg JAR\_FILE=xxx 设置参数的值
 *  eureka:v1：eureka是镜像名称，v1是标签tag

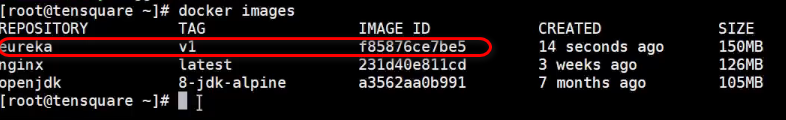

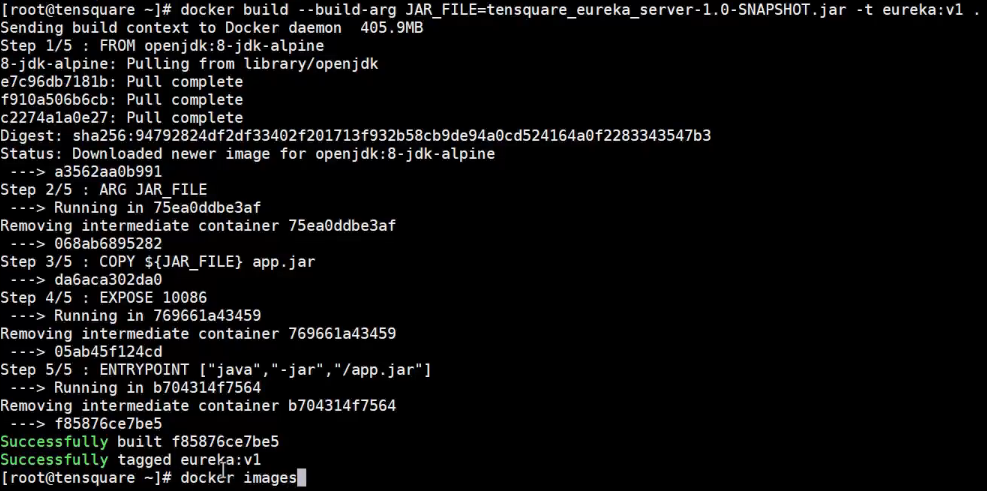

`docker build`日志查看：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 9]
![在这里插入图片描述][20200606180313387.png]

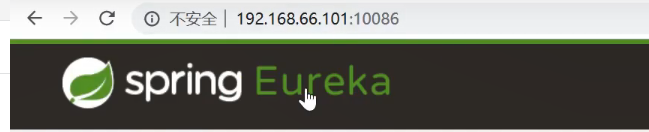

`docker run`创建容器验证一下：
![在这里插入图片描述][20200606180406562.png]
![在这里插入图片描述][20200606180441666.png]
`docker logs -f 容器ID`查看容器日志

## Harbor ##

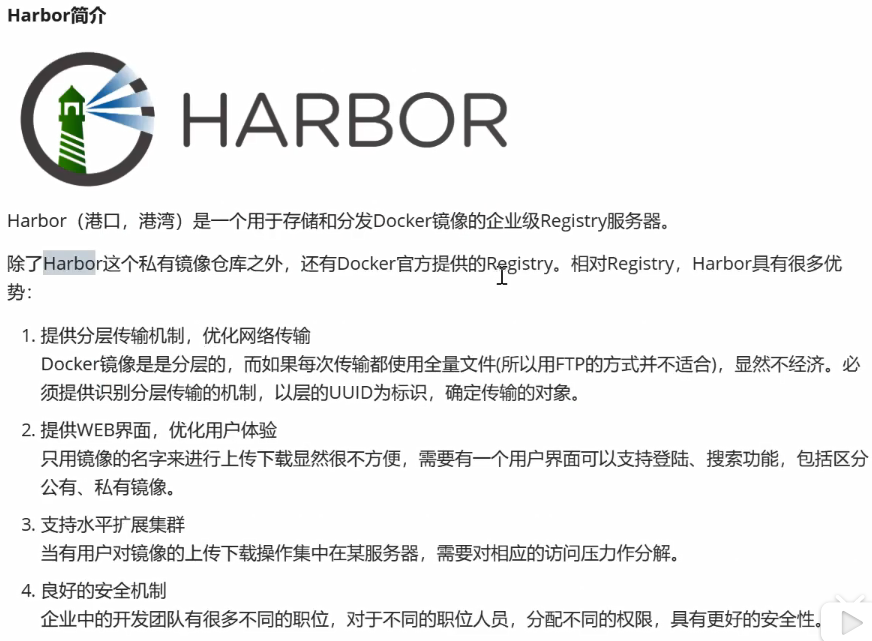

### 简介 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 10]

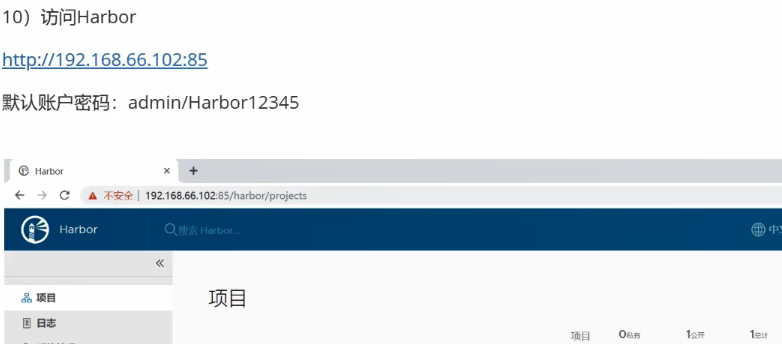

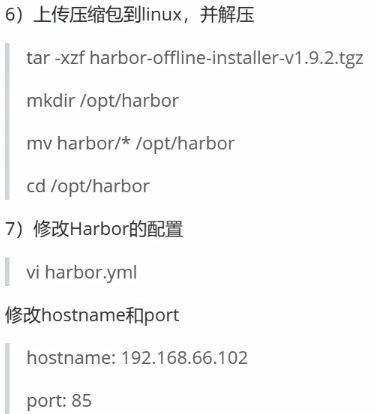

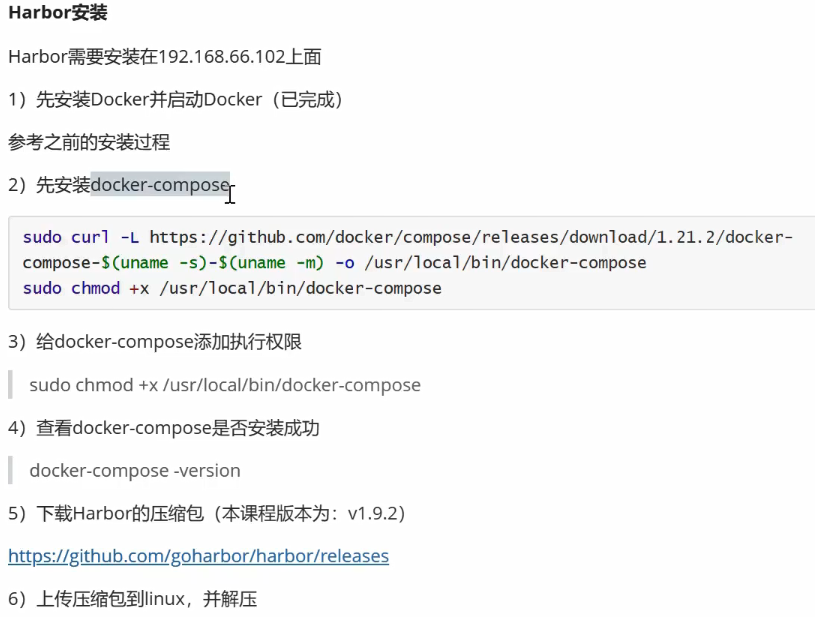

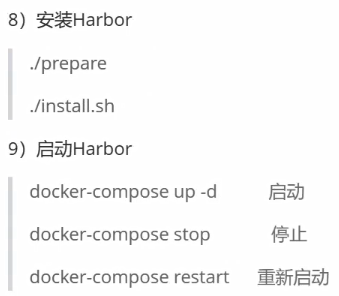

### 安装 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 11]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 12]
![在这里插入图片描述][20200606181020325.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 13]

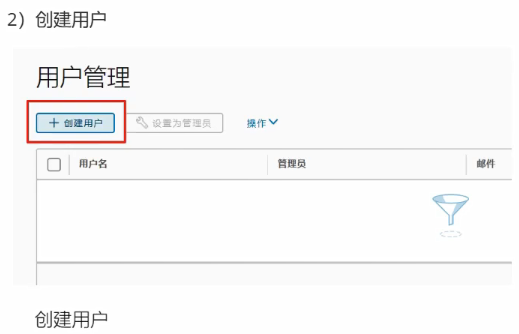

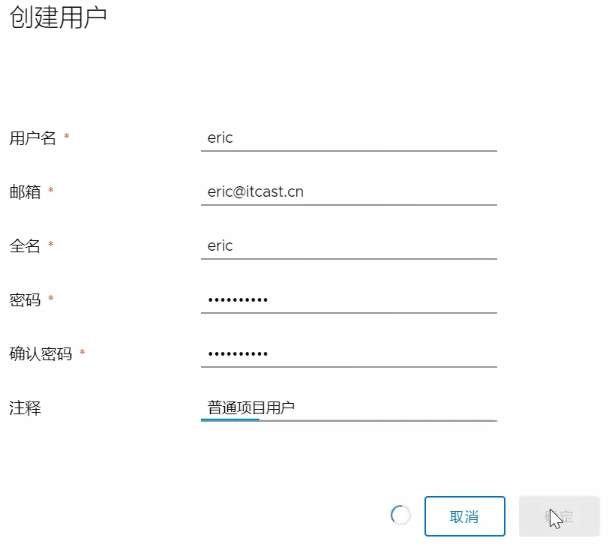

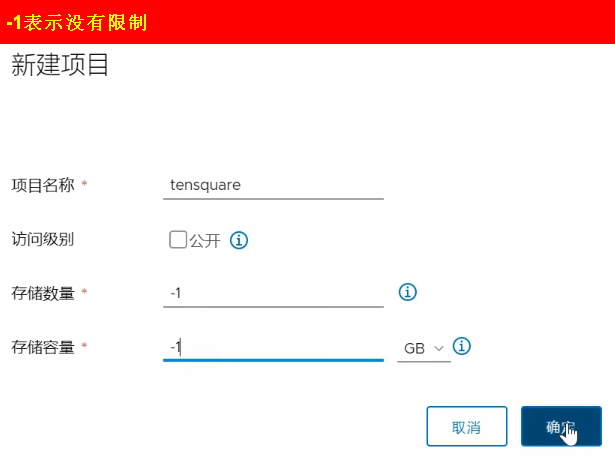

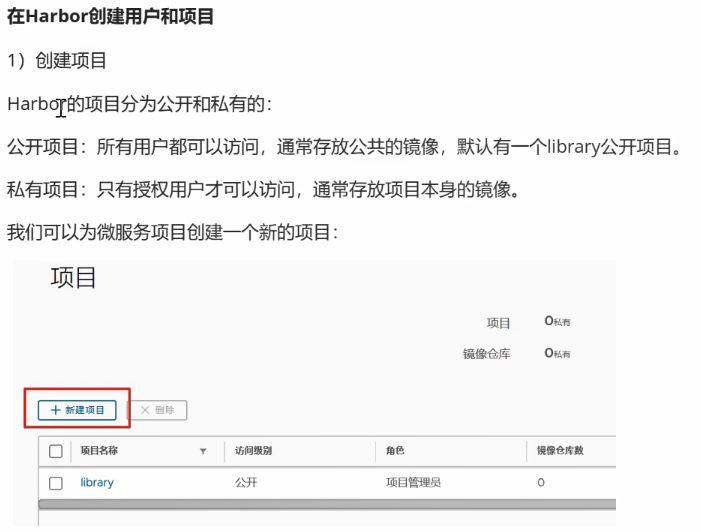

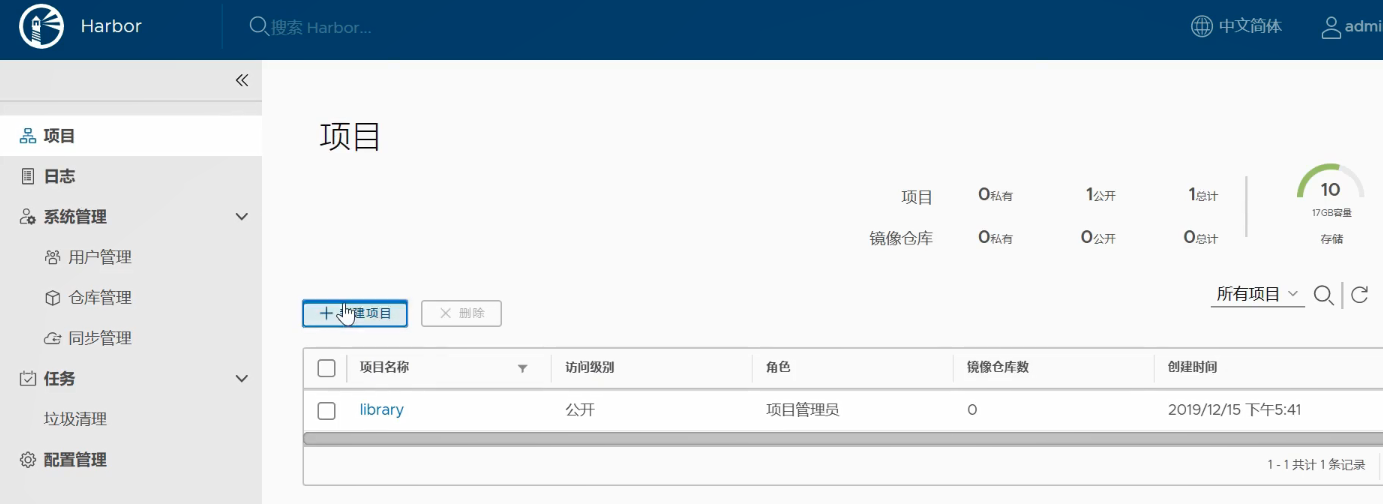

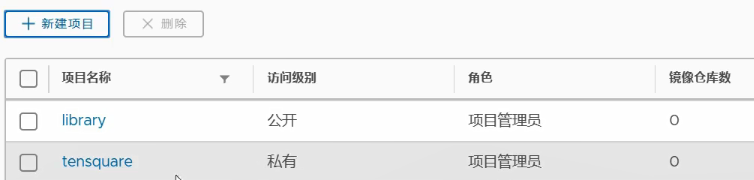

### 创建用户和项目 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 14]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 15]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 16]
![在这里插入图片描述][2020060618170435.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 17]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 18]

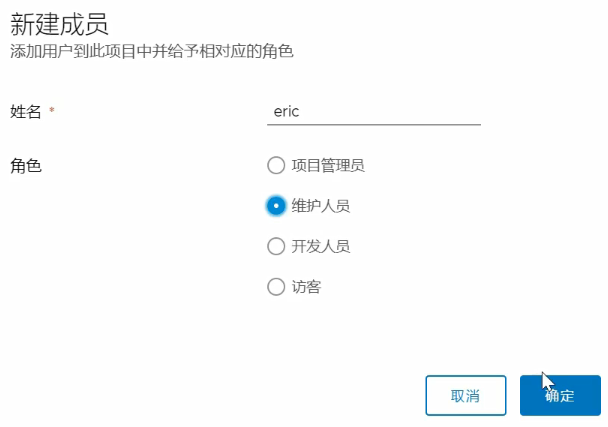

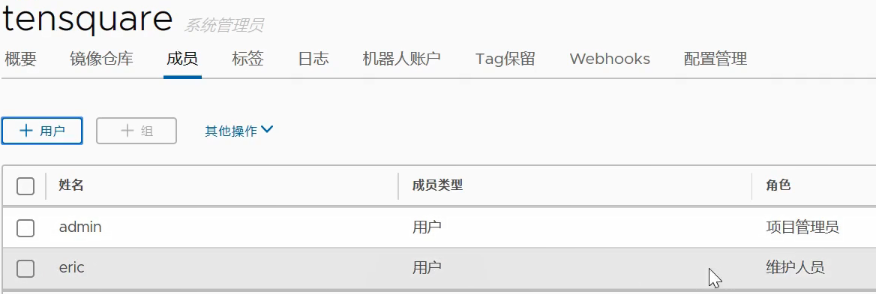

给tensquare项目添加成员：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 19]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 20]

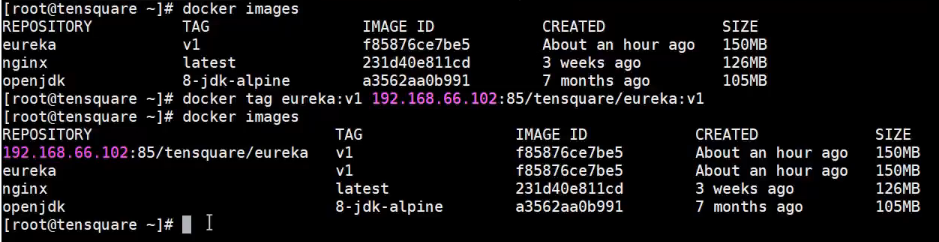

### 上传镜像到Harbor ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 21]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 22]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 23]
由于docker并不信任harbor仓库地址，贸然上传到harbor会报错：
![在这里插入图片描述][20200606190221439.png]
`vi /etc/docker/daemon.json` 信任harbor仓库地址

![在这里插入图片描述][20200606190315286.png]
`systemctl restart docker` 重启docker

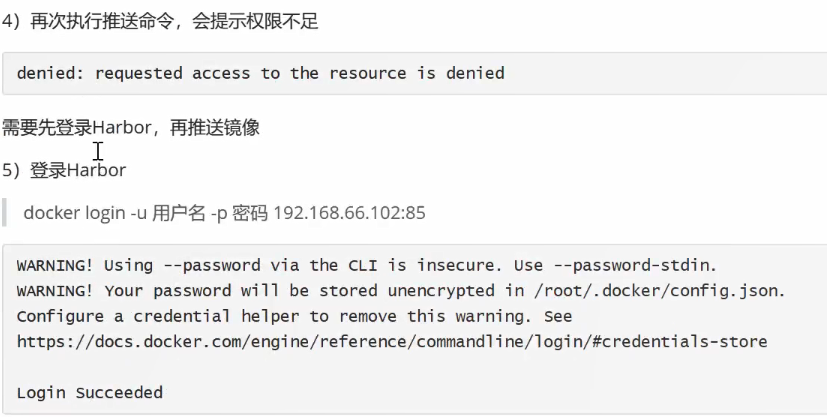

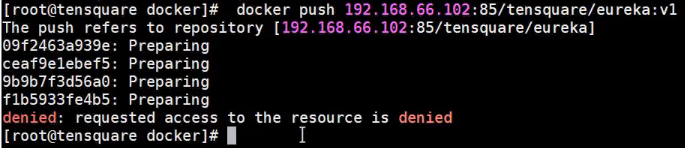

上传到私有仓库，需要账号密码：不然会报错
![在这里插入图片描述][20200606190512164.png]

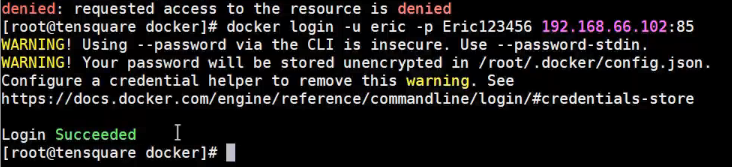

所以需要登录harbor：
![在这里插入图片描述][20200606190601484.png]

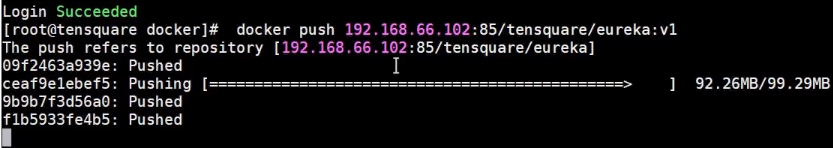

此时就会成功push：
![在这里插入图片描述][20200606190642826.png]

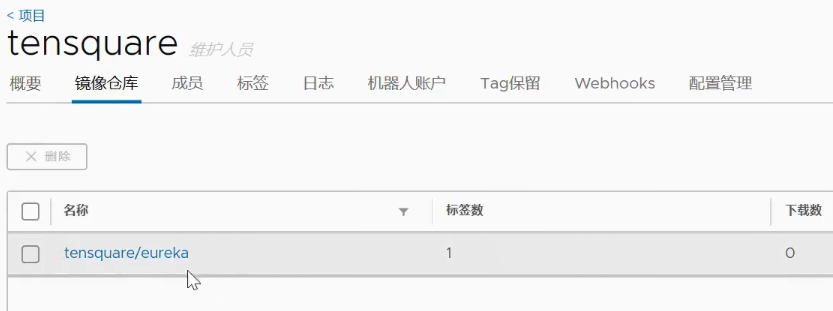

查看harbor仓库，就会看到刚才上传的eureka镜像：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 24]

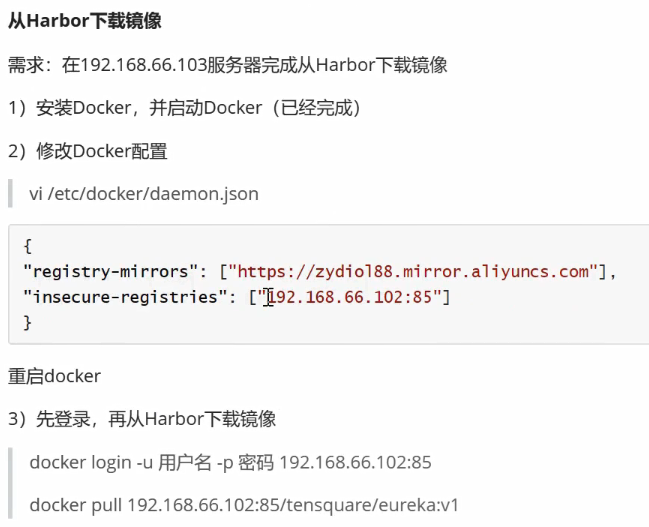

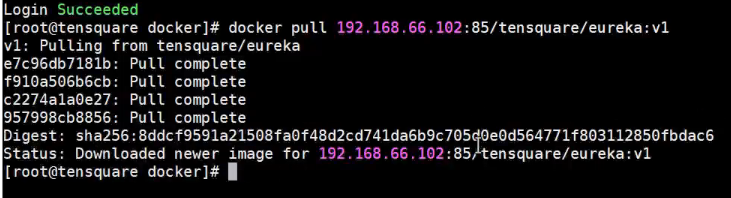

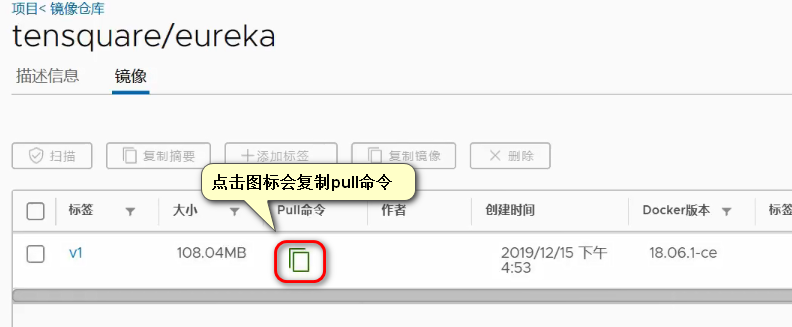

### 从harbor下载镜像 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 25]
![在这里插入图片描述][20200606191007518.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 26]
![在这里插入图片描述][20200606191210527.png]
`docker images`
![在这里插入图片描述][20200606191236459.png]

## spring cloud微服务持续集成 ##

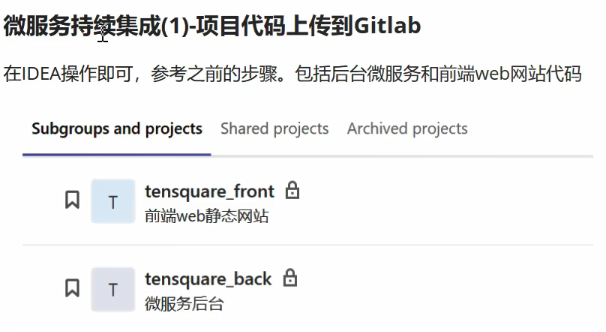

### 代码上传到gitlab ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 27]

#### idea vcs ####

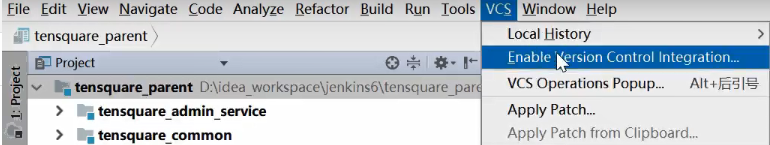

`enable`
![在这里插入图片描述][20200606191720549.png]

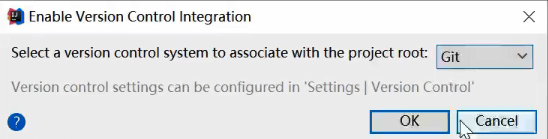

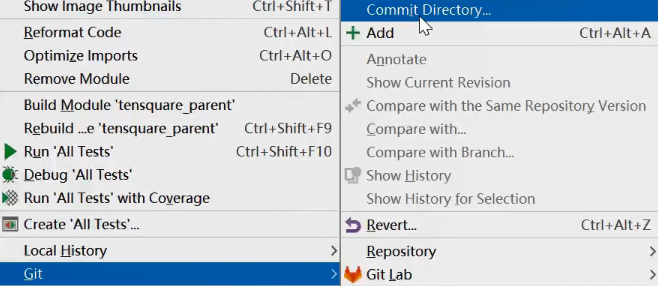

`git`
![在这里插入图片描述][20200606191748571.png]

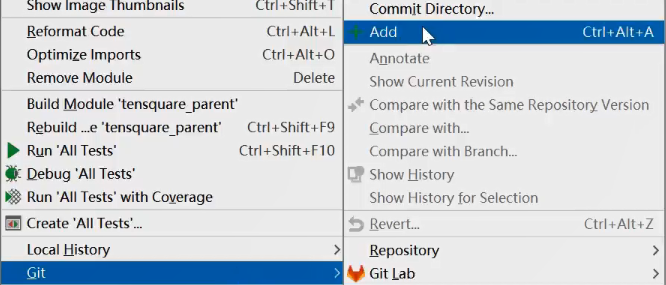

`add`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 28]

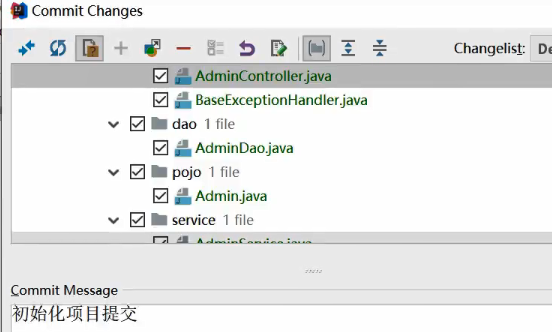

`commit`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 29]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 30]
![在这里插入图片描述][20200606191929178.png]

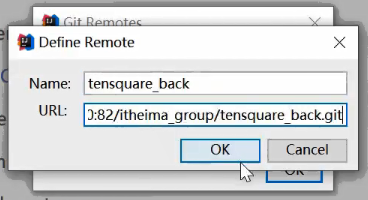

`remotes`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 31]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 32]
![在这里插入图片描述][20200606192037841.png]

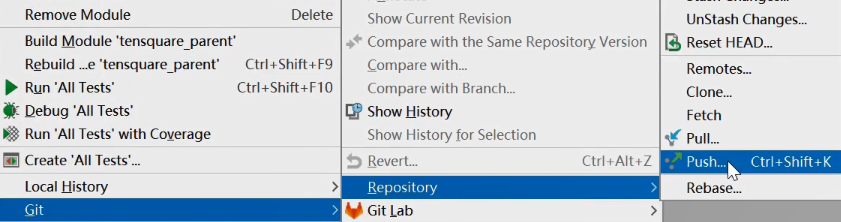

`push`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 33]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 34]

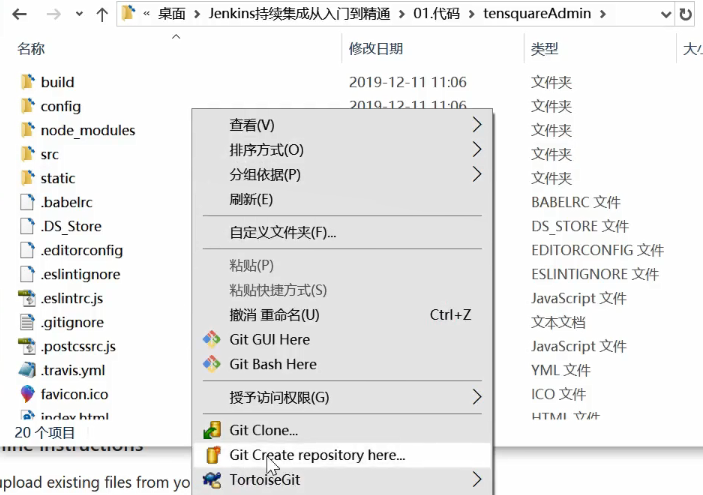

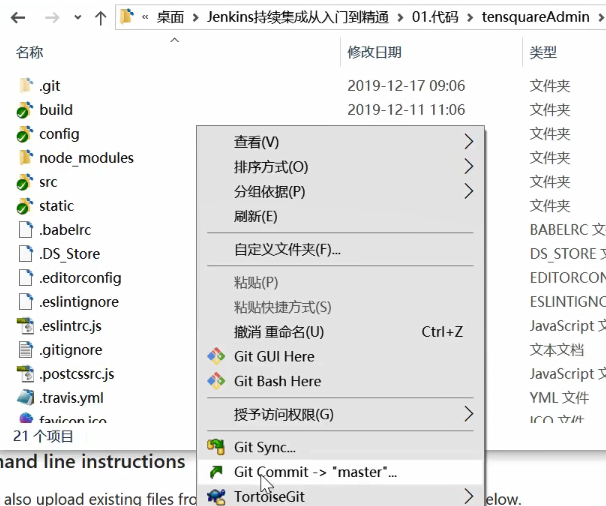

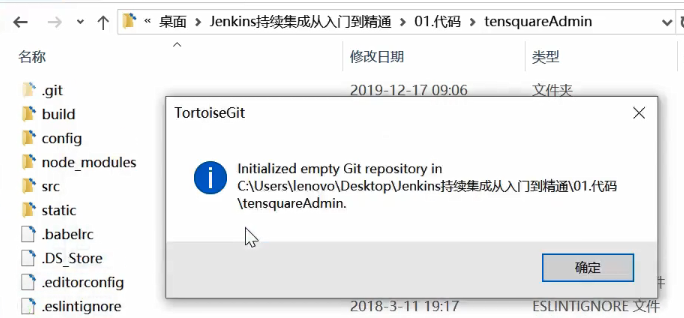

#### TortoiseGit操作方式 ####

`init`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 35]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 36]

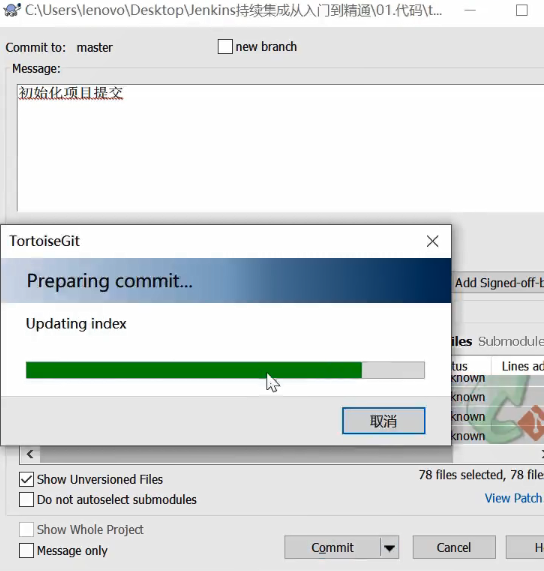

`commit`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 37]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 38]

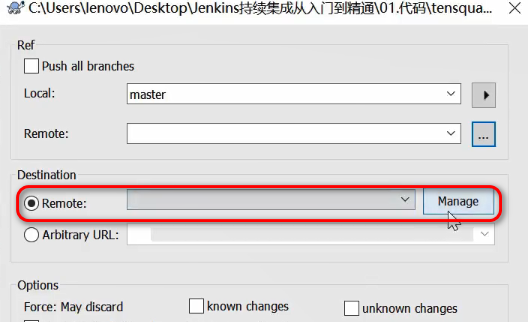

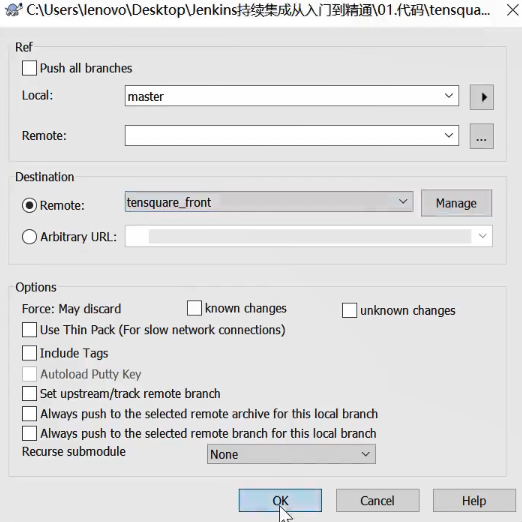

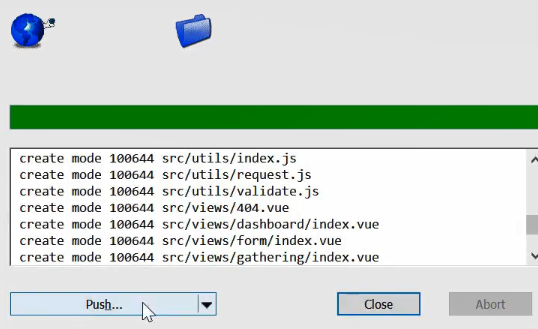

`push`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 39]

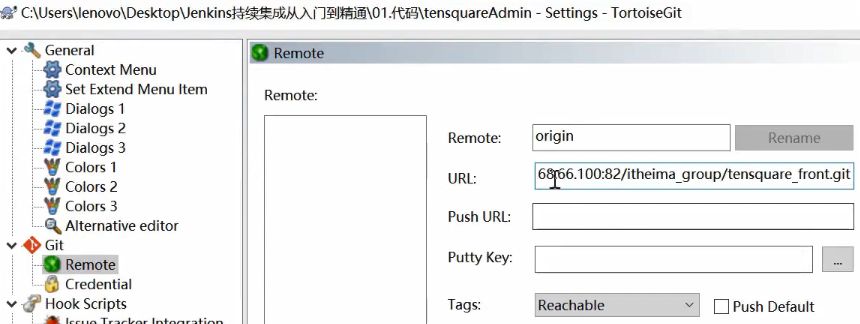

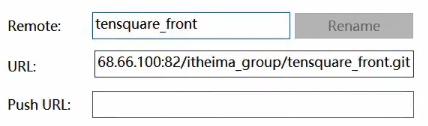

`remote`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 40]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 41]
![在这里插入图片描述][20200606192801320.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 42]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 43]

### 从gitlab拉取项目源码 ###

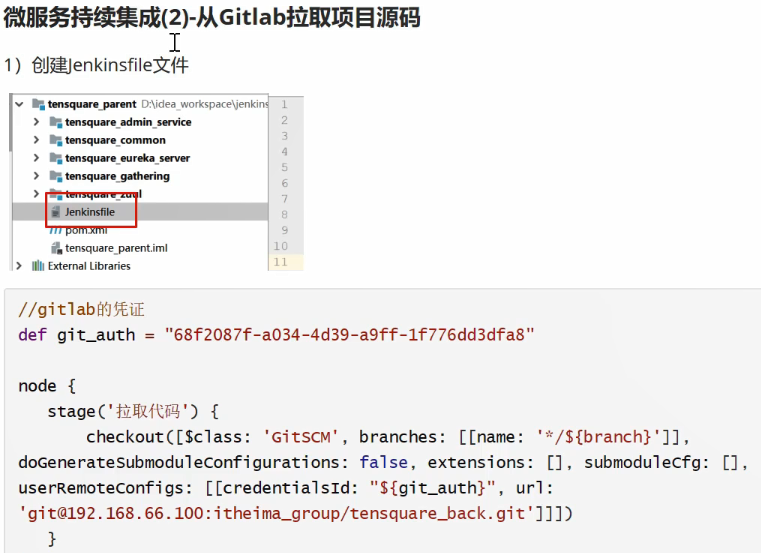

在项目根目录创建`Jenkinsfile`脚本文件：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 44]

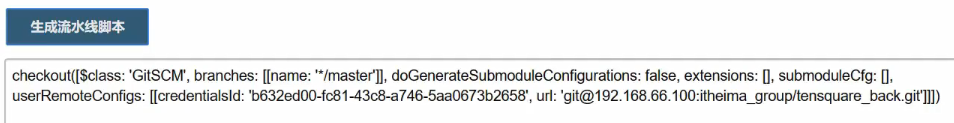

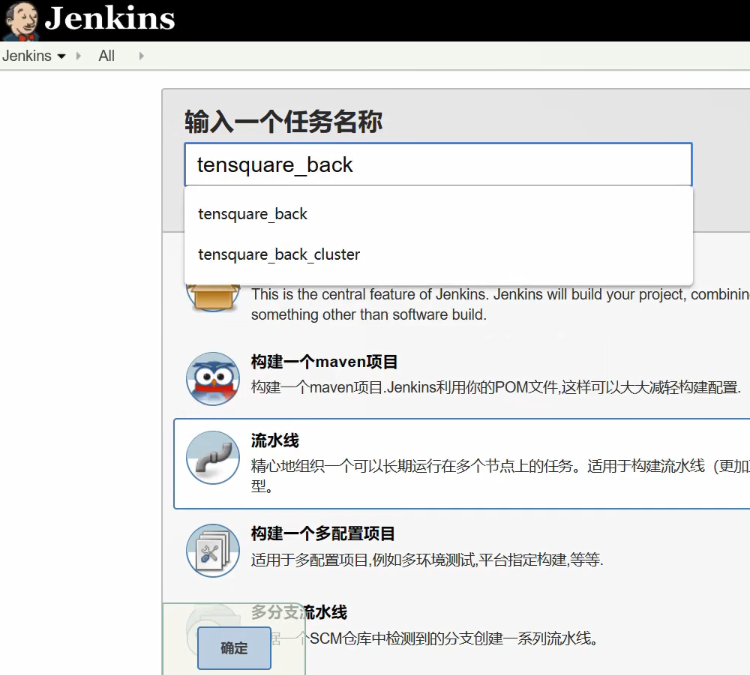

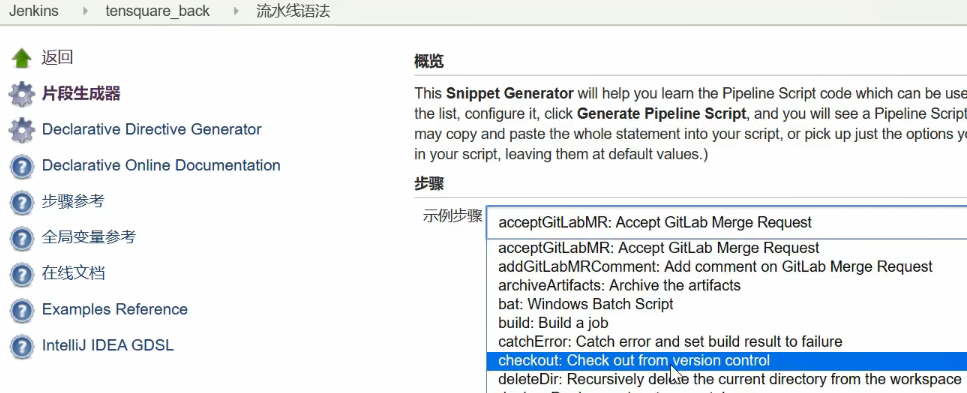

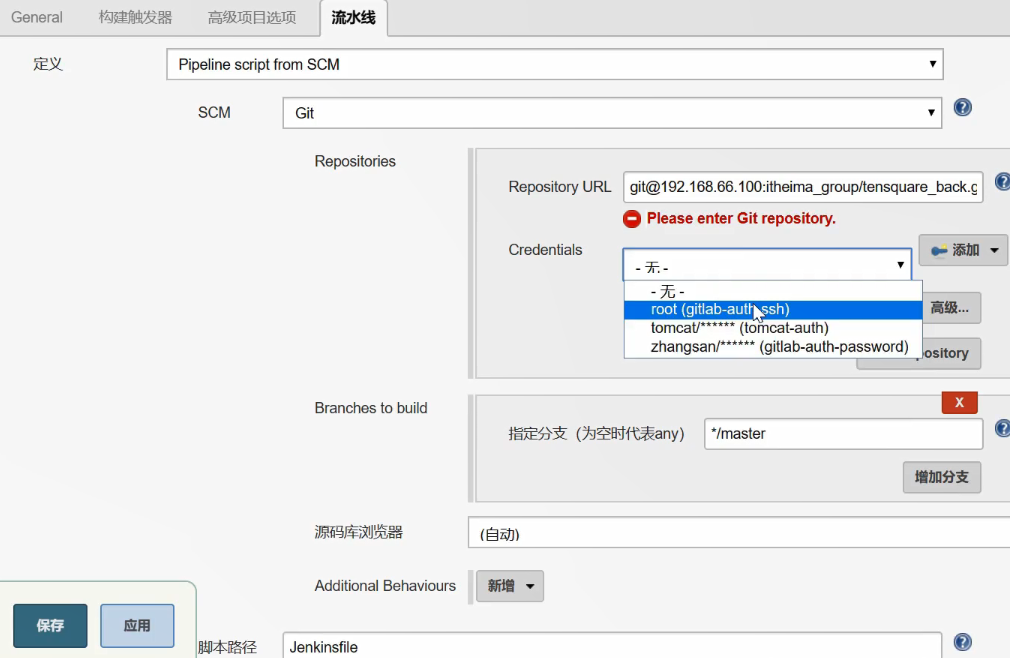

jenkins操作：创建pipeline
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 45]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 46]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 47]
![在这里插入图片描述][20200606193359881.png]

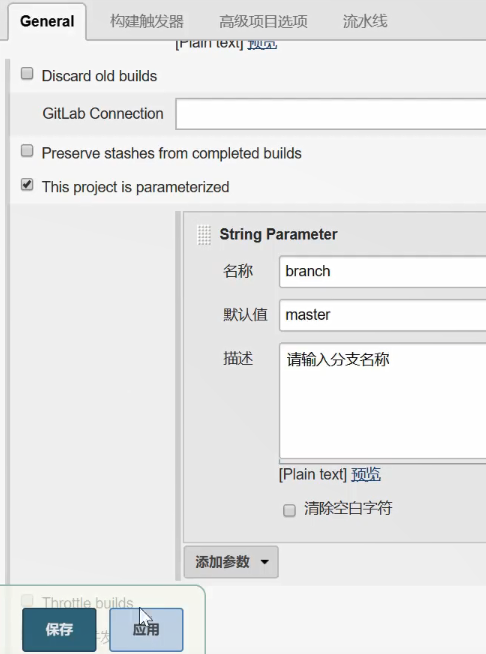

将分支设计成参数接收，更灵活：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 48]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 49]

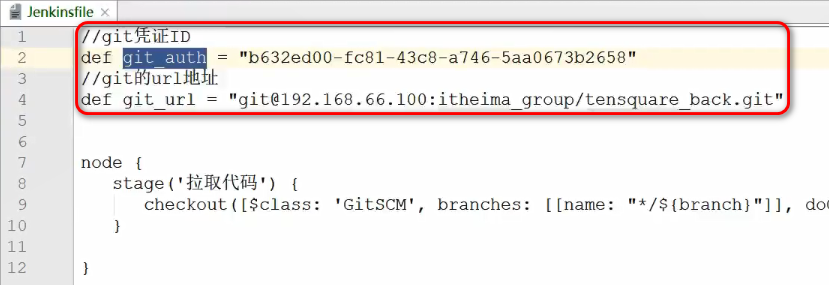

脚本中的变量设计：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 50]

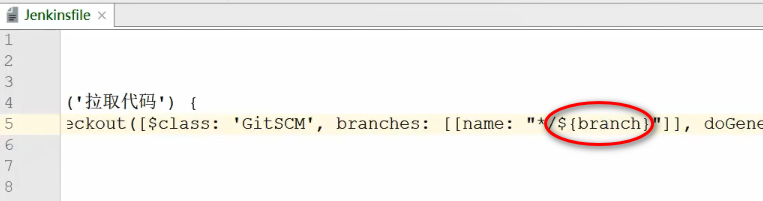

`" "`双引号引用变量：
![在这里插入图片描述][20200606193824439.png]

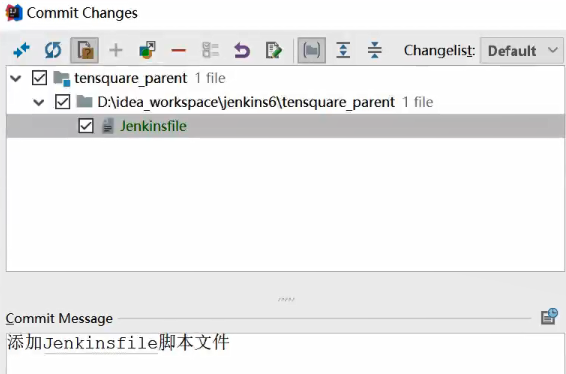

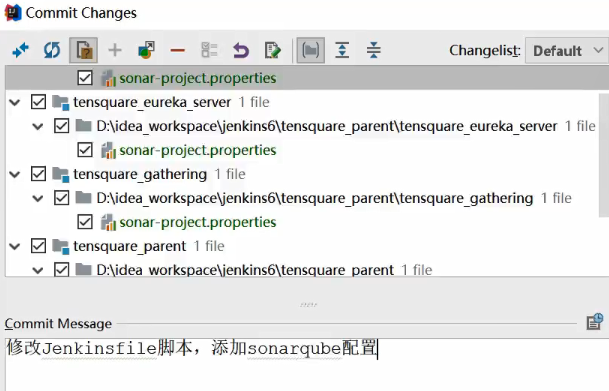

提交`Jenkinsfile`脚本文件：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 51]

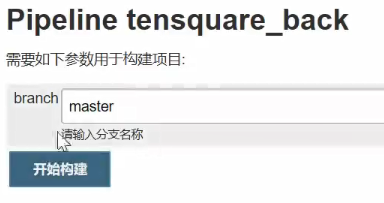

`Build With Parameters`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 52]

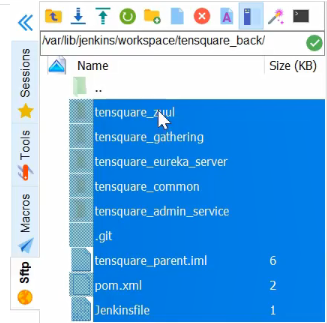

构建完毕后代码成功pull：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 53]

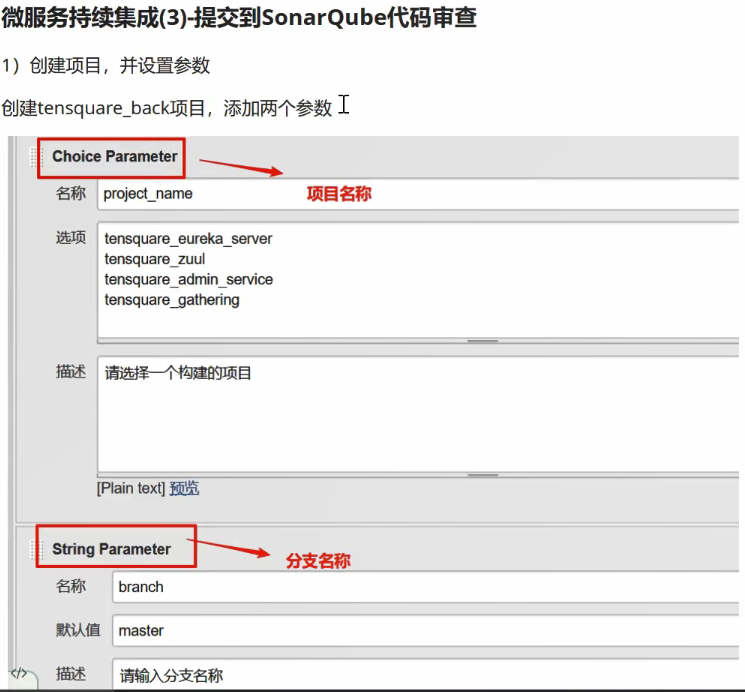

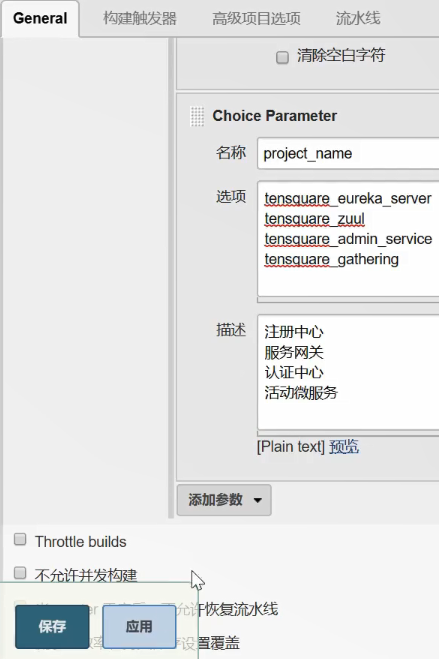

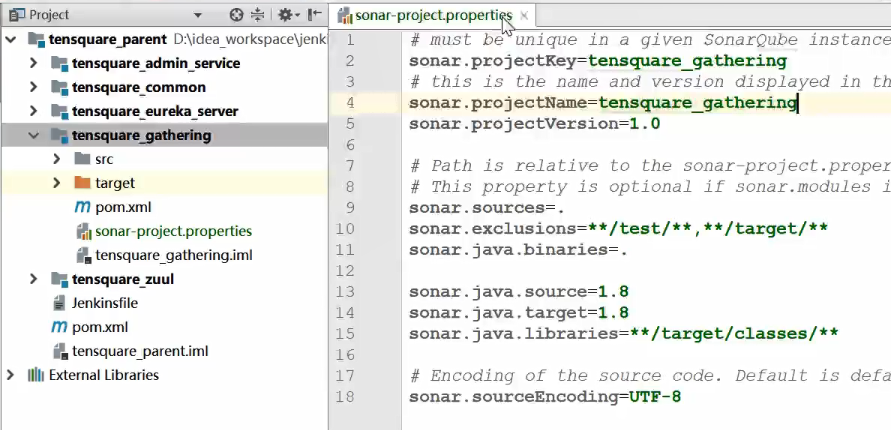

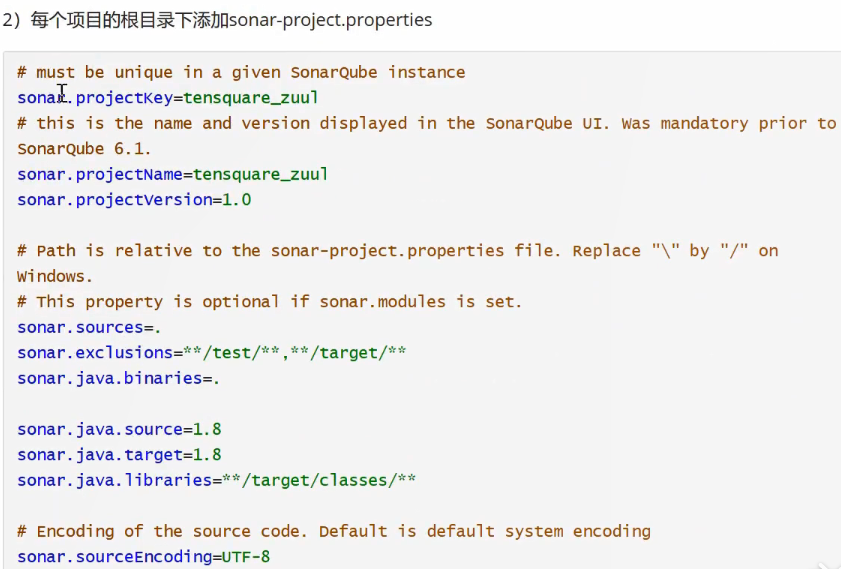

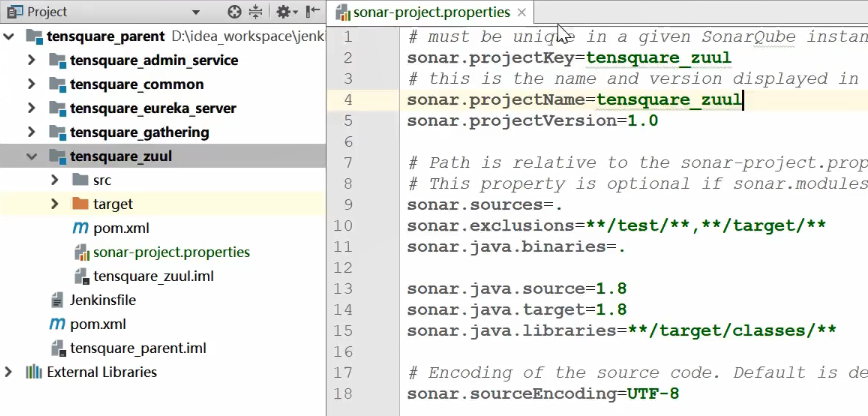

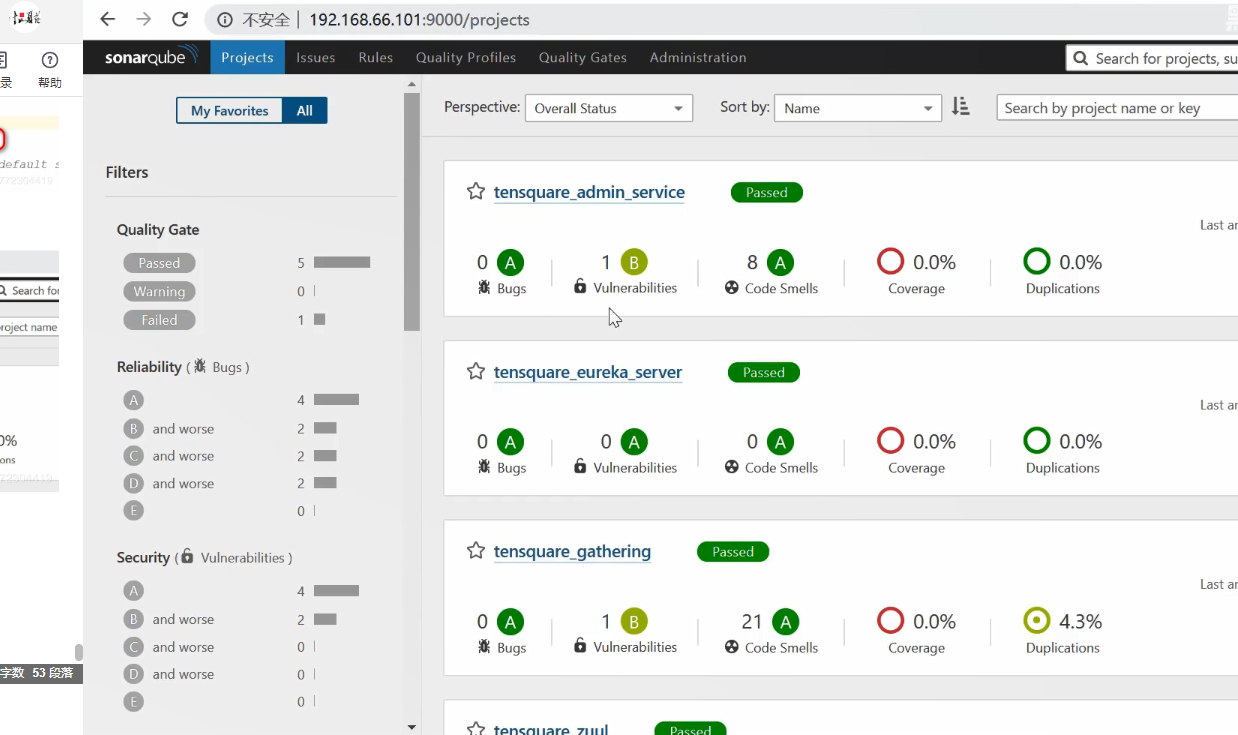

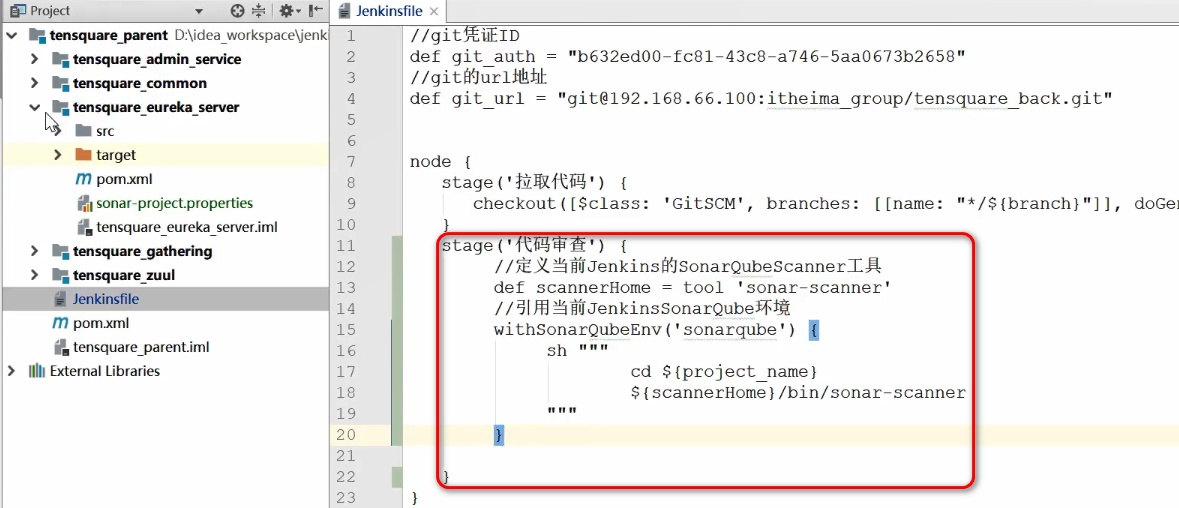

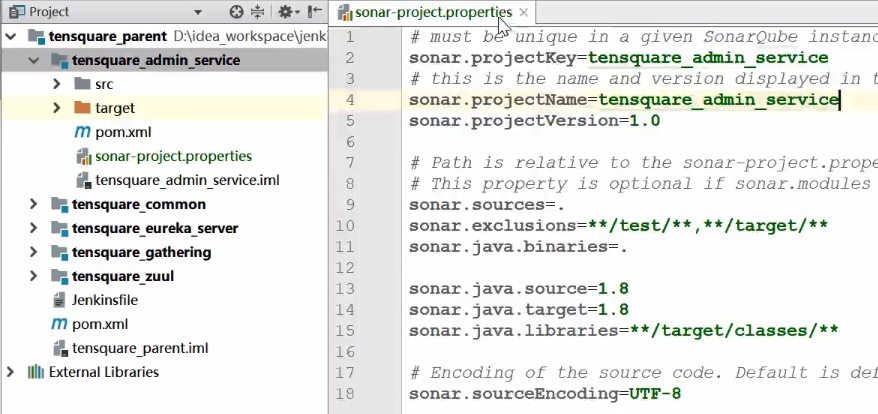

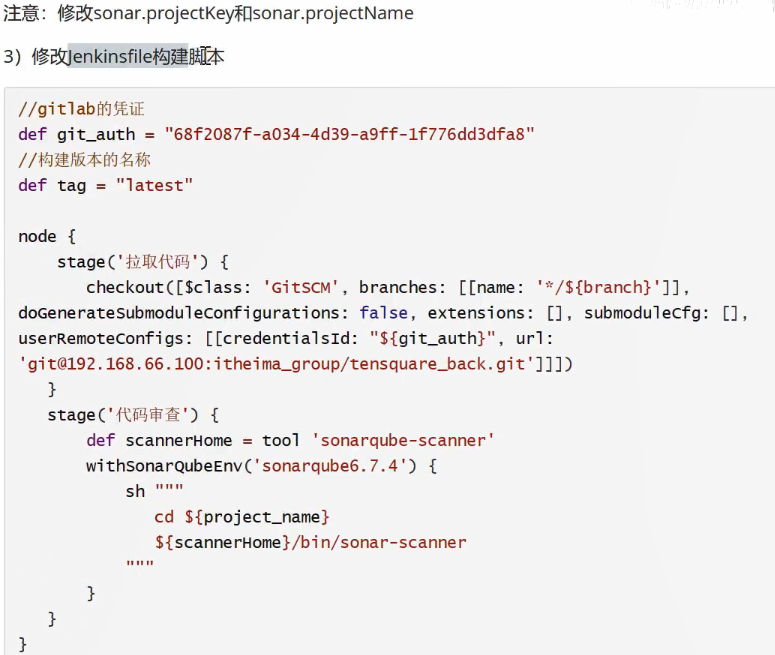

### 提交到SonarQube代码审查 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 54]

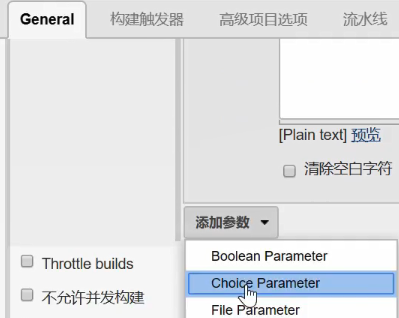

![在这里插入图片描述][20200606194422834.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 55]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 56]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 57]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 58]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 59]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 60]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 61]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 62]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 63]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 64]

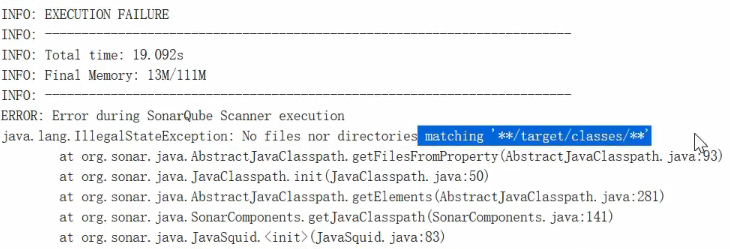

报错：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 65]

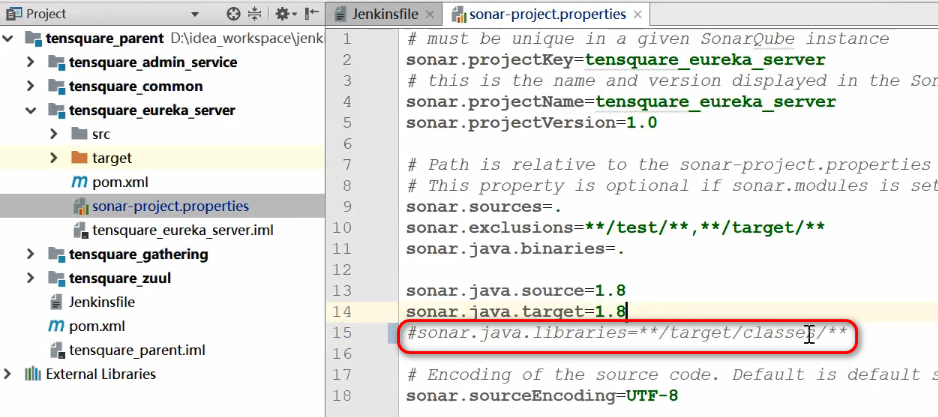

注释这行：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 66]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 67]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 68]

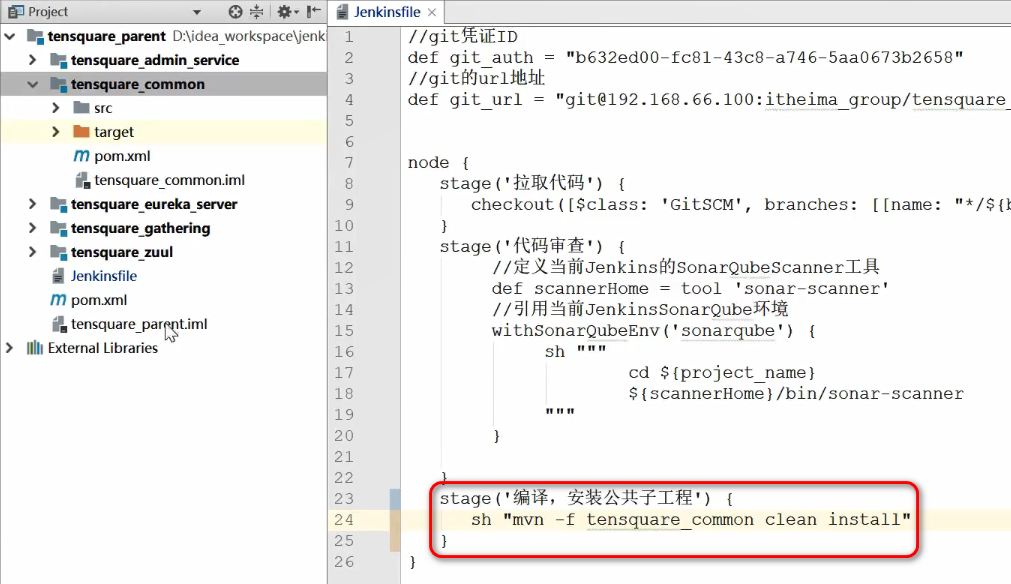

### package各个子项目进行 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 69]
`mvn install`失败
因为common工程不是一个标准的spring cloud微服务工程，找不到启动类main class而报错。
因此不能在parent工程中引入spring-boot-maven插件，而是在需要该插件的子工程中分别引入。
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 70]

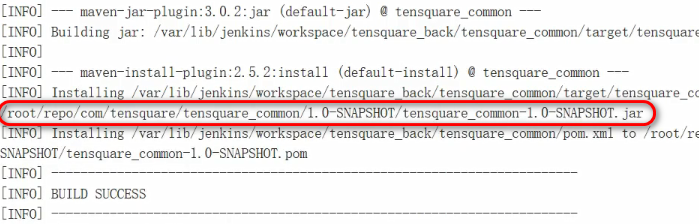

再次构建，就已经安装到本地仓库了：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 71]

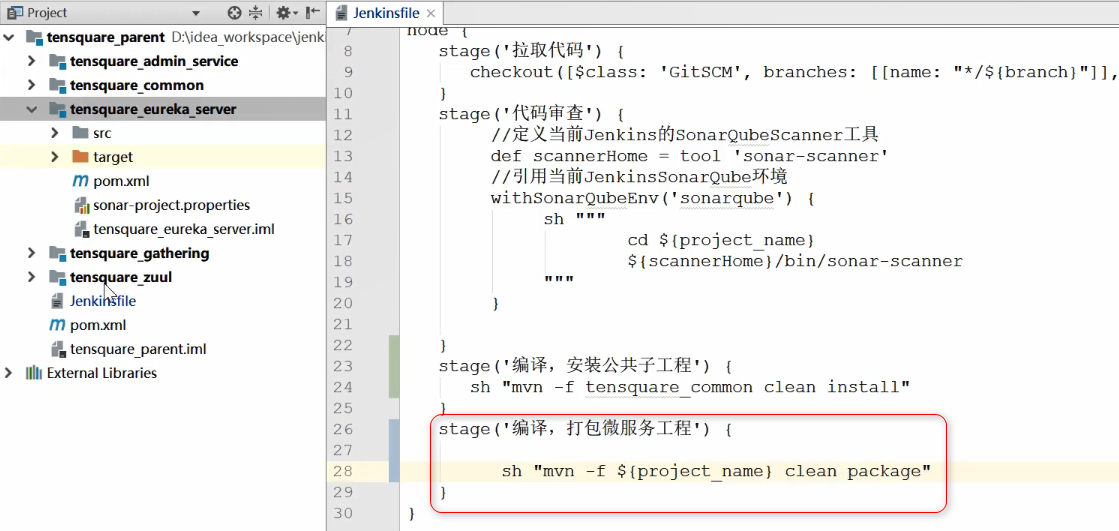

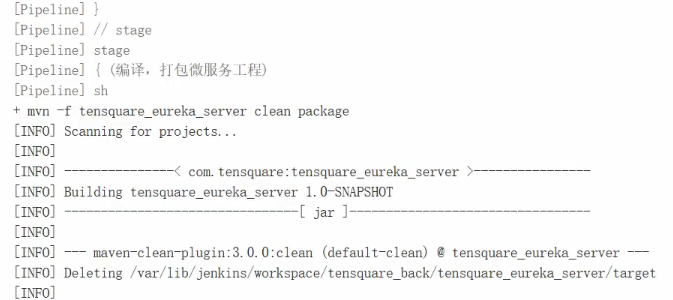

`mvn clean package`
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 72]

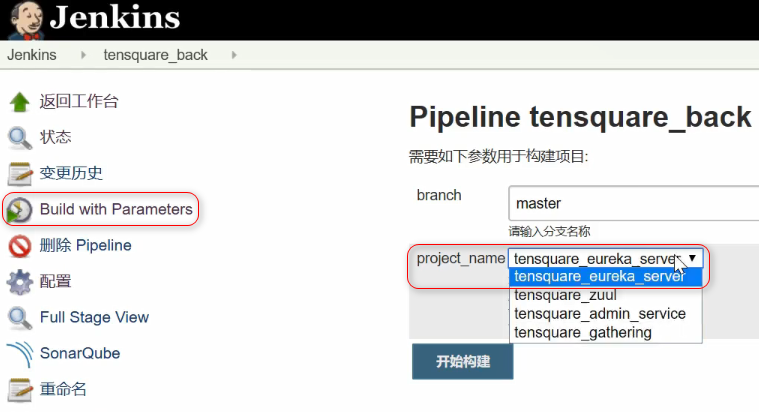

> 使用`${project_name}`来获取当前工程的名称

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 73]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 74]

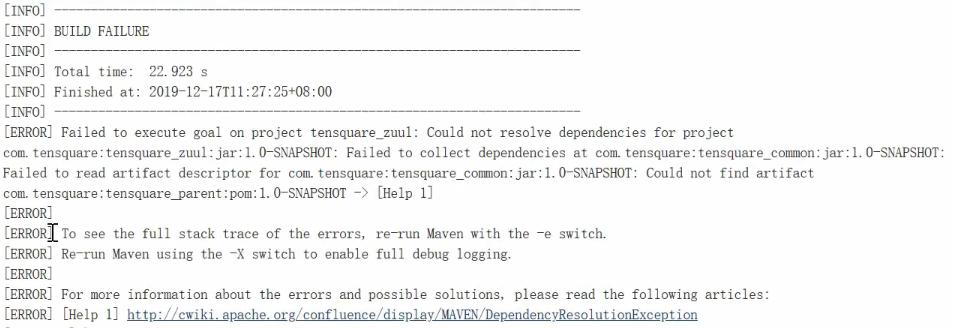

package zuul时报错：
找不到parent父工程
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 75]

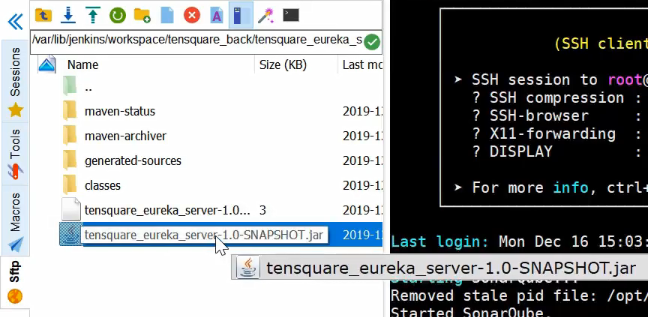

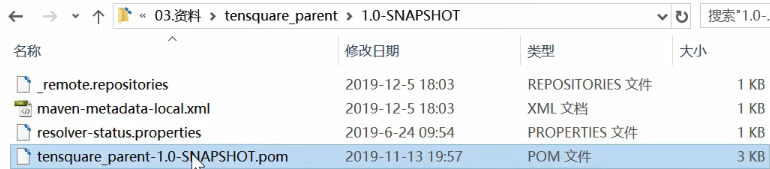

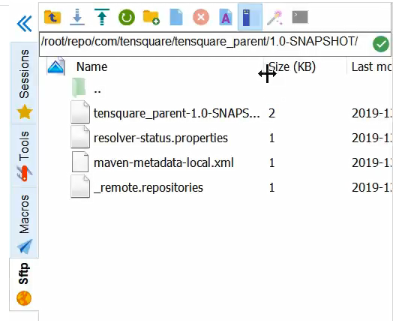

需手动上传parent的pom文件到服务器的仓库相应目录下：
![在这里插入图片描述][20200606210800701.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 76]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 77]

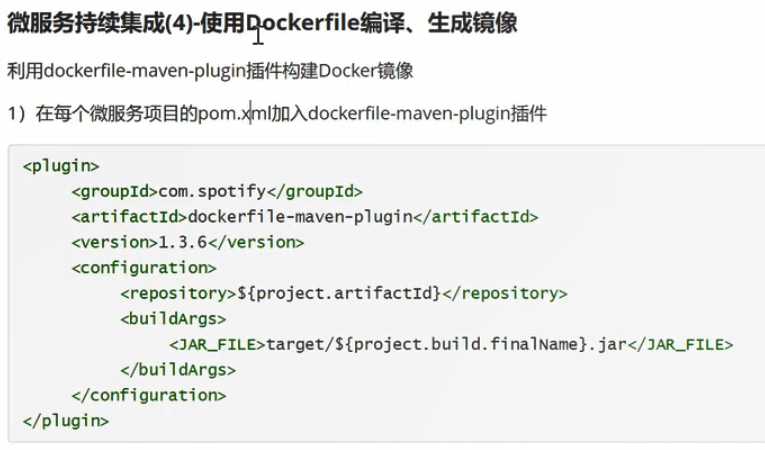

### 使用Dockerfile编译、生成镜像 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 78]

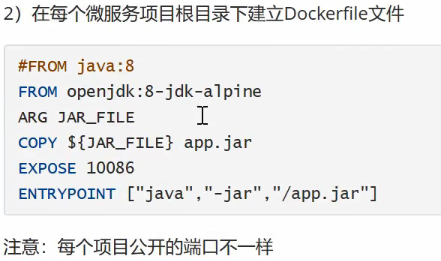

> `dockerfile-maven-plugin`插件可以读取每个工程中的Dockerfile文件自动构建镜像

![在这里插入图片描述][20200606211607681.png]
`tensquare_eureka_server`工程
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 79]

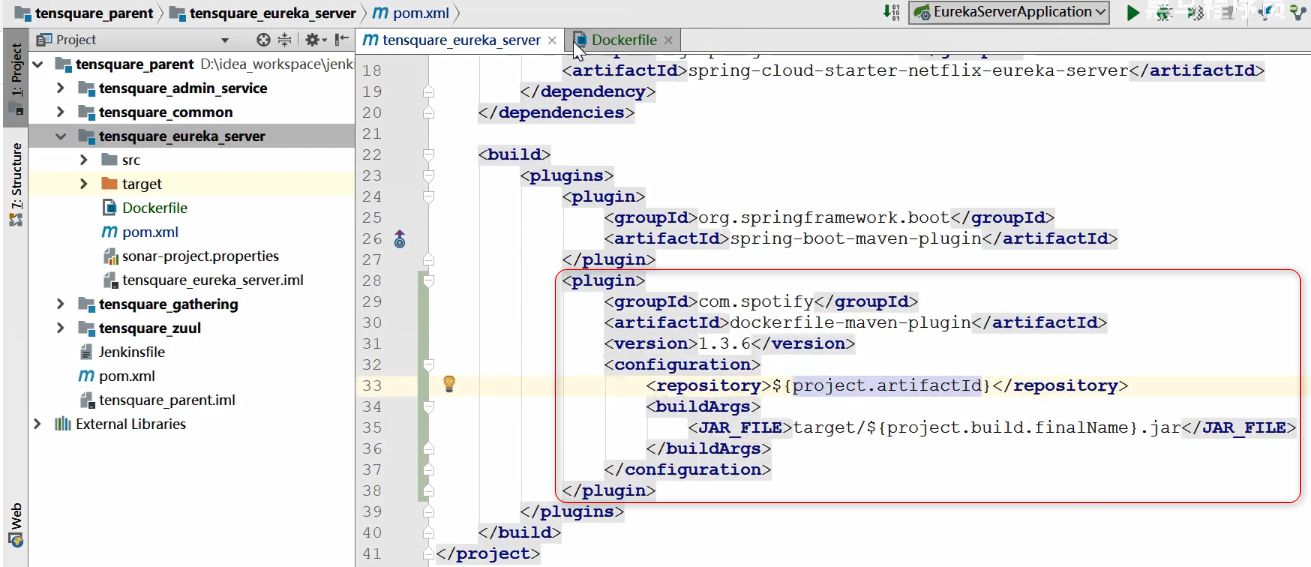

使用`dockerfile-maven-plugin`插件调用`Dockerfile`脚本文件生成镜像：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 80]

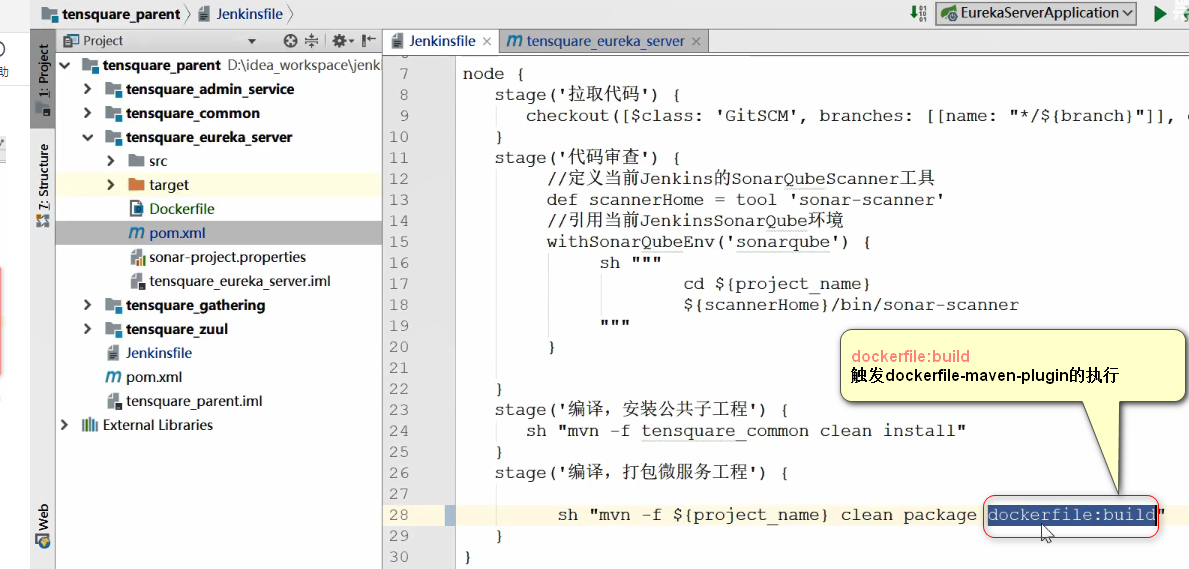

在`Jenkinsfile`脚本中触发dockerfile-maven-plugin插件的执行：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 81]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 82]

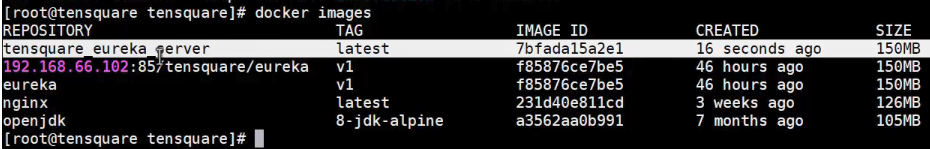

构建完毕后会生成eureka工程的镜像：
![在这里插入图片描述][2020060621293484.png]

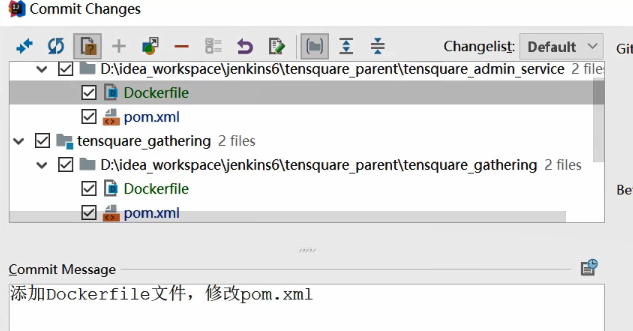

每个子工程都需要添加`Dockerfile`脚本文件和在`pom.xml`中添加`dockerfile-maven-plugin`插件：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 83]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 84]
![在这里插入图片描述][20200606213605439.png]

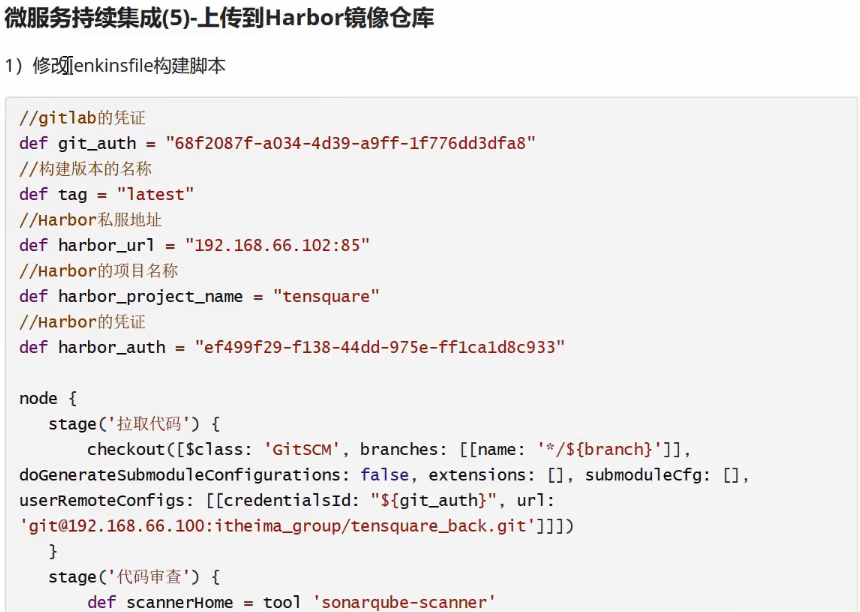

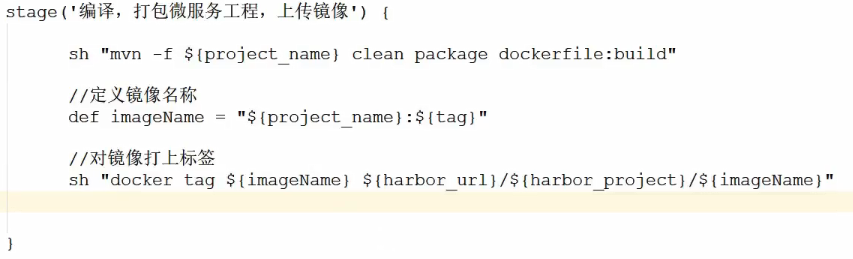

### 上传镜像到harbor镜像仓库 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 85]

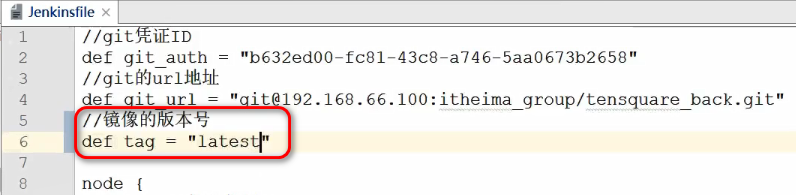

定义镜像的标签（版本号）：
![在这里插入图片描述][2020060707135439.png]
定义harbor的URL地址：
![在这里插入图片描述][20200607071530345.png]
定义harbor的项目名称：
![在这里插入图片描述][202006070716345.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 86]
![在这里插入图片描述][20200607072716510.png]

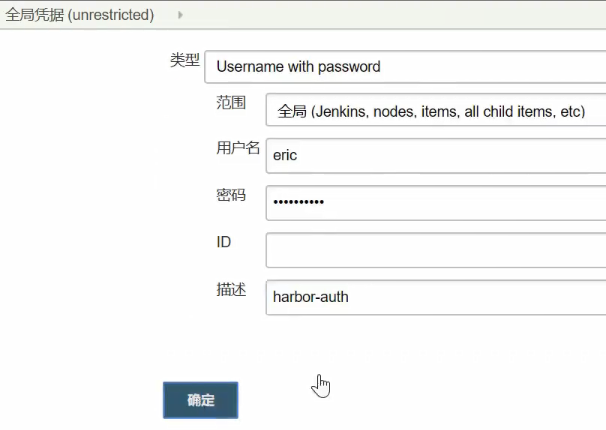

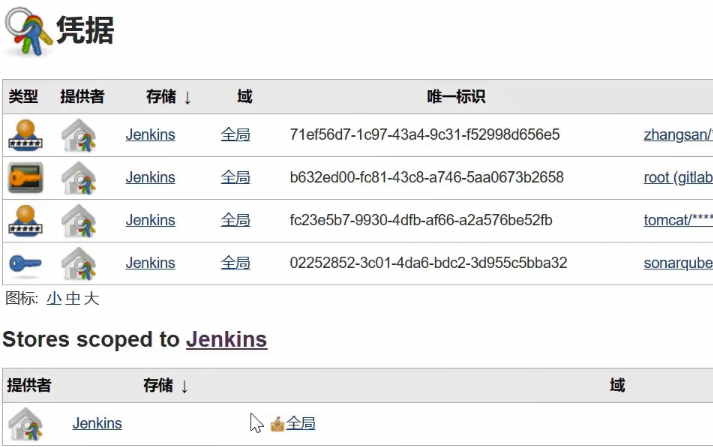

上传到harbor是需要login的，账号密码写在Jenkinsfile脚本中就会暴露给所有开发人员，所以应该在jenkins的凭据中添加harbor的账号密码：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 87]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 88]
![在这里插入图片描述][20200607073110798.png]

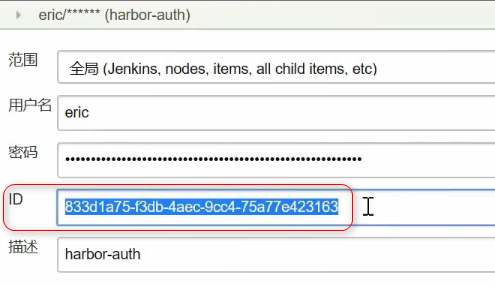

点击账号进入会看到自动生成的ID：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 89]
在`Jenkinsfile`脚本中定义harbor的登录凭证ID：
![在这里插入图片描述][20200607073315267.png]

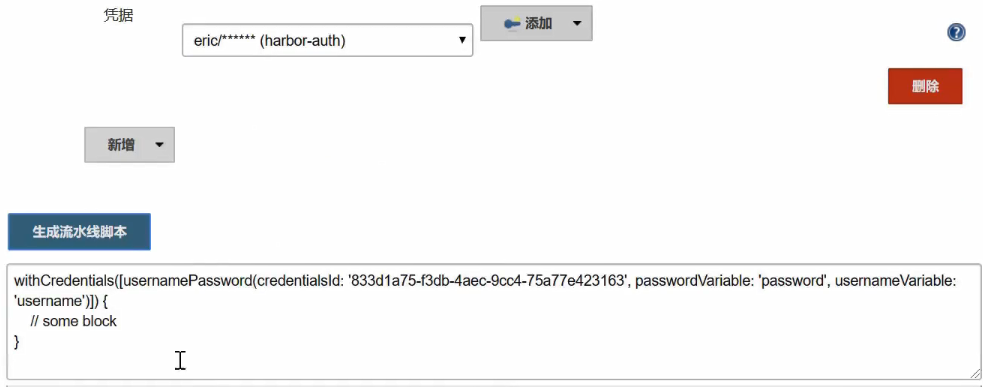

在流水线语法中选择：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 90]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 91]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 92]

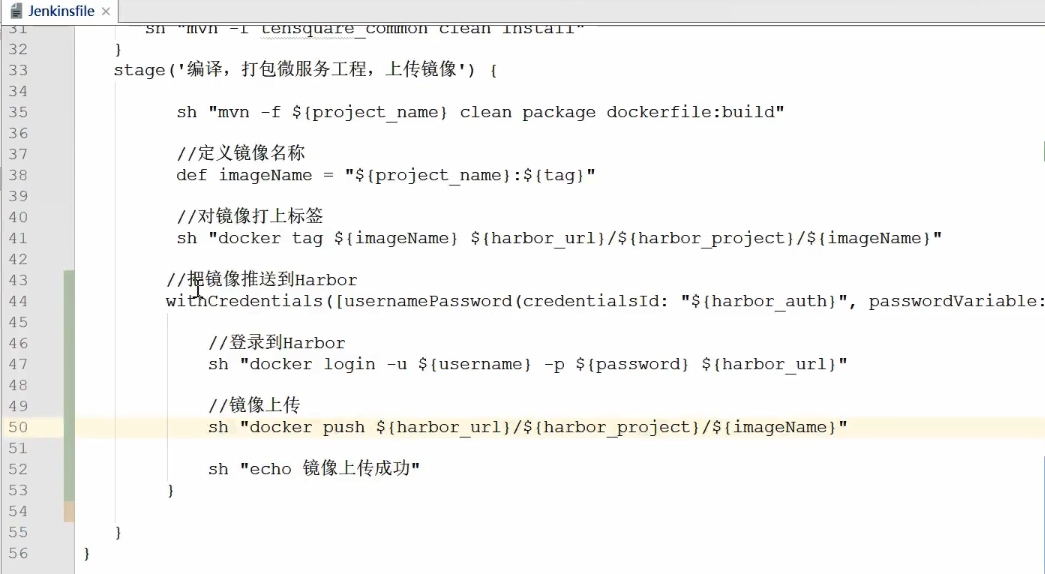

对生成的脚本代码进行变量替换（可选）：
![在这里插入图片描述][2020060707365453.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 93]
提交push脚本。

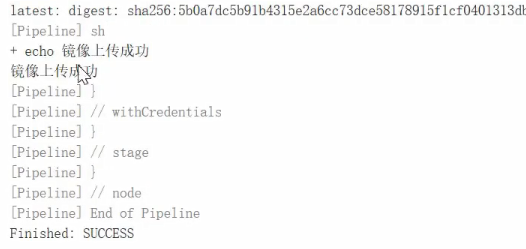

jenkins构建日志：

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 94]
登录harbor仓库查看push的镜像：
![在这里插入图片描述][20200607074130705.png]

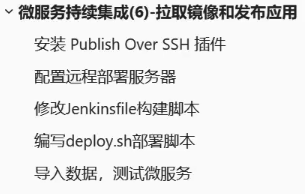

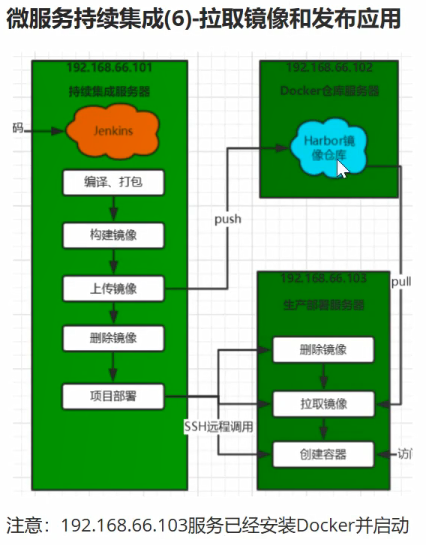

### 从harbor拉取镜像和发布应用 ###

![在这里插入图片描述][20200607074356881.png]
![在这里插入图片描述][20200607074258661.png]

#### jenkins安装Publish Over SSH插件 ####

![在这里插入图片描述][20200607074502296.png]

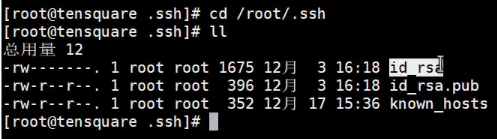

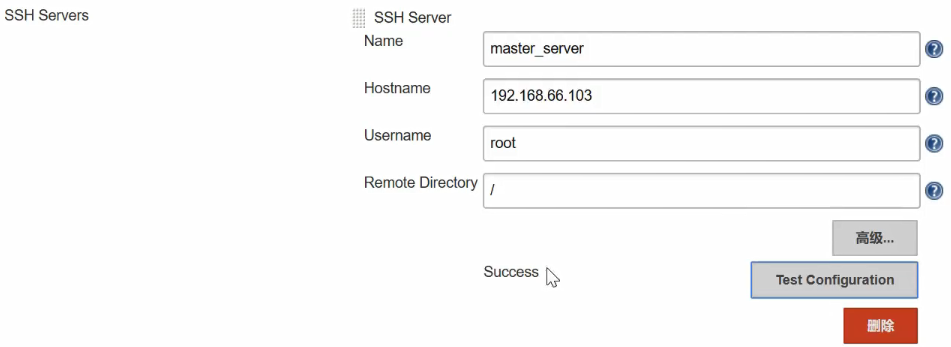

配置`101`ssh免密登录到`103`

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 95]
![在这里插入图片描述][20200607074828594.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 96]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 97]

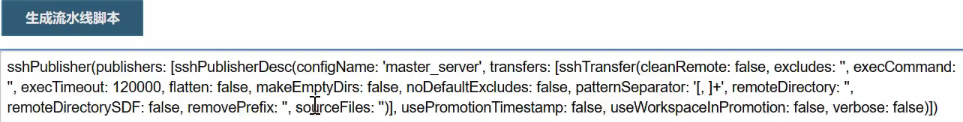

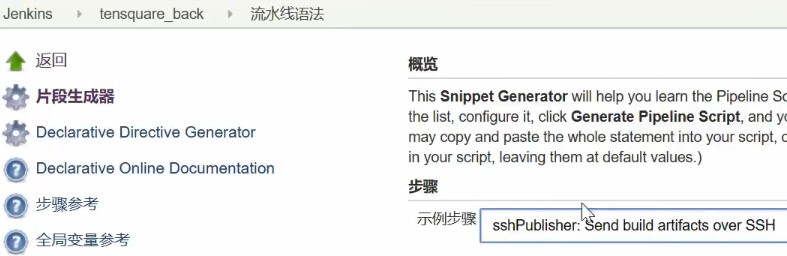

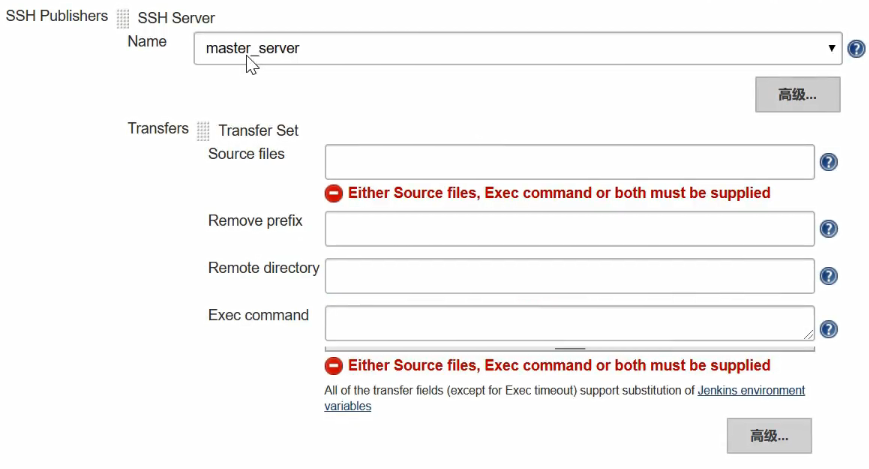

生成远程执行命令脚本：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 98]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 99]
![在这里插入图片描述][20200607075315352.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 100]

[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70]: https://img-blog.csdnimg.cn/202006061725421.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 1]: https://img-blog.csdnimg.cn/2020060617295747.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 2]: https://img-blog.csdnimg.cn/20200606173024629.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606173220426.png]: https://img-blog.csdnimg.cn/20200606173220426.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 3]: https://img-blog.csdnimg.cn/20200606173559790.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 4]: https://img-blog.csdnimg.cn/2020060617363730.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606174031191.png]: https://img-blog.csdnimg.cn/20200606174031191.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 5]: https://img-blog.csdnimg.cn/20200606174553929.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 6]: https://img-blog.csdnimg.cn/20200606174816547.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 7]: https://img-blog.csdnimg.cn/20200606175524310.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 8]: https://img-blog.csdnimg.cn/20200606175804185.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 9]: https://img-blog.csdnimg.cn/20200606180232549.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606180313387.png]: https://img-blog.csdnimg.cn/20200606180313387.png
[20200606180406562.png]: https://img-blog.csdnimg.cn/20200606180406562.png
[20200606180441666.png]: https://img-blog.csdnimg.cn/20200606180441666.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 10]: https://img-blog.csdnimg.cn/20200606180830608.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 11]: https://img-blog.csdnimg.cn/20200606180944353.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 12]: https://img-blog.csdnimg.cn/2020060618100419.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606181020325.png]: https://img-blog.csdnimg.cn/20200606181020325.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 13]: https://img-blog.csdnimg.cn/20200606181038368.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 14]: https://img-blog.csdnimg.cn/20200606181444904.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 15]: https://img-blog.csdnimg.cn/20200606181537463.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 16]: https://img-blog.csdnimg.cn/20200606181648329.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[2020060618170435.png]: https://img-blog.csdnimg.cn/2020060618170435.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 17]: https://img-blog.csdnimg.cn/2020060618173323.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 18]: https://img-blog.csdnimg.cn/20200606181833649.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 19]: https://img-blog.csdnimg.cn/20200606181930190.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 20]: https://img-blog.csdnimg.cn/20200606181947347.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 21]: https://img-blog.csdnimg.cn/20200606185952288.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 22]: https://img-blog.csdnimg.cn/20200606190835373.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 23]: https://img-blog.csdnimg.cn/20200606190114443.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606190221439.png]: https://img-blog.csdnimg.cn/20200606190221439.png
[20200606190315286.png]: https://img-blog.csdnimg.cn/20200606190315286.png
[20200606190512164.png]: https://img-blog.csdnimg.cn/20200606190512164.png
[20200606190601484.png]: https://img-blog.csdnimg.cn/20200606190601484.png
[20200606190642826.png]: https://img-blog.csdnimg.cn/20200606190642826.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 24]: https://img-blog.csdnimg.cn/20200606190722900.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 25]: https://img-blog.csdnimg.cn/20200606190922299.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606191007518.png]: https://img-blog.csdnimg.cn/20200606191007518.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 26]: https://img-blog.csdnimg.cn/20200606191147185.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606191210527.png]: https://img-blog.csdnimg.cn/20200606191210527.png
[20200606191236459.png]: https://img-blog.csdnimg.cn/20200606191236459.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 27]: https://img-blog.csdnimg.cn/20200606191451664.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606191720549.png]: https://img-blog.csdnimg.cn/20200606191720549.png
[20200606191748571.png]: https://img-blog.csdnimg.cn/20200606191748571.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 28]: https://img-blog.csdnimg.cn/20200606191814269.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 29]: https://img-blog.csdnimg.cn/20200606191836396.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 30]: https://img-blog.csdnimg.cn/20200606191854688.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606191929178.png]: https://img-blog.csdnimg.cn/20200606191929178.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 31]: https://img-blog.csdnimg.cn/20200606192001338.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 32]: https://img-blog.csdnimg.cn/20200606192024553.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606192037841.png]: https://img-blog.csdnimg.cn/20200606192037841.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 33]: https://img-blog.csdnimg.cn/20200606192057680.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 34]: https://img-blog.csdnimg.cn/20200606192251561.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 35]: https://img-blog.csdnimg.cn/20200606192425671.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 36]: https://img-blog.csdnimg.cn/20200606192443699.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 37]: https://img-blog.csdnimg.cn/20200606192525115.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 38]: https://img-blog.csdnimg.cn/2020060619255530.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 39]: https://img-blog.csdnimg.cn/20200606192614936.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 40]: https://img-blog.csdnimg.cn/20200606192707148.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 41]: https://img-blog.csdnimg.cn/20200606192734233.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606192801320.png]: https://img-blog.csdnimg.cn/20200606192801320.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 42]: https://img-blog.csdnimg.cn/20200606192821835.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 43]: https://img-blog.csdnimg.cn/20200606192906554.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 44]: https://img-blog.csdnimg.cn/20200606193014119.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 45]: https://img-blog.csdnimg.cn/20200606193048400.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 46]: https://img-blog.csdnimg.cn/2020060619320818.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 47]: https://img-blog.csdnimg.cn/20200606193325972.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606193359881.png]: https://img-blog.csdnimg.cn/20200606193359881.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 48]: https://img-blog.csdnimg.cn/20200606193450706.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 49]: https://img-blog.csdnimg.cn/20200606193611909.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 50]: https://img-blog.csdnimg.cn/20200606193745263.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606193824439.png]: https://img-blog.csdnimg.cn/20200606193824439.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 51]: https://img-blog.csdnimg.cn/20200606193908527.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 52]: https://img-blog.csdnimg.cn/20200606193950954.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 53]: https://img-blog.csdnimg.cn/20200606194055717.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 54]: https://img-blog.csdnimg.cn/20200606194340415.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606194422834.png]: https://img-blog.csdnimg.cn/20200606194422834.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 55]: https://img-blog.csdnimg.cn/20200606194535246.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 56]: https://img-blog.csdnimg.cn/20200606194600107.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 57]: https://img-blog.csdnimg.cn/20200606194240726.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 58]: https://img-blog.csdnimg.cn/20200606194719168.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 59]: https://img-blog.csdnimg.cn/20200606194744653.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 60]: https://img-blog.csdnimg.cn/20200606194812932.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 61]: https://img-blog.csdnimg.cn/20200606194829630.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 62]: https://img-blog.csdnimg.cn/2020060619430681.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 63]: https://img-blog.csdnimg.cn/20200606195151607.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 64]: https://img-blog.csdnimg.cn/20200606195310603.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 65]: https://img-blog.csdnimg.cn/20200606195413431.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 66]: https://img-blog.csdnimg.cn/20200606195500125.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 67]: https://img-blog.csdnimg.cn/20200606195555852.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 68]: https://img-blog.csdnimg.cn/20200606204353392.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 69]: https://img-blog.csdnimg.cn/20200606204952332.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 70]: https://img-blog.csdnimg.cn/20200606205252341.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 71]: https://img-blog.csdnimg.cn/2020060620575332.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 72]: https://img-blog.csdnimg.cn/20200606205958155.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 73]: https://img-blog.csdnimg.cn/20200606210111667.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 74]: https://img-blog.csdnimg.cn/20200606210153724.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 75]: https://img-blog.csdnimg.cn/20200606210417584.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606210800701.png]: https://img-blog.csdnimg.cn/20200606210800701.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 76]: https://img-blog.csdnimg.cn/20200606210653400.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 77]: https://img-blog.csdnimg.cn/20200606210933863.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 78]: https://img-blog.csdnimg.cn/20200606204739824.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606211607681.png]: https://img-blog.csdnimg.cn/20200606211607681.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 79]: https://img-blog.csdnimg.cn/20200606211923123.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 80]: https://img-blog.csdnimg.cn/20200606212201528.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 81]: https://img-blog.csdnimg.cn/20200606212427292.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 82]: https://img-blog.csdnimg.cn/20200606212623241.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[2020060621293484.png]: https://img-blog.csdnimg.cn/2020060621293484.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 83]: https://img-blog.csdnimg.cn/20200606213351225.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 84]: https://img-blog.csdnimg.cn/20200607071008159.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200606213605439.png]: https://img-blog.csdnimg.cn/20200606213605439.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 85]: https://img-blog.csdnimg.cn/20200607071148409.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[2020060707135439.png]: https://img-blog.csdnimg.cn/2020060707135439.png
[20200607071530345.png]: https://img-blog.csdnimg.cn/20200607071530345.png
[202006070716345.png]: https://img-blog.csdnimg.cn/202006070716345.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 86]: https://img-blog.csdnimg.cn/20200607071726705.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200607072716510.png]: https://img-blog.csdnimg.cn/20200607072716510.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 87]: https://img-blog.csdnimg.cn/20200607072958570.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 88]: https://img-blog.csdnimg.cn/20200607073051188.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200607073110798.png]: https://img-blog.csdnimg.cn/20200607073110798.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 89]: https://img-blog.csdnimg.cn/20200607073209730.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200607073315267.png]: https://img-blog.csdnimg.cn/20200607073315267.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 90]: https://img-blog.csdnimg.cn/20200607073504738.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 91]: https://img-blog.csdnimg.cn/20200607073532513.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 92]: https://img-blog.csdnimg.cn/20200607073551932.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[2020060707365453.png]: https://img-blog.csdnimg.cn/2020060707365453.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 93]: https://img-blog.csdnimg.cn/20200607073851151.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 94]: https://img-blog.csdnimg.cn/20200607074032922.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200607074130705.png]: https://img-blog.csdnimg.cn/20200607074130705.png
[20200607074356881.png]: https://img-blog.csdnimg.cn/20200607074356881.png
[20200607074258661.png]: https://img-blog.csdnimg.cn/20200607074258661.png
[20200607074502296.png]: https://img-blog.csdnimg.cn/20200607074502296.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 95]: https://img-blog.csdnimg.cn/20200607074718760.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200607074828594.png]: https://img-blog.csdnimg.cn/20200607074828594.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 96]: https://img-blog.csdnimg.cn/20200607074913483.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 97]: https://img-blog.csdnimg.cn/20200607074959338.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 98]: https://img-blog.csdnimg.cn/20200607075147824.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 99]: https://img-blog.csdnimg.cn/20200607075249561.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
[20200607075315352.png]: https://img-blog.csdnimg.cn/20200607075315352.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 100]: https://img-blog.csdnimg.cn/20200607075449518.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk=,size_16,color_FFFFFF,t_70
