## 场景 ##

在SpringBoot中加载静态资源和在普通的web应用中不一样。

默认情况下：

SpringBoot从classpath的/static,/public或者

/META-INF/resource文件夹

或者

从ServletContext根目录提供静态内容。

## 实现 ##

### 使用默认的静态资源访问 ###

因为是默认目录，所以直接输入文件名，不用输入上级目录名。

在项目下resource下新建目录以及静态资源如下：

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0JBREFPX0xJVU1BTkdfUUlaSEk_size_16_color_FFFFFF_t_70][]

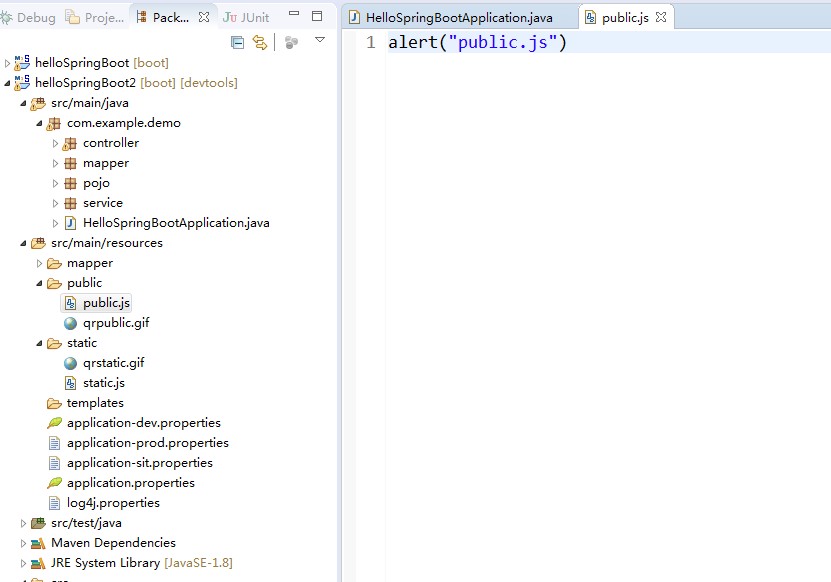

其中public.js

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0JBREFPX0xJVU1BTkdfUUlaSEk_size_16_color_FFFFFF_t_70 1][]

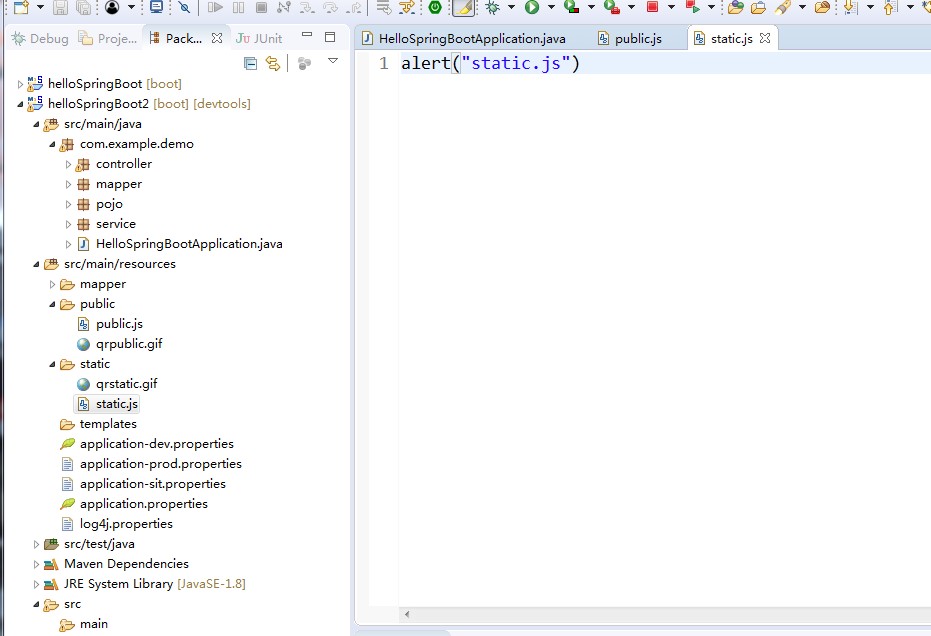

其中static.js

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0JBREFPX0xJVU1BTkdfUUlaSEk_size_16_color_FFFFFF_t_70 2][]

运行项目打开浏览器输入：

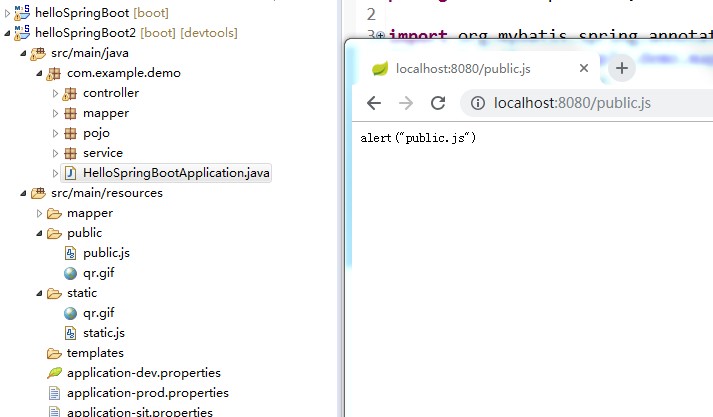

[http://localhost:8080/public.js][http_localhost_8080_public.js]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0JBREFPX0xJVU1BTkdfUUlaSEk_size_16_color_FFFFFF_t_70 3][]

再输入：

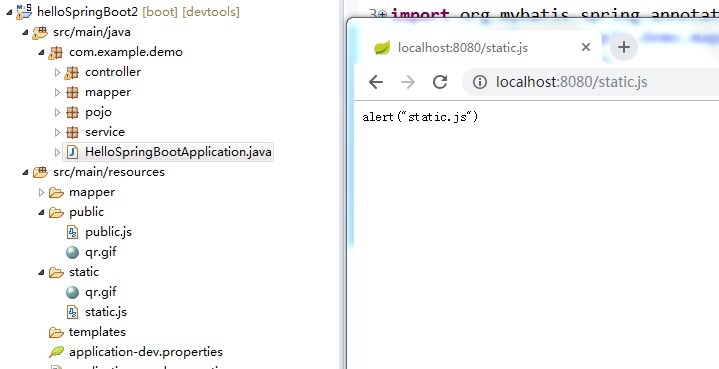

[http://localhost:8080/static.js][http_localhost_8080_static.js]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0JBREFPX0xJVU1BTkdfUUlaSEk_size_16_color_FFFFFF_t_70 4][]

同理访问图片资源

输入：

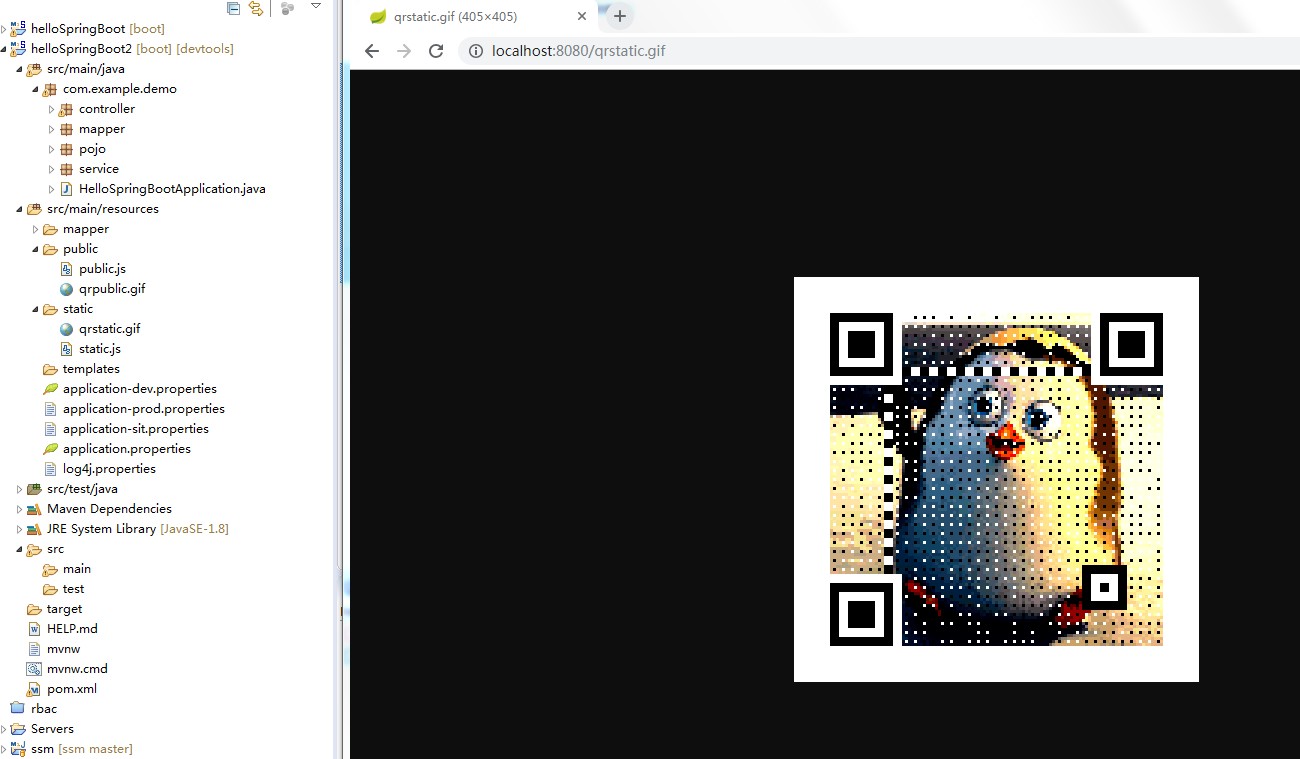

[http://localhost:8080/qrstatic.gif][http_localhost_8080_qrstatic.gif]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0JBREFPX0xJVU1BTkdfUUlaSEk_size_16_color_FFFFFF_t_70 5][]

再输入：

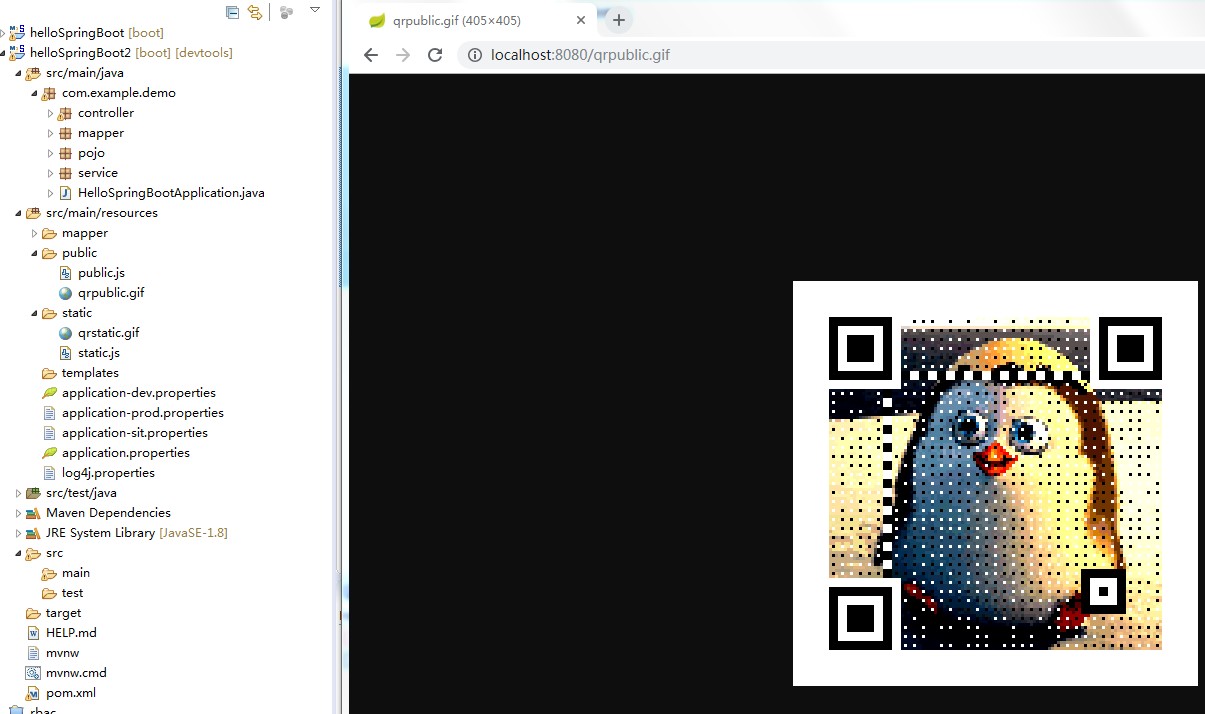

[http://localhost:8080/qrpublic.gif][http_localhost_8080_qrpublic.gif]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0JBREFPX0xJVU1BTkdfUUlaSEk_size_16_color_FFFFFF_t_70 6][]

### 不使用默认的静态资源访问路径 ###

打开application.properties配置文件

#修改默认的静态资源访问路径
    spring.resources.static-locations=classpath:/static/

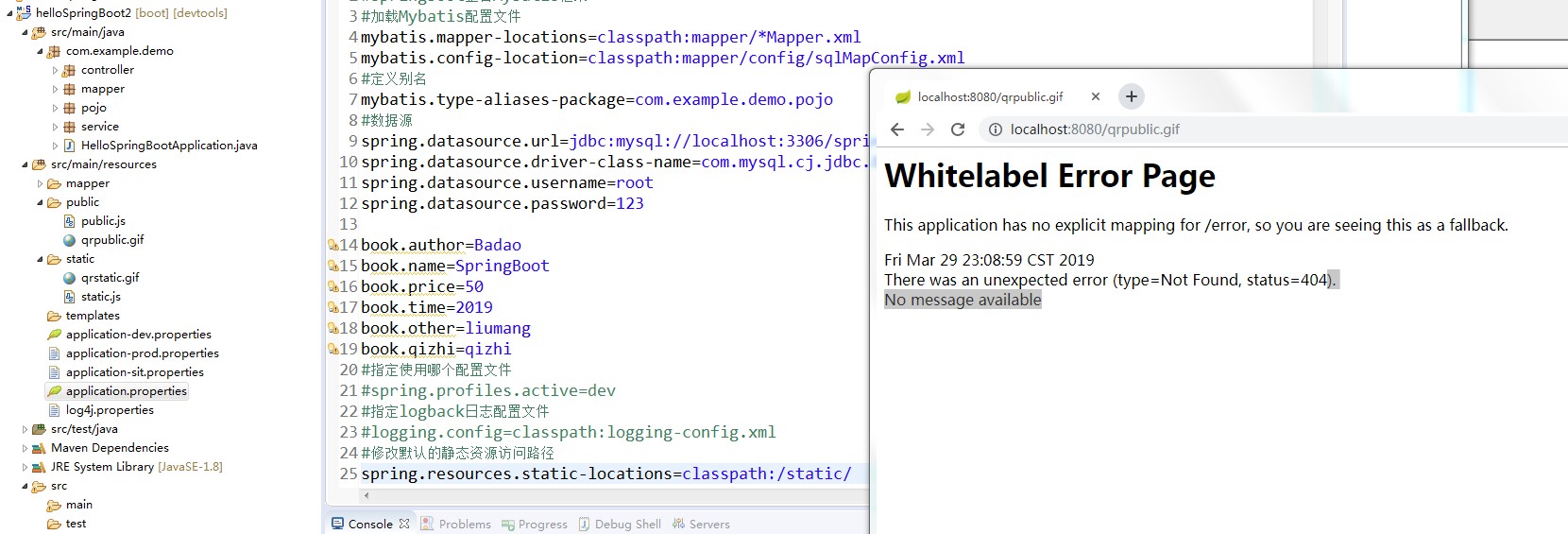

此时只能访问static目录下，再访问public目录下就会提示404

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0JBREFPX0xJVU1BTkdfUUlaSEk_size_16_color_FFFFFF_t_70 7][]

## 源码下载 ##

[SpringBoot中访问静态资源示例源码-Java代码类资源-CSDN下载][SpringBoot_-Java_-CSDN]
