## Spring Boot 分布式锁的实现

**前言**

面试总是会被问到有没有用过分布式锁、redis 锁，大部分读者平时很少接触到，所以只能很无奈的回答 “没有”。本文通过 Spring Boot 整合 redisson 来实现分布式锁，并结合 demo 测试结果。

首先看下大佬总结的图

![](/images/1590386479412.png)

**正文**

添加依赖

```xml

<dependency>
    <groupId>
        org.springframework.boot
    </groupId>
    <artifactId>
        spring-boot-starter-data-redis
    </artifactId>
</dependency>

<dependency>
    <groupId>
        org.redisson
    </groupId>
    <artifactId>
        redisson-spring-boot-starter
    </artifactId>
    <version>
        3.10.6
    </version>
</dependency>
```

配置信息

```yaml
spring:
  # redis
  redis:
    host: 47.103.5.190
    port: 6379
    jedis:
      pool:
        # 连接池最大连接数（使用负值表示没有限制）
        max-active: 100
        # 连接池中的最小空闲连接
        max-idle: 10
        # 连接池最大阻塞等待时间（使用负值表示没有限制）
        max-wait: -1
        # 连接超时时间（毫秒）
        timeout: 5000
        #默认是索引为0的数据库
        database: 0
```

配置类

```java
/**
 * redisson 配置，下面是单节点配置：
 *
 * @author gourd
 */
@Configuration
public class RedissonConfig {
    @Value("${spring.redis.host}")
    private String host;
    @Value("${spring.redis.port}")
    private String port;
    @Value("${spring.redis.password:}")
    private String password;

@Bean
    public RedissonClient redissonClient() {
        Config config = new Config();
        //单节点
        config.useSingleServer().setAddress("redis://" + host + ":" + port);
        if (StringUtils.isEmpty(password)) {
            config.useSingleServer().setPassword(null);
        } else {
            config.useSingleServer().setPassword(password);
        }
        //添加主从配置
        // config.useMasterSlaveServers().setMasterAddress("").setPassword("").addSlaveAddress(new String[]{"",""});
        // 集群模式配置 setScanInterval()扫描间隔时间，单位是毫秒, //可以用"rediss://"来启用SSL连接
        // config.useClusterServers().setScanInterval(2000).addNodeAddress("redis://127.0.0.1:7000", "redis://127.0.0.1:7001").addNodeAddress("redis://127.0.0.1:7002");
        return Redisson.create(config);
    }
}
```

Redisson 工具类

```java
/**
 * redis分布式锁帮助类
 *
 * @author gourd
 */
public class RedisLockUtil {

private static DistributedLocker distributedLocker = SpringContextHolder.getBean("distributedLocker", DistributedLocker.class);

/**
     * 加锁
     *
     * @param lockKey
     * @return
     */
    public static RLock lock(String lockKey) {
        return distributedLocker.lock(lockKey);
    }

/**
     * 释放锁
     *
     * @param lockKey
     */
    public static void unlock(String lockKey) {
        distributedLocker.unlock(lockKey);
    }

/**
     * 释放锁
     *
     * @param lock
     */
    public static void unlock(RLock lock) {
        distributedLocker.unlock(lock);
    }

/**
     * 带超时的锁
     *
     * @param lockKey
     * @param timeout 超时时间   单位：秒
     */
    public static RLock lock(String lockKey, int timeout) {
        return distributedLocker.lock(lockKey, timeout);
    }

/**
     * 带超时的锁
     *
     * @param lockKey
     * @param unit    时间单位
     * @param timeout 超时时间
     */
    public static RLock lock(String lockKey, int timeout, TimeUnit unit) {
        return distributedLocker.lock(lockKey, unit, timeout);
    }

/**
     * 尝试获取锁
     *
     * @param lockKey
     * @param waitTime  最多等待时间
     * @param leaseTime 上锁后自动释放锁时间
     * @return
     */
    public static boolean tryLock(String lockKey, int waitTime, int leaseTime) {
        return distributedLocker.tryLock(lockKey, TimeUnit.SECONDS, waitTime, leaseTime);
    }

/**
     * 尝试获取锁
     *
     * @param lockKey
     * @param unit      时间单位
     * @param waitTime  最多等待时间
     * @param leaseTime 上锁后自动释放锁时间
     * @return
     */
    publicstaticboolean
    tryLock(
            String
                    lockKey,
            TimeUnit
                    unit,
            int
                    waitTime,
            int
                    leaseTime) {
        return
                distributedLocker.tryLock(lockKey, unit, waitTime, leaseTime);
    }

/**
     * 获取计数器
     *
     * @param name
     * @return
     */
    public static RCountDownLatch getCountDownLatch(String name) {
        return distributedLocker.getCountDownLatch(name);
    }

/**
     * 获取信号量
     *
     * @param name
     * @return
     */
    public static RSemaphore getSemaphore(String name) {
        return distributedLocker.getSemaphore(name);
    }
}
```

底层封装

```java
/**
 * @author gourd
 */
public interface DistributedLocker {
    RLock lock(String lockKey);

RLock lock(String lockKey, int timeout);

RLock lock(String lockKey, TimeUnit unit, int timeout);

boolean tryLock(String lockKey, TimeUnit unit, int waitTime, int leaseTime);

void unlock(String lockKey);

void unlock(RLock lock);
}

/**
 * @author gourd
 */
@Component
public class RedisDistributedLocker implements DistributedLocker {
    @Autowired
    private
    RedissonClient redissonClient;

@Override
    public RLock lock(String lockKey) {
        RLock lock = redissonClient.getLock(lockKey);
        lock.lock();
        return lock;
    }

@Override
    public RLock lock(String lockKey, int leaseTime) {
        RLock lock = redissonClient.getLock(lockKey);
        lock.lock(leaseTime, TimeUnit.SECONDS);
        return lock;
    }

@Override
    public RLock lock(String lockKey, TimeUnit unit, int timeout) {
        RLock lock = redissonClient.getLock(lockKey);
        lock.lock(timeout, unit);
        return lock;
    }

@Override
    public boolean
    tryLock(String lockKey, TimeUnit unit, int waitTime, int leaseTime) {
        RLock lock = redissonClient.getLock(lockKey);
        try {
            return lock.tryLock(waitTime, leaseTime, unit);
        } catch (InterruptedException e) {
            return false;
        }
    }

@Override
    public void
    unlock(String lockKey) {
        RLock lock = redissonClient.getLock(lockKey);
        lock.unlock();
    }

@Override
    public void
    unlock(RLock lock) {
        lock.unlock();
    }
}
```

**测试**

模拟并发测试

```java
/**
 * redis分布式锁控制器
 *
 * @author gourd
 * @since 2019-07-30
 */
@RestController
@Api(tags = "redisson", description = "redis分布式锁控制器")
@RequestMapping("/redisson")
@Slf4j
public class RedissonLockController {

/**
     * 锁测试共享变量
     */
    private Integer lockCount = 10;

/**
     * 无锁测试共享变量
     */
    private Integer count = 10;

/**
     * 模拟线程数
     */
    private static int hreadNum = 10;

/**
     * 模拟并发测试加锁和不加锁
     *
     * @return
     */
    @GetMapping("/test")
    @ApiOperation(value = "模拟并发测试加锁和不加锁")
    public void lock() {
        // 计数器
        final CountDownLatch countDownLatch = new CountDownLatch(1);
        for (int i = 0; i < threadNum; i++) {
            MyRunnable myRunnable = new MyRunnable(countDownLatch);
            Thread myThread = new Thread(myRunnable);
            myThread.start();
        }
        // 释放所有线程
        countDownLatch.countDown();
    }

/**
     * 加锁测试
     */
    private void testLockCount() {
        String lockKey = "lock-test";
        try {
            // 加锁，设置超时时间2s
            RedisLockUtil.lock(lockKey, 2, TimeUnit.SECONDS);
            lockCount--;
            log.info("lockCount值：" + lockCount);
        } catch (Exception e) {
            log.error(e.getMessage(), e);
        } finally {
            // 释放锁
            RedisLockUtil.unlock(lockKey);
        }
    }

/**
     * 无锁测试
     */
    private void testCount() {
        count--;
        log.info("count值：" + count);
    }

public class MyRunnable implements Runnable {
        /**
         * 计数器
         */
        final CountDownLatch countDownLatch;

public MyRunnable(CountDownLatch countDownLatch) {
            this.countDownLatch = countDownLatch;
        }

@Override
        public void run() {
            try {
                // 阻塞当前线程，直到计时器的值为0
                countDownLatch.await();
            } catch (InterruptedException e) {
                log.error(e.getMessage(), e);
            }
            // 无锁操作
            testCount();
            // 加锁操作
            testLockCount();
        }

}

}
```

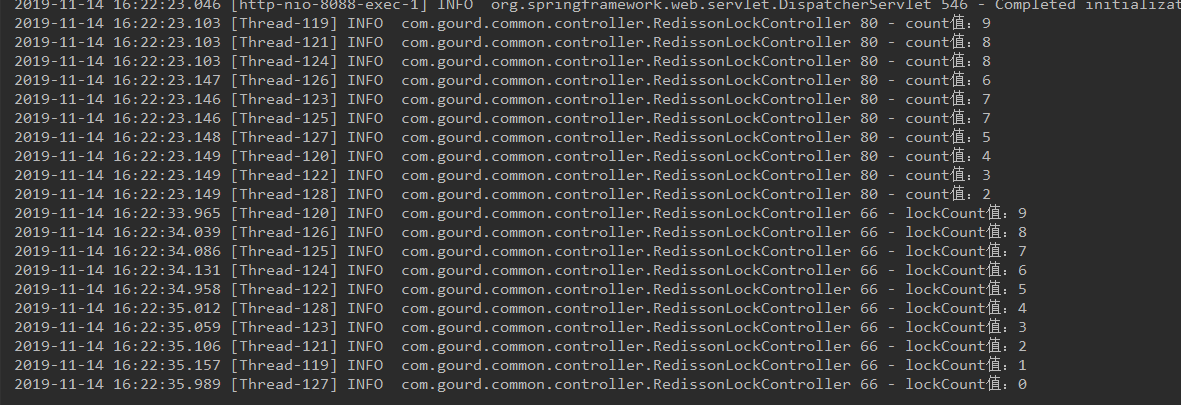

调用接口后打印值：

![](/images/1590386453749.jpg)

**测试结果**

根据打印结果可以明显看到，未加锁的 count-- 后值是乱序的，而加锁后的结果和我们预期的一样。

由于条件问题没办法测试分布式的并发。只能模拟单服务的这种并发，但是原理是一样，希望对大家有帮助。如有错误之处，欢迎指正。
