Axis2解析wsdl反向生成webservice客户端代码

小灰灰 2022-03-15 06:40 681阅读 0赞

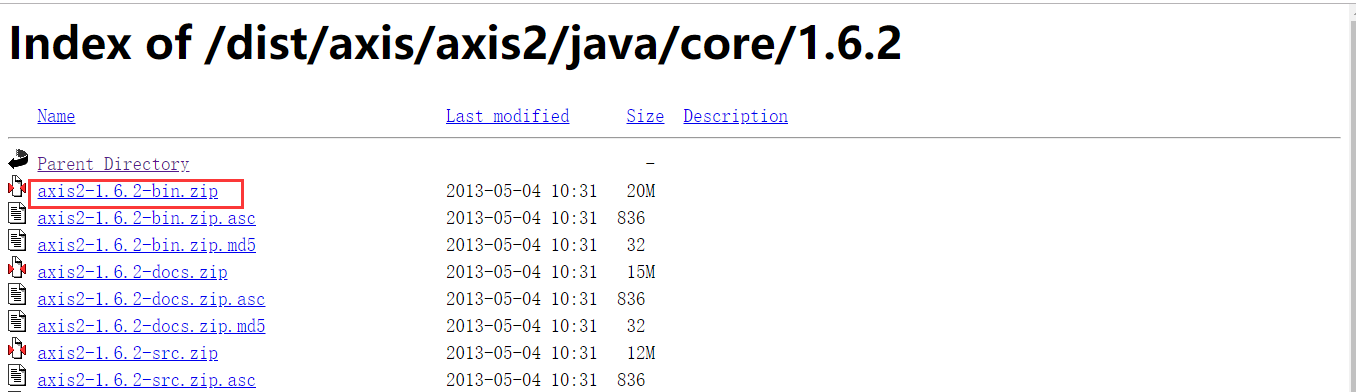

1、下载axis2-1.6.2.zip([http://archive.apache.org/dist/axis/axis2/java/core/][http_archive.apache.org_dist_axis_axis2_java_core] )并解压到你的任意盘下（最好下载的版本和项目中pom文件中的axis2的版本一致）
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3plYWw5cw_size_16_color_FFFFFF_t_70]

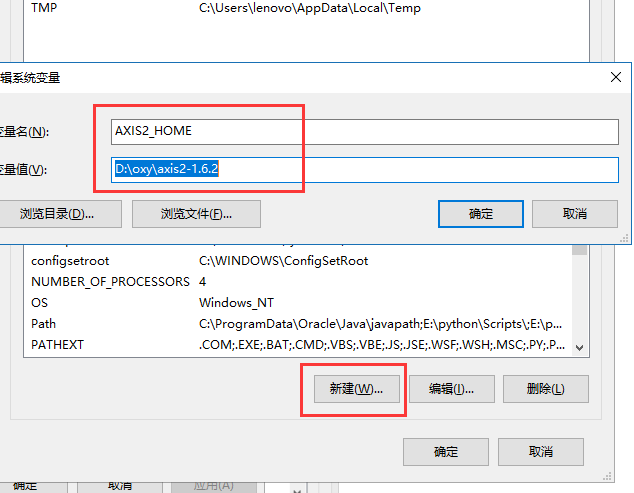

2、设置axis2的环境变量
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3plYWw5cw_size_16_color_FFFFFF_t_70 1]
3、把wsdl文件保存到本地 XXX.wsdl

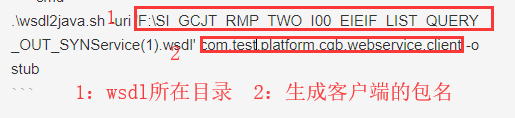

4、通过dos命令生成客户端程序
在D:\\oxy\\axis2-1.6.2\\bin目录下打开cmd窗口

.\wsdl2java.bat -uri F:\SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNService.wsdl -p com.test.platform.cgb.webservice.client -o stub

![在这里插入图片描述][20190301104740849.png]
uri参数指定了wsdl文件的路径，可以是本地路径，也可以是网络路径。
\-p参数指定了生成的Java类的包名
\-o参数指定了生成的一系列文件保存的根目录

5、在执行完上面的命令后，读者就会发现在当前目录下多了个stub目录(执行命令之前要保证自己电脑的系统变量中配置好了AXIS2\_HOME、JAVA\_HOME、CLASSPATH等变量)
![在这里插入图片描述][20190301105040138.png]
6.程序调用生成的代码请求webservice数据

SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub stub= new SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub();
    HttpTransportProperties.Authenticator auth = new HttpTransportProperties.Authenticator();
    auth.setUsername("GC_TEST");
    auth.setPassword("12345678");
    stub._getServiceClient().getOptions().setProperty(HTTPConstants.AUTHENTICATE, auth);
    SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.MT_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_REQ mtReq = new SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.MT_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_REQ();
    SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.DT_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_REQ dtReq = new SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.DT_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_REQ();
    SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.DT_GCJT_RMP_HEADER_REQ reqHead = new SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.DT_GCJT_RMP_HEADER_REQ();
    // reqHead.setPARTNER(paramReq.getPARTNER());// 登录员工BP
    // reqHead.setPAFKT(paramReq.getPAFKT());// 登录员工组织
    // reqHead.setSPRAS(paramReq.getSPRAS());// 语言
    dtReq.setHEADER(reqHead);
    SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.REQUEST_type0 reqBody = new SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.REQUEST_type0();
    dtReq.setREQUEST(reqBody);

    mtReq.setMT_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_REQ(dtReq);
    SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.MT_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_RESP mtResp = stub.sI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYN(mtReq);
    SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.DT_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_RESP dtResp = mtResp.getMT_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_RESP();
    SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.DT_GCJT_RMP_HEADER_RESP respHead = dtResp.getHEADER();
    SI_GCJT_RMP_TWO_I006_DEVICEINFO_LIST_QUERY_OUT_SYNServiceStub.CSSINFO_LIST_type0[] respBody = dtResp.getCSSINFO_LIST();

respBody就是我们需要获取的数据

**说在最后的话：编写实属不易，若喜欢或者对你有帮助记得点赞+关注或者收藏哦~**
