Cloudera Manager平台部署说明书
一、基础环境
1. 修改主机名
\# vim /etc/sysconfig/networkNETWORKING=yesHOSTNAME=master1\# vim /etc/sysconfig/networkNETWORKING=yesHOSTNAME=master2\# vim /etc/sysconfig/networkNETWORKING=yesHOSTNAME=node1\# vim /etc/sysconfig/networkNETWORKING=yesHOSTNAME=node2\# vim /etc/sysconfig/networkNETWORKING=yesHOSTNAME=node3
2. 配置网络映射
\# vim /etc/hosts192.168.233.101 master1192.168.233.102 master2192.168.233.103 node1192.168.233.104 node2192.168.233.105 node3
3. 关闭防火墙
\# service iptables stop\# chkconfig iptables off\# chkconfig --list | grep iptables
4. 禁用selinux
\# vim /etc/selinux/configSELINUX=disabled
5. 禁用IPv6
\# echo " " >> /etc/modprobe.d/dist.conf\# echo "alias net-pf-10 off" >> /etc/modprobe.d/dist.conf\# echo "alias ipv6 off" >> /etc/modprobe.d/dist.conf
6. 配置SSH无秘钥登录
6.1 生产公钥和私钥
\# ssh-keygen
6.2 拷贝公钥给目标服务器
\# ssh-copy-id -i master1\# ssh-copy-id -i master2\# ssh-copy-id -i node1\# ssh-copy-id -i node2\# ssh-copy-id -i node3
7. 集群时间同步
\# ntpdate -u time.nuri.net
8. 设置用户的可打开最大文件数及进程数
\# vim /etc/security/limits.conf* soft nofile 32728* hard nofile 1024567* soft nproc 65535* hard nproc unlimited* soft memlock unlimited* hard memlock unlimited
二、基础软件
1. JDK安装
1.1 下载JDK安装包
- 本平台采用 JDK-8u172 的版本：jdk-8u172-linux-x64.tar.gz
- http://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html
1.2 解压JDK安装程序
\# mkdir -p /opt/java/\# tar zxf /opt/tools/jdk-8u172-linux-x64.tar.gz -C /opt/java/
1.3 拷贝JDK至其它节点
\# scp -r java/ master2:/opt/\# scp -r java/ node1:/opt/\# scp -r java/ node2:/opt/\# scp -r java/ node3:/opt/
1.4 配置JDK环境变量
vim /etc/profile# JAVA_HOMEexport JAVA_HOME=/opt/java/jdk1.8.0_172export CLASSPATH=.:$JAVA_HOME/lib/tools.jar:$JAVA_HOME/lib/dt.jarexport PATH=$PATH:$JAVA_HOME/bin
1.5 验证JDK环境
\# source /etc/profile\# java -version
2. MySQL安装
- CentOS-6.9 二进制安装Mysql-5.7.12
三、Cloudera Manager安装
1. 安装介质
1.1 下载Cloudera Manager
- 本平台采用 Cloudera Manager-5.12.0的版本：cloudera-manager-el6-cm5.12.0_x86_64.tar.gz
- http://archive.cloudera.com/cm5/cm/5/
1.2 下载MySQL JDBC驱动
- 本平台采用 MySQL-5.1.46的JDBC驱动：mysql-connector-java-5.1.46.jar
- http://dev.mysql.com/downloads/connector/j/
2. 部署准备
2.1 MySQL创建元数据库
\# mysql -uroot -pmysqlpasswdcreate database activity default charset utf8 collate utf8_general_ci;grant all on activity.* to 'cm'@'%' identified by 'cm!@#edc';flush privileges;
2.2 创建cloudera-scm用户
| 参数 | 参数说明 |
|---|---|
| —system | 表示系统用户 |
| —home=/opt/cm-5.12.0/run/cloudera-scm-server —no-create-home | 指定用户的主目录 |
| —shell=/bin/false | 不作为登陆用户 |
| —comment ”Cloudera SCM User” | |
| cloudera-scm | 用户名 |
useradd --system \--home=/opt/cm-5.12.0/run/cloudera-scm-server --no-create-home \--shell=/bin/false \--comment "Cloudera SCM User" cloudera-scm
3. 部署Cloudera Manager
3.1 解压Cloudera Manager安装程序
\# tar zxf /opt/tools/cloudera-manager-el6-cm5.12.0\_x86\_64.tar.gz -C /opt/
3.2 初始化Cloudera Manager数据库
拷贝MySQL驱动
# cp /opt/tools/mysql-connector-java-5.1.46.jar /opt/cm-5.12.0/share/cmf/lib/
初始化Cloudera Manager数据库，创建的数据库名为cm，对应的用户名为cm，密码为cm!@#edc
# /opt/cm-5.12.0/share/cmf/schema/scm_prepare_database.sh mysql cm -hlocalhost -uroot -p’mysqlpasswd’ cm ‘cm!@#edc’
3.3 修改配置
\# vim /opt/cm-5.12.0/etc/cloudera-scm-agent/config.iniserver_host=master1
3.4 拷贝CM至其它节点
\# scp -r /opt/cm-5.12.0 master2:/opt/\# scp -r /opt/cm-5.12.0 node1:/opt/\# scp -r /opt/cm-5.12.0 node2:/opt/\# scp -r /opt/cm-5.12.0 node3:/opt/
4. 启动Cloudera Manager
4.1 master1节点启动CM服务和代理
\# /opt/cm-5.12.0/etc/init.d/cloudera-scm-server start\# /opt/cm-5.12.0/etc/init.d/cloudera-scm-agent start
4.2 其它节点启动CM代理
\# /opt/cm-5.12.0/etc/init.d/cloudera-scm-agent start

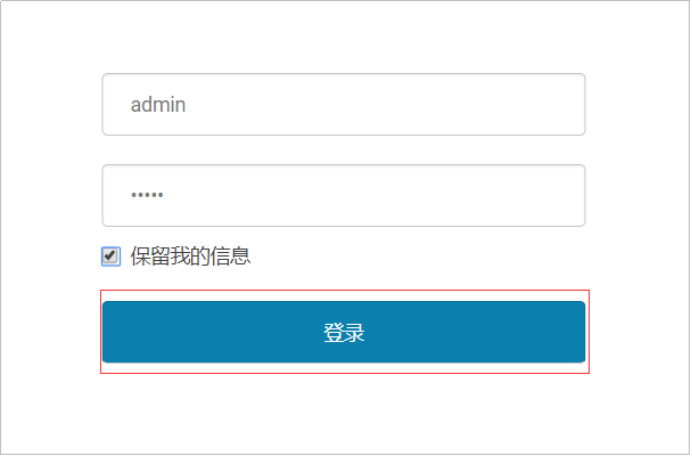

5. Cloudera Manager控制台
- 访问WEB UI：http://192.168.233.101:7180
- 用户名：admin
- 密码：admin
