mybatis的第一个程序

Bertha 。 2022-06-08 03:11 253阅读 0赞

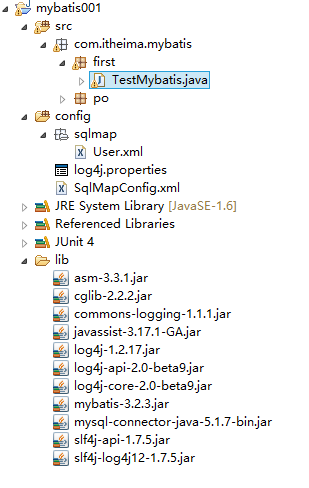

程序结构图：

![Center][]

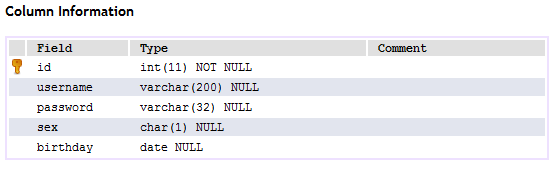

表结构；

![Center 1][]

创表sql：

CREATE TABLE \`users\` (
  \`id\` int(11) NOT NULL AUTO\_INCREMENT,
  \`username\` varchar(200) DEFAULT NULL,
  \`password\` varchar(32) DEFAULT NULL,
  \`sex\` char(1) DEFAULT NULL,
  \`birthday\` date DEFAULT NULL,
  PRIMARY KEY (\`id\`)
) ENGINE=InnoDB AUTO\_INCREMENT=17 DEFAULT CHARSET=utf8

User.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="test">


<select id="findUserById" parameterType="int" resultType="com.itheima.mybatis.po.User">
SELECT \* FROM users WHERE id = \#\{id\}
</select>


<select id="findUserList" parameterType="String" resultType="com.itheima.mybatis.po.User">
SELECT \* FROM users WHERE username LIKE '%$\{value\}%'
</select>

</mapper>

SqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

<environments default="development">
<environment id="development">
<transactionManager type="JDBC" />
<dataSource type="POOLED">
<property name="driver" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/mybatisdb?characterEncoding=utf-8" />
<property name="username" value="root" />
<property name="password" value="123" />
</dataSource>
</environment>
</environments>


<mappers>
<mapper resource="sqlmap/User.xml"/>
</mappers>
</configuration>

log4j.properties：

\# Global logging configuration
log4j.rootLogger=DEBUG, stdout
\# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p \[%t\] - %m%n

代码：

public class TestMybatis \{


@Test
public void testFindUserById() throws Exception \{
// 加载配置文件
String resource = "SqlMapConfig.xml";
InputStream inputStream = Resources.getResourceAsStream(resource);
// 通过配置文件获取到sqlSessionFactory
SqlSessionFactory sessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
// 通过sessionFactory对象获取到sqlSession对象
SqlSession sqlSession = sessionFactory.openSession();
// 向数据库发起查询（查询单条记录），并接收返回结果
User user = sqlSession.selectOne("test.findUserById", 3);
// 打印结果
System.out.println(user);

// 向数据库发起查询（查询多条记录），并接收返回结果
List<User> list = sqlSession.selectList("test.findUserList", "小");
System.out.println(list.size());
for (User user2 : list) \{
System.out.println(user2);
\}
\}
\}

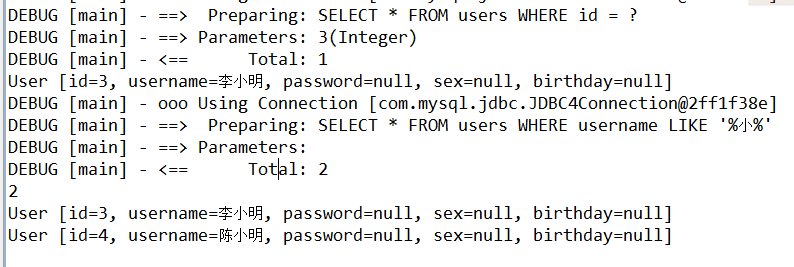

执行结果：

![Center 2][]
