java实现变声器--变声萝莉、大叔、熊孩子

╰半橙微兮° 2022-09-05 12:53 31阅读 0赞

编写java变声器需要做的前期准备

安装 ffmgeg 下载地址 [https://github.com/BtbN/FFmpeg-Builds/releases/][https_github.com_BtbN_FFmpeg-Builds_releases]

win系统下载 ffmpeg-N-103272-g7bba0dd638-win64-gpl.zip

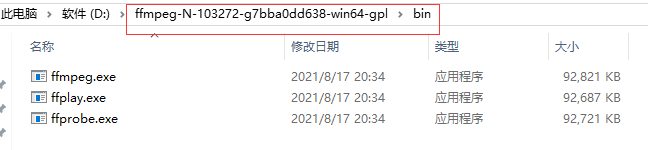

配置环境变量到 bin目录

![20210818103646250.png][]

新建maven程序加入两个引用

<dependency>
    			<groupId>com.github.st-h</groupId>
    			<artifactId>TarsosDSP</artifactId>
    			<version>2.4.1</version>
    		</dependency>
    		<dependency>
                <groupId>ws.schild</groupId>
                <artifactId>jave-core</artifactId>
                <version>2.4.6</version>
            </dependency>

新建两个基础类

AudioOutputToByteArray

import be.tarsos.dsp.AudioEvent;
    import be.tarsos.dsp.AudioProcessor;

    import java.io.ByteArrayOutputStream;

    public class AudioOutputToByteArray implements AudioProcessor {
        private boolean isDone = false;
        private byte[] out = null;
        private ByteArrayOutputStream bos;

        public AudioOutputToByteArray() {
            bos = new ByteArrayOutputStream();
        }

        public ByteArrayOutputStream getBos() {
            return bos;
        }

        public byte[] getData() {
            while (!isDone && out == null) {
                try {
                    Thread.sleep(10);
                } catch (InterruptedException ignored) {}
            }

            return out;
        }

        @Override
        public boolean process(AudioEvent audioEvent) {

            bos.write(audioEvent.getByteBuffer(),0,audioEvent.getByteBuffer().length);
            return true;
        }

        @Override
        public void processingFinished() {
            out = bos.toByteArray().clone();
            bos = null;
            isDone = true;
        }
    }

WaveHeader

import java.io.ByteArrayOutputStream;
    import java.io.IOException;

    public class WaveHeader {
        public final char fileID[] = {'R', 'I', 'F', 'F'};
        public int fileLength;
        public char wavTag[] = {'W', 'A', 'V', 'E'};;
        public char FmtHdrID[] = {'f', 'm', 't', ' '};
        public int FmtHdrLeth;
        public short FormatTag;
        public short Channels;
        public int SamplesPerSec;
        public int AvgBytesPerSec;
        public short BlockAlign;
        public short BitsPerSample;
        public char DataHdrID[] = {'d','a','t','a'};
        public int DataHdrLeth;

        public byte[] getHeader() throws IOException {
            ByteArrayOutputStream bos = new ByteArrayOutputStream();
            WriteChar(bos, fileID);
            WriteInt(bos, fileLength);
            WriteChar(bos, wavTag);
            WriteChar(bos, FmtHdrID);
            WriteInt(bos,FmtHdrLeth);
            WriteShort(bos,FormatTag);
            WriteShort(bos,Channels);
            WriteInt(bos,SamplesPerSec);
            WriteInt(bos,AvgBytesPerSec);
            WriteShort(bos,BlockAlign);
            WriteShort(bos,BitsPerSample);
            WriteChar(bos,DataHdrID);
            WriteInt(bos,DataHdrLeth);
            bos.flush();
            byte[] r = bos.toByteArray();
            bos.close();
            return r;
        }

        private void WriteShort(ByteArrayOutputStream bos, int s) throws IOException {
            byte[] mybyte = new byte[2];
            mybyte[1] =(byte)( (s << 16) >> 24 );
            mybyte[0] =(byte)( (s << 24) >> 24 );
            bos.write(mybyte);
        }


        private void WriteInt(ByteArrayOutputStream bos, int n) throws IOException {
            byte[] buf = new byte[4];
            buf[3] =(byte)( n >> 24 );
            buf[2] =(byte)( (n << 8) >> 24 );
            buf[1] =(byte)( (n << 16) >> 24 );
            buf[0] =(byte)( (n << 24) >> 24 );
            bos.write(buf);
        }

        private void WriteChar(ByteArrayOutputStream bos, char[] id) {
            for (int i=0; i<id.length; i++) {
                char c = id[i];
                bos.write(c);
            }
        }
    }

现在新建执行类和方法，先在d盘放一个1.mp3的文件。以下代码就是把1.mp3转换成变声后的2.mp3

byte\[\] pcmBytes = speechPitchShiftMp3("d://1.mp3", 0.73, 0.73); 后面的0.73就是变声参数。最后会给出各种变声参数

import java.io.FileOutputStream;
    import java.io.IOException;
    import java.io.OutputStream;

    import javax.sound.sampled.UnsupportedAudioFileException;

    import be.tarsos.dsp.AudioDispatcher;
    import be.tarsos.dsp.WaveformSimilarityBasedOverlapAdd;
    import be.tarsos.dsp.effects.DelayEffect;
    import be.tarsos.dsp.io.jvm.AudioDispatcherFactory;
    import be.tarsos.dsp.resample.RateTransposer;

    public class ceshi {
    	public static void main(String[] args) throws Exception {
    	      //这里返回的是pcm格式的音频
    	      byte[] pcmBytes = speechPitchShiftMp3("d://1.mp3", 0.73, 0.73);

    	      //如果需要转成wav则需要给pcmBytes增加一个头部信息
    	      //TarsosDSP中也有输出Wav格式音频的处理器，这里没有使用。
    	      byte[] wavHeader = pcm2wav(pcmBytes);
    	      OutputStream wavOutPut = new FileOutputStream("d://2.mp3");
    	      wavOutPut.write(wavHeader);
    	      wavOutPut.write(pcmBytes);
    	      wavOutPut.flush();
    	      wavOutPut.close();

    	      // 对于各种声音类型，以及所需添加的处理器，还有处理器参数代码，将在本文最后给出。
    	      //如果需要转mp3格式的，也可以给我留言，我会加上。
    	}

    	/**
    	     * 变声
    	     * @param speedFactor 变速率 (0,2) 大于1为加快语速，小于1为放慢语速
    	     * @param rateFactor 音调变化率 (0,2) 大于1为降低音调（深沉），小于1为提升音调（尖锐）
    	     * @return 变声后的MP3数据输入流
    	     */
    	    public static byte[] speechPitchShiftMp3(String fileUrl, double rateFactor, double speedFactor) throws IOException, UnsupportedAudioFileException {

    	        WaveformSimilarityBasedOverlapAdd w = new WaveformSimilarityBasedOverlapAdd(WaveformSimilarityBasedOverlapAdd.Parameters.speechDefaults(rateFactor, 16000));
    	        int inputBufferSize = w.getInputBufferSize();
    	        int overlap = w.getOverlap();

    	        AudioDispatcher dispatcher = AudioDispatcherFactory.fromPipe(fileUrl,16000,inputBufferSize,overlap);
    	        w.setDispatcher(dispatcher);
    	        dispatcher.addAudioProcessor(w);

    	        /** 采样率转换器。 使用插值更改采样率, 与时间拉伸器一起可用于音高转换。 **/
    	        dispatcher.addAudioProcessor(new RateTransposer(speedFactor));
    	        AudioOutputToByteArray out = new AudioOutputToByteArray();


    	        /** 声音速率转换器 -- 失败 **/
    	        /*SoundTouchRateTransposer soundTouchRateTransposer = new SoundTouchRateTransposer(2);
    	        soundTouchRateTransposer.setDispatcher(dispatcher);
    	        dispatcher.addAudioProcessor(soundTouchRateTransposer);*/

    	        /** 正弦波发生器 -- 无反应 **/
    	        /*SineGenerator sineGenerator = new SineGenerator(0.5, 0.5);
    	        dispatcher.addAudioProcessor(sineGenerator);*/

    	        /** 音调转换器 -- 无效果 **/
    //	        dispatcher.addAudioProcessor(new PitchShifter(0.1,16000,448,overlap));

    	        /** 制粒机使用颗粒合成回放样本。方法可用于控制播放速率，音高，颗粒大小， -- 无效果 **/
    //	        dispatcher.addAudioProcessor(new OptimizedGranulator(16000, 448));

    	        /** 噪音产生器 -- 有效果 **/
    //	        dispatcher.addAudioProcessor(new NoiseGenerator(0.2   ));

    	        /** 增益处理器  增益为1，则无任何反应。 增益大于1表示音量增加a -- 有反应 **/
    //	        dispatcher.addAudioProcessor(new GainProcessor(10));

    	        /**镶边效果 -- 有反应 **/
    //	        dispatcher.addAudioProcessor(new FlangerEffect(64, 0.3, 16000, 16000));// 回声效果
    //	        dispatcher.addAudioProcessor(new FlangerEffect(1 << 4, 0.8, 8000, 2000));// 感冒
    //	        dispatcher.addAudioProcessor(new ZeroCrossingRateProcessor());//感冒

    	        /** 淡出 --声音慢慢变小 **/
    //	        dispatcher.addAudioProcessor(new FadeOut(5));

    	        /** 淡入-- 声音慢慢变大 **/
    //	        dispatcher.addAudioProcessor(new FadeIn(5));

    	        /** 在信号上添加回声效果。echoLength以秒为单位  elay回声的衰减，介于0到1之间的值。1表示无衰减，0表示立即衰减 **/
    	        dispatcher.addAudioProcessor(new DelayEffect(0.2, 0.24, 12000) );

    	        /** 调幅噪声 -- 将声音转换为噪声**/
    //	        dispatcher.addAudioProcessor(new AmplitudeModulatedNoise());

    	        /** 振幅LFO -- 声音波动 **/
    //	        dispatcher.addAudioProcessor(new AmplitudeLFO());

    	        dispatcher.addAudioProcessor(out);

    	        dispatcher.run();



    //	        return new ByteArrayInputStream(out.getData());
    	        return out.getData();
    	    }


    	    public static byte[] pcm2wav(byte[] bytes) throws IOException {
    	        //填入参数，比特率等等。这里用的是16位单声道 8000 hz
    	        WaveHeader header = new WaveHeader();

    	        //长度字段 = 内容的大小（PCMSize) + 头部字段的大小(不包括前面4字节的标识符RIFF以及fileLength本身的4字节)
    	        header.fileLength = bytes.length + (44 - 8);
    	        header.FmtHdrLeth = 16;
    	        header.BitsPerSample = 16;
    	        header.Channels = 1;
    	        header.FormatTag = 0x0001;
    	        header.SamplesPerSec = 16000;
    	        header.BlockAlign = (short)(header.Channels * header.BitsPerSample / 8);
    	        header.AvgBytesPerSec = header.BlockAlign * header.SamplesPerSec;
    	        header.DataHdrLeth = bytes.length;

    	        byte[] h = header.getHeader();
    	        assert h.length == 44; //WAV标准，头部应该是44字节
    	        return h;
    	    }


    }

各种参数类

LUOLI(0.6, 0.6, "萝莉", 1, dispatcher -> \{\})

byte\[\] pcmBytes = speechPitchShiftMp3("d://1.mp3", 0.73, 0.73);改为

byte\[\] pcmBytes = speechPitchShiftMp3("d://1.mp3", 0.6, 0.6);就可以了

import be.tarsos.dsp.AudioDispatcher;
    import be.tarsos.dsp.WaveformSimilarityBasedOverlapAdd;
    import be.tarsos.dsp.ZeroCrossingRateProcessor;
    import be.tarsos.dsp.effects.DelayEffect;
    import be.tarsos.dsp.io.jvm.AudioDispatcherFactory;
    import be.tarsos.dsp.resample.RateTransposer;


    import java.io.File;
    import java.io.IOException;
    import java.util.Optional;
    import java.util.function.Consumer;

    public enum SoundEnum {
        LUOLI(0.6, 0.6, "萝莉", 1, dispatcher -> {}),
        DASHU(1.2, 1.2, "大叔", 2, dispatcher -> {}),
        FEIZAI(1.5, 1.5, "肥仔", 3, dispatcher -> {}),
        GAOGUAI(1.5, 0.8, "搞怪", 4, dispatcher -> {}),
        XIONGHAIZI(0.73, 0.73, "熊孩子", 5, dispatcher -> {}),
        MANTUNTUN(0.35,1, "慢吞吞",6 , dispatcher -> {}),
        WANGHONGNV(1.2,0.7, "网红女",7 , dispatcher -> {}),

        /**
         * dispatcher.addAudioProcessor(new DelayEffect(0.2, 0.24, 12000) );
         */
        KUNSHOU(1.55,1.55, "困兽", 8, dispatcher -> dispatcher.addAudioProcessor(new DelayEffect(0.2, 0.24, 12000))),

        /**
         * dispatcher.addAudioProcessor(new DelayEffect(0.2, 0.24, 12000) );
         */
        ZHONGJIXIE(1.50,1.50, "重机械", 9, dispatcher -> dispatcher.addAudioProcessor(new DelayEffect(0.2, 0.24, 12000))),

        /**
         *          dispatcher.addAudioProcessor(new FlangerEffect(1 << 4, 0.8, 8000, 2000));
         *         dispatcher.addAudioProcessor(new ZeroCrossingRateProcessor());
         */
        GANMAO(1.05,1.05, "感冒", 10, dispatcher -> {
            dispatcher.addAudioProcessor(new DelayEffect(0.2, 0.24, 12000));
            dispatcher.addAudioProcessor(new ZeroCrossingRateProcessor());
        }),

        /**
         *          dispatcher.addAudioProcessor(new DelayEffect(0.8, 0.5, 12000) );
         *         dispatcher.addAudioProcessor(new DelayEffect(0.5, 0.3, 8000) );
         */
        KONGLING(1, 1, "空灵", 11, dispatcher -> {
            dispatcher.addAudioProcessor(new DelayEffect(0.8, 0.5, 12000) );
            dispatcher.addAudioProcessor(new DelayEffect(0.5, 0.3, 8000) );
        });

        /**
         * @param speedFactor 变速率 (0,2) 大于1为加快语速，小于1为放慢语速
         * @param rateFactor 音调变化率 (0,2) 大于1为降低音调（深沉），小于1为提升音调（尖锐）
         */
        SoundEnum(double rateFactor, double speedFactor, String name, int type, Consumer<AudioDispatcher> consumer){
            this.rateFactor = rateFactor;
            this.speedFactor = speedFactor;
            this.name = name;
            this.type = type;
            this.consumer = consumer;
        }
        private double rateFactor;
        private double speedFactor;
        private String name;
        private int type;
        private Consumer consumer;


        public byte[] run(String fileUrl){
            WaveformSimilarityBasedOverlapAdd w = new WaveformSimilarityBasedOverlapAdd(WaveformSimilarityBasedOverlapAdd.Parameters.speechDefaults(rateFactor, 16000));
            int inputBufferSize = w.getInputBufferSize();
            int overlap = w.getOverlap();

            AudioDispatcher dispatcher = AudioDispatcherFactory.fromPipe(fileUrl,16000,inputBufferSize,overlap);
            w.setDispatcher(dispatcher);
            dispatcher.addAudioProcessor(w);

            /** 采样率转换器。 使用插值更改采样率, 与时间拉伸器一起可用于音高转换。 **/
            dispatcher.addAudioProcessor(new RateTransposer(speedFactor));
            AudioOutputToByteArray out = new AudioOutputToByteArray();



            consumer.accept(dispatcher);

            dispatcher.addAudioProcessor(out);
            dispatcher.run();


            return out.getData();
        }


        public static byte[] pcm2wav(byte[] bytes) {
            try {
                //填入参数，比特率等等。这里用的是16位单声道 8000 hz
                WaveHeader header = new WaveHeader();

                //长度字段 = 内容的大小（PCMSize) + 头部字段的大小(不包括前面4字节的标识符RIFF以及fileLength本身的4字节)
                header.fileLength = bytes.length + (44 - 8);
                header.FmtHdrLeth = 16;
                header.BitsPerSample = 16;
                header.Channels = 1;
                header.FormatTag = 0x0001;
                header.SamplesPerSec = 16000;
                header.BlockAlign = (short)(header.Channels * header.BitsPerSample / 8);
                header.AvgBytesPerSec = header.BlockAlign * header.SamplesPerSec;
                header.DataHdrLeth = bytes.length;

                byte[] h = header.getHeader();
                assert h.length == 44; //WAV标准，头部应该是44字节
                return h;
            } catch (IOException e) {
                //log.error("pcm2wav-error", e);
            }
            return null;
        }


        public static Optional<SoundEnum> getInstance(int type){
            for (int i = 0; i < SoundEnum.values().length; i++) {
                if(SoundEnum.values()[i].type == type)
                    return Optional.of(SoundEnum.values()[i]);
            }
            return Optional.empty();
        }
    }
