Docker快速安装Zookeeper

换了公司后很久没用过Zookeeper，最近因为在搞Elastic-Job需要用到，这里简单记录下用Docker搭建过程，下一篇会讲解怎么快速搭建集群。这里不会细讲如何搭建Docker，如果想了解Docker的朋友可以查看我之前写的Docker系列文章。

搜索Zookeeper镜像

  1. evans-MacBook-Pro:tool evan$ docker search zookeeper
  2. NAME                               DESCRIPTION                                     STARS     OFFICIAL   AUTOMATED
  3. zookeeper                          Apache ZooKeeper is an open-source server wh…   1099      [OK]
  4. jplock/zookeeper                   Builds a docker image for Zookeeper version …   165                  [OK]
  5. wurstmeister/zookeeper                                                             149                  [OK]
  6. mesoscloud/zookeeper               ZooKeeper                                       73                   [OK]
  7. bitnami/zookeeper                  ZooKeeper is a centralized service for distr…   60                   [OK]
  8. digitalwonderland/zookeeper        Latest Zookeeper - clusterable                  23                   [OK]
  9. mbabineau/zookeeper-exhibitor                                                      23                   [OK]
  10. tobilg/zookeeper-webui             Docker image for using `zk-web` as ZooKeeper…   15                   [OK]
  11. debezium/zookeeper                 Zookeeper image required when running the De…   14                   [OK]
  12. confluent/zookeeper                [deprecated - please use confluentinc/cp-zoo…   13                   [OK]
  13. 31z4/zookeeper                     Dockerized Apache Zookeeper.                    9                    [OK]
  14. thefactory/zookeeper-exhibitor     Exhibitor-managed ZooKeeper with S3 backups …   6                    [OK]
  15. engapa/zookeeper                   Zookeeper image optimised for being used int…   3
  16. emccorp/zookeeper                  Zookeeper                                       2
  17. harisekhon/zookeeper               Apache ZooKeeper (tags 3.3 - 3.4)               2                    [OK]
  18. paulbrown/zookeeper                Zookeeper on Kubernetes (PetSet)                1                    [OK]
  19. openshift/zookeeper-346-fedora20   ZooKeeper 3.4.6 with replication support        1
  20. perrykim/zookeeper                 k8s - zookeeper  ( forked k8s contrib )         1                    [OK]
  21. josdotso/zookeeper-exporter        ref: https://github.com/carlpett/zookeeper_e…   1                    [OK]
  22. duffqiu/zookeeper-cli                                                              1                    [OK]
  23. pravega/zookeeper-operator         Kubernetes operator for Zookeeper               0
  24. phenompeople/zookeeper             Apache ZooKeeper is an open-source server wh…   0                    [OK]
  25. dabealu/zookeeper-exporter         zookeeper exporter for prometheus               0                    [OK]
  26. midonet/zookeeper                  Dockerfile for a Zookeeper server.              0                    [OK]
  27. humio/zookeeper-dev                zookeeper build with zulu jvm.

拉取官方Zookeeper

默认拉取最新版本

  1. evans-MacBook-Pro:tool evan$ docker pull zookeeper
  2. Using default tag: latest
  3. latest: Pulling from library/zookeeper
  4. b4d181a07f80: Pull complete
  5. 3ee45ae97306: Pull complete
  6. 567d410fadc4: Pull complete
  7. 891cdfaa81b9: Pull complete
  8. 7d811fb3c718: Pull complete
  9. 259c7b233169: Pull complete
  10. 19a00500c36e: Pull complete
  11. 907b63c43842: Pull complete
  12. Digest: sha256:d5965c84bbfc33f9a718d9eedec0137dd91e2298e213379549e75ebb0fa49d51
  13. Status: Downloaded newer image for zookeeper:latest
  14. docker.io/library/zookeeper:latest

查询本地镜像

  1. evans-MacBook-Pro:tool evan$ docker image ls
  2. REPOSITORY            TAG       IMAGE ID       CREATED         SIZE
  3. zookeeper             latest    50d238989423   33 hours ago    269MB
  4. mysql                 latest    c0cdc95609f1   6 weeks ago     556MB
  5. jenkins/jenkins       latest    22c34b2deb6c   15 months ago   619MB
  6. postgres              latest    cf879a45faaa   17 months ago   394MB
  7. evan/centos           dev       631b0bcb4bcc   18 months ago   191MB
  8. truevoly/oracle-12c   latest    21789d4d876f   2 years ago     5.7GB

运行Zookeeper

指定端口为2181,容器名称为zookeeper

  1. evans-MacBook-Pro:tool evan$ docker run -d -p 2181:2181 --name zookeeper --restart always 50d238989423
  2. 548d103dabaa3c453f48a55f8dfeb3d241a60ad27fe0f11a114534ae5464b3fe

查看Zookeeper容器ID

  1. evans-MacBook-Pro:tool evan$ docker ps
  2. CONTAINER ID   IMAGE          COMMAND                  CREATED         STATUS         PORTS                                                                     NAMES
  3. 548d103dabaa   50d238989423   "/docker-entrypoint.…"   3 minutes ago   Up 3 minutes   2888/tcp, 3888/tcp, 0.0.0.0:2181->2181/tcp, :::2181->2181/tcp, 8080/tcp   zookeeper

通过容器ID进入Zookeeper

  1. evans-MacBook-Pro:tool evan$ docker exec -it 548d103dabaa bash
  2. root@548d103dabaa:/apache-zookeeper-3.7.0-bin#

执行Zookeeper启动命令

  1. root@548d103dabaa:/apache-zookeeper-3.7.0-bin# ./bin/zkCli.sh
  2. Connecting to localhost:2181
  3. 2021-06-27 15:15:06,993 [myid:] - INFO  [main:Environment@98] - Client environment:zookeeper.version=3.7.0-e3704b390a6697bfdf4b0bef79e3da7a4f6bac4b, built on 2021-03-17 09:46 UTC
  4.  ##...省略...
  5.  WatchedEvent state:SyncConnected type:None path:null
  6. [zk: localhost:2181(CONNECTED) 0]

下载Zookeeper可视化控制台

这里我随便在Github下了一个 ，供大家参考

  1. https://github.com/hellosix/zookeeper-manager/archive/refs/heads/master.zip

运行Zookeeper-manager代码

导入IDEA，直接启动ZookeeperManagerApplication，默认端口是8081

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0V2YW5fTGV1bmc_size_16_color_FFFFFF_t_70_pic_center

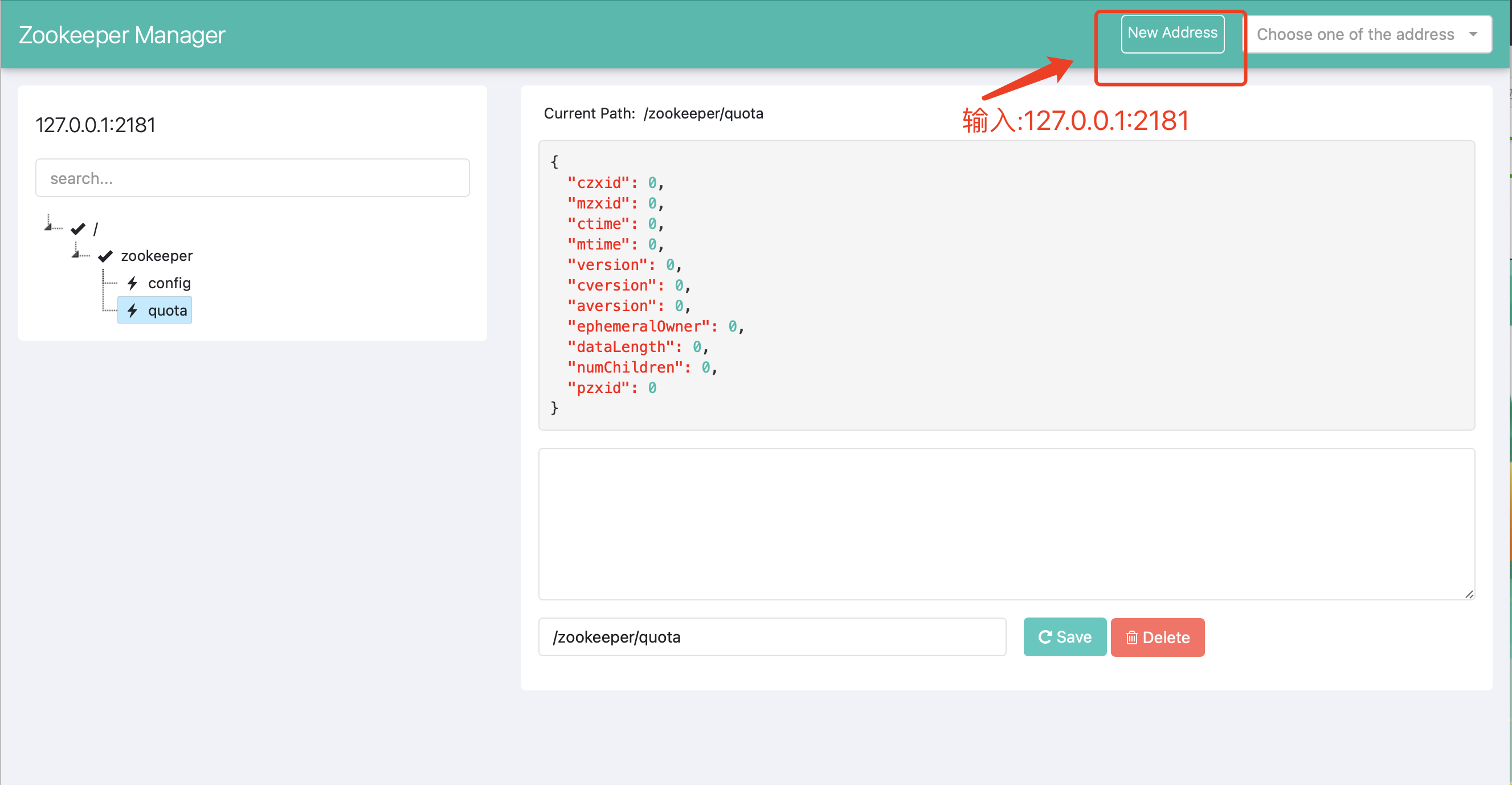

连接Zookeeper服务

这里添加一个新的服务，输入127.0.0.1:2181

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0V2YW5fTGV1bmc_size_16_color_FFFFFF_t_70_pic_center 1
