K8s kubeadm添加新节点详细操作

电玩女神 2022-11-12 14:58 595阅读 0赞

1.  查看现在已有的节点信息

[root@kub-k8s-master ~]#  kubectl get nodes
    NAME             STATUS   ROLES    AGE    VERSION
    kub-k8s-master   Ready    master   102m   v1.17.4
    kub-k8s-node1    Ready    <none>   96m    v1.17.4
    kub-k8s-node2    Ready    <none>   96m    v1.17.4

1.  关闭防火墙和selinux

systemctl stop firewalld && systemctl disable firewalld && sed -i 's/SELINUX=permissive/SELINUX=disabled/' /etc/sysconfig/selinux

1.  关闭交换分区

sed -i 's/.*swap.*/#&/' /etc/fstab

1.  开启路由转发

sysctl -w net.ipv4.ip_forward=1

1.  设置本地解析
    所有节点都添加下

vim /etc/hosts
    192.168.230.141   kub-k8s-master
    192.168.230.138   kub-k8s-node1
    192.168.230.139   kub-k8s-node2
    192.168.230.140   kub-k8s-node3

1.  修改主机名

hostnamectl set-hostname kub-k8s-node3 &&  echo 'kub-k8s-node3'>/etc/hostname

1.  下载docker 并启动
    添加节点的docker版本必须`与主节点一致`，否则总是NotReady

# yum remove docker \
    docker-client \
    docker-client-latest \
    docker-common \
    docker-latest \
    docker-latest-logrotate \
    docker-logrotate \
    docker-selinux \
    docker-engine-selinux \
    docker-engine
    # yum install -y yum-utils device-mapper-persistent-data lvm2 git
    # yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

    # yum install docker-ce -y

    systemctl enable docker && systemctl start docker

1.  拉取组件
    这里需要拉取的组件要与master的版本一致，我们可以`kubele --version`查看下，其次，国内无法访问"`k8s.gcr.io`" 我们可以先拉取阿里云的，然后打上`k8s.gcr.io`标签即可。

已知master是v1.17.4版本的
    拉取阿里云镜像
    [root@k8s-master ~]# docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.17.4
    [root@k8s-master ~]# docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.17.4
    [root@k8s-master ~]# docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.17.4
    [root@k8s-master ~]# docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.17.4
    [root@k8s-master ~]# docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.6.5
    [root@k8s-master ~]# docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.3-0
    [root@k8s-master ~]# docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1

    打上 k8s 的标签

    [root@k8s-master ~]# docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.17.4 k8s.gcr.io/kube-controller-manager:v1.17.4
    [root@k8s-master ~]# docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.17.4 k8s.gcr.io/kube-proxy:v1.17.4
    [root@k8s-master ~]# docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.17.4 k8s.gcr.io/kube-apiserver:v1.17.4
    [root@k8s-master ~]# docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.17.4 k8s.gcr.io/kube-scheduler:v1.17.4
    [root@k8s-master ~]# docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.6.5 k8s.gcr.io/coredns:1.6.5
    [root@k8s-master ~]# docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.3-0 k8s.gcr.io/etcd:3.4.3-0
    [root@k8s-master ~]# docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1 k8s.gcr.io/pause:3.1

1.  安装kubeadm和kubelet

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
    [kubernetes]
    name=Kubernetes
    baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
    enabled=1
    gpgcheck=1
    repo_gpgcheck=1
    gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
    EOF

1.  下载节点组件

yum install -y kubelet-1.17.4-0.x86_64 kubeadm-1.17.4-0.x86_64 kubectl-1.17.4-0.x86_64 ipvsadm

1.  编辑文件添加开机启动

vim /etc/rc.local

    modprobe ip_vs
    modprobe ip_vs_rr
    modprobe ip_vs_wrr
    modprobe ip_vs_sh
    modprobe nf_conntrack_ipv4

     chmod +x /etc/rc.local
     添加完毕逐条启动下

1.  配置转发相关参数，否则可能会出错

cat <<EOF >  /etc/sysctl.d/k8s.conf
    net.bridge.bridge-nf-call-ip6tables = 1
    net.bridge.bridge-nf-call-iptables = 1
    vm.swappiness=0
    EOF

1.  启动并查看

sysctl --system

    lsmod | grep ip_vs
    如果没有查到就重启下服务器

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzI2MTI5NDEz_size_16_color_FFFFFF_t_70]

1.  配置kubelet 使用pause 镜像

查看cgroup
    docker info |grep 'Cgroup' | awk 'NR==1{print $3}'
    cgroupfs

1.  配置kubelet的cgroups

cat >/etc/sysconfig/kubelet<<EOF KUBELET_EXTRA_ARGS="--cgroup-driver=cgroupfs --pod-infra-container-image=k8s.gcr.io/pause:3.1" EOF
    这里的 cgroupfs 就是上面查找到的

1.  启动节点

systemctl daemon-reload && systemctl enable kubelet && systemctl restart kubelet

1.  生成master节点的token（这个token 会在24小时候失效，如果在添加需要重新生成）

kubeadm token create --print-join-command

    kubeadm join 192.168.230.141:6443 --token fnpa0m.z5cliojcz5u6xmj9 \
        --discovery-token-ca-cert-hash sha256:86f42f7deedcf786c1d1745b487d62b681b4c0b91bffbfde556430bf4bfc36a2

1.  在新的节点运行新的token

kubeadm join 192.168.230.141:6443 --token fnpa0m.z5cliojcz5u6xmj9 \
        --discovery-token-ca-cert-hash sha256:86f42f7deedcf786c1d1745b487d62b681b4c0b91bffbfde556430bf4bfc36a2

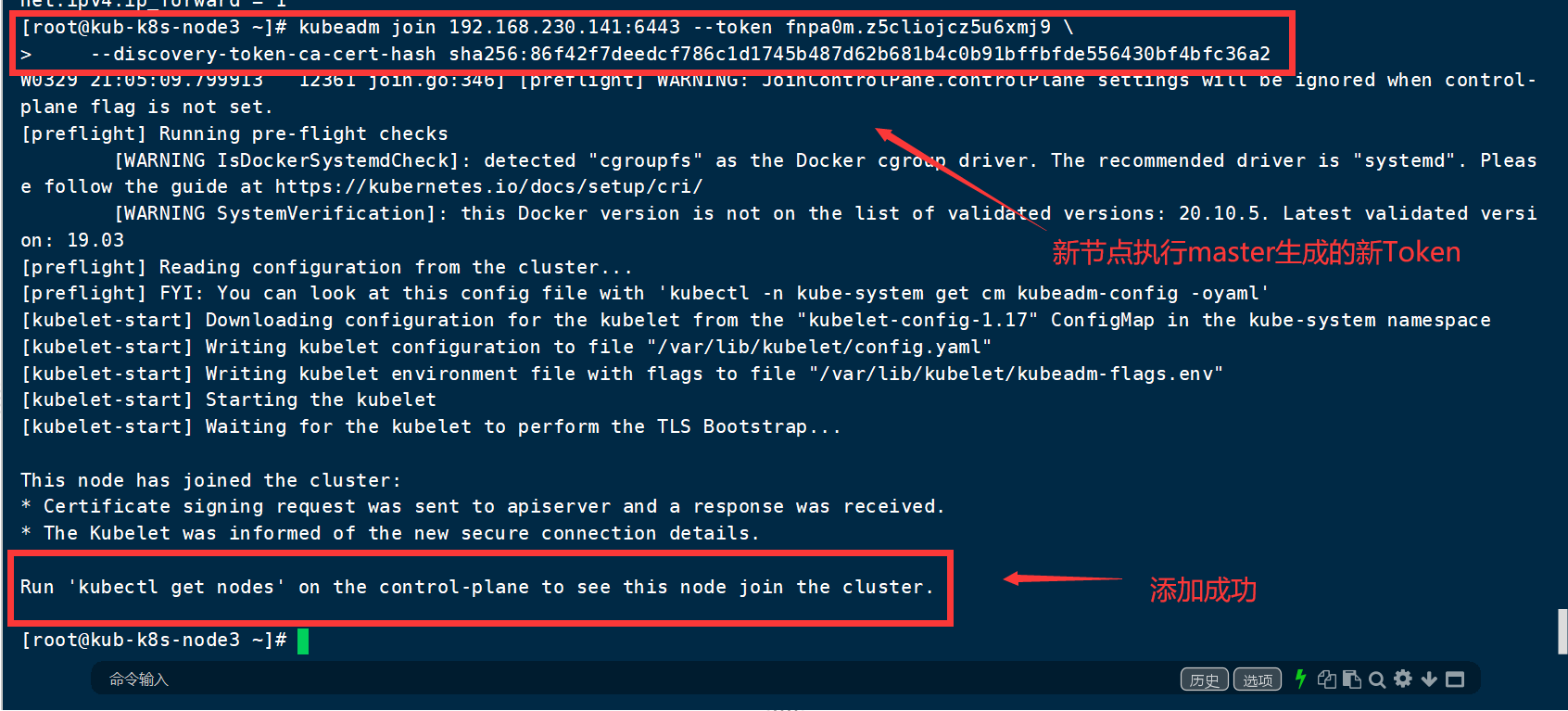

1.  启动成功如图
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzI2MTI5NDEz_size_16_color_FFFFFF_t_70 1]

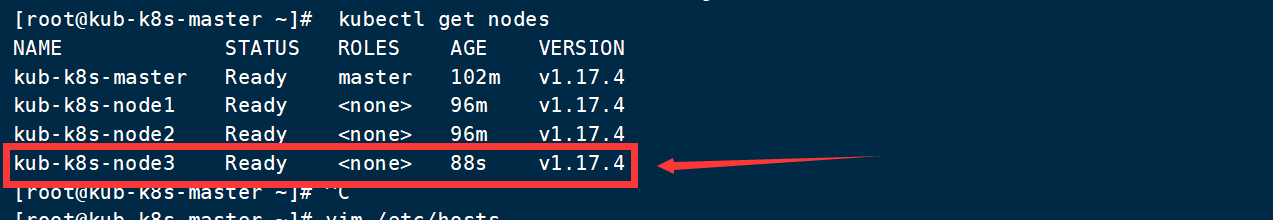

2.  在master 查看新加入的节点

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzI2MTI5NDEz_size_16_color_FFFFFF_t_70 2]
