【SaaS-Export项目】 - 06 对Company公司模块进行CRUD

今天药忘吃喽~ 2022-11-20 08:21 234阅读 0赞

### 文章目录 ###

*   *  1. saas-export - 添加company
     *  2. saas-export - 查询company
     *  3. saas-export - 删除company
     *  4. saas-export - 修改company 回显

【注意事项】
每次修改都需要对修改工程的maven的Lifecycle进行先clean再install
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center]

## 1. saas-export - 添加company ##

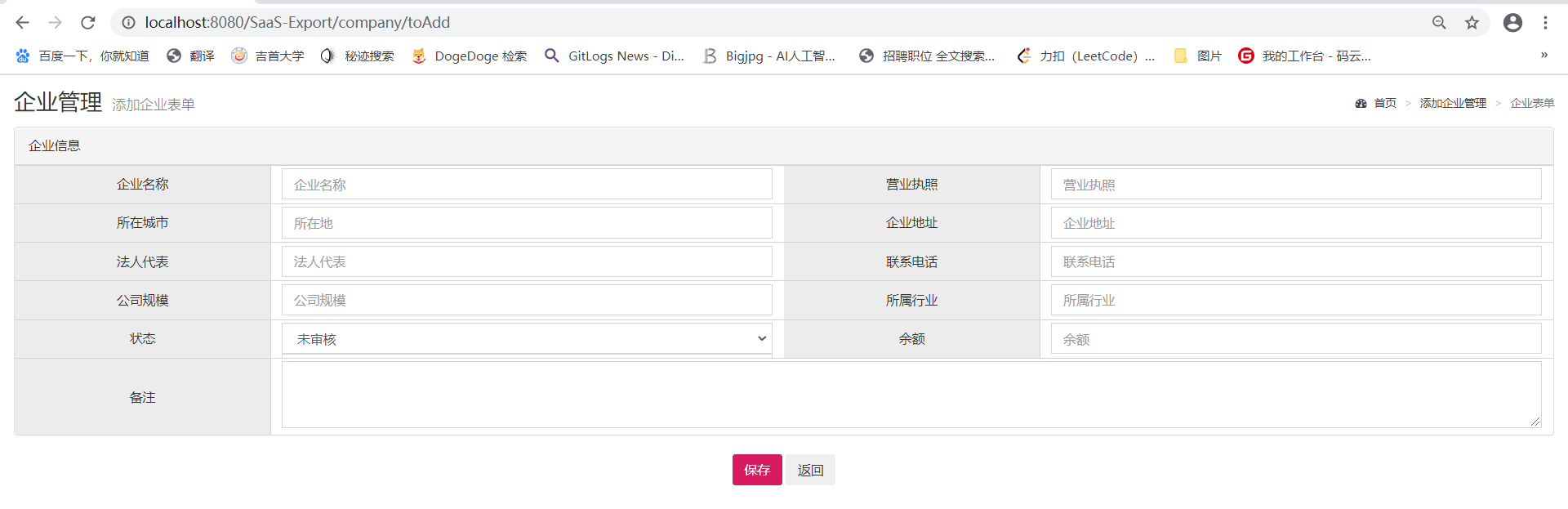

页面展示：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 1]

1.  `export_system_service`子工程编写测试类编写测试添加方法
    `export_system_service\src\test\java\com\xgf\service\company\TestCompanyService.java`

//测试save保存添加
        @Test
        public void test02(){
            //1. 将表单数据通过companyService正确写入到数据库（全参构造器）,id有UUID随机产生
            // public Company(String id, String name, Date expirationDate, String address, String licenseId, String representative, String phone, String companySize, String industry, String remarks, Integer state, Double balance, String city) //构造器
            Company company = new Company(null,"test02",new Date(),"address1","licenseId","representative","phone","companySize","industry","remarks",0,100.0,"city");
            //保存
            companyService.saveCompany(company);
        }

1.  `export_system_service`子工程service接口和实现类
    `ICompanyService`

void saveCompany(Company company);

`CompanyServiceImpl`，通过UUID来生成id

@Override
        public void saveCompany(Company company) {
            //当前数据库的id不是自增长的。
            //id类似于af4acb2e-c227-44bb-a3e8-3b64237d0ad4 生成uuid 全球唯一
            String id = UUID.randomUUID().toString();
            company.setId(id);
            companyDao.save(company);
        }

1.  `export_dao`子工程dao接口及其映射

`ICompanyDao`

void save(Company company);

`ICompanyDao.xml`

<insert id="save" parameterType="company">
                insert into ss_company
                (
                id              ,
                name            ,
                expiration_date ,
                address         ,
                license_id      ,
                representative  ,
                phone           ,
                company_size    ,
                industry        ,
                remarks         ,
                state           ,
                balance         ,
                city
                )
                values
                (
                #{id              },
                #{name            },
                #{expirationDate  },
                #{address         },
                #{licenseId       },
                #{representative  },
                #{phone           },
                #{companySize    },
                #{industry        },
                #{remarks         },
                #{state           },
                #{balance         },
                #{city}
                )
        </insert>

1.  测试增加save方法，添加成功
    运行结果：

> Parameters: e5183d55-dd66-4974-b377-b469cfe39851(String), test02(String), 2020-10-29 17:21:42.222(Timestamp), address1(String), licenseId(String), representative(String), phone(String), companySize(String), industry(String), remarks(String), 0(Integer), 100.0(Double), city(String)
> Updates: 1
> ![在这里插入图片描述][2020102917225960.png_pic_center]

1.  `export_web_manager`子工程编写controller

`CompanyController`

//${path}/company/add 技巧1：表单的name值对应实体类的变量名
        @RequestMapping(path="/add",method = RequestMethod.POST)
        public String add(Company company){
            l.info("add company="+company);
            companyService.saveCompany(company);
            return "redirect:/company/toList";//跳转到列表页面
        }


        //打开添加页面，点击跳转添加页面显示在指定的iframe上
        @RequestMapping(path="/toAdd",method = RequestMethod.GET)
        public String toAdd(){
            return "company/company-add";
        }

`company-add.jsp`页面参数name需要和类的属性名称一致（自动绑定）

<div class="panel panel-default">
                <div class="panel-heading">企业信息</div>
                <form id="editForm" action="${path}/company/add" method="post">
                    <input type="hidden" name="id" value="${company.id}">
                    <div class="row data-type" style="margin: 0px">
                        <div class="col-md-2 title">企业名称</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="企业名称" name="name" value="${company.name}">
                        </div>

                        <div class="col-md-2 title">营业执照</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="营业执照" name="licenseId" value="${company.licenseId}">
                        </div>

                        <div class="col-md-2 title">所在城市</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="所在地" name="city" value="${company.city}">
                        </div>

                        <div class="col-md-2 title">企业地址</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="企业地址" name="address" value="${company.address}">
                        </div>

                        <div class="col-md-2 title">法人代表</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="法人代表" name="representative" value="${company.representative}">
                        </div>

                        <div class="col-md-2 title">联系电话</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="联系电话" name="phone" value="${company.phone}">
                        </div>

                        <div class="col-md-2 title">公司规模</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="公司规模" name="companySize" value="${company.companySize}">
                        </div>

                        <div class="col-md-2 title">所属行业</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="所属行业" name="industry" value="${company.industry}">
                        </div>
                        <div class="col-md-2 title">状态</div>
                        <div class="col-md-4 data">
                            <select class="form-control select2" name="state" style="width: 100%;">
                                <option value="0" ${company.state==0 ? 'selected':''}>未审核</option>
                                <option value="1" ${company.state==1 ? 'selected':''}>已审核</option>
                            </select>
                            <input type="text" class="form-control" placeholder="状态" name="state" value="${company.state}">
                        </div>

                        <div class="col-md-2 title">余额</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="余额" name="balance" value="${company.balance}">
                        </div>

                        <div class="col-md-2 title rowHeight2x">备注</div>
                        <div class="col-md-10 data rowHeight2x">
                            <textarea class="form-control" rows="3" name="remarks">${company.remarks}</textarea>
                        </div>
                    </div>
                </form>
            </div>



            <div class="box-tools text-center">
                <button type="button" onclick='document.getElementById("editForm").submit()' class="btn bg-maroon">保存</button>
                <button type="button" class="btn bg-default" onclick="history.back(-1);">返回</button>
            </div>

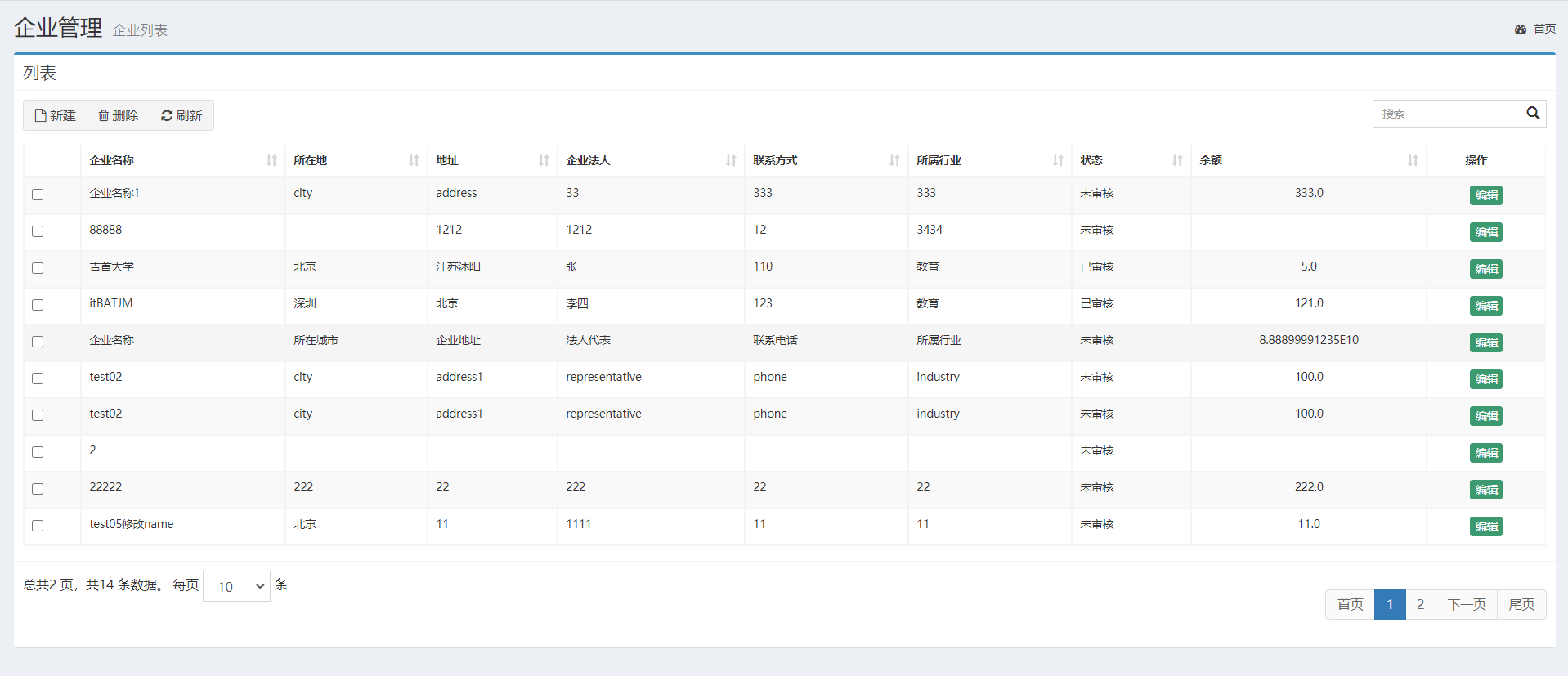

## 2. saas-export - 查询company ##

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 2]

1.  `export_system_service`子工程编写测试类编写测试查询方法

`TestCompanyService`

//测试查询所有
        @Test
        public void test01(){
            //1. 编写了业务逻辑的测试
            //ICompanyService companyService = new CompanyServiceImpl();
            List<Company> list = companyService.findAll();
            System.out.println(list);
        }

1.  `export_system_service`子工程service接口和实现类

`ICompanyService`

List<Company> findAll();

`CompanyServiceImpl`

@Autowired
        ICompanyDao companyDao;
        public List<Company> findAll() {
            return companyDao.findAll();
        }

1.  `export_dao`子工程dao接口及其映射

`ICompanyDao`

List<Company> findAll();

`ICompanyDao.xml`

<resultMap id="companyMap" type="company">
             <id column="id" property="id"/>
             <result column="expiration_date" property="expirationDate"/>
             <result column="license_id" property="licenseId"/>
             <result column="company_size" property="companySize"/>
        </resultMap>
        <select id="findAll" resultMap="companyMap">
            select
                *
            from ss_company
        </select>

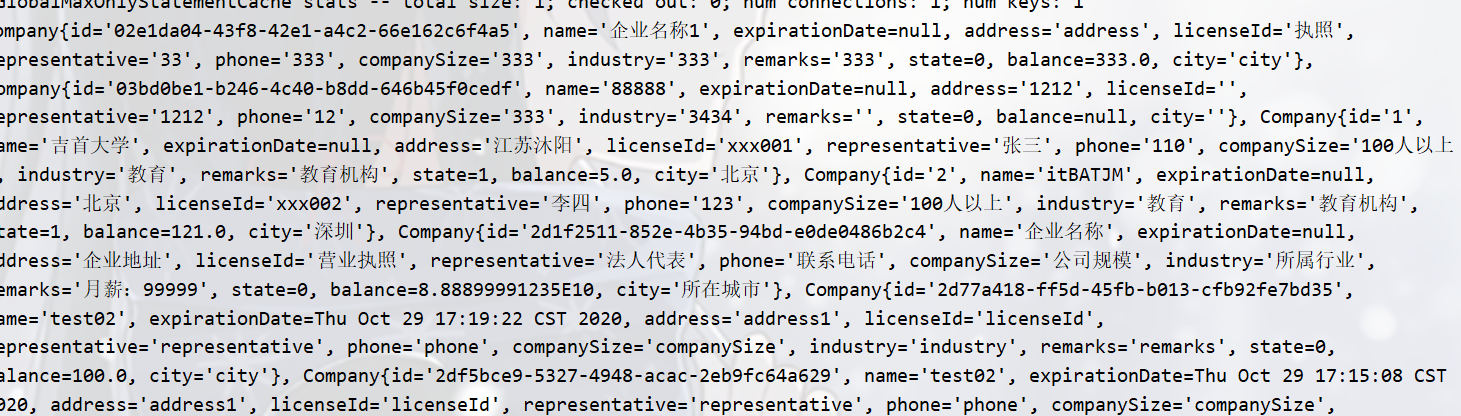

1.  测试增加findAll方法，查询成功
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 3]
2.  `export_web_manager`子工程编写controller

`CompanyController`

//查询 1 打开列表页面
        @RequestMapping(path="/toList",method = RequestMethod.GET)
        public String toList(Model model){
            //调service获取数据
            List<Company> list = iCompanyService.findAll();
            l.info("toList list="+list);
            model.addAttribute("list",list);
            //将数据发到页面，使用标签
            return "company/company-list";
        }

`company-list.jsp`使用foreach与el表达式来显示数据

<div class="table-box">


                        <div class="pull-left">
                            <div class="form-group form-inline">
                                <div class="btn-group">
                                    <button type="button" class="btn btn-default" title="新建" onclick='location.href="${path}/company/toAdd"'><i class="fa fa-file-o"></i> 新建</button>
                                    <button type="button" class="btn btn-default" title="删除" onclick='deleteById()'><i class="fa fa-trash-o"></i> 删除</button>
                                    <button type="button" class="btn btn-default" title="刷新" onclick="window.location.reload();"><i class="fa fa-refresh"></i> 刷新</button>
                                </div>
                            </div>
                        </div>
                        <div class="box-tools pull-right">
                            <div class="has-feedback">
                                <input type="text" class="form-control input-sm" placeholder="搜索">
                                <span class="glyphicon glyphicon-search form-control-feedback"></span>
                            </div>
                        </div>



                        <table id="dataList" class="table table-bordered table-striped table-hover dataTable">
                            <thead>
                            <tr>
                                <th class="" style="padding-right:0px;">

                                </th>
                                <th class="sorting">企业名称</th>
                                <th class="sorting">所在地</th>
                                <th class="sorting">地址</th>
                                <th class="sorting">企业法人</th>
                                <th class="sorting">联系方式</th>
                                <th class="sorting">所属行业</th>
                                <th class="sorting">状态</th>
                                <th class="sorting">余额</th>
                                <th class="text-center">操作</th>
                            </tr>
                            </thead>
                            <tbody>
                            <c:forEach items="${pi.list}" var="item">
                                <tr>
                                    <%-- 隐藏域 通过id进行更新删除数据 --%>
                                    <td><input name="ids" value="${item.id}" type="checkbox"></td>
                                    <td>
                                            ${item.name}
                                    </td>
                                    <td>${item.city}</td>
                                    <td>${item.address}</td>
                                    <td>${item.representative}</td>
                                    <td>${item.phone}</td>
                                    <td>${item.industry}</td>
                                    <td>${item.state ==0?'未审核':'已审核'}</td>
                                    <td class="text-center">${item.balance}</td>
                                    <td class="text-center">
                                        <button type="button" class="btn bg-olive btn-xs" onclick='location.href="${path}/company/toEdit?id=${item.id}"'>编辑</button>
                                    </td>
                                </tr>
                            </c:forEach>
                            </tbody>
                        </table>
                    </div>

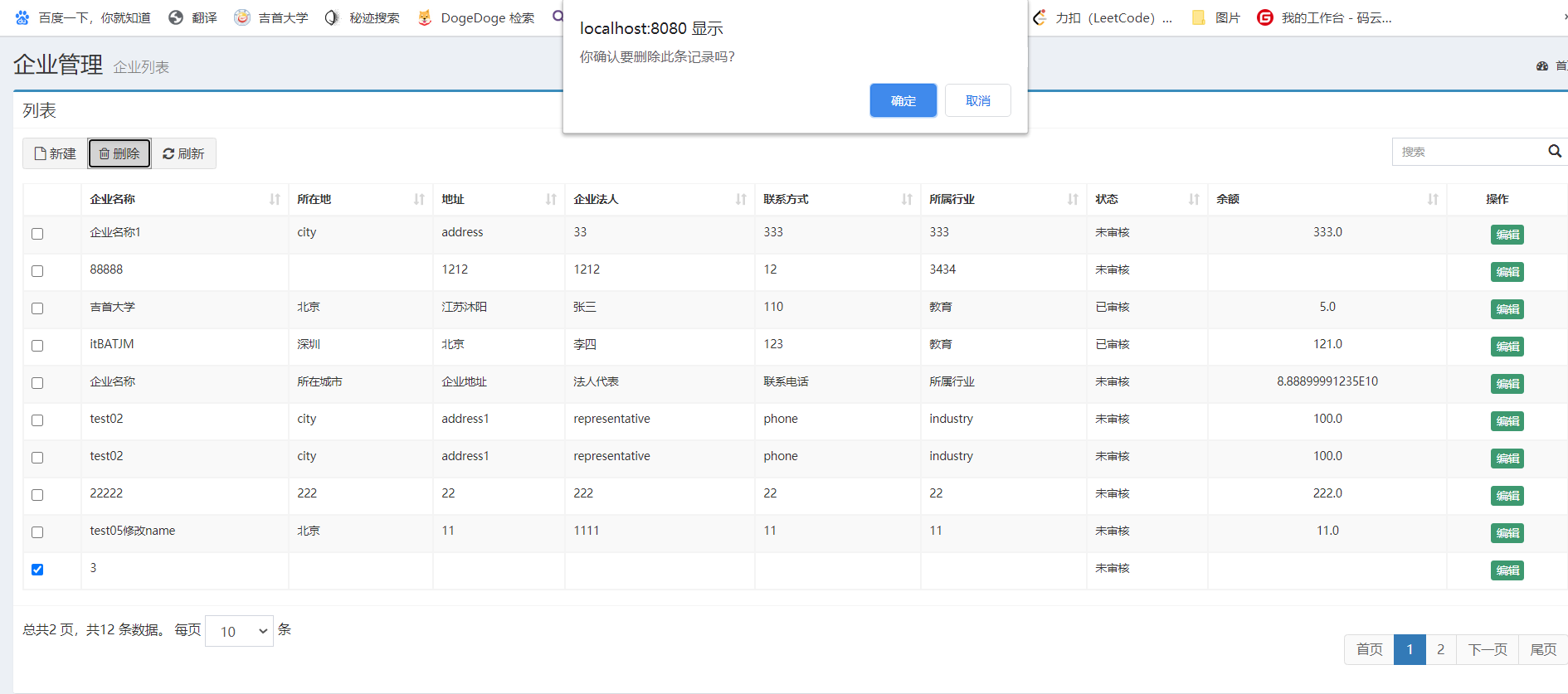

## 3. saas-export - 删除company ##

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 4]

1.  `export_system_service`子工程编写测试类编写测试删除方法

`TestCompanyService`

//测试按照UUID生成的id进行删除
        @Test
        public void test03(){
            //删除
            String id = "8ca554e3-0a46-4909-bbf9-ec6a84c17cd9";
            companyService.deleteById(id);
        }

1.  `export_system_service`子工程service接口和实现类

`ICompanyService`

void deleteById(String id);

`CompanyServiceImpl`

@Override
        public void deleteById(String id) {
            iCompanyDao.deleteById(id);
        }

1.  `export_dao`子工程dao接口及其映射

`ICompanyDao`

void deleteById(String id);

`ICompanyDao.xml`

<delete id="deleteById" parameterType="string">
            delete from ss_company where id = #{id}
        </delete>

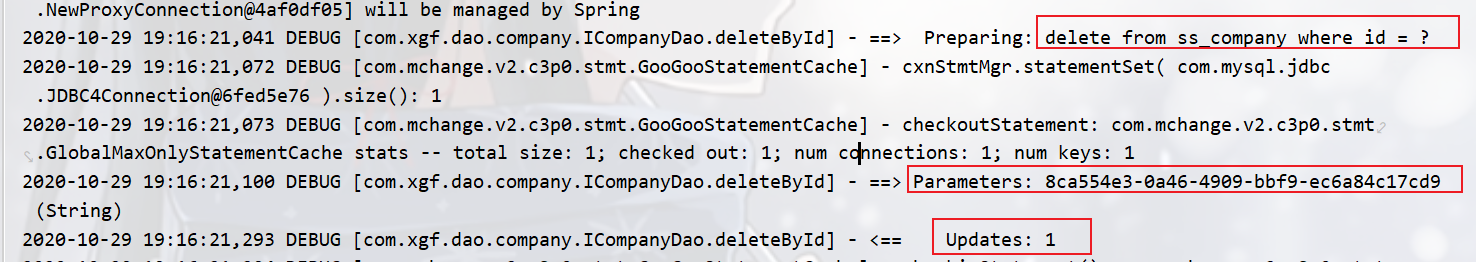

1.  测试增加delete方法，删除成功
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 5]
2.  `export_web_manager`子工程编写controller

`CompanyController`

//${path}/company/delete?id="+id
        @RequestMapping(path="/delete",method = RequestMethod.GET)
        public String delete(String id){
            l.info("delete id="+id);
            companyService.deleteById(id);
            return "redirect:/company/toList";//跳转到列表页面
        }

这里暂时只删除一个

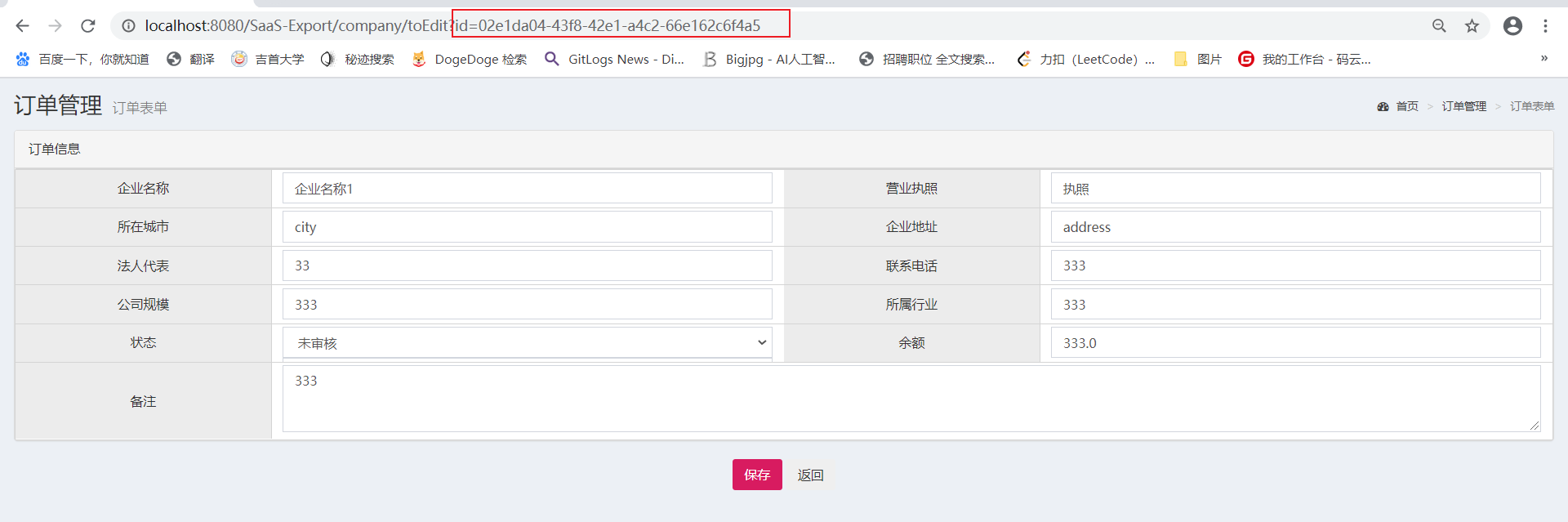

## 4. saas-export - 修改company 回显 ##

1.  `export_system_service`子工程编写测试类编写测试修改方法

`TestCompanyService`

//通过id修改更新数据
        @Test
        public void test05(){
            //
            String id = "7f2a7416-2ffc-4f8d-bb90-3e79f2b87170";

            //查询
            Company company = companyService.findById(id);
            l.info(company+"7f2a7416-2ffc-4f8d-bb90-3e79f2b87170");
            //模拟修改数据
            if(company != null){
                company.setCity("北京");
                company.setName("test05修改name");
                l.info(company+" ");
                //将修改后的数据保存到数据库
                companyService.updateCompany(company);
            }else {
                l.info("没有查询到指定id的company");
            }
        }

1.  `export_system_service`子工程service接口和实现类

`ICompanyService`

//修改查询
        Company findById(String id);
    	//更新数据
    	void updateCompany(Company company);

`CompanyServiceImpl`

@Override
        public Company findById(String id) {
            Company company = iCompanyDao.findById(id);
            return company;
        }

        @Override
        public void updateCompany(Company company) {
            //调用dao操作数据库
            iCompanyDao.update(company);
        }

1.  `export_dao`子工程dao接口及其映射

`ICompanyDao`

Company findById(String id);

        void update(Company company);

`ICompanyDao.xml`
修改需要先通过id查询，然后再进行修改

<select id="findById" parameterType="string" resultType="company">
            select
                id,
                name ,
                expiration_date as expirationDate ,
                address,
                license_id as licenseId  ,
                representative ,
                phone  ,
                company_size as companySize  ,
                industry  ,
                remarks ,
                state,
                balance ,
                city
            from ss_company
            where  id = #{id}
        </select>

        <update id="update" parameterType="company">
    	     update ss_company
    	        set name           = #{name           },
    	            expiration_date= #{expirationDate},
    	            address        = #{address        },
    	            license_id     = #{licenseId     },
    	            representative = #{representative },
    	            phone          = #{phone          },
    	            company_size   = #{companySize   },
    	            industry       = #{industry       },
    	            remarks        = #{remarks        },
    	            state          = #{state          },
    	            balance        = #{balance        },
    	            city           = #{city           }
    	    where id = #{id}
        </update>

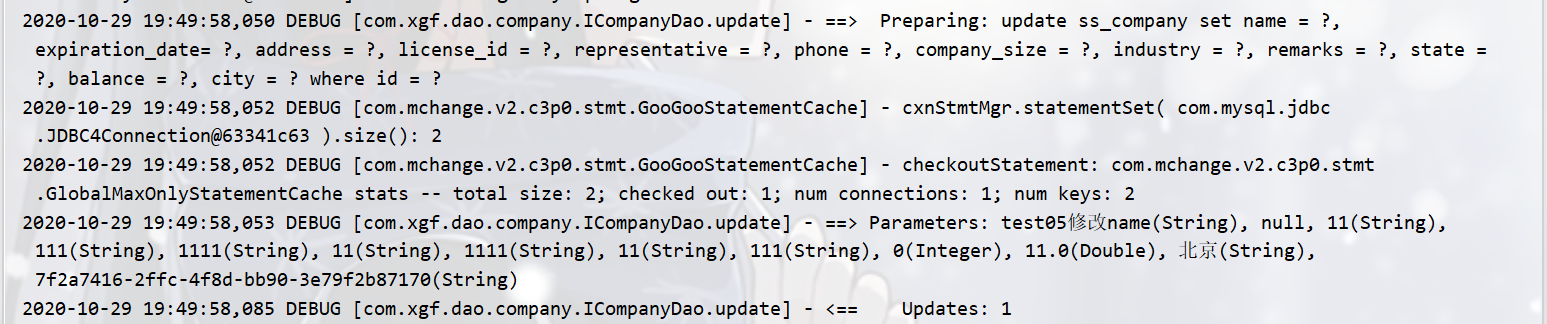

1.  测试增加update方法，修改信息成功
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 6]
2.  `export_web_manager`子工程编写controller

`CompanyController`
5.1 编写修改回显，点击修改跳转回显页面
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 7]

`company-update.jsp`

@RequestMapping(path="/toEdit",method = RequestMethod.GET)
        public String toEdit(){
            return "company/company-update";
        }

<div class="panel panel-default">
                <div class="panel-heading">企业信息</div>
                <form id="editForm" action="${path}/company/update" method="post">
                    <input type="hidden" name="id" value="${company.id}">
                    <div class="row data-type" style="margin: 0px">
                        <div class="col-md-2 title">企业名称</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="企业名称" name="name" value="${company.name}">
                        </div>

                        <div class="col-md-2 title">营业执照</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="营业执照" name="licenseId" value="${company.licenseId}">
                        </div>

                        <div class="col-md-2 title">所在城市</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="所在地" name="city" value="${company.city}">
                        </div>

                        <div class="col-md-2 title">企业地址</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="企业地址" name="address" value="${company.address}">
                        </div>

                        <div class="col-md-2 title">法人代表</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="法人代表" name="representative" value="${company.representative}">
                        </div>

                        <div class="col-md-2 title">联系电话</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="联系电话" name="phone" value="${company.phone}">
                        </div>

                        <div class="col-md-2 title">公司规模</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="公司规模" name="companySize" value="${company.companySize}">
                        </div>

                        <div class="col-md-2 title">所属行业</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="所属行业" name="industry" value="${company.industry}">
                        </div>
                        <div class="col-md-2 title">状态</div>
                        <div class="col-md-4 data">
                            <select class="form-control select2" name="state" style="width: 100%;">
                                <option value="0" ${company.state==0 ? 'selected':''}>未审核</option>
                                <option value="1" ${company.state==1 ? 'selected':''}>已审核</option>
                            </select>
                            <input type="text" class="form-control" placeholder="状态" name="state" value="${company.state}">
                        </div>

                        <div class="col-md-2 title">余额</div>
                        <div class="col-md-4 data">
                            <input type="text" class="form-control" placeholder="余额" name="balance" value="${company.balance}">
                        </div>

                        <div class="col-md-2 title rowHeight2x">备注</div>
                        <div class="col-md-10 data rowHeight2x">
                            <textarea class="form-control" rows="3" name="remarks">${company.remarks}</textarea>
                        </div>
                    </div>
                </form>
            </div>


            <div class="box-tools text-center">
                <button type="button" onclick='document.getElementById("editForm").submit()' class="btn bg-maroon">保存</button>
                <button type="button" class="btn bg-default" onclick="history.back(-1);">返回</button>
            </div>

5.2 更新company

`CompanyController`

//${path}/company/update.do
        @RequestMapping(path="/update",method = RequestMethod.POST)
        public String update(Company company){  //表单的参数名要与实体类的变量名一样。
            l.info("update company="+company);

            iCompanyService.updateCompany(company);

            return "redirect:/company/toList.do";//跳转到列表页面
        }

[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center]: /images/20221120/8d30c872f2f64a138b5631172911e00f.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 1]: https://img-blog.csdnimg.cn/20201029143618629.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0,size_16,color_FFFFFF,t_70#pic_center
[2020102917225960.png_pic_center]: https://img-blog.csdnimg.cn/2020102917225960.png#pic_center
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 2]: https://img-blog.csdnimg.cn/20201029173224341.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0,size_16,color_FFFFFF,t_70#pic_center
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 3]: https://img-blog.csdnimg.cn/20201029174334666.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0,size_16,color_FFFFFF,t_70#pic_center
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 4]: https://img-blog.csdnimg.cn/20201029192620715.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0,size_16,color_FFFFFF,t_70#pic_center
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 5]: https://img-blog.csdnimg.cn/20201029191735909.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0,size_16,color_FFFFFF,t_70#pic_center
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 6]: https://img-blog.csdnimg.cn/20201029195058347.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0,size_16,color_FFFFFF,t_70#pic_center
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0_size_16_color_FFFFFF_t_70_pic_center 7]: https://img-blog.csdnimg.cn/20201029195316933.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwNTQyNTM0,size_16,color_FFFFFF,t_70#pic_center
