#### 一、feature\_tracker总体流程图解 ####

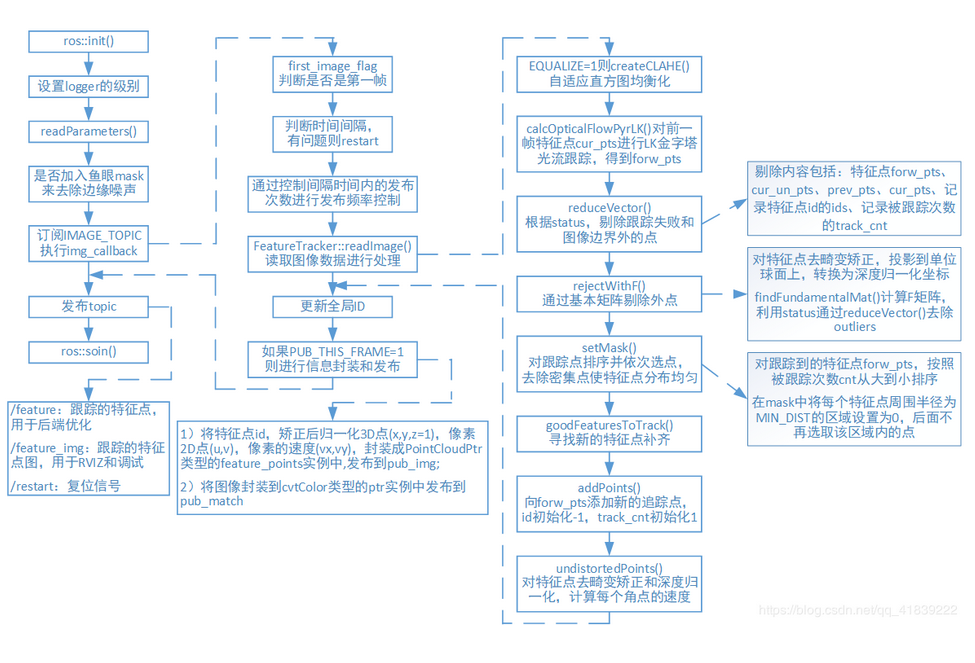

先给出一张feature\_tracker的总体流程图，让自己有一个全局意识。这张图真好，感谢原作者。基本这就是feature\_tracker这个node搞的事情啦！重点关注它，对! 就是它！
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODUwNDI3Ng_size_16_color_FFFFFF_t_70]图片转自：https://blog.csdn.net/qq\_41839222/article/details/85797156

#### 二、main()函数分析 ####

开始进入feature\_tracker–>src文件夹可以看到，里面的文件共6个，先看feature\_tracker\_node.cpp中的主函数main()

int main(int argc, char **argv)
    {
        //【1】初始化，设置句柄，设置logger级别
        ros::init(argc, argv, "feature_tracker");
        ros::NodeHandle n("~");
        ros::console::set_logger_level(ROSCONSOLE_DEFAULT_NAME, ros::console::levels::Info);

        //【2】从config-->euroc-->euroc_config.yaml文件中读取参数，包括话题，图像宽高,追踪的特征点数量等等
        readParameters(n);

        //【3】循环读取每个相机的内参
        for (int i = 0; i < NUM_OF_CAM; i++) //NUM_OF_CAM=1
            trackerData[i].readIntrinsicParameter(CAM_NAMES[i]);

        //【4】如果是鱼眼相机，添加mask去除边缘噪声
        if(FISHEYE)
        {
            for (int i = 0; i < NUM_OF_CAM; i++)
            {
                trackerData[i].fisheye_mask = cv::imread(FISHEYE_MASK, 0);
                if(!trackerData[i].fisheye_mask.data)
                {
                    ROS_INFO("load mask fail");
                    ROS_BREAK();
                }
                else
                    ROS_INFO("load mask success");
            }
        }

        //【5】订阅话题IMAGE_TOPIC(/cam0/image_raw)，执行回调函数img_callback
        ros::Subscriber sub_img = n.subscribe(IMAGE_TOPIC, 100, img_callback);//当订阅的topic有新的信息时，激活回调函数

        //【6】发布feature，实例feature_points，跟踪的特征点，给后端优化用
        //发布feature_img，实例ptr，跟踪的特征点图，给RVIZ用和调试用
        //发布restart
        pub_img = n.advertise<sensor_msgs::PointCloud>("feature", 1000);
        pub_match = n.advertise<sensor_msgs::Image>("feature_img",1000);
        pub_restart = n.advertise<std_msgs::Bool>("restart",1000);
        /*
        if (SHOW_TRACK)
            cv::namedWindow("vis", cv::WINDOW_NORMAL);
        */
        ros::spin();//ros::spin() 在调用后不会再返回，也就是主程序到这儿就不往下执行了
        return 0;
    }

上面每一步都给出了详细的注释，其中步骤【2】读取参数的函数readParameters()如下:

void readParameters(ros::NodeHandle &n)
    {
        std::string config_file;
        config_file = readParam<std::string>(n, "config_file");//ans-->config_file
        std::cout<<"config_file"<<config_file<<endl;//自己加的，为了查看config_file的具体值
        cv::FileStorage fsSettings(config_file, cv::FileStorage::READ);
        if(!fsSettings.isOpened())
        {
            std::cerr << "ERROR: Wrong path to settings" << std::endl;
        }
        std::string VINS_FOLDER_PATH = readParam<std::string>(n, "vins_folder");

        fsSettings["image_topic"] >> IMAGE_TOPIC; //image_topic: "/cam0/image_raw"
        fsSettings["imu_topic"] >> IMU_TOPIC; //imu_topic: "/imu0"
        MAX_CNT = fsSettings["max_cnt"];//tracking最大特征点数量150
        MIN_DIST = fsSettings["min_dist"];//两个特征点之间的最小距离30
        ROW = fsSettings["image_height"];//480
        COL = fsSettings["image_width"];//752
        FREQ = fsSettings["freq"];//publish tracking result 的频率,默认设置为10hz
        F_THRESHOLD = fsSettings["F_threshold"];//ransac threshold (pixel)值为1
        SHOW_TRACK = fsSettings["show_track"];//发布image topic 值为1
        EQUALIZE = fsSettings["equalize"];//if image is too dark or light, trun on equalize to find enough features,默认为1
        FISHEYE = fsSettings["fisheye"];//默认不用fisheye 默认值为0
        if (FISHEYE == 1)
            FISHEYE_MASK = VINS_FOLDER_PATH + "config/fisheye_mask.jpg";
        CAM_NAMES.push_back(config_file);//string类型的config_file push到CAM_NAMES vector中

        WINDOW_SIZE = 20;
        STEREO_TRACK = false;//如果双目 把这个参数改为true
        FOCAL_LENGTH = 460;
        PUB_THIS_FRAME = false;

        if (FREQ == 0)
            FREQ = 100;

        fsSettings.release();


    }

代码中涉及到的变量基本根据变量名理解即可。
步骤【3】读取相机内参，根据config\_file文件中model\_type的值决定采用何种相机模型，并创建相应模型的对象指针，读取文件在camera\_models–>CameraFctory.cc文件中。

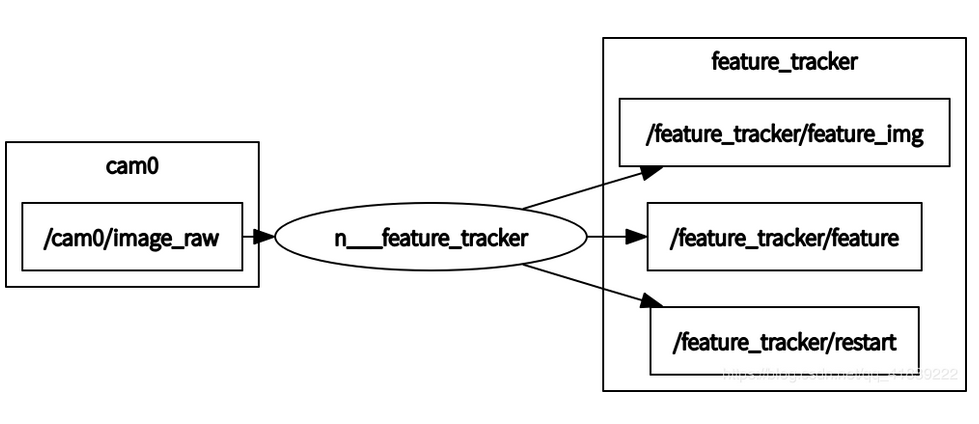

步骤【5】和【6】发布和订阅的topic图形表示如下：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODUwNDI3Ng_size_16_color_FFFFFF_t_70 1]在上一节给出的是整个算法中的所有nodes和topics，这里就单独把feature\_tracker这个node和相关的topic拿出来了。

#### 三、img\_callback()回调函数 ####

接下来看img\_callback()回调函数：

void img_callback(const sensor_msgs::ImageConstPtr &img_msg)
    {
        //[1]判断是否是第一帧
        if(first_image_flag)//首先是true
        {
            first_image_flag = false;
            first_image_time = img_msg->header.stamp.toSec();
            last_image_time = img_msg->header.stamp.toSec();
            return;
        }
        //[2] 判断时间间隔是否正确，有问题则restart
        if (img_msg->header.stamp.toSec() - last_image_time > 1.0 || img_msg->header.stamp.toSec() < last_image_time)
        {
            ROS_WARN("image discontinue! reset the feature tracker!");
            first_image_flag = true;
            last_image_time = 0;
            pub_count = 1;
            std_msgs::Bool restart_flag;
            restart_flag.data = true;
            pub_restart.publish(restart_flag);
            return;
        }
        last_image_time = img_msg->header.stamp.toSec();

        //[3] 发布频率控制，并不是每读入一帧图像，就要发布特征点，通过判断间隔时间内的发布次数
        if (round(1.0 * pub_count / (img_msg->header.stamp.toSec() - first_image_time)) <= FREQ)//FREQ=10hz
        {
            PUB_THIS_FRAME = true;
            // reset the frequency control,pub_count=1  时间间隔内的发布频率十分接近设定频率时，更新时间间隔起始时刻，并将数据发布次数置0
            if (abs(1.0 * pub_count / (img_msg->header.stamp.toSec() - first_image_time) - FREQ) < 0.01 * FREQ)
            {
                first_image_time = img_msg->header.stamp.toSec();
                pub_count = 0;
            }
        }
        else
            PUB_THIS_FRAME = false;

        //[4]将图像编码8UC1转换为mono8
        cv_bridge::CvImageConstPtr ptr;
        if (img_msg->encoding == "8UC1")
        {
            sensor_msgs::Image img;
            img.header = img_msg->header;
            img.height = img_msg->height;
            img.width = img_msg->width;
            img.is_bigendian = img_msg->is_bigendian;
            img.step = img_msg->step;
            img.data = img_msg->data;
            img.encoding = "mono8";
            ptr = cv_bridge::toCvCopy(img, sensor_msgs::image_encodings::MONO8);
        }
        else
            ptr = cv_bridge::toCvCopy(img_msg, sensor_msgs::image_encodings::MONO8);

        cv::Mat show_img = ptr->image;


        TicToc t_r;
        for (int i = 0; i < NUM_OF_CAM; i++)  //NUM_OF_CAM默认为1
        {
            ROS_DEBUG("processing camera %d", i);
            //[5]单目时：FeatureTracker::readImage() 函数读取图像数据进行处理
            if (i != 1 || !STEREO_TRACK) //STEREO_TRACK默认为false
                trackerData[i].readImage(ptr->image.rowRange(ROW * i, ROW * (i + 1)), img_msg->header.stamp.toSec());//ROW为图像的height
            else
            {
                if (EQUALIZE)//默认为1,均衡化
                {
                    cv::Ptr<cv::CLAHE> clahe = cv::createCLAHE();//直方图均衡化
                    clahe->apply(ptr->image.rowRange(ROW * i, ROW * (i + 1)), trackerData[i].cur_img);//cur_img是光流跟踪的前一帧的图像数据
                }
                else
                    trackerData[i].cur_img = ptr->image.rowRange(ROW * i, ROW * (i + 1));
            }

    #if SHOW_UNDISTORTION
            trackerData[i].showUndistortion("undistrotion_" + std::to_string(i));
    #endif
        }

        //【6】更新全局ID
        for (unsigned int i = 0;; i++)
        {
            bool completed = false;
            for (int j = 0; j < NUM_OF_CAM; j++)
                if (j != 1 || !STEREO_TRACK)
                    completed |= trackerData[j].updateID(i);
            if (!completed)
                break;
        }


    //[7]如果PUB_THIS_FRAME=1则进行发布
       if (PUB_THIS_FRAME)
       {
            //将特征点id，矫正后归一化平面的3D点(x,y,z=1)，像素2D点(u,v)，像素的速度(vx,vy)，封装成sensor_msgs::PointCloudPtr类型的feature_points实例中,发布到pub_img;
            pub_count++;
            sensor_msgs::PointCloudPtr feature_points(new sensor_msgs::PointCloud);
            sensor_msgs::ChannelFloat32 id_of_point;
            sensor_msgs::ChannelFloat32 u_of_point;
            sensor_msgs::ChannelFloat32 v_of_point;
            sensor_msgs::ChannelFloat32 velocity_x_of_point;
            sensor_msgs::ChannelFloat32 velocity_y_of_point;

            feature_points->header = img_msg->header;
            feature_points->header.frame_id = "world";

            vector<set<int>> hash_ids(NUM_OF_CAM);
            for (int i = 0; i < NUM_OF_CAM; i++)
            {
                auto &un_pts = trackerData[i].cur_un_pts;
                auto &cur_pts = trackerData[i].cur_pts;
                auto &ids = trackerData[i].ids;
                auto &pts_velocity = trackerData[i].pts_velocity;
                for (unsigned int j = 0; j < ids.size(); j++)
                {
                    if (trackerData[i].track_cnt[j] > 1)
                    {
                        int p_id = ids[j];
                        hash_ids[i].insert(p_id);
                        geometry_msgs::Point32 p;
                        p.x = un_pts[j].x;
                        p.y = un_pts[j].y;
                        p.z = 1;

                        feature_points->points.push_back(p);
                        id_of_point.values.push_back(p_id * NUM_OF_CAM + i);
                        u_of_point.values.push_back(cur_pts[j].x);
                        v_of_point.values.push_back(cur_pts[j].y);
                        velocity_x_of_point.values.push_back(pts_velocity[j].x);
                        velocity_y_of_point.values.push_back(pts_velocity[j].y);
                    }
                }
            }
            feature_points->channels.push_back(id_of_point);
            feature_points->channels.push_back(u_of_point);
            feature_points->channels.push_back(v_of_point);
            feature_points->channels.push_back(velocity_x_of_point);
            feature_points->channels.push_back(velocity_y_of_point);
            ROS_DEBUG("publish %f, at %f", feature_points->header.stamp.toSec(), ros::Time::now().toSec());
            // skip the first image; since no optical speed on frist image
            if (!init_pub)
            {
                init_pub = 1;
            }
            else
                pub_img.publish(feature_points);

           //将图像封装到cv_bridge::cvtColor类型的ptr实例中发布到pub_match;
            if (SHOW_TRACK)
            {
                ptr = cv_bridge::cvtColor(ptr, sensor_msgs::image_encodings::BGR8);
                //cv::Mat stereo_img(ROW * NUM_OF_CAM, COL, CV_8UC3);
                cv::Mat stereo_img = ptr->image;

                for (int i = 0; i < NUM_OF_CAM; i++)
                {
                    cv::Mat tmp_img = stereo_img.rowRange(i * ROW, (i + 1) * ROW);//Mat的rowRange和colRange函数可以获取某些范围内行或列的指针
                    cv::cvtColor(show_img, tmp_img, CV_GRAY2RGB);

                    for (unsigned int j = 0; j < trackerData[i].cur_pts.size(); j++)
                    {
                        double len = std::min(1.0, 1.0 * trackerData[i].track_cnt[j] / WINDOW_SIZE);
                        cv::circle(tmp_img, trackerData[i].cur_pts[j], 2, cv::Scalar(255 * (1 - len), 0, 255 * len), 2);
                        //draw speed line
                        /*
                        Vector2d tmp_cur_un_pts (trackerData[i].cur_un_pts[j].x, trackerData[i].cur_un_pts[j].y);
                        Vector2d tmp_pts_velocity (trackerData[i].pts_velocity[j].x, trackerData[i].pts_velocity[j].y);
                        Vector3d tmp_prev_un_pts;
                        tmp_prev_un_pts.head(2) = tmp_cur_un_pts - 0.10 * tmp_pts_velocity;
                        tmp_prev_un_pts.z() = 1;
                        Vector2d tmp_prev_uv;
                        trackerData[i].m_camera->spaceToPlane(tmp_prev_un_pts, tmp_prev_uv);
                        cv::line(tmp_img, trackerData[i].cur_pts[j], cv::Point2f(tmp_prev_uv.x(), tmp_prev_uv.y()), cv::Scalar(255 , 0, 0), 1 , 8, 0);
                        */
                        //char name[10];
                        //sprintf(name, "%d", trackerData[i].ids[j]);
                        //cv::putText(tmp_img, name, trackerData[i].cur_pts[j], cv::FONT_HERSHEY_SIMPLEX, 0.5, cv::Scalar(0, 0, 0));
                    }
                }
                //cv::imshow("vis", stereo_img);
                //cv::waitKey(5);
                pub_match.publish(ptr->toImageMsg());
            }
        }
        ROS_INFO("whole feature tracker processing costs: %f", t_r.toc());
    }

接下来剩下的内容就是feature\_track.h变量的认识以及feature\_track.cpp中几个主要函数的介绍，包括
void readImage(const cv::Mat &\_img,double \_cur\_time)，void rejectWithF()等函数。下一节再见吧，朋友们！！！
