生产端可靠性投递

保证消息成功发出
保障MQ节点的成功接收
发送端收到MQ节点(Broker)确认应答
完善消息进行补偿机制

大厂处理方案

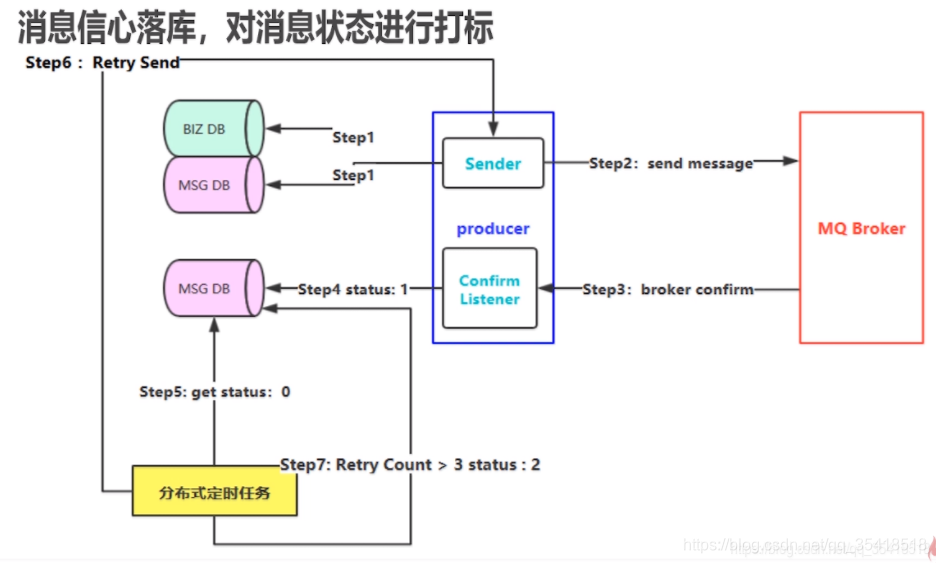

消息落库，对消息状态打标
消息延迟投递，做二次确认，回调检查

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM1NDE4NTE4_size_16_color_FFFFFF_t_70

冥等性概念

就是类似原子性，高并发下，不出现重复消费。

方案：乐观锁、唯一id+指纹锁机制，利用数据库去重、redis原子性

一般在消费端处理

Confirm 确认消息

消息投递后，如果Broker收到消息，则会给我们一个生产者应答。
channel.confirmSelect(); 开启确认消息
channel.addConfirmListener(new ConfirmListener() {}) 添加消息接收对象

(producer)

public static void main(String[] args) throws Exception {
        //1 创建ConnectionFactory
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");
        //2 获取C    onnection
        Connection connection = connectionFactory.newConnection();
        //3 通过Connection创建一个新的Channel
        Channel channel = connection.createChannel();
        //4 指定我们的消息投递模式: 消息的确认模式
        channel.confirmSelect();
        String exchangeName = "test_confirm_exchange";
        String routingKey = "confirm.save";
        //5 发送一条消息
        String msg = "Hello RabbitMQ Send confirm message!";
        channel.basicPublish(exchangeName, routingKey, null, msg.getBytes());
        //6 添加一个确认监听
        channel.addConfirmListener(new ConfirmListener() {
            @Override
            public void handleNack(long deliveryTag, boolean multiple) throws IOException {
                System.err.println("-------no ack!--返回失败---------");
            }
            @Override
            public void handleAck(long deliveryTag, boolean multiple) throws IOException {
                System.err.println("-------ack!---成功返回--------");
            }
        });
    }

Return 消息机制

Return Listener 用于处理一下不可路由的消息
如果发送的消息指定的 Exchange或者路由Key找不到，这种不可达的消息，需要Return Listener
Mandatory :如果设置成True才会接收不可达消息，false的话，那么broker会自动删除该消息！

(producer)

public static void main(String[] args) throws Exception {
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");
        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();
        String exchange = "test_return_exchange";
        String routingKey = "return.save";
        String msg = "Hello RabbitMQ Return Message";
        channel.addReturnListener(new ReturnListener() {
            @Override
            public void handleReturn(int replyCode, String replyText, String exchange,
                    String routingKey, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.err.println("---------handle  return----------");
                System.err.println("replyCode: " + replyCode);
                System.err.println("replyText: " + replyText);
                System.err.println("exchange: " + exchange);
                System.err.println("routingKey: " + routingKey);
                System.err.println("properties: " + properties);
                System.err.println("body: " + new String(body));
            }
        });
        //这里的 true 就是 Mandatory
        channel.basicPublish(exchange, routingKeyError, true, null, msg.getBytes());
    }

自定义消费监听

消息接收类

public class MyConsumer extends DefaultConsumer {
    public MyConsumer(Channel channel) {
        super(channel);
    }
    @Override
    public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
        System.err.println("-----------consume message----------");
        System.err.println("consumerTag: " + consumerTag);
        System.err.println("envelope: " + envelope);
        System.err.println("properties: " + properties);
        System.err.println("body: " + new String(body));
    }
}

添加绑定(consumer)

public static void main(String[] args) throws Exception {
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");
        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();
        String exchangeName = "test_consumer_exchange";
        String routingKey = "consumer.#";
        String queueName = "test_consumer_queue";
        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, true, false, false, null);
        channel.queueBind(queueName, exchangeName, routingKey);
        channel.basicConsume(queueName, true, new MyConsumer(channel));
    }

消费限流

prefetchSize:0
prefetchCount : 消费者接收消息上限，一旦有N个消息还没ack(处理完成)，该consumer将block(阻塞)掉，直到有ack
global : 是否将上面设置应用于channel。就是上面限制是channel级别还是consumer级别

prefetchSize 和 global这两个，rabbitmq没实现。prefetchCount 在 no_ask=false情况下生效，自动应答的情况下，这两个值不生效的。

public class MyConsumer extends DefaultConsumer {

private Channel channel ;
public MyConsumer(Channel channel) {
    super(channel);
    this.channel = channel;
}
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
    System.err.println("-----------consume message----------");
    System.err.println("consumerTag: " + consumerTag);
    System.err.println("envelope: " + envelope);
    System.err.println("properties: " + properties);
    System.err.println("body: " + new String(body));
    //手动ack ,false不支持多条签收
    channel.basicAck(envelope.getDeliveryTag(), false);
}

}

添加绑定(consumer)

public static void main(String[] args) throws Exception {
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");
        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();
        String exchangeName = "test_qos_exchange";
        String queueName = "test_qos_queue";
        String routingKey = "qos.#";
        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, true, false, false, null);
        channel.queueBind(queueName, exchangeName, routingKey);
        //1 限流方式  第一件事就是 autoAck设置为 false
        //一次只接受1条消息
        channel.basicQos(0, 1, false);
        //关闭自动签收
        channel.basicConsume(queueName, false, new MyConsumer(channel));
    }

消费端ACK与重回队列

消费端重回队列是为了对没有处理成功的消息，把消息传递给Broker!

实际应用中，一般都会关闭重回队列。设置成false

添加绑定(consumer)

// 手工签收必须要关闭 autoAck = false

    channel.basicConsume(queueName, false, new MyConsumer(channel));

public class MyConsumer extends DefaultConsumer {

private Channel channel ;
public MyConsumer(Channel channel) {
    super(channel);
    this.channel = channel;
}
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
    System.err.println("-----------consume message----------");
    System.err.println("body: " + new String(body));
    try {
        Thread.sleep(2000);
    } catch (InterruptedException e) {
        e.printStackTrace();
    }
    if((Integer)properties.getHeaders().get("num") == 0) {
        //第一个false 是否支持多条签收，第二个true是否重回队列
        channel.basicNack(envelope.getDeliveryTag(), false, true);
    } else {
        channel.basicAck(envelope.getDeliveryTag(), false);
    }
}

}

TTL队列/消息

就是队列/消息的生命周期
设置最大数量和过期时间

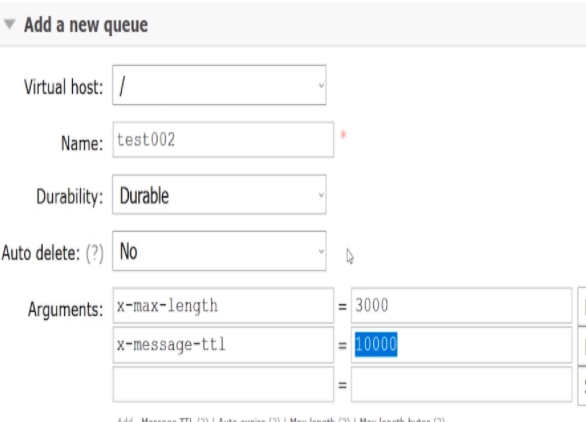

Arguments 设置queue

x-max-length 3000 （最大长度3000)
x-message-ttl 1000 (过期时间10秒)

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM1NDE4NTE4_size_16_color_FFFFFF_t_70 1

(producer)

public static void main(String[] args) throws Exception {
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");
        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();
        String exchange = "test_dlx_exchange";
        String routingKey = "dlx.save";
        String msg = "Hello RabbitMQ DLX Message";
        for(int i =0; i<1; i ++){
            AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder()
                    .deliveryMode(2)
                    .contentEncoding("UTF-8")
                    .expiration("10000")//过期时间
                    .build();
            channel.basicPublish(exchange, routingKey, true, properties, msg.getBytes());
        }
    }

死信队列

DLX,Dead-Letter-Exchange
当消息在一个队列中变成死信之后，他会被重新publish到另一个Exchange,这个Exchange就是DLX
变成死信队列的几种情况
- 消息被拒绝（basic.reject/basic.nack）并且requeue=false (手动签收)
- TTL过期
- 队列达到最大长度
设置死信队列
- 就是绑定一个死信队列
- Exchange: dlx.exchange
- Queue: dlx.queue
- RoutingKey: #
- arguments.put(“x-dead-letter-exchange”,”dlx.exchange”) 其实上面名称都可以随便取，只要这里绑定对应交换机就行。

(consumer)

public static void main(String[] args) throws Exception {
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");
        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();
        // 这就是一个普通的交换机 和 队列 以及路由
        String exchangeName = "test_dlx_exchange";
        String routingKey = "dlx.#";
        String queueName = "test_dlx_queue";
        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        Map<String, Object> agruments = new HashMap<String, Object>();
        agruments.put("x-dead-letter-exchange", "dlx.exchange");
        //这个agruments属性，要设置到声明队列上
        channel.queueDeclare(queueName, true, false, false, agruments);
        channel.queueBind(queueName, exchangeName, routingKey);
        //要进行死信队列的声明:
        channel.exchangeDeclare("dlx.exchange", "topic", true, false, null);
        channel.queueDeclare("dlx.queue", true, false, false, null);
        channel.queueBind("dlx.queue", "dlx.exchange", "#");
        channel.basicConsume(queueName, true, new MyConsumer(channel));
    }
