基于LivePlayer的录像回放页面

太过爱你忘了你带给我的痛 2023-07-17 06:57 91阅读 0赞

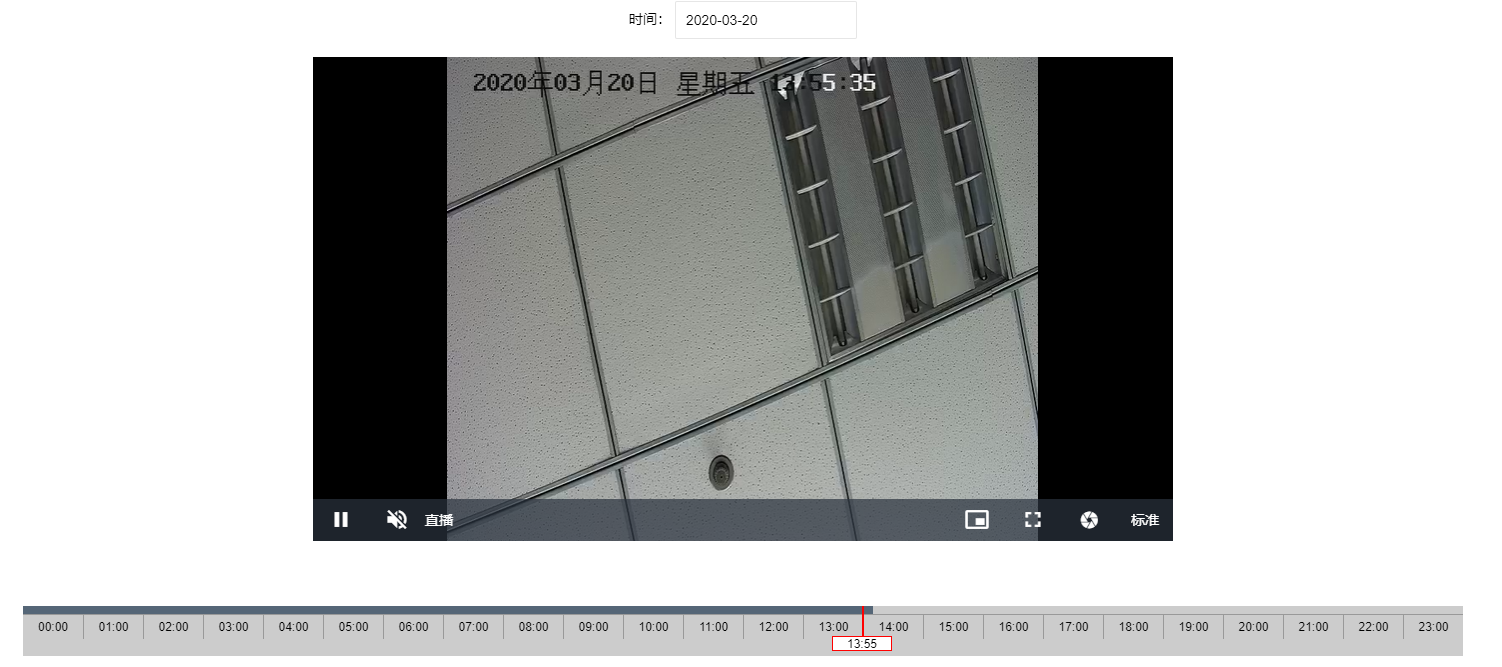

在视频播放中，少不了录像回放功能。其回放功能进行接口调用暂且不谈，主要记录下包含回放条的录像回放页面。

html

  1. <!DOCTYPE html>
  2. <html>
  3.     <head>
  4.         <meta charset="utf-8">
  5.         <title>录像回放窗口</title>
  6.         <link href="../../layui/css/layui.css" rel="stylesheet" />
  7.         <link href="../css/timeRule.css" rel="stylesheet" />
  8.         <style>
  9.             html,body{
  10.                 height: 100%;
  11.                 width: 100%;
  12.             }
  13.             .page {
  14.                 height: 100%;
  15.                 width: 100%;
  16.             }
  17.             .header {
  18.                 height: 15%;
  19.                 text-align: center;
  20.             }
  21.             .content {
  22.                 height: 70%;
  23.             }
  24.             .footer {
  25.                 height: 15%;
  26.             }
  27.         </style>
  28.     </head>
  29.     <body>
  30.         <div class="page" id="videoTape">
  31.             <div class="layui-row header">
  32.                 <blockquote class="layui-elem-quote">{
  33.    {cameraData.address}} {
  34.    {cameraData.name}}( {
  35.    {cameraData.main_channel}} )</blockquote>
  36.                 <div class="layui-row" style="text-align: center;">
  37.                     时间：
  38.                     <div class="layui-input-inline">
  39.                         <input class="layui-input" id="dateTime" type="text" placeholder="yyyy-MM-dd">
  40.                     </div>
  41.                 </div>
  42.             </div>
  43.             <div class="layui-row content">
  44.                 <div style="width:50%; padding-left: 25%;">
  45.                     <live-player id="livePalyer" live muted :video-url="videoUrl">
  46.                     </live-player>
  47.                 </div>
  48.             </div>
  49.             <div class="footer">
  50.                 <div class="time-rule box-div">
  51.                     <div class="time-day box-div" ref="day" :style="{ left: timeDayX + 'px'}">
  52.                         <div class="box-div" :class="['time-minute', minuteActiveClass((n - 1)*minutesPerUnit)]" :style="{width: minutesPerUnit + 'px'}" :title="minuteTitle((n - 1)*minutesPerUnit)"
  53.                             v-for="n in (1440/minutesPerUnit)" :key="n" @click.prevent="clickMinute((n-1)*minutesPerUnit)"></div>
  54.                         <div class="box-div" :class="[ k==1 ? 'time-text-first' : 'time-text']" v-for="k in 24">{
  55.    {hourText(k - 1)}}</div>
  56.                     </div>
  57.                     <div class="time-cursor box-div" :style="{ left: timeCursorX + 'px'}" ref="cursor">
  58.                         <div class="time-cursor-text box-div">{
  59.    {timeCursorText}}</div>
  60.                     </div>
  61.                 </div>
  62.             </div>
  63.         </div>
  64.         <script type="text/javascript" src="../../js/lib/jquery/jquery.min.js"></script>
  65.         <script type="text/javascript" src="../../layui/layui.js"></script>
  66.         <script type="text/javascript" src="../../js/lib/vue/vue.js"></script>
  67.         <script type="text/javascript" src="../../video/livePlayer/liveplayer-element.min.js"></script>
  68.         <script type="text/javascript" src="../../video/js/lib/moment.min.js"></script>
  69.         <script type="text/javascript" src="../../js/common/common.js"></script>
  70.         <script type="text/javascript" src="../../video/js/common/liveCommon.js"></script>
  71.         <script type="text/javascript" src="../../video/js/videotapeWin.js"></script>
  72.     </body>
  74. </html>

js

  1. /**
  2.  * 录像回放窗口
  3.  * @author chenbin
  4.  *
  5.  */
  6. var cameraData = url.getUrlParms("record");
  7. cameraData = JSON.parse(cameraData);
  9. var startDate = new Date(); //开始时间
  10. startDate.setHours(0);
  11. startDate.setMinutes(0);
  12. startDate.setSeconds(0);
  13. var endDate = new Date(); //结束时间
  15. var vm = new Vue({
  16.     el: "#videoTape",
  17.     data: {
  18.         cameraData: cameraData,
  19.         timerange: [
  20.             startDate,
  21.             endDate
  22.         ],
  23.         videos: [],
  24.         video: null,
  25.         videoUrl: "",
  26.         streamID: "",
  27.         day:Format.dateFormat(new Date(),"YYYY/MM/DD"),
  28.         timeCursorX: 0,
  29.         timeDayX: 0,
  30.         bMoving: false,
  31.         minutesArr:[],
  32.         minutesPerUnit: 5
  33.     },
  34.     watch: {
  35.         videos: function(val) {
  36.             this.triggerTimeChange();
  37.         },
  38.         video: function(newVal, oldVal) {
  39.             if (newVal && newVal != oldVal) {
  40.                 this.startPlayback();
  41.             } else {
  42.                 this.stopPlayback();
  43.             }
  44.         },
  45.         day:function(newVal, oldVal){
  46.             if(newVal != oldVal){
  47.                 var start = new Date(newVal);
  48.                 start.setHours(0);
  49.                 start.setMinutes(0);
  50.                 start.setSeconds(0);
  51.                 var end = new Date(newVal);
  52.                 end.setHours(23);
  53.                 end.setMinutes(59);
  54.                 end.setSeconds(59);
  55.                 this.timerange = [
  56.                   start,
  57.                   end
  58.                 ]
  59.                 this.getRecords(true);
  60.             }
  61.         },
  62.         minutesArr:function(val){
  63.             var today = new Date();
  64.             var day = new Date(this.day);
  65.             if(day.getDate() != today.getDate()){
  66.                 var time = 0;
  67.                 if(this.minutesArr.length>0){
  68.                     time = Math.min.apply(null, this.minutesArr) + 5;
  69.                 }
  70.                 this.timeCursorText = time;
  71.             }else{
  72.                 var h = today.getHours();
  73.                 var m = today.getMinutes();
  74.                 this.timeCursorText = h * 60 + m - 10;
  75.             }
  76.             this.triggerTimeChange();
  77.         }
  78.     },
  79.     mounted() { //加载完成后
  80.         let cursor = this.$refs.cursor;
  81.         let day = this.$refs.day;
  82.         let rule = this.$el;
  83.         let _this = this;
  85.         function moveCursor(e) {
  86.             let originPageX = $(cursor).data("originPageX");
  87.             let dx = e.pageX - originPageX;
  88.             _this.timeCursorX = $(cursor).position().left + dx;
  89.             $(cursor).data("originPageX", e.pageX);
  90.         }
  92.         function touchMoveCursor(e) {
  93.             let touch = e.originalEvent.targetTouches[0];
  94.             let originPageX = $(cursor).data("originPageX");
  95.             let dx = touch.pageX - originPageX;
  96.             _this.timeCursorX = $(cursor).position().left + dx;
  97.             $(cursor).data("originPageX", touch.pageX);
  98.         }
  100.         function moveDay(e) {
  101.             let originPageX = $(day).data("originPageX");
  102.             let dx = e.pageX - originPageX;
  103.             _this.timeDayX = $(day).position().left + dx;
  104.             $(day).data("originPageX", e.pageX);
  105.         }
  107.         function touchMoveDay(e) {
  108.             let touch = e.originalEvent.targetTouches[0];
  109.             let originPageX = $(day).data("originPageX");
  110.             let dx = touch.pageX - originPageX;
  111.             _this.timeDayX = $(day).position().left + dx;
  112.             $(day).data("originPageX", touch.pageX);
  113.         }
  114.         $(cursor).on("mousedown", function(e) {
  115.             $(cursor).data("originPageX", e.pageX);
  116.             _this.bMoving = true;
  117.             $(document).on("mousemove", moveCursor).one("mouseup", function(e) {
  118.                 $(document).off("mousemove", moveCursor);
  119.                 $(cursor).removeData("originPageX");
  120.                 _this.triggerTimeChange();
  121.                 _this.bMoving = false;
  122.             })
  123.         }).on("touchstart", function(e) {
  124.             let touch = e.originalEvent.targetTouches[0];
  125.             $(cursor).data("originPageX", touch.pageX);
  126.             _this.bMoving = true;
  127.             $(document).on("touchmove", touchMoveCursor).one("touchend", function(e) {
  128.                 $(document).off("touchmove", touchMoveCursor);
  129.                 $(cursor).removeData("originPageX");
  130.                 _this.triggerTimeChange();
  131.                 _this.bMoving = false;
  132.             })
  133.         })
  135.         $(day).on("mousedown", function(e) {
  136.             if ($(e.target).hasClass("time-minute")) {
  137.                 return false;
