使用idea通过wsdl完成访问WebService接口客户端代码

朱雀 2022-11-22 13:00 656阅读 0赞

**0.jar包**

<dependency>
                    <groupId>wsdl4j</groupId>
                <artifactId>wsdl4j</artifactId>
                <version>1.4</version>
            </dependency>

            <dependency>
                <groupId>org.apache.axis</groupId>
                <artifactId>axis</artifactId>
                <version>1.4</version>
            </dependency>

            <dependency>
                <groupId>javax.xml</groupId>
                <artifactId>jaxrpc</artifactId>
                <version>1.1</version>
            </dependency>

            <dependency>
                <groupId>javax.xml.soap</groupId>
                <artifactId>javax.xml.soap-api</artifactId>
                <version>1.4.0</version>
            </dependency>

            <dependency>
                <groupId>commons-discovery</groupId>
                <artifactId>commons-discovery</artifactId>
                <version>0.2</version>






            </dependency>

**注意：由于包commons-discovery与包commons-logging冲突，所以注释掉Spring中用到的commons-logging**

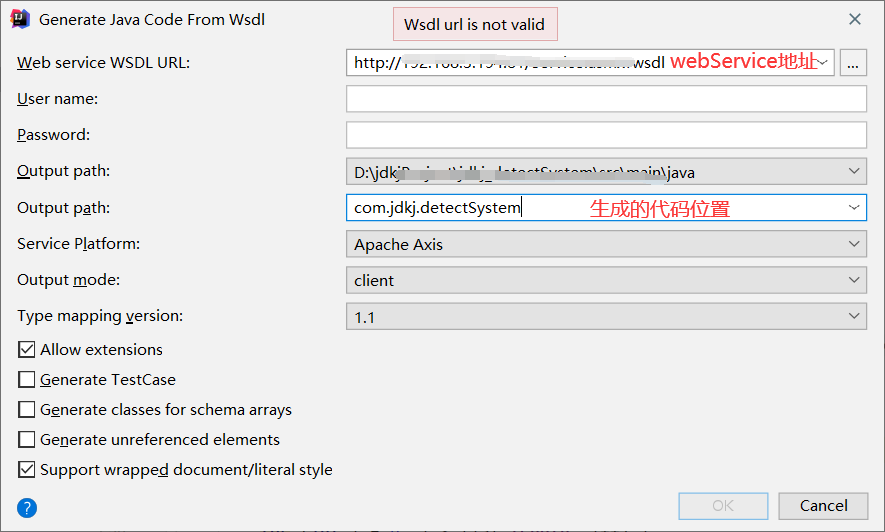

**1.打开idea的全局搜索（默认是双击shift键）**

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXFpYW5nOTE1_size_16_color_FFFFFF_t_70][]

![20201104170435419.png][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXFpYW5nOTE1_size_16_color_FFFFFF_t_70 1][]

![20201104171403578.png][]

获取接口实例及调用方法的代码如下：

JDKJService service = new JDKJServiceLocator();
    JDKJServiceSoapBindingStub webService = (JDKJServiceSoapBindingStub) service.getServiceSoap();

**几点说明：**

1.接口的调用可以写个工具类，之后再调用时直接获取即可。

2.webService服务的地址在以Locator结尾的类中，如果需要动态获取此地址而不是写死在代码中，可以给规定此地址的变量价格set方法，之后在实例化完成时给此变量重新赋值。示例如下：

ItemDO itemDO = "比如数据库获取地址值";
    JDKJServiceLocator service = new JDKJServiceLocator();
    service.setServiceSoap_address(address);
    service.setServiceSoap12_address(address);
    JDKJServiceSoapBindingStub webService = (JDKJServiceSoapBindingStub) service.getServiceSoap();
